What is an Edge Banding Machine?
An Edge Banding Machine, also commonly referred to as an Edge Bander, is a specialized piece of industrial equipment used in woodworking to apply edge banding material to the raw edges of wood-based panels. This process not only improves the aesthetic appeal of furniture and cabinetry but also protects the edges from moisture, wear, and damage. Edge banding machines are essential tools for manufacturers in the furniture, construction, and interior design industries, ensuring a seamless and professional finish on products like cabinets, tables, and shelves.
YIHAICNC, a leading factory supplier in the woodworking machinery industry, specializes in providing precision-engineered edge bander equipment for wholesale and industrial needs. With years of expertise as a trusted edge banding machine factory, YIHAICNC offers durable and efficient solutions tailored to meet the demands of clients worldwide. Whether you′re a furniture manufacturer or a large-scale woodworking enterprise, YIHAICNC ensures top-tier products backed by exceptional customer service and technical support.
Product Details:
Parameters
| Type | Edge Banding Machine |
| Brand | YIHAICNC |

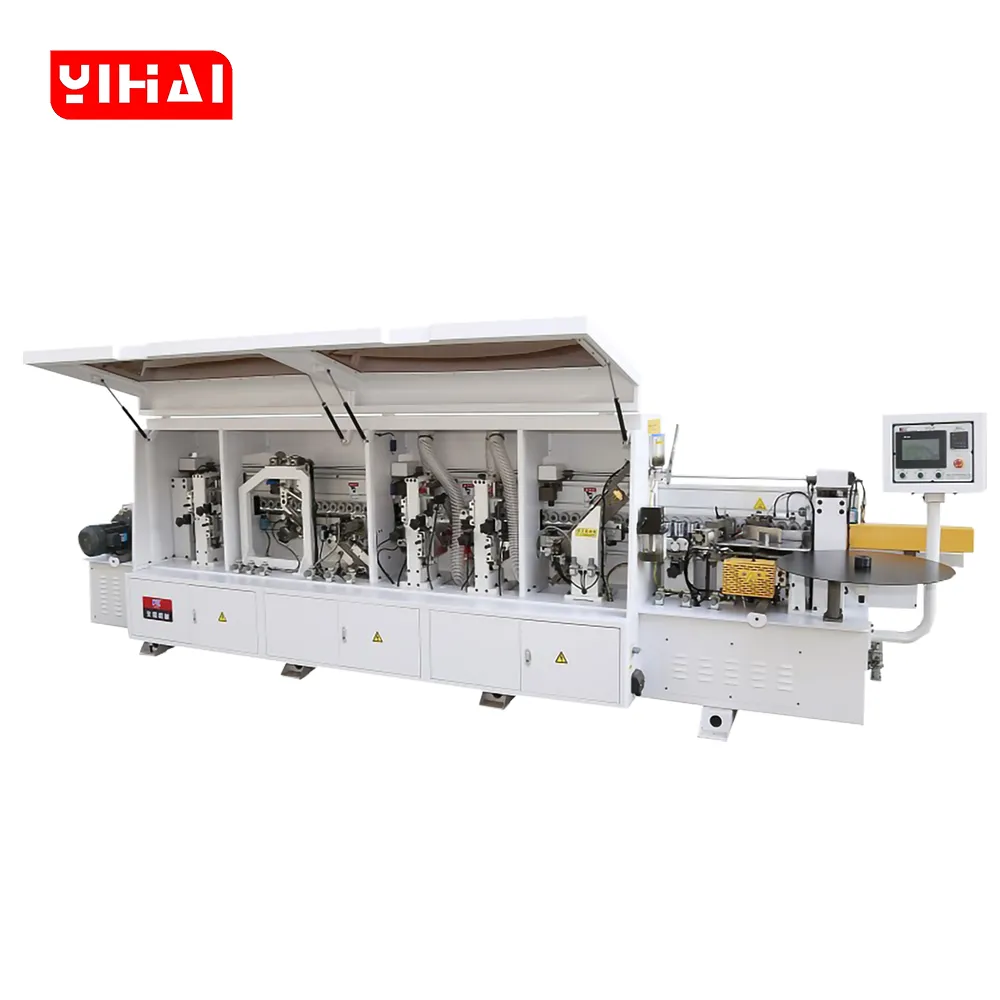

| Model | YH660 |
| Total power | 7KW(Customizable) |
| Dimension | 6600*1000*1600mm |
| Feed speed | 12m/min(Customizable) |
| Board Thickness | 10-55mm |
| Edge thickness | 0.4-3mm |
| Board width | ≥80mm |
| Board length | ≥120mm |
| Air Pressure | 0.6MPa |
| Weight | 1500kg |
| Thickness adjust | Automatic |
| Voltage | 380V 50hz/60hz |
| Functions | panel furniture edging |
| core components | Bearing, Motor, Pump, Gear, PLC, Other, Gearbox, Pressure vessel, Engine |
What are the characteristics of an edge banding machine?
The characteristics of an edge banding machine are primarily reflected in its automated, integrated, and sophisticated design:
1.Highly Automated and Continuous Operation
Edge banding machines typically utilize conveyor belts and an automatic feeding system. Once the sheet material is placed, all steps from gluing to polishing are automatically completed, enabling uninterrupted production and significantly reducing manual intervention.
2.Modular Functional Station Design
A standard edge banding machine consists of a series of sequentially arranged functional modules, each responsible for a specific process. Common modules include:
Pre-milling Station
This station is used to trim uneven sheet edges, ensuring a smooth bonded surface, achieving a better edge banding effect, and ensuring a smooth subsequent gluing process.
Gluing Station:
Solid PUR or EVA hot-melt adhesive is melted by heating and evenly applied to the edges of the panels, ensuring a secure bond between the panels and the edge banding.
Laminating and Cutting Station
A special machine structure presses the edge banding onto the panels and precisely cuts them.
Trimming Station
A high-speed milling cutter removes excess edge banding above and below the panels.
Fine Trimming Station
Further trimming is performed to ensure the edge banding is flush with the panel surface.
Scraping Station
To eliminate the ripple marks caused by cutting, an R-shaped drill bit is typically used to smooth the edges of the edge banding (R-angle) to improve the feel.
Polishing Station
A brush or cloth wheel is used to apply a final polish to the edges, achieving a brilliant finish.
3.Wide Material Compatibility
This machine can handle a variety of edge banding materials, including PVC, ABS, acrylic (PMMA), melamine, solid wood veneer, and laser-cut edge banding.
By switching between different adhesive types (such as EVA or PUR) and adjusting parameters, it can adapt to different materials and process requirements.
4.Precision Adjustment and Control System
Modern edge banding machines are typically equipped with CNC displays and servo motors, enabling precise control of all parameters, including temperature, pressure, feed rate, and trimming angle, ensuring stable and consistent processing results.
Summary:
Edge banding machines, with their high degree of automation and precision, offer significant advantages in improving quality, efficiency, consistency, and reducing costs. They are essential equipment in modern panel furniture manufacturing. For factories pursuing large-scale and high-quality production, investing in a high-quality edge banding machine is an essential choice.
Since its establishment, YIHAICNC has always prioritized customers and provided them with the highest quality service. Our edge banding machines utilize a fully servo motor drive combined with a CNC system, achieving high integration, high precision, powerful functionality, and easy operation. Choosing YIHAICNC as your partner will better assist you in your work and improve efficiency.
Application
Robert Miller –
Upgraded our shop with the YH660. The pre-milling and corner rounding functions are absolute game-changers for our cabinet doors. The EVA glue pot heats up quickly and applies the adhesive evenly without any mess. It has reduced our manual finishing time by at least 80%. Great industrial build.
Alex_Zhang –
Dear Robert, thank you for your wonderful feedback! We’re glad the YH660 has drastically improved your cabinet production efficiency. The pre-milling and corner rounding features are specifically designed to eliminate manual finishing, and we are thrilled the EVA gluing system is performing perfectly for you. We appreciate your business!
Dmitry Sokolov 🇷🇺 (Moscow, Russia) –
We purchased the YH660 automatic edge banding machine for our cabinet factory in Moscow three months ago, and it has completely transformed our production line. Before this, we were using a manual edge bander that was slow and inconsistent. The YH660 is a fully automated system—pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking, and buffing all in one continuous process. The 12m/min feed speed is impressive, and the 0.4-3mm edge thickness range covers all our needs. We’re processing panels from 10mm to 55mm thickness, and the automatic thickness adjustment saves us so much setup time. The finish quality is outstanding—seamless edges on every cabinet component. We’ve run over 5000 linear meters of edging in three months with zero issues. This machine has paid for itself already. Highly recommended for any serious furniture manufacturer!
Alex_Zhang –
Privet Dmitry! Thank you for the detailed review. 5000 linear meters in three months is outstanding throughput! The YH660’s fully automated workflow—from pre-milling to buffing—is exactly what we designed for production environments like yours. We’re glad the automatic thickness adjustment is saving you setup time. Thank you for trusting YIHAICNC!
David Tremblay –
Solid machine overall. The edge banding quality on MDF and plywood is excellent, and the PLC touchscreen interface is very intuitive to learn. However, the dust extraction hood around the buffing unit is a bit narrow, so we experienced a little more PVC tape dust buildup there than expected. We hooked up a stronger vacuum line to resolve it. Still, for the price and the edge quality, it’s a fantastic piece of equipment.
Alex_Zhang –
Hi David, thank you for the honest review! We are thrilled to hear you are satisfied with the edge banding quality and the intuitive touchscreen. We truly appreciate your professional feedback regarding the dust extraction hood near the buffing unit—I have already passed this valuable insight to our R&D team for future improvements. We are glad your stronger vacuum line resolved the issue, and we are always here if you need further support!
Marek Kowalski –
We process hundreds of melamine boards daily for custom closets. This automatic edge bander handles continuous, heavy-duty operation flawlessly. The end trimming is very precise, and the tape feeding mechanism rarely jams. Fast shipping and excellent remote setup support from the engineering team.
Alex_Zhang –
Hello Marek, thank you for the 5-star rating! The YH660 is built with heavy-duty components specifically for continuous operation, so it’s the perfect match for your busy custom closet factory. Precise end trimming is our standard. We are always here to provide remote technical support whenever you need it.
Hakan Demir 🇹🇷 (Ankara, Turkey) –
We’ve been using the YH660 edge banding machine in our Ankara furniture workshop for about five months now, and I’m genuinely impressed. The modular functional station design is brilliant—pre-milling ensures smooth edges before gluing, the gluing station applies PUR hot-melt adhesive evenly, and the laminating and cutting station works flawlessly. The end cutting and trimming stations produce perfectly flush edges every time. We produce kitchen cabinets, wardrobes, and office furniture, and the edge quality is consistent across all product lines. The 1500kg weight gives the machine excellent stability during operation. The 7KW total power is more than sufficient for our production volume. We previously used a European brand that cost three times as much—the YH660 delivers comparable quality at a fraction of the price. Excellent value for money!
Alex_Zhang –
Teşekkürler Hakan! We’re thrilled to hear the YH660 is delivering consistent quality for your Ankara workshop. The modular station design—pre-milling, gluing, cutting, trimming, buffing—is indeed what sets this machine apart from simpler edge banders. And you’re right about the value—we engineer our machines to compete with European quality at factory-direct prices. Thank you for your support!
