Description
I. Key Features & Highlights
Flagship 10-Spindle Mega Capacity for Massive Batch & Large-Format Production

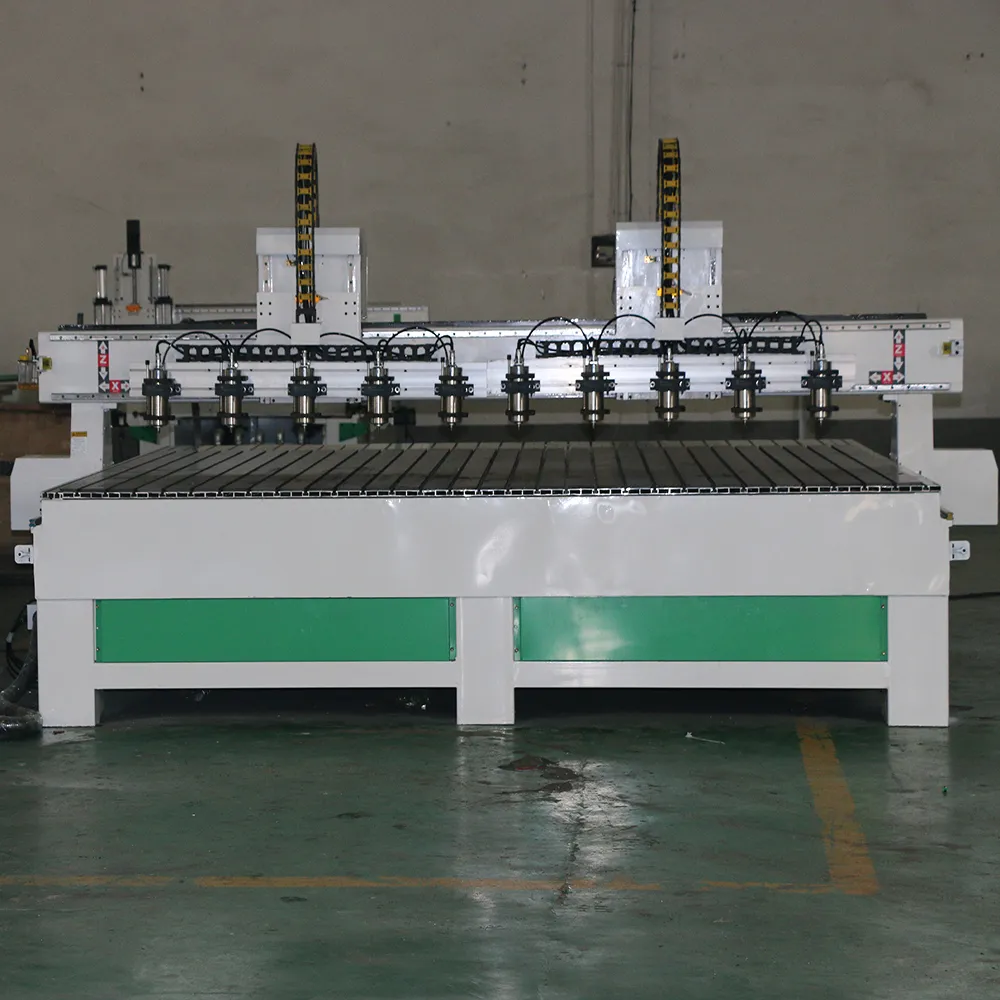

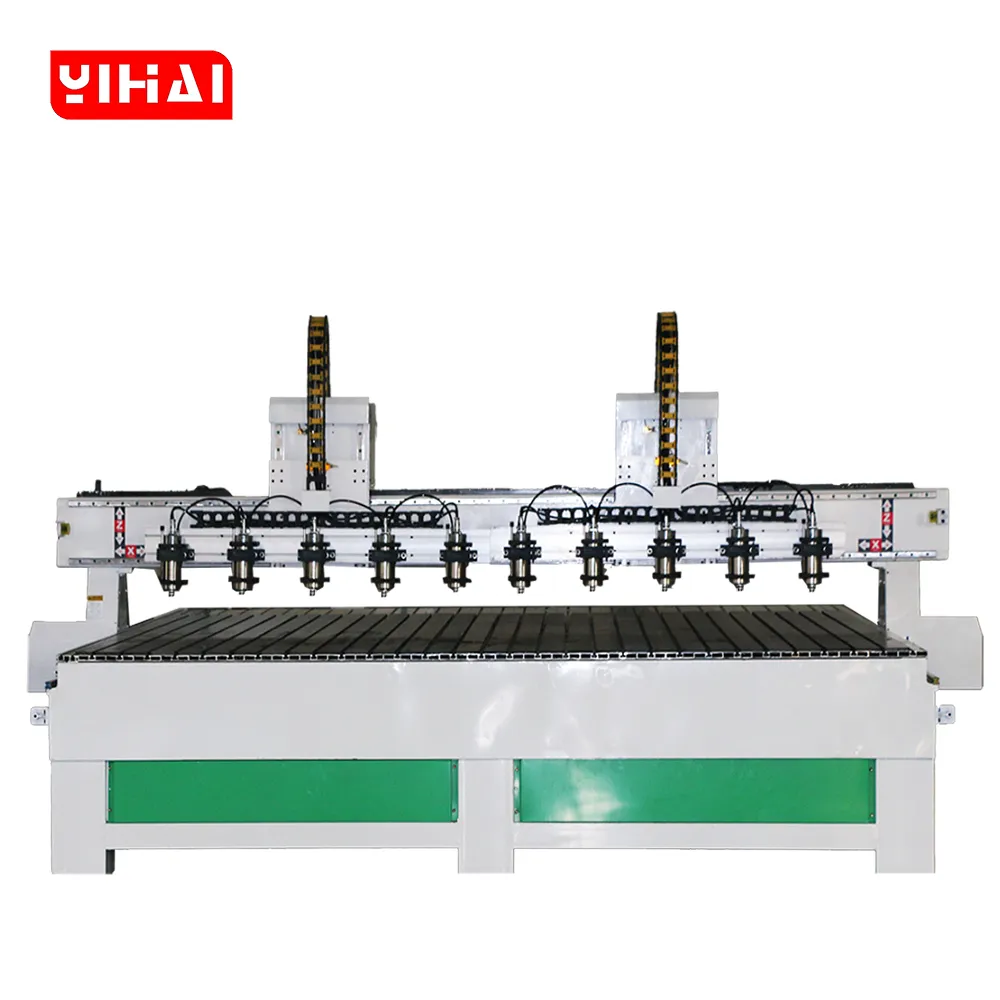

The YH3025 (2-Zone 10-Head Multi-Spindle) is an industrial powerhouse engineered for large sign corporations, architectural facade fabricators, and commercial display factories. Combining a massive 3000×2500mm (10′ x 8′) bed with ten high-speed spindles across two Z-axis groups, it delivers unmatched batch output.
- Tenfold Manufacturing Throughput: Ten synchronized water-cooled spindles machine ten identical components simultaneously, reducing production schedules from weeks to days.
- Dual 5-Head Z-Axis Flexibility (2×5): Controlled via two independent Z-axis drives, allowing two-stage tooling passes (such as drilling/hollowing with Group 1, perimeter profiling with Group 2) or split-table batching.
- Oversized 3.0m x 2.5m Worktable: Accommodates oversized architectural panels, multiple full-size 4×8 ft sheets loaded simultaneously, or massive nesting layouts without panel repositioning.
- Engineered Heavy-Duty Bridge Gantry: Reinforced structural steel tubular bed and wide gantry span are engineered to eliminate vibration and gantry deflection, maintaining strict 0.05mm repeatability.
- Centralized Electrical Cabinet: A standalone floor console isolates the high-capacity BEST inverters and heavy-duty Leadshine drivers for maximum electrical stability.
II. Technical Parameters
| Feature | Specification |
| Type | Advertise CNC Router |
| Brand | YIHAICNC |
| Model | YH3025 (2-Zone 10-Head Multi-Spindle) |
| Number of axes | 3 (Optional rotary axis Customizable) |
| Number of Spindles | 10 synchronized heads (2 Z-axes each control 5) |
| Total power | 22KW (10×2.2KW, Customizable) |
| X,Y,Z,Working Area | 3000*2500*200mm(Customizable) |
| Table size | 3500*3500*1600mm(Customizable) |
| Precision (mm) | 0.05 |
| Positioning accuracy(mm) | 0.02 |
| Frame | Steel structure lathe bed, aluminum T-slot table (green-white) |
| Repeatability | 0.05mm |
| Travel speed | 25m/min |
| Processing speed | 15m/min |

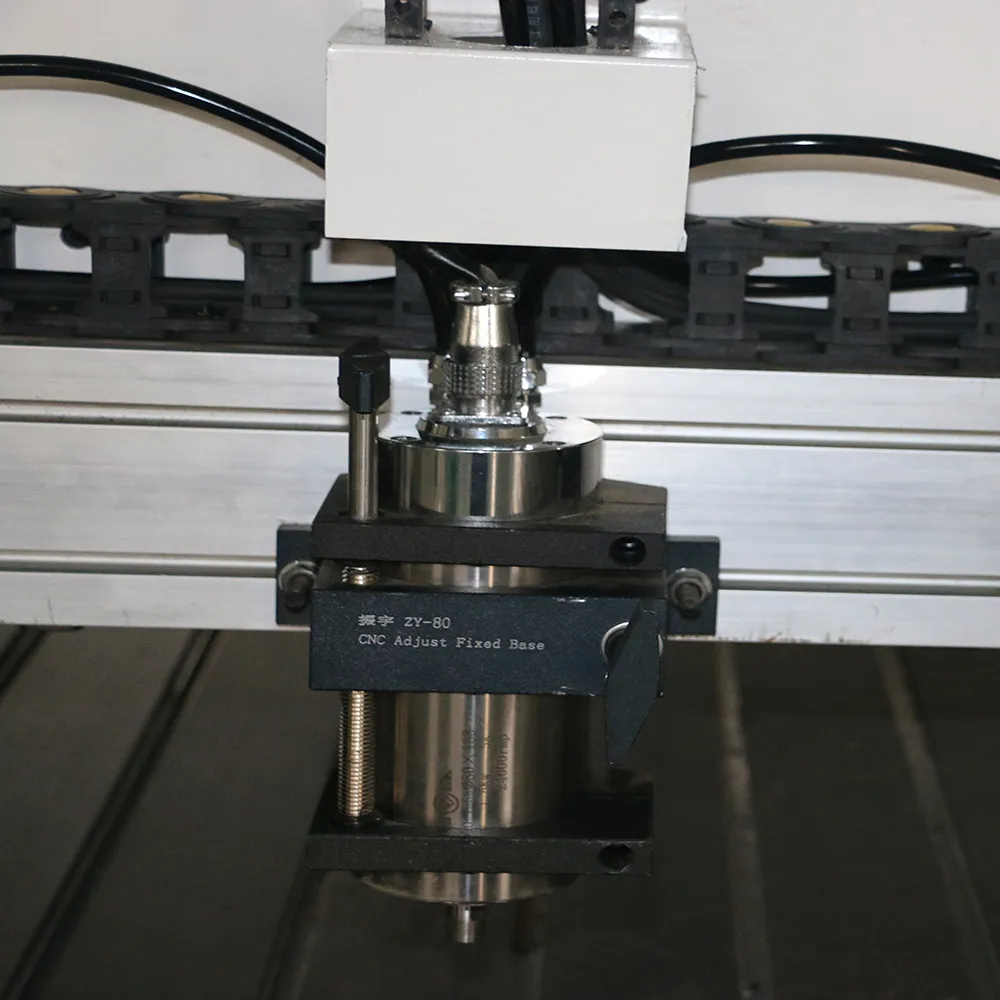

| Spindle Power | 2.2KW×10 water cooling spindles |
| Spindle Speed | 0-24000rpm |
| Transmission | X/Y rack and pinion, Z TBI ball screw |
| Control system | Independent screen cabinet |
| Computer Interface | USB/Ethernet |
| Working Voltage | 380V 50/60Hz |
| Command Language | G Code |
| X,Y Resolution | ＜0.03mm |
| Net Weight | 2500KG |
| Lubrication System | Manual oiler |
| Tool Sensor | Included |
| Inverter | BEST |
| Driver | Leadshine |
| Motor | Stepper motors |
| Water Pump | Optional or self-purchase |
III. Machine Components Overview
Heavy Industrial Foundation & Dual-Bridge Multi-Head Engineering
Constructed with an oversized heavy-duty welded bed stress-relieved through thermal annealing, this machine features two independent 5-spindle Z-axis carrier beams, heavy-duty helical rack-and-pinion transmission on X/Y, dual-driven Y-axis gantry, high-capacity Leadshine drivers, multiple BEST frequency inverters, and a dust-sealed industrial workstation cabinet.
IV. Applications & Processed Materials
Industrial-Scale Batch Output for Commercial Sign Networks & Logistics Infrastructure
Engineered specifically for major sign fabricators and contract manufacturers executing high-volume commercial contracts:
- Warehouse & Industrial Wayfinding Signage: Mass production of large-format warehouse aisle identification boards, facility navigation markers, overhead directional signs, and safety graphics.
- National Retail Chain Fixtures & POP Displays: Rapid parallel fabrication of standardized modular display stands, snack gondolas, and brand header bulkheads for multi-store retail rollouts.
- Large Commercial Storefront & Facade Lettering: High-capacity parallel cutting of 3D dimensional letters, hotel and corporate headquarters facade logos, and architectural decorative screens.
V. Frequently Asked Questions (FAQ)
Q1: How significantly can this 10-head machine increase factory output?
A: Compared to standard single-spindle CNC routers, the YH3025 can boost throughput up to tenfold on repetitive nesting jobs, slashing per-piece labor, power, and cycle costs to help sign makers dominate large commercial bids.
Q2: Does the 3000mm gantry span compromise structural rigidity or machining precision?
A: No. The gantry beam is fabricated from heavy-gauge structural steel reinforced with internal honeycombed gussets and milled on 5-face gantry machining centers. Dual-motor synchronized Y-axis drives ensure zero racking or deflection across the entire 3-meter span.
Q3: Can the ten spindles be configured for dual-tool operations?
A: Yes. The dual Z-axis architecture allows five spindles to carry roughing or drilling bits while the other five carry fine finishing or profile cutters, enabling automated two-step production without manual bit swapping.
Q4: What is the delivery lead time for this machine?
A: Delivery schedules depend on several factors, including factory assembly scheduling for oversized frames, custom power/voltage engineering, multi-head alignment inspections, and carrier vessel availability. An accurate production and dispatch schedule will be provided once your technical specifications are finalized.
Ahmed Al-Maktoum 🇦🇪 (Dubai, UAE) –
We’re expanding our architectural facade and commercial display production facility in Dubai, and the YH3025 10-head machine looks like the perfect solution. The 3000x2500mm work area is massive—we can process oversized architectural panels and multiple full sheets simultaneously. Ten synchronized spindles would dramatically increase our output. Can you confirm the maximum material thickness this machine can handle? We process a lot of 20-30mm ACM and PVC foam boards for exterior signage.
Alex_Zhang –
Hello Ahmed, thank you for your interest in our flagship 10-head machine! The YH3025 is indeed the ultimate solution for large-format architectural and display production. The Z-axis clearance is 200mm standard, which easily handles 20-30mm ACM and PVC foam boards with room to spare. For thicker materials, we can customize the Z-axis to 300mm if needed. The dual Z-axis groups (2×5 configuration) also allow you to run different tooling strategies—perfect for the multi-stage processing required for architectural panels. I’ll have our team prepare a detailed proposal for your Dubai facility. Looking forward to working with you!
