Description
I. Key Features & Highlights
Massive 8x Productivity Multiplier Across an Expansive 8′ x 8′ Table

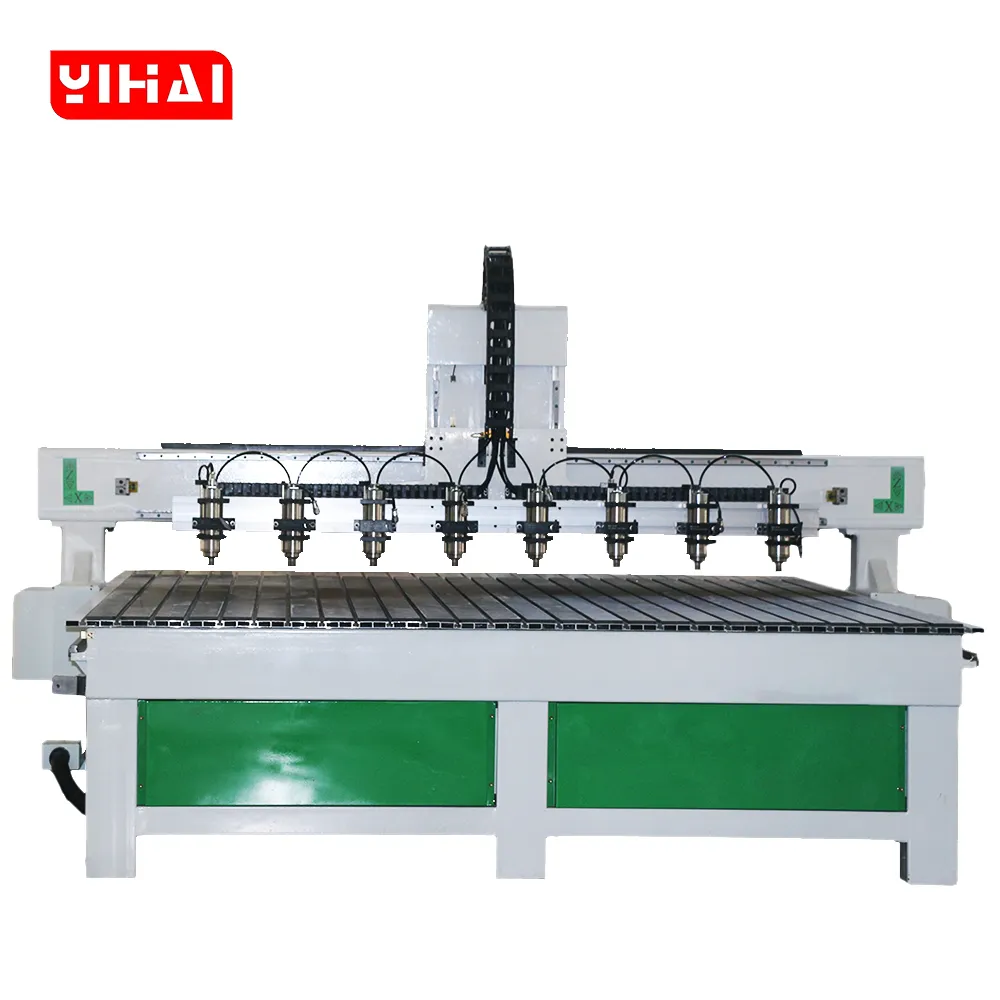

Designed for high-volume contract fabricators and souvenir/craft manufacturers, the YH2525 (8-Head Multi-Spindle) multiplies your output by eight in a single cycle. With an expansive 2500×2500mm bed and eight synchronized water-cooled spindles, it produces eight identical workpieces simultaneously.
- 8-Fold Production Efficiency: One toolpath run produces eight completed items simultaneously, slashing production time and unit labor costs by up to 85%.
- Simplified Single Z-Axis Synchronization: All eight spindles are aligned on a single rigid Z-axis crossbeam, meaning programming is just as simple as setting up a standard single-head machine.
- Adjustable Spindle Spacing: Each spindle bracket slides along the gantry track, allowing operators to quickly customize the spacing between cutters to fit different part dimensions.
- Massive 2500×2500mm Working Bed: Easily accommodates two standard 4×8 ft sheets side-by-side or multiple full-size boards for non-stop batch runs.
- Standalone Industrial Console: Centralized screen cabinet protects all BEST inverters, drivers, and electrical controls from dust.
II. Technical Parameters
| Feature | Specification |
| Type | Advertise CNC Router |
| Brand | YIHAICNC |
| Model | YH2525 (8-Head Multi-Spindle) |
| Number of axes | 3 (Optional rotary axis Customizable) |
| Number of Spindles | 8 synchronized heads (1 Z-axis controls 8) |
| Total power | 17.6KW (8×2.2KW, Customizable) |
| X,Y,Z,Working Area | 2500*2500*200mm(Customizable) |
| Table size | 3000*3500*1600mm(Customizable) |
| Precision (mm) | 0.05 |
| Positioning accuracy(mm) | 0.02 |
| Frame | Steel structure lathe bed, aluminum T-slot table (green-white) |
| Repeatability | 0.05mm |
| Travel speed | 25m/min |
| Processing speed | 15m/min |
| Spindle Power | 2.2KW×8 water cooling spindles |
| Spindle Speed | 0-24000rpm |
| Transmission | X/Y rack and pinion, Z TBI ball screw |
| Control system | Independent screen cabinet |
| Computer Interface | USB/Ethernet |
| Working Voltage | 380V 50/60Hz |
| Command Language | G Code |
| X,Y Resolution | ＜0.03mm |
| Net Weight | 2000KG |
| Lubrication System | Manual oiler |
| Tool Sensor | Included |
| Inverter | BEST |
| Driver | Leadshine |
| Motor | Stepper motors |
| Water Pump | Optional or self-purchase |
III. Machine Components Overview

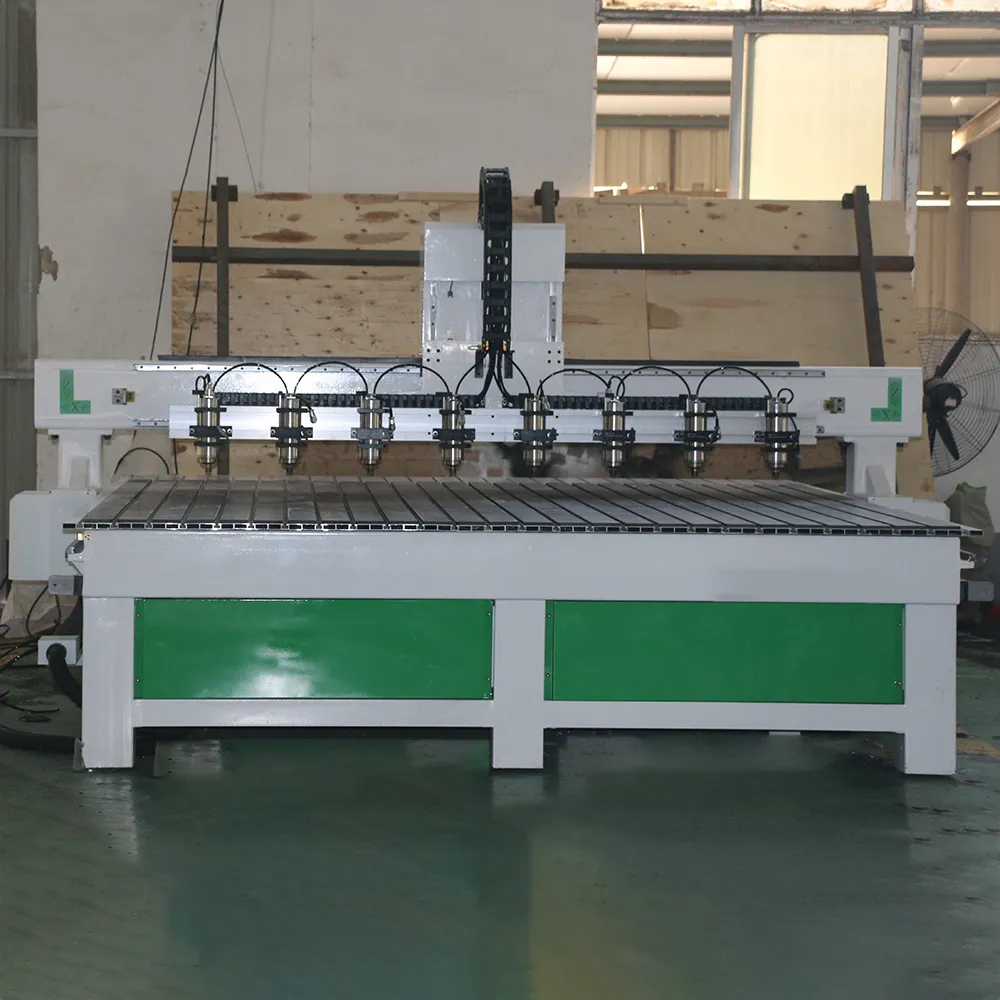

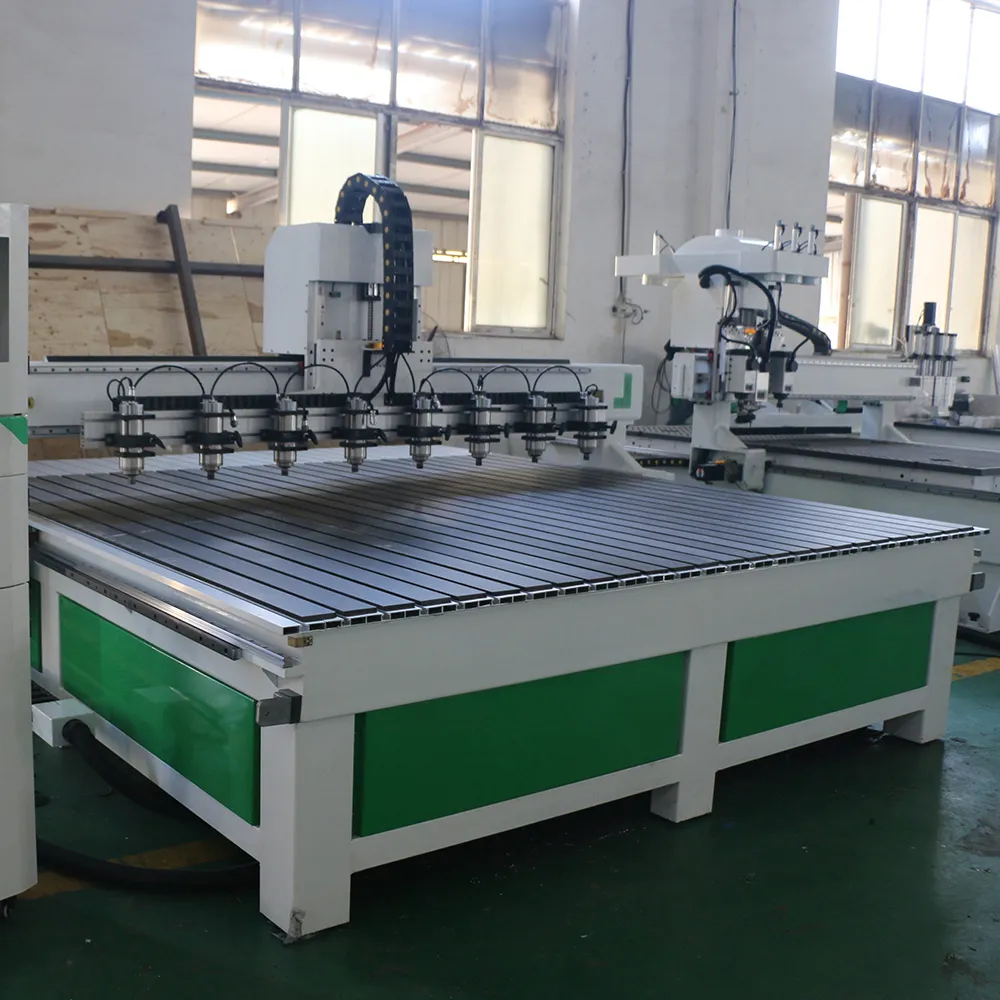

Ultra-Wide Heavy Gantry & Synchronized Multi-Spindle Mechanism
Featuring a wide-span heavy structural steel lathe bed with five-face milled mounting surfaces, this machine integrates eight 2.2KW water-cooled spindles on a unified rigid Z-axis gantry, high-precision HIWIN linear rails, heavy-duty helical gear racks, BEST inverters, Leadshine drivers, and an industrial standalone console cabinet.
IV. Applications & Processed Materials
Extreme Mass Manufacturing for Repetitive Crafts, Badges & Decorative Components
Purpose-built for mass-producing small-to-medium parts where speed, identical quality, and unit cost reduction are essential:
- Mass Craft Gifts & Souvenirs: High-speed simultaneous production of eight identical wooden drink coasters, engraved cutting boards, guitar accessories, craft puzzles, and personalized gift boxes.
- Commercial Sign Badges & Doorplates: Rapid 8-up batch engraving and routing of office room nameplates, executive desk plaques, hotel room number signs, and brass/acrylic identification tags.
- Repetitive Furniture & Millwork Accents: Simultaneous milling of decorative fretwork panels, wooden corbels, cabinet appliques, and modular display dividers.
V. Frequently Asked Questions (FAQ)

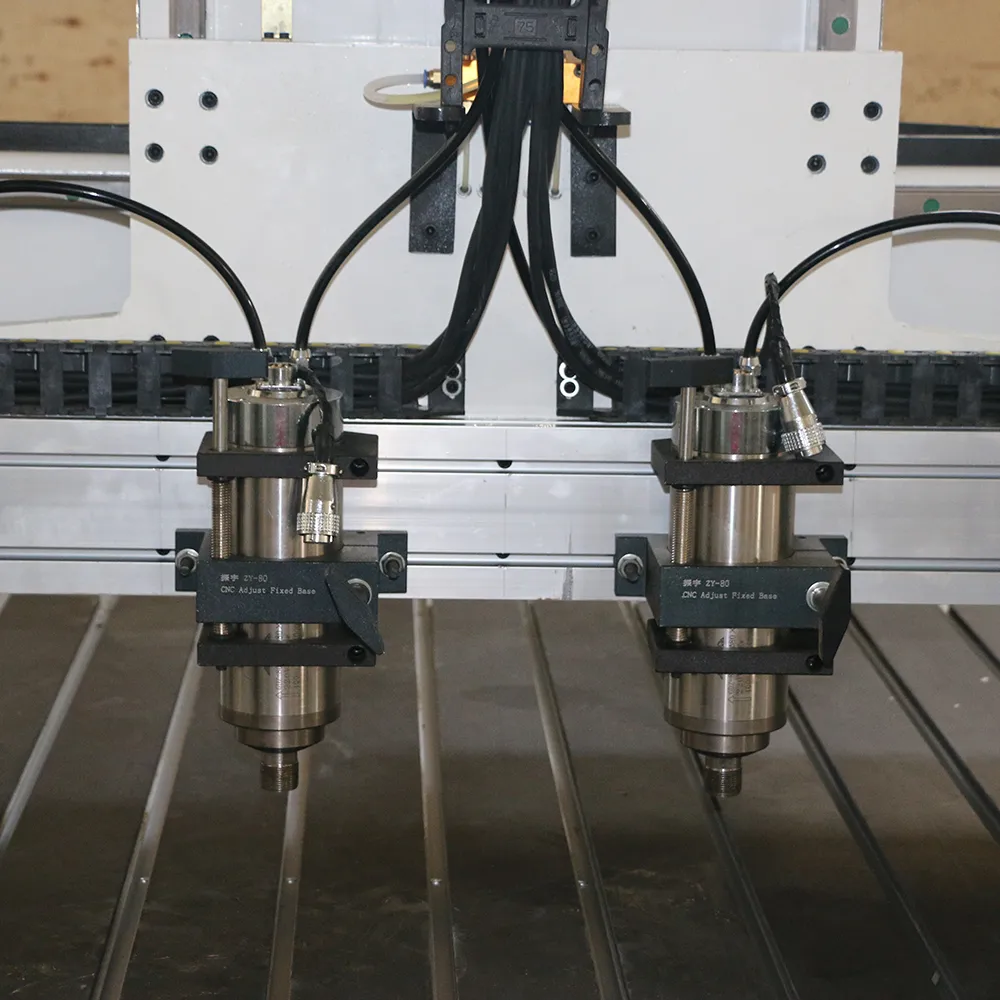

Q1: How does the “1 Z-axis for 8 spindles” configuration work?
A: All eight spindles are mounted to a single, ultra-rigid crossbeam controlled by one primary Z-axis drive. They raise, lower, and carve in exact synchronization, ensuring identical cut depths and identical surface finishes across all eight pieces.
Q2: Can I adjust the distance between the eight spindles for larger or smaller parts?
A: Yes. Each spindle assembly is mounted on an adjustable T-slot gantry rail. You can easily loosen the mounting bolts, slide the spindles to your desired center-to-center spacing, and re-clamp them in minutes.
Q3: Is programming complicated for an 8-spindle machine?
A: Not at all. You only create the G-code toolpath for a single part in your CAM software. The machine controller automatically executes the coordinated motion across all eight synchronized cutters simultaneously.
Q4: What is the delivery lead time for this machine?
A: Lead times vary according to factory production schedules, specific voltage and power requirements, custom gantry spacing setups, multi-step quality assurance procedures, and shipping arrangements. A confirmed timeline will be issued upon formal order review.
Min-Jae Kim 🇰🇷 (Seoul, South Korea) –
We’re evaluating the YH2525 8-head machine for our souvenir manufacturing business. We produce wooden coasters and keychains in large volumes, and being able to cut eight identical pieces per cycle is very appealing. The 2500x2500mm work area is massive—we could fit multiple rows of products. Can you confirm how adjustable the spindle spacing is for different product sizes? Also, what’s the recommended power requirement for this machine?
Alex_Zhang –
Hi Min-Jae, thank you for your inquiry! The 8-head YH2525 is perfect for souvenir production—eight identical pieces per cycle, up to 85% reduction in production time. Each spindle bracket slides along the gantry track, allowing you to customize spacing from as little as 100mm up to the full width of the table. This means you can adapt to different product sizes easily. The machine requires 380V 3-phase power with 17.6kW total power (8×2.2kW). We can also customize the spindle power if needed. I’ll have our sales team send you a detailed quotation for Seoul delivery!
