Description

I. Key Features & Highlights

Heavy-Duty 4×8 Frame Engineered for Thick Materials and Continuous Sheet Routing

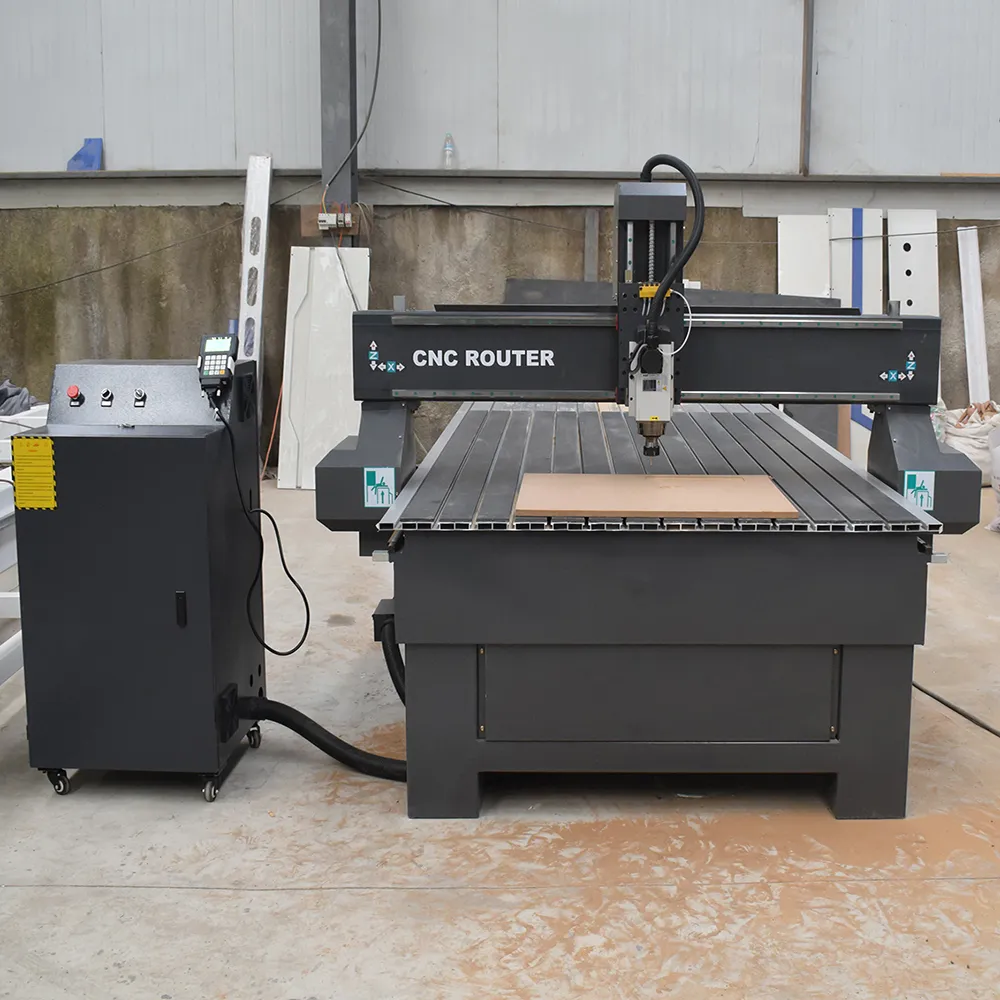

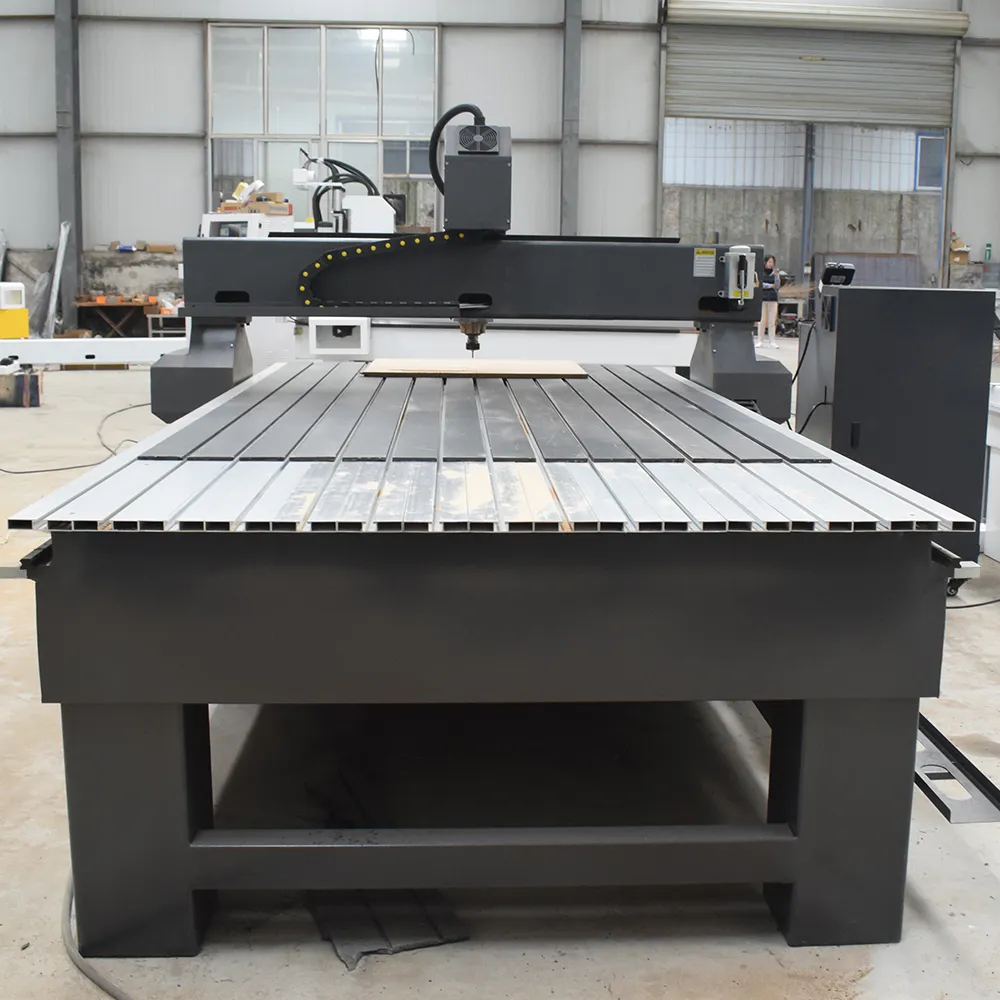

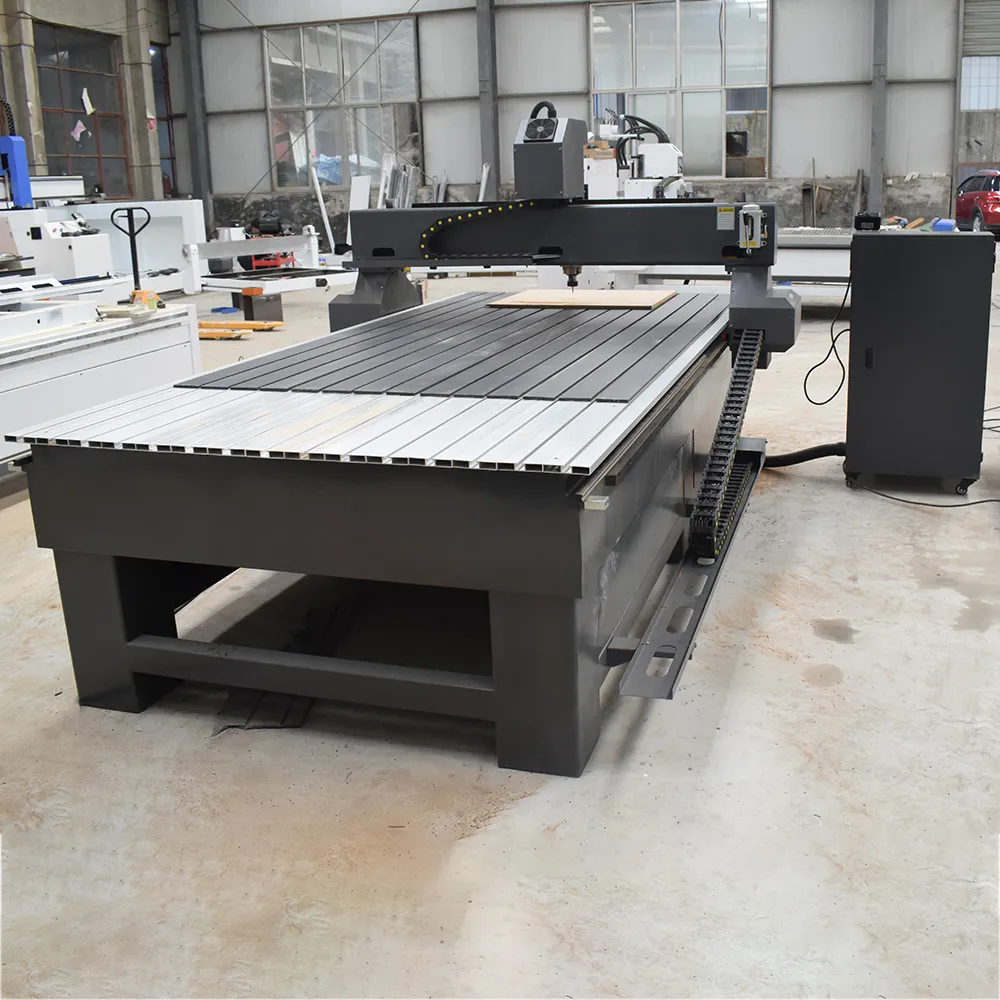

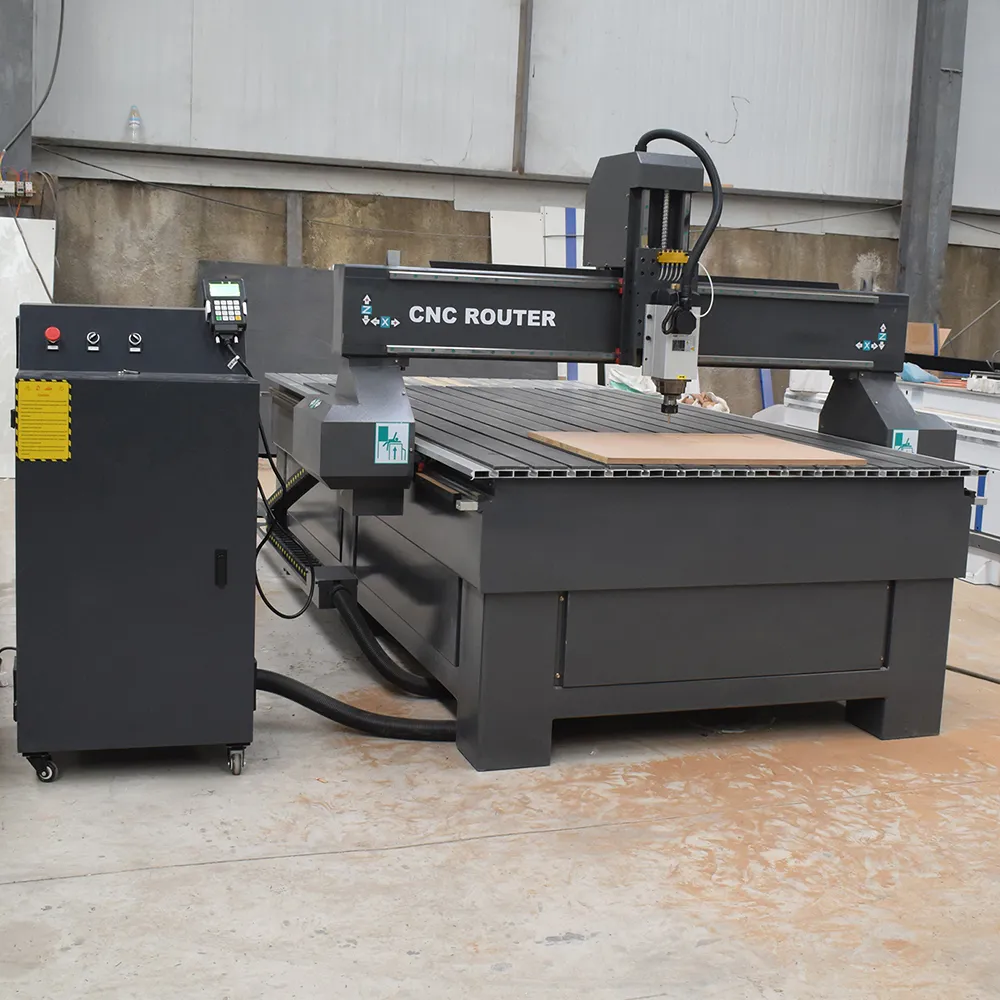

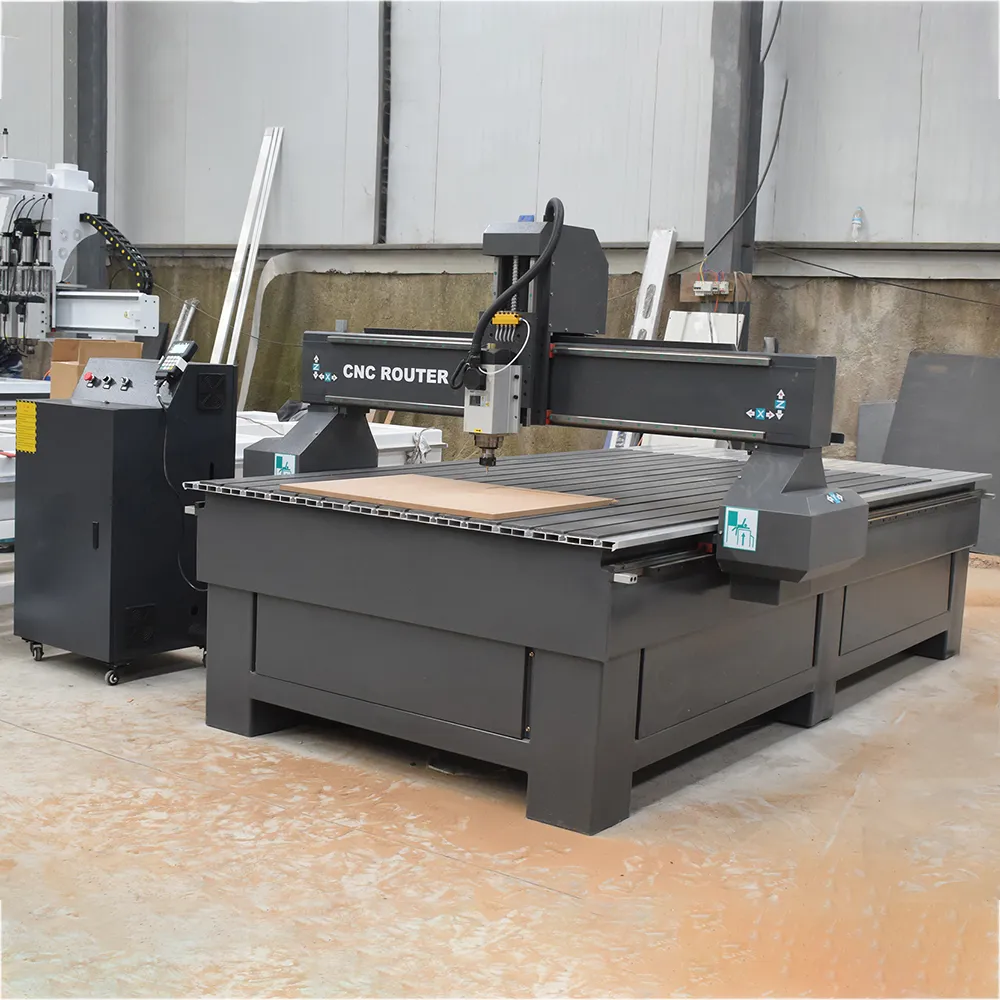

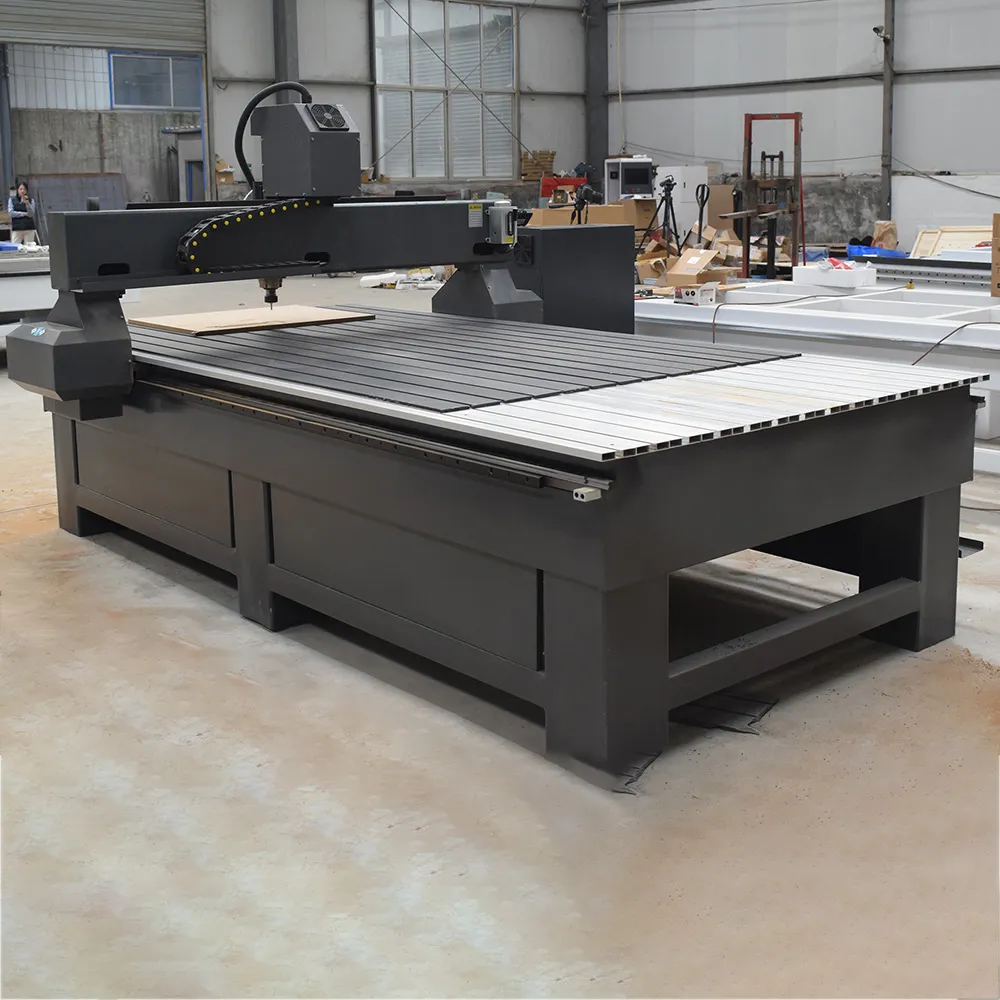

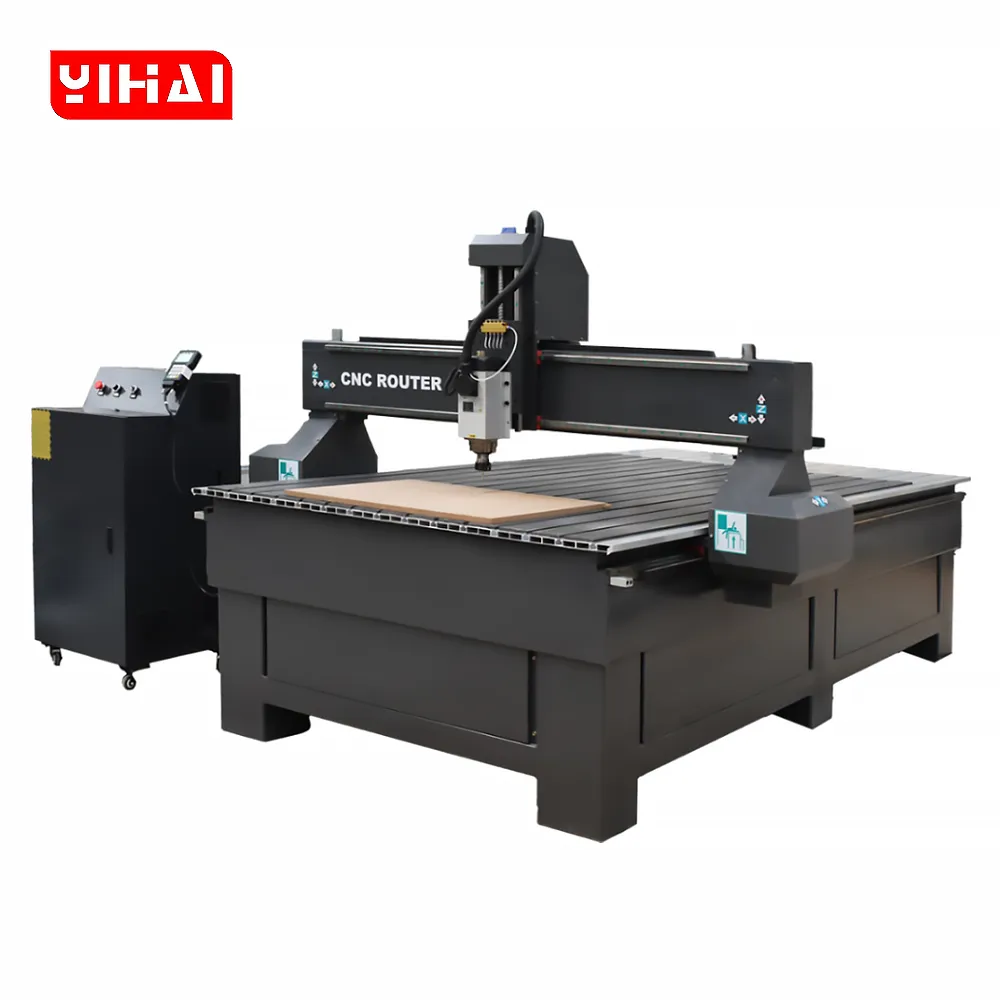

Finished in an industrial matte-black livery, the YH1325 (Single Spindle, Black) is built for signmakers and woodworkers who handle dense, thick materials. Featuring a reinforced welded lathe bed and an expanded Z-axis clearance, it eliminates chatter during deep plunge cuts and high-feed contouring.

• Full 4′ x 8′ Processing Envelope: Easily loads standard 1220×2440mm (4×8 ft) sheet goods without pre-cutting, maximizing material yield for storefront signboards and retail display panels.
• High-Torque Air-Cooled Spindle: Equipped with a 3.0KW (optional 4.5KW HQD) air-cooled spindle, delivering dependable torque across wide RPM bands without the need for water chillers or anti-freeze maintenance in cold workshops.
• Helical Rack & Pinion Transmission: XY axes employ precision-ground helical gear racks paired with HIWIN square guides, offering high travel speed (up to 20 m/min), smooth acceleration, and long service life.
• Rigid Heavy-Duty Lathe Bed: The thick-wall tubular steel frame undergoes stress-relief heat treatment to prevent gantry deformation under heavy workpiece loads.



II. Technical Parameters

Feature	Specification
Type	Advertise CNC Router
Brand	YIHAICNC
Model	YH1325 (Single Spindle, Black)
Number of axes	3 (Optional rotary axis Customizable)
Number of Spindles	Single
Total power	6KW (Customizable)
X,Y,Z,Working Area	1300*2500*200mm(Customizable)
Table size	2100*3500*1600mm(Customizable)
Precision (mm)	0.05
Positioning accuracy(mm)	0.02
Frame	Steel structure lathe bed, aluminum T-slot table (pure black)
Repeatability	0.05mm
Travel speed	20m/min
Processing speed	15m/min
Spindle Power	3.0KW/4.5KW air cooling spindle (HQD optional)
Spindle Speed	0-24000rpm
Transmission	X/Y rack and pinion, Z TBI ball screw
Control system	NCSTUDIO / RichAuto / DSP hand controller
Computer Interface	USB/Ethernet
Working Voltage	220V/380V (customizable)
Command Language	G Code
X,Y Resolution	＜0.03mm
Running Environment Temperature	0-45 Centigrade
Net Weight	1000KG
Lubrication System	Manual oiler
Tool Sensor	Included
Inverter	FULING

III. Machine Components Overview

Heavy-Duty Industrial Framework & Reliable Drive Mechanisms

The YH1325 Black Edition features an upgraded thick-walled structural steel bed, high-torque stepper/servo drive systems, genuine HIWIN linear rail guides, and helical gear racks on X/Y axes with a precision Z-axis ball screw. The streamlined electrical layout includes an anti-interference Fuling inverter, a central manual lubrication system, and an integrated auto-tool calibration sensor.

YH1325 Single-Spindle CNC Router – close-up of HQD spindle and reinforced gantry beam

YH1325 Single-Spindle CNC Router – view of the control cabinet side (housing Fuling VFD, RichAuto controller, power supply unit, etc.)

YH1325 Single-Spindle CNC Router – view of the control cabinet side (showing the motor drivers)

YH1325 Single-Spindle CNC Router – manual oil pump

YH1325 Single-Spindle CNC Router – close-up of the spindle and a carved wood sample

IV. Applications & Processed Materials

Heavy-Duty Sheet Fabrication for Architectural Signage & Commercial Displays

Engineered to handle full-size 4×8 raw panels, heavy acrylic slabs, and structural timber in continuous production cycles:

• Storefront Signage & Large 3D Letters: Direct nesting and high-speed routing of outdoor storefront fascia boards, oversized 3D channel letters, architectural dimensional logos, and exterior wall cladding.
• Retail Fixtures & POP Display Kiosks: Precision slotting, grooving, and cutting of multi-tier retail snack display racks, merchandise towers, and point-of-sale kiosks made of thick MDF, plywood, and PVC.
• Deep Profiling on Thick Substrates: Heavy milling through 20–30mm cast acrylic sheets, solid timber blanks, thick wood-plastic composites (WPC), and aluminum composite cladding panels.

V. Frequently Asked Questions

Q1: What is the maximum material thickness this machine can carve and cut?

A: With its standard 200mm Z-axis clearance and heavy-duty gantry structure, it comfortably cuts through 30–50mm solid wood, dense MDF, and thick acrylic in single or multi-pass setups, and can handle taller stock for shallow surface engraving.

Q2: Why choose an air-cooled spindle over a water-cooled spindle for thick material cutting?

A: The high-torque air-cooled spindle provides superior low-end torque for aggressive chip evacuation, requires zero water circulation management, and eliminates risks of coolant freezing or pump blockage in unheated winter workshops.

Q3: Can this single-spindle machine cut aluminum composite panels (ACP) and brass?

A: Absolutely. Fitted with appropriate single-flute carbide or spiral milling cutters and correct feed rates, it delivers burr-free cuts on ACP cladding panels, aluminum letterings, and decorative brass sheets.

Q4: What is the delivery lead time for this machine?

A: Delivery schedules vary based on specific machine customizations (spindle power, controller types, voltage requirements), seasonal manufacturing capacity, standard burn-in testing protocols, and sea freight schedules. A verified timetable will be provided once your detailed specifications are confirmed.
