Description

What is the YH 5-Axis CNC Router?

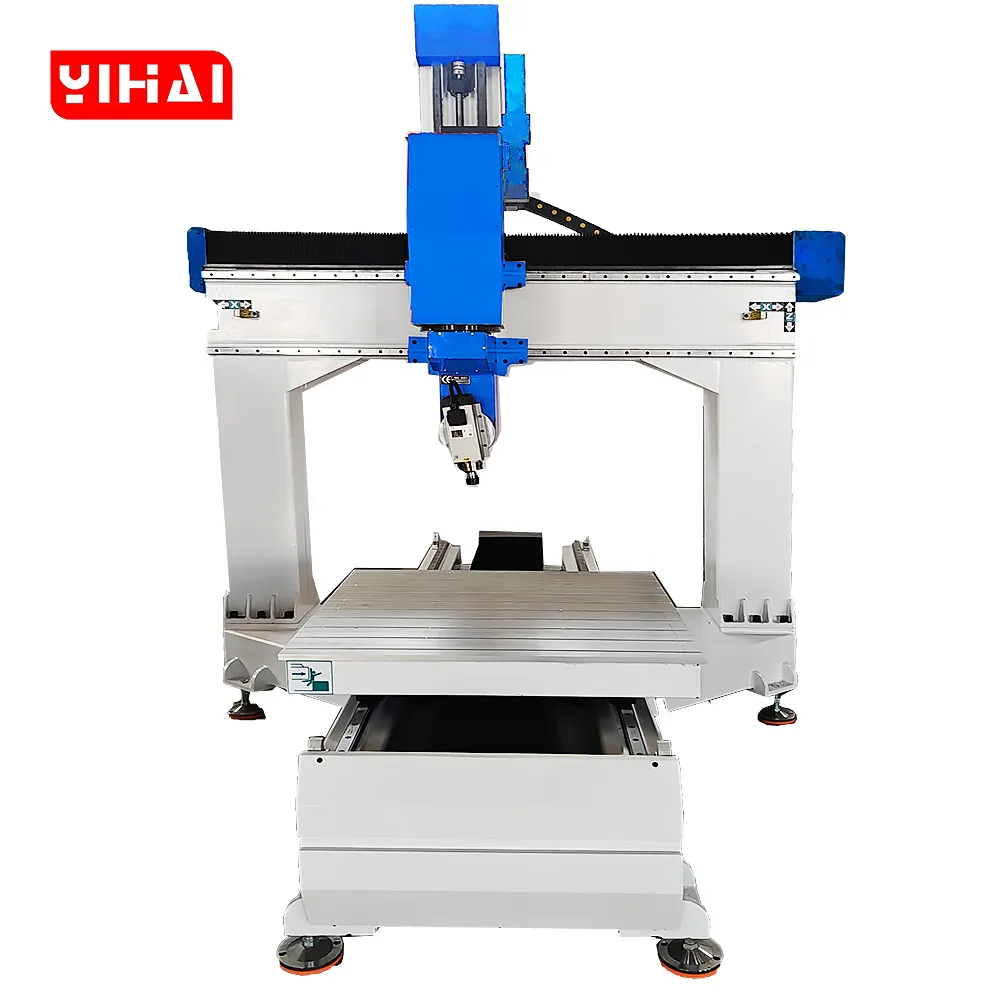

The YH is an advanced 5-axis CNC router designed for precision three-dimensional machining and engraving. Unlike traditional 3-axis CNC wood routers, this machine adds two rotational axes that enable the cutting tool to approach the workpiece from virtually any angle. With a generous working area of 1200mm x 2400mm x 900mm, this 5-axis CNC machine is engineered for manufacturers who demand exceptional versatility in processing complex geometries, sculptural elements, and intricate 3D designs.

Manufactured by YIHAICNC, a trusted CNC equipment supplier, the YH combines industrial-grade construction with user-friendly operation. The machine features a customizable swing spindle with 180-degree rotation capability and robust HSD double pendulum head technology. Whether you’re creating ornate furniture components, architectural moldings, or artistic sculptures, this 5-axis CNC router delivers the precision and flexibility your workshop requires.

The blue color scheme reflects our commitment to professional aesthetics, while the machine’s 24KW total power ensures it can handle demanding materials and extended production runs with consistent reliability.

---

Key Advantages of the YH 5-Axis CNC Router

True 5-Axis Simultaneous Machining Capability

The YH operates as a genuine 5-axis CNC router, enabling simultaneous control of all five axes during cutting operations. This eliminates the need for multiple setups and repositioning, dramatically reducing production time while improving accuracy. The 180-degree swing spindle (with customizable degree settings) allows the cutting tool to reach undercuts, complex curves, and intricate details that would be impossible on a standard CNC wood router.

Exceptional Working Envelope

With a working area of 1200mm x 2400mm x 900mm (customizable to meet specific needs), the YH accommodates large workpieces while maintaining precise control. This generous capacity makes it ideal for furniture manufacturing, large architectural elements, and batch production of medium-sized components. The machine’s dimensions of 1500mm x 3000mm x 1500mm (customizable) ensure a stable footprint while maximizing your workshop’s productivity.

Professional-Grade Spindle System

Equipped with a 10KW spindle (customizable power options available), the YH delivers the torque and speed range necessary for processing diverse materials. From softwoods and hardwoods to composite materials, plastics, and soft metals, this CNC router handles various applications with ease. The swing spindle configuration is specifically engineered for 3D carving and complex surface machining.

Superior Precision and Speed

With a positioning precision of 0.2mm and a travel speed of 24000mm/min, the YH balances accuracy with efficiency. This combination ensures clean finishes on intricate details while maintaining productivity on larger surface areas. The machine’s precision is maintained through rigid construction and advanced motion control systems.

Versatile Table Surface Options

Choose between T-slot table and vacuum adsorption table configurations (customizable) to match your specific application needs. The vacuum table is excellent for holding flat or slightly contoured workpieces, while the T-slot configuration offers flexibility for clamping irregular shapes and smaller parts.

HSD Double Pendulum Head Technology

The YH utilizes HSD double pendulum head technology, renowned in the industry for reliability and precision. This system provides smooth, vibration-free operation even during complex multi-axis movements, ensuring superior surface quality and extended tool life.

Wide Operating Voltage Compatibility

Supporting both 220v and 380v at 50HZ-60HZ, the machine adapts to various power infrastructure configurations, making it suitable for workshops worldwide. The 24KW total power system is optimized for energy efficiency while delivering consistent performance.

Robust Construction for Long-Term Reliability

At 6000KG net weight, the YH’s substantial mass provides the stability necessary for precision machining. The heavy-duty frame minimizes vibration and deflection, ensuring consistent results even under demanding cutting conditions. The machine operates reliably in environments from 0-45 degrees Centigrade.

G-Code Compatibility and Easy Integration

The YH accepts standard G-code programming, making it compatible with popular CAD/CAM software packages. This ensures smooth integration into existing workflows and reduces the learning curve for experienced CNC operators.

---

Technical Specifications

Feature	Specification
Type	5 Axis CNC Router
Features	5 Axis CNC Router With Spindle180-Degree Swing(Degree Customizable)
Brand	YIHAICNC
Model	YH
Color Scheme	Blue
Number of axes	5(Adding Other Axes)
Number of Spindles	Swing Spindle(Customizable)
Supplier for the double pendulum head	HSD
Working Area	1200mmx2400mmx900mm(Customizable)
Dimension	1500mmx3000mmx1500mm(Customizable)
Spindle power	10KW Spindle(Customizable)
Total power	24KW
Table Surface	T-slot table/Vacuum Adsorption table(Customizable)
Precision	0.2mm
Travel speed	24000mm/min
Dictate Formate	G code
Operating Voltage	220v/380v 50HZ-60HZ
Running Environment Temperature	0-45 Centigrade
Net Weight	6000KG

Customization Options

YIHAICNC understands that every workshop has unique requirements. The YH offers extensive customization options, including:

• Adjustable swing spindle degree settings
• Alternative spindle power configurations
• Custom working area dimensions
• Choice of table surface type
• Additional axis configurations
• Specialized tooling packages

Contact our technical team to discuss your specific application needs and receive a customized quotation.

---

YH 5-Axis CNC Router Applications – Unlimited Creative Possibilities

The versatility of 5-axis CNC routing technology opens up applications that are simply impossible with conventional 3-axis CNC wood routers. Here are the primary industries and applications where the YH excels:

Furniture Manufacturing

The YH revolutionizes custom furniture production by enabling complex 3D carving on chair legs, table pedestals, cabinet doors, and decorative panels. Create ornate Victorian-style carvings, modern sculptural elements, or intricate inlay patterns with precision and consistency. The 5-axis capability allows for seamless machining of curved surfaces and undercuts that would require multiple setups on traditional equipment.

Architectural Elements and Moldings

From decorative columns and capitals to custom crown moldings and corbels, the YH produces architectural components with historical accuracy or contemporary flair. The machine’s large working area accommodates substantial pieces, while the 5-axis head ensures every detail is captured precisely, even on complex classical orders or modern geometric designs.

3D Sculptural Art and Relief Carving

Artists and sculptors use the YH to transform digital designs into physical reality. Create detailed relief panels for walls, freestanding sculptures, artistic signage, and memorial plaques. The machine faithfully reproduces subtle contours and sharp details, maintaining artistic integrity from CAD model to finished piece.

Musical Instrument Components

Luthiers and instrument manufacturers rely on 5-axis CNC technology for producing guitar bodies with carved tops, violin scrolls, and other components requiring compound curves and precise thickness control. The YH’s accuracy ensures consistent acoustic properties across production runs while allowing for custom one-off creations.

Signage and Dimensional Lettering

Create eye-catching three-dimensional signs with beveled edges, V-carved details, and raised lettering. The 5-axis capability enables angled cutting for professional-looking chamfers and complex letter shapes that stand out. From retail signage to wayfinding systems, the YH delivers commercial-grade results.

Mold and Pattern Making

Manufacturers use the YH to create molds for composite parts, vacuum forming patterns, and casting patterns. The 5-axis machining ensures draft angles are correctly applied, and complex geometries are accurately reproduced. This application is valuable in aerospace, automotive, and marine industries.

Decorative Panels and Wall Art

Interior designers specify the YH for custom wall panels, room dividers, and decorative screens. Create geometric patterns, organic flowing designs, or culturally inspired motifs with depth and dimension. The machine’s precision ensures pattern repetition accuracy for multi-panel installations.

Prototyping and Product Development

Product designers and engineers use the YH for rapid prototyping of complex parts before committing to production tooling. The machine’s versatility with materials allows testing of ergonomics, fit, and function with representative prototypes. This accelerates development cycles and reduces costs.

Aerospace and Marine Components

Specialized manufacturers machine composite tooling, interior trim components, and custom fittings using the YH. The machine’s precision and ability to work with advanced materials makes it suitable for these demanding applications where quality and repeatability are non-negotiable.

Educational and Research Applications

Technical schools, universities, and research institutions use 5-axis CNC routers to teach advanced manufacturing concepts and explore innovative fabrication techniques. The YH provides students with hands-on experience with industrial-grade equipment.

---

FAQ

Q1: What is the difference between a 5-axis CNC router and a 3-axis CNC wood router?

A 3-axis CNC wood router moves the cutting tool along X, Y, and Z linear axes, limiting the tool to approach the workpiece from above. A 5-axis CNC router adds two rotational axes (typically A and B or A and C), allowing the tool to tilt and rotate. This enables machining of complex 3D shapes, undercuts, and compound angles in a single setup, dramatically expanding capabilities for sculptural work, complex furniture components, and intricate 3D carving.

Q2: What materials can the YH 5-axis CNC router process?

The YH is optimized for wood and wood-based materials, including solid hardwoods, softwoods, plywood, MDF, and particleboard. It also effectively processes composite materials, plastics, foam, and soft non-ferrous metals like aluminum (depending on tooling and parameters). The 10KW spindle provides sufficient power for a wide range of materials commonly used in furniture making, signage, and architectural millwork.

Q3: Do I need special software to operate a 5-axis CNC router?

Yes, 5-axis machining requires CAM (Computer-Aided Manufacturing) software capable of generating 5-axis toolpaths. Popular options include Fusion 360, Mastercam, PowerMill, and specialized woodworking packages. The YH accepts standard G-code, ensuring compatibility with most professional CAM systems. YIHAICNC can provide software recommendations and support to help you select the best solution for your applications.

Q4: How difficult is it to learn 5-axis CNC routing?

While 5-axis machining is more complex than 3-axis operation, operators with existing CNC experience can typically become proficient within a few weeks of training. The learning curve involves understanding rotational axis movements, tool clearance, and collision avoidance. YIHAICNC provides comprehensive training and technical support to ensure your team can operate the YH safely and efficiently. Many users start with simpler projects and gradually advance to more complex 5-axis operations.

Q5: What kind of maintenance does the YH require?

Regular maintenance includes daily cleaning of the machine and work area, weekly lubrication of linear guides and ball screws, monthly inspection of tool holder integrity and spindle condition, and periodic calibration checks. The robust construction of the YH minimizes maintenance requirements compared to lighter-duty equipment. YIHAICNC provides detailed maintenance schedules and can supply spare parts and consumables. Proper maintenance ensures decades of reliable operation.

Q6: Can the working area be customized to larger dimensions?

Yes, YIHAICNC offers customization options for the working area. While the standard YH provides 1200mm x 2400mm x 900mm capacity, we can configure machines with larger envelopes to suit your specific production needs. Contact our engineering team to discuss your requirements, and we’ll provide technical specifications and quotations for custom configurations.

Q7: What power supply do I need for the YH?

The YH operates on either 220v or 380v at 50HZ-60HZ, with a total power consumption of 24KW. Most industrial facilities can accommodate these requirements, but we recommend consulting with a qualified electrician to ensure your power infrastructure can safely supply the machine. Proper electrical installation is essential for optimal performance and safety. YIHAICNC can provide detailed electrical specifications for your facility planning.

Q8: How does the vacuum table compare to the T-slot table?

The vacuum adsorption table uses suction to hold workpieces flat against the table surface, ideal for sheet materials and large flat panels. It provides a uniform holding force and doesn’t require mechanical clamping. The T-slot table uses bolts and clamps in the T-slots for workholding, offering flexibility for irregular shapes, smaller parts, and fixtures. Many users choose based on their primary applications, though YIHAICNC can configure hybrid systems combining both methods.
