Description

I. Key Features and Production Value

The YK1PRO is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to cut cabinet sides, shelves, backs, and door blanks from MDF, plywood, particle board, and solid wood panels. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• A 12-tool linear ATC magazine keeps common cutting, drilling, grooving, and engraving tools ready for multi-step panel work.
• The 9KW ATC spindle supports continuous tool changes without stopping for manual tool replacement.
• A 1220mm × 2500mm working area is aligned with common panel-furniture production needs.
• Vacuum zoning, positioning support, automatic tool setting, and centralized lubrication reduce setup variation.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YK1PRO
Number of axes	3
Number of Spindles	Single
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1220mmx2500mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Weihong/Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.02mm
Repeatability	±0.02mm
X,Y Resolution	<0.02mm
Net Weight	≈1500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

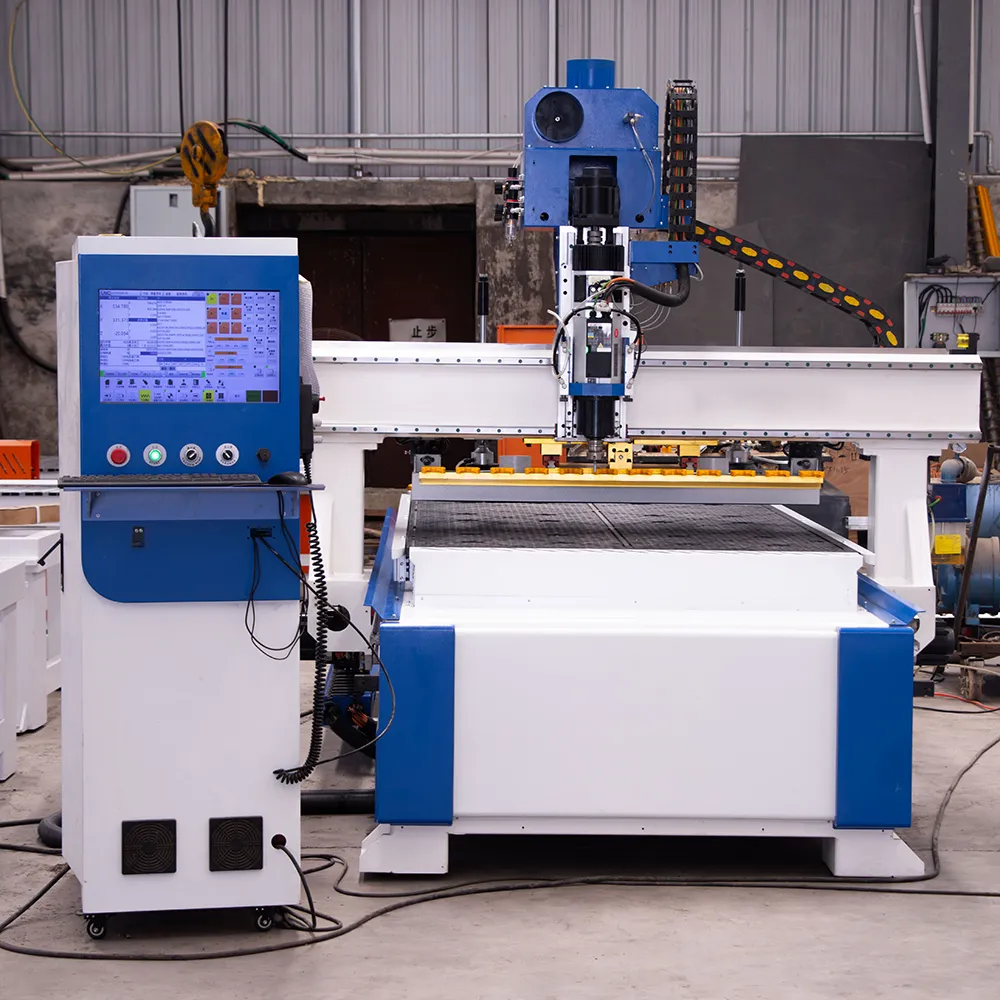

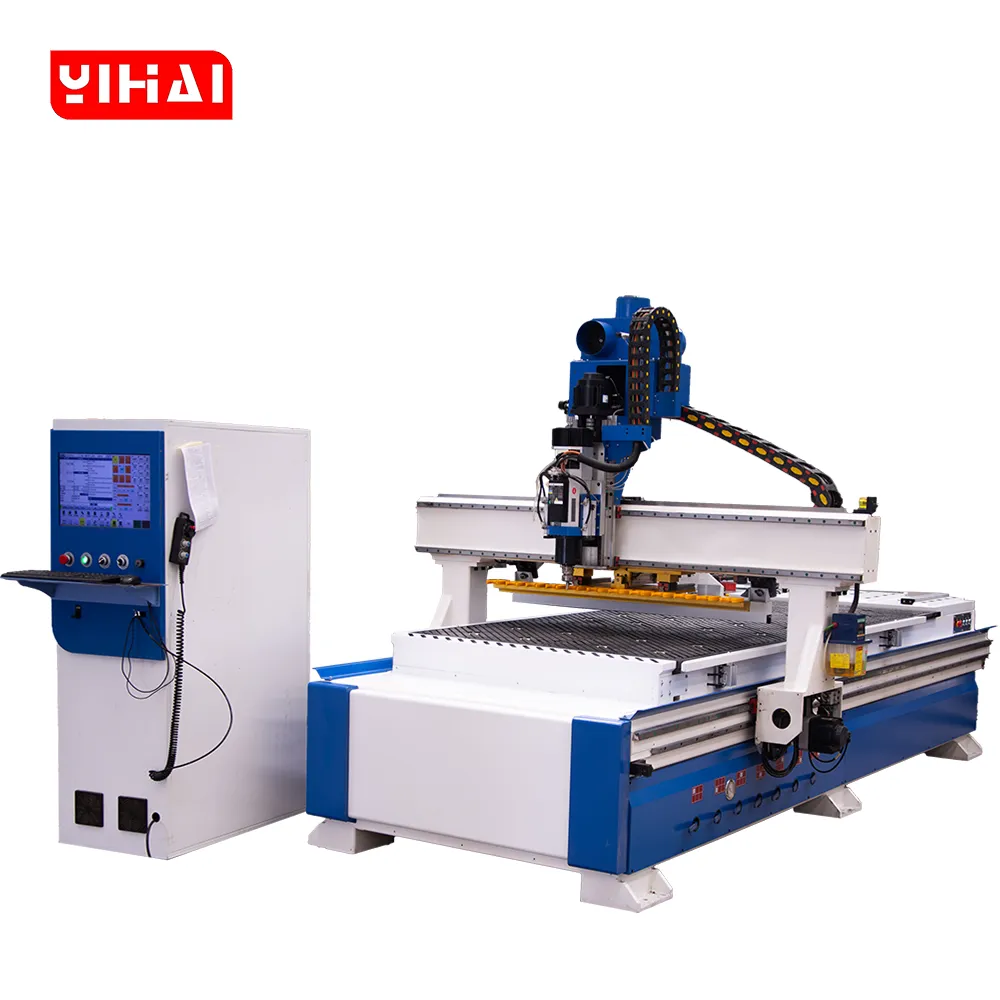

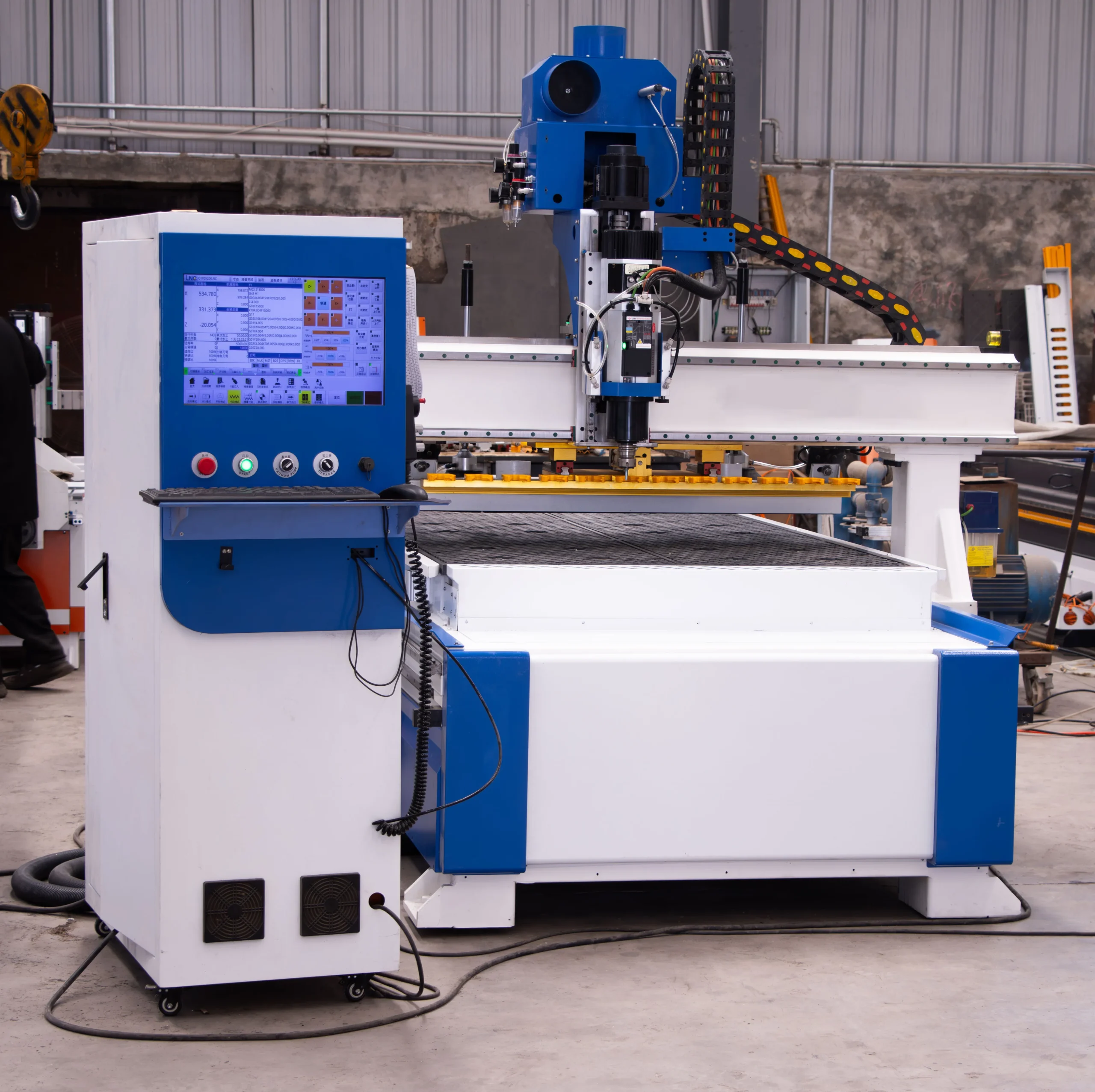

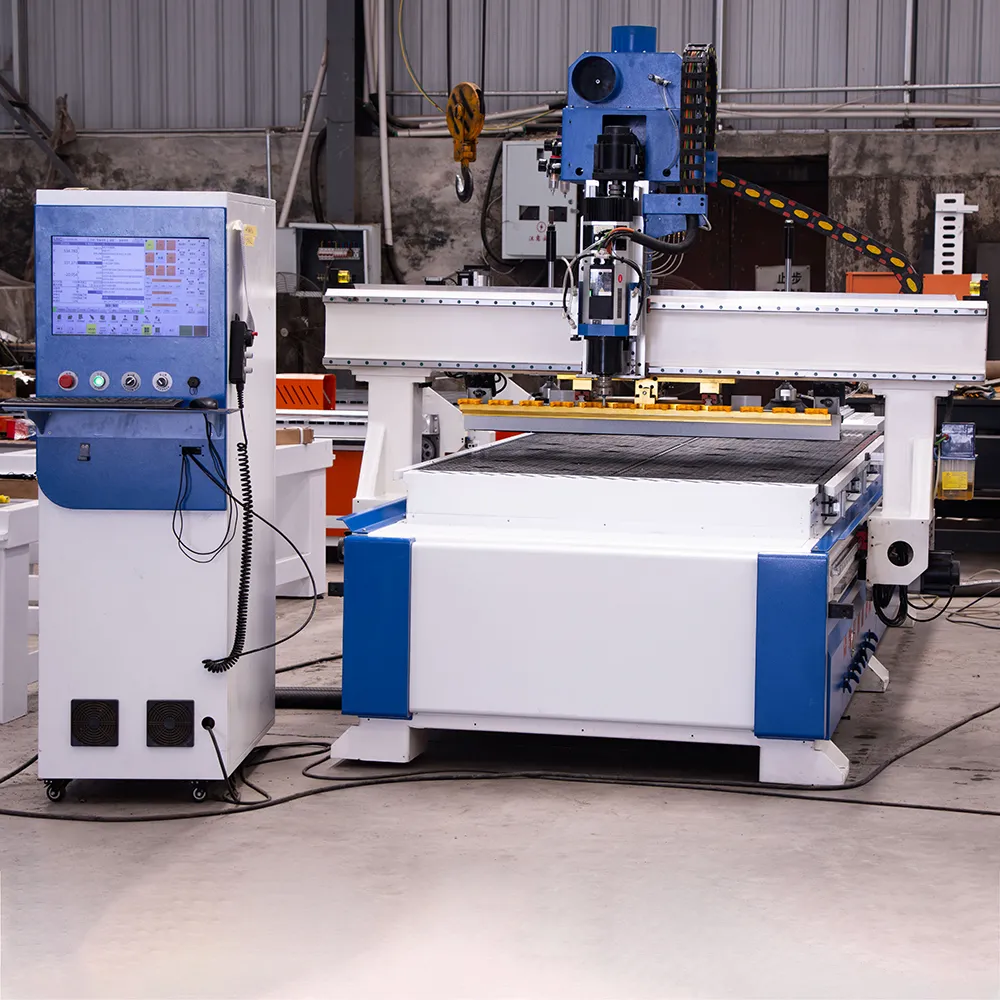

III. Machine Components Overview

Built on a heavy-duty stress-relieved steel tubular frame, the YK1PRO is engineered for continuous panel production with zero downtime between tool changes:

• 9.0KW High-Torque Air-Cooled ATC Spindle: Reaching up to 24,000 RPM with an ISO30 tool interface, providing high chip-evacuation rates and mirror-smooth edge finishes across dense hardwoods, laminated MDF, and melamine boards.
• 12-Slot Gantry-Mounted Linear ATC Magazine: Installed directly alongside the traveling gantry with high-tenacity positioning tool forks, slashing tool-to-tool exchange times down to seconds without traversing the full bed length.
• Multi-Zone Vacuum Matrix Bed: High-rigidity phenolic worktable divided into independently operated vacuum sectors, ensuring aggressive suction hold-down even for small or narrow offcuts.
• High-Precision Motion System: Taiwan linear square guideways paired with precision-ground helical gear racks and planetary reducers deliver micron-level repeatable accuracy under heavy feed loads.
• Integrated Standalone Industrial Console: Features a full-scale vertical electrical enclosure with an operator display, dedicated industrial keyboard, optical mouse, and an automated electronic tool setter.

IV.Applications and Processed Materials

CNC Router Applications for Cabinet, Wardrobe and Custom Furniture Production

The YK1PRO ATC CNC router is designed for furniture manufacturers who require efficient and accurate panel processing with automatic tool changing capability. Equipped with a 12-tool linear tool magazine, this CNC woodworking machine allows operators to complete multiple machining processes without frequent manual tool replacement, improving production efficiency and reducing downtime in daily manufacturing.

The machine is widely used for kitchen cabinet production, wardrobe manufacturing, office furniture processing, wooden door components, decorative panels, shelves, and customized furniture parts. It can complete essential woodworking operations including panel cutting, cabinet component nesting, drilling, grooving, slotting, engraving, and edge profile machining.

For modern panel furniture factories, the YK1PRO provides a flexible CNC solution for processing common furniture materials such as MDF, plywood, particle board, melamine board, solid wood panels, acrylic sheets, and PVC materials. The automatic tool changing system is especially suitable for furniture designs requiring different tools for cutting, drilling, and decorative machining within the same production cycle.

Typical Applications:

• Kitchen Cabinet Manufacturing
  • Cabinet sides, shelves, doors, drawer panels, and connector hole processing
• Wardrobe and Closet Production
  • Large panel cutting, drilling patterns, groove machining, and customized components
• Office Furniture Production
  • Desk panels, storage cabinets, partitions, and commercial furniture parts
• Wooden Door and Decorative Panel Processing
  • Door engraving, recessed patterns, decorative grooves, and customized designs
• Custom Furniture Manufacturing
  • Small-batch furniture production and personalized panel components

Processed Materials:

• MDF boards
• Plywood
• Particle boards
• Melamine panels
• Solid wood panels
• Acrylic sheets
• PVC foam boards
• Plastic and composite materials

V. FAQ

1. What makes YK1PRO different from a standard CNC wood router?

The YK1PRO is equipped with a 12-tool automatic tool changer, allowing the machine to automatically switch between different cutting tools during production. Compared with standard single-tool CNC routers, it reduces manual tool replacement time and is more suitable for furniture production requiring multiple machining processes.

---

2. Is YK1PRO suitable for cabinet and wardrobe production?

Yes. The YK1PRO is designed for panel furniture manufacturing, including kitchen cabinets, wardrobes, office furniture, and customized furniture components. It can process cabinet panels, shelves, doors, and drilling patterns commonly required in furniture production.

---

3. What operations can the YK1PRO complete?

The machine can perform multiple woodworking operations including CNC cutting, drilling, slotting, engraving, nesting, and profile machining. With different cutting tools, manufacturers can complete various furniture production steps on one machine.

---

4. Why is automatic tool changing important for furniture manufacturers?

Furniture components often require different tools for cutting, drilling, and decorative machining. The ATC system allows automatic tool switching according to the machining program, reducing operator intervention and improving production consistency.

---

5. What production scale is suitable for YK1PRO?

YK1PRO is suitable for small and medium-sized furniture factories, custom furniture workshops, and manufacturers upgrading from manual woodworking equipment to CNC production.

---

6. Can YK1PRO process customized furniture designs?

Yes. The CNC system allows manufacturers to produce customized furniture components based on different CAD designs, making it suitable for personalized cabinets, wardrobes, decorative panels, and special furniture orders.

---

7. What materials can be processed by YK1PRO?

YK1PRO can process common furniture materials including MDF, plywood, particle board, melamine board, solid wood, acrylic, and PVC materials. The recommended cutting tools should be selected according to material type and thickness.

---

8. How does YK1PRO improve furniture production efficiency?

The combination of automatic tool changing and CNC precision machining reduces manual operation steps, improves repeatability, and helps manufacturers achieve more stable production quality for batch furniture orders.
