Description

I. Key Features and Production Value

The YH1325 Single-Head Carousel ATC with Dust Cover is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to processing thin composite boards and flexible panels while reducing movement, lifting, and edge damage. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• A 12-tool carousel ATC system keeps multi-tool cabinet and panel jobs moving.
• The full dust-cover enclosure helps control chips around the cutting zone.
• The combined vacuum and T-slot table supports panel holding and fixture-based work.
• The machine is suited to nesting, door processing, grooving, drilling, and repeated furniture parts.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC

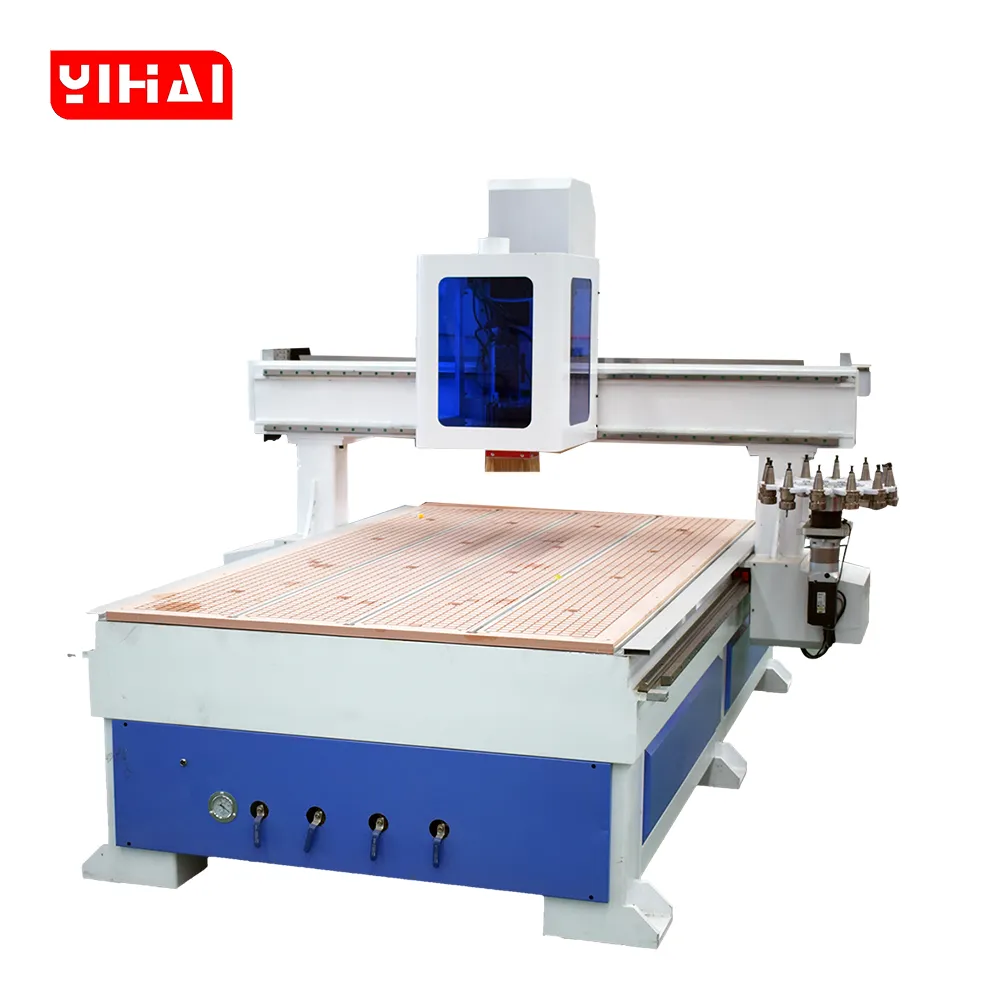

Model	YH1325 Single-Head Carousel ATC with Dust Cover
Number of axes	3
Number of Spindles	Single
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Weihong/Baoyuan LNC Control System
Clamping Method	Phenolic vacuum adsorption table with T-slot (no positioning cylinder) + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈1500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

Engineered for dust-sensitive commercial environments requiring full safety isolation and automated multi-tool capabilities:

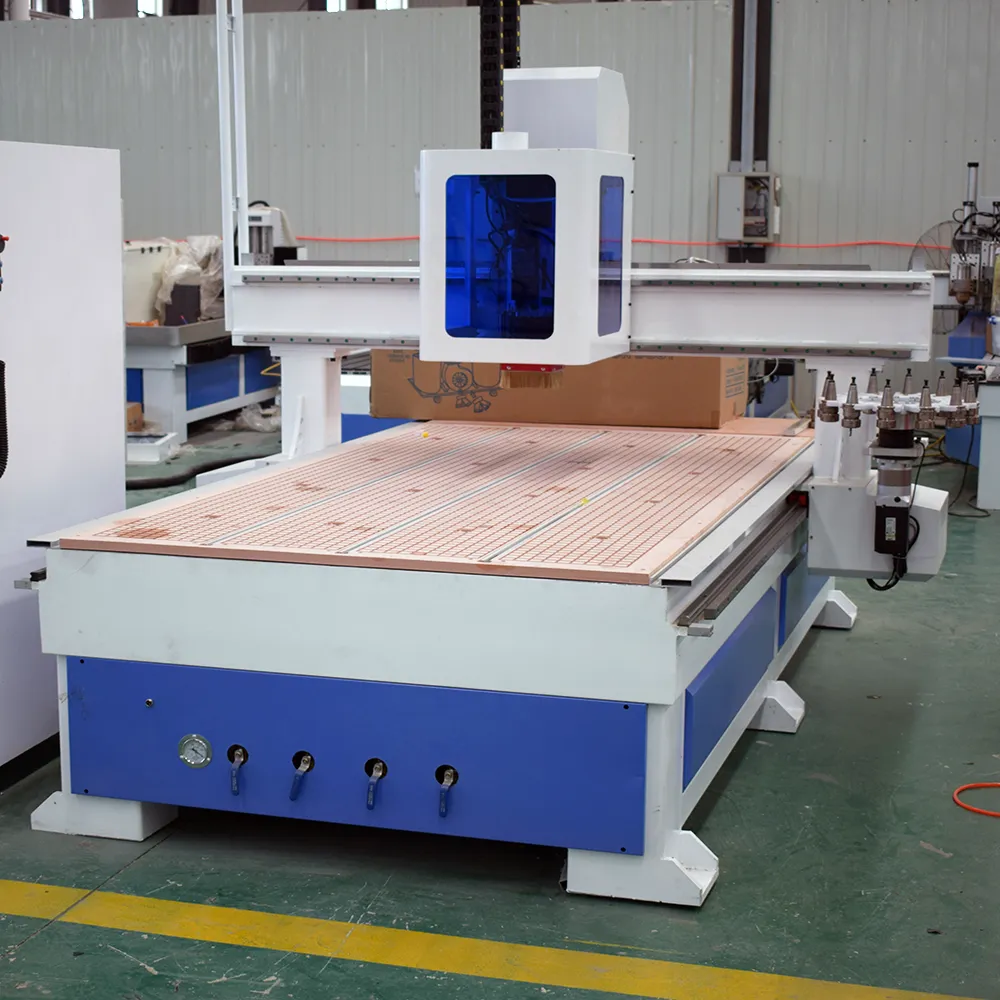

• Fully Enclosed Spindle Carriage Safety Shroud: High-durability structural enclosure with high-transparency viewing windows completely shields the cutting zone, containing chips and flying debris while ensuring operator safety.

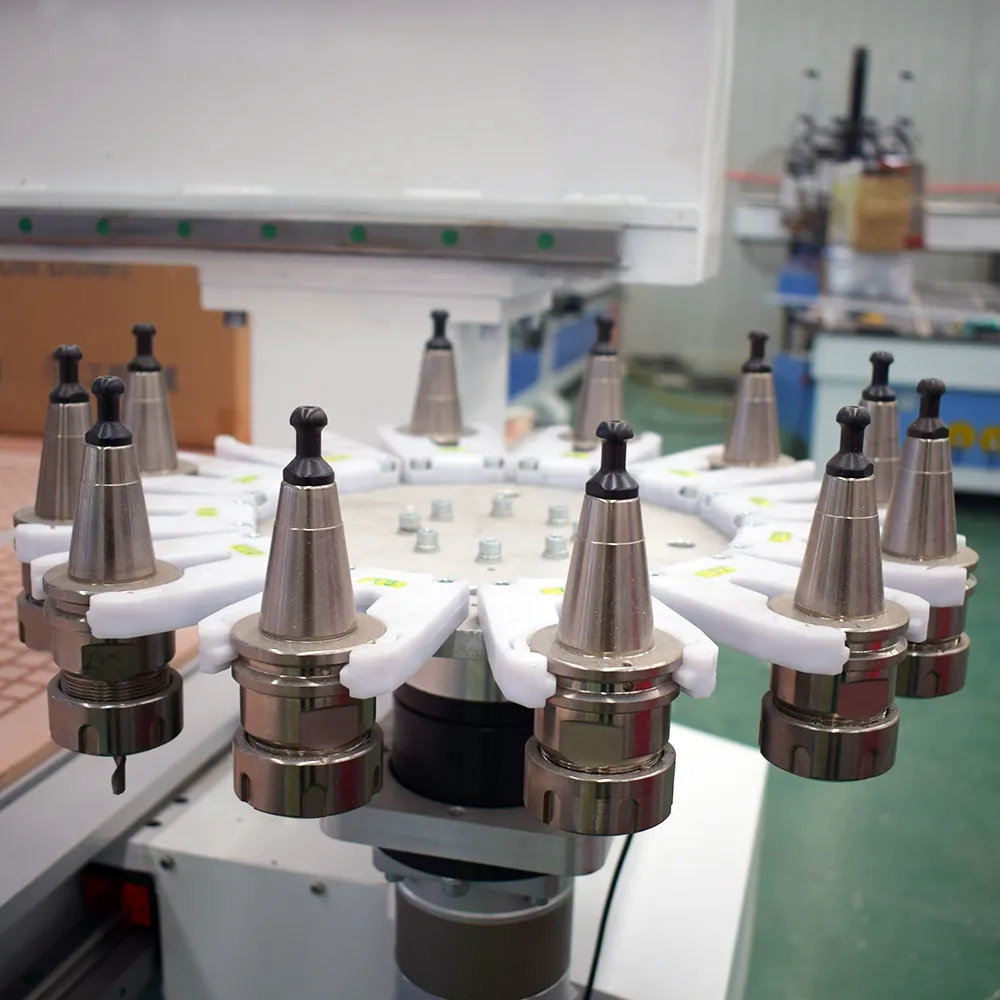

• 12-Pocket Travelling Carousel ATC Magazine: Gantry-integrated rotary tool carousel featuring an independent indexing servo mechanism and high-resilience tool forks for rapid tool-to-tool changeovers.
• Phenolic Vacuum Table with Inset Aluminum T-Slots: Clean, unencumbered flatbed architecture combining strong matrix suction zones with recessed T-slots, providing versatile hold-down for non-standard workpieces without perimeter cylinder obstructions.
• Full-Loop Industrial AC Servo System: Five independent high-power AC servo drives (including a dedicated tool carousel indexing drive) eliminate positioning discrepancy under heavy feed acceleration.

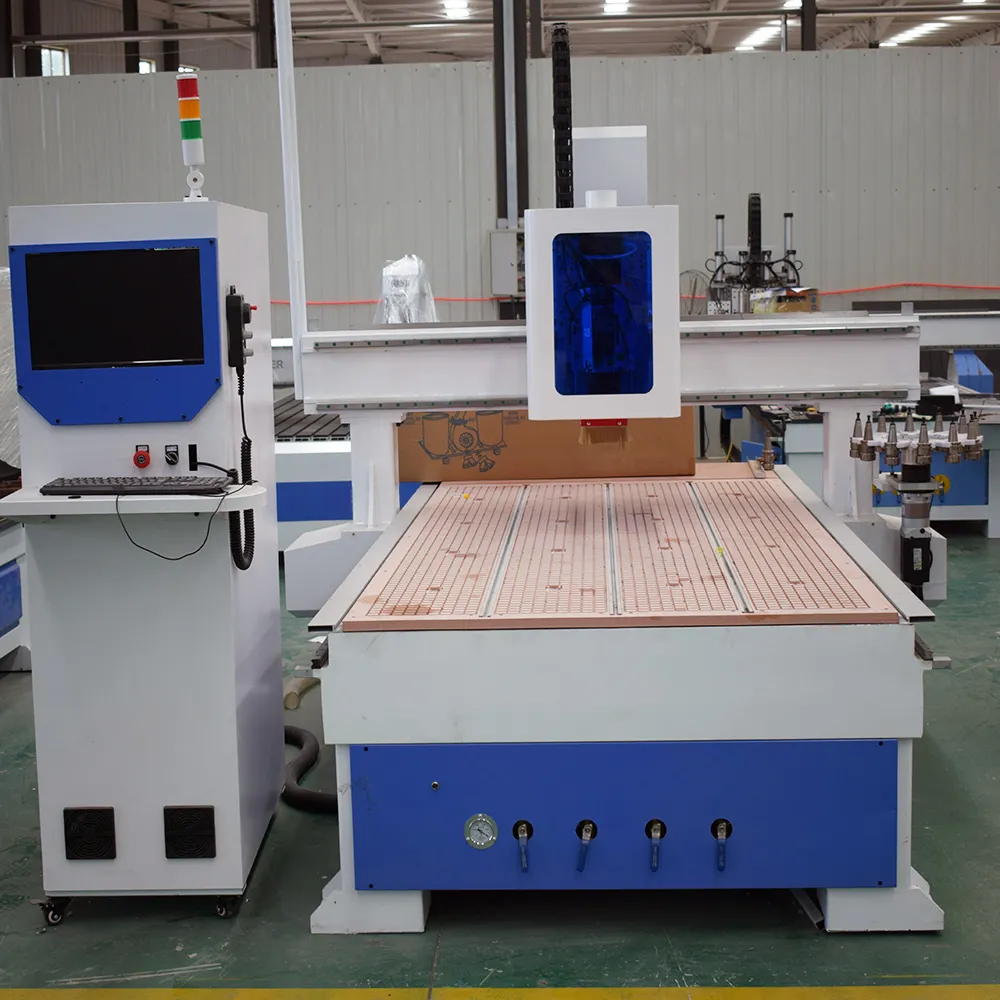

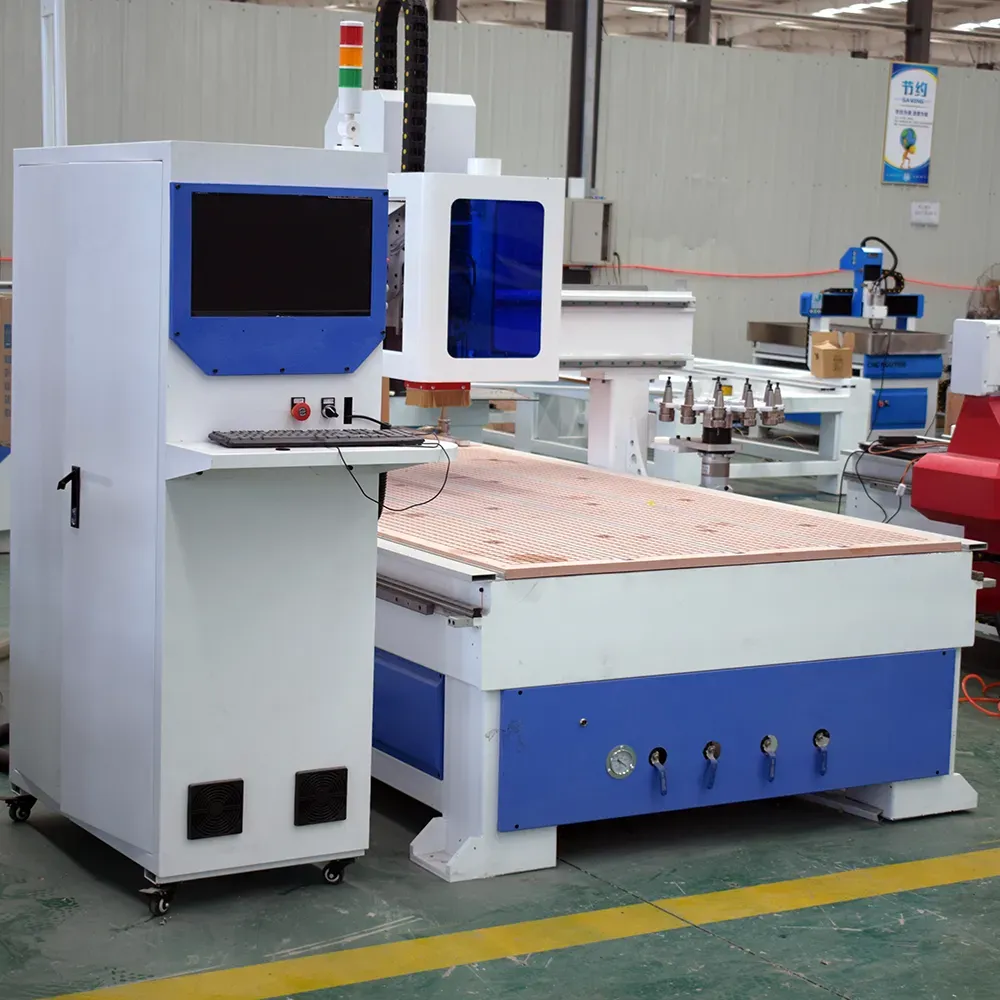

• Standalone Industrial Control Workstation: Heavy-duty floor console houses isolated high-power inverters, CNC computing hardware, industrial keyboard/mouse interface, and an external handheld MPG handwheel.

IV. Applications and Processed Materials

High-Efficiency CNC Furniture Router with Automatic Tool Changing and Dust Control

The YH1325 Carousel ATC Dust Cover CNC router combines automatic tool changing capability with an integrated dust protection structure, making it suitable for furniture manufacturers requiring efficient machining and cleaner workshop operation.

The automatic tool changer allows multiple woodworking processes including cutting, drilling, engraving, and grooving to be completed in one production cycle. The dust cover helps improve chip collection efficiency and reduces dust accumulation around the machining area.

This CNC router is widely used in cabinet manufacturing, wardrobe production, office furniture processing, wooden doors, decorative panels, and customized furniture factories.

Typical Applications:

• Cabinet panel production
• Wardrobe components
• Office furniture manufacturing
• Wooden door machining
• Decorative carving
• Customized furniture production

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine panels
• Solid wood
• Acrylic
• PVC boards

V. FAQ

1. What advantages does the dust cover provide?

The dust cover helps control chips and dust generated during CNC machining, improving workshop cleanliness and reducing machine maintenance requirements.

---

2. Why combine ATC with dust protection?

Furniture production often requires continuous machining. ATC improves efficiency, while dust protection helps maintain a cleaner and more stable working environment.

---

3. Is this machine suitable for professional furniture factories?

Yes. It is designed for manufacturers requiring higher production efficiency, automatic tool changing, and improved workshop management.

---

4. What furniture products can be processed?

It can produce cabinets, wardrobes, office furniture, wooden doors, decorative panels, and customized furniture components.

---

5. What materials can be processed?

It can process MDF, plywood, particle board, melamine board, solid wood, acrylic, and PVC materials.
