Description

I. Key Features and Production Value

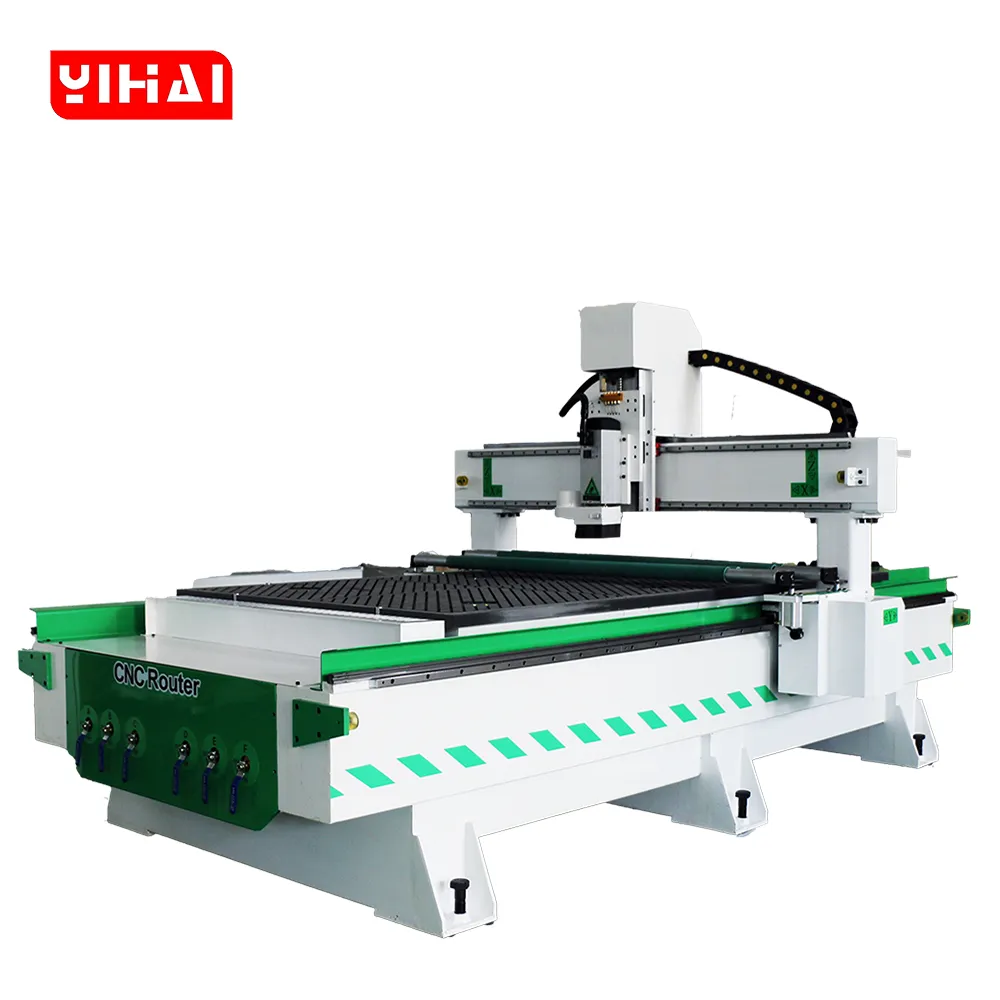

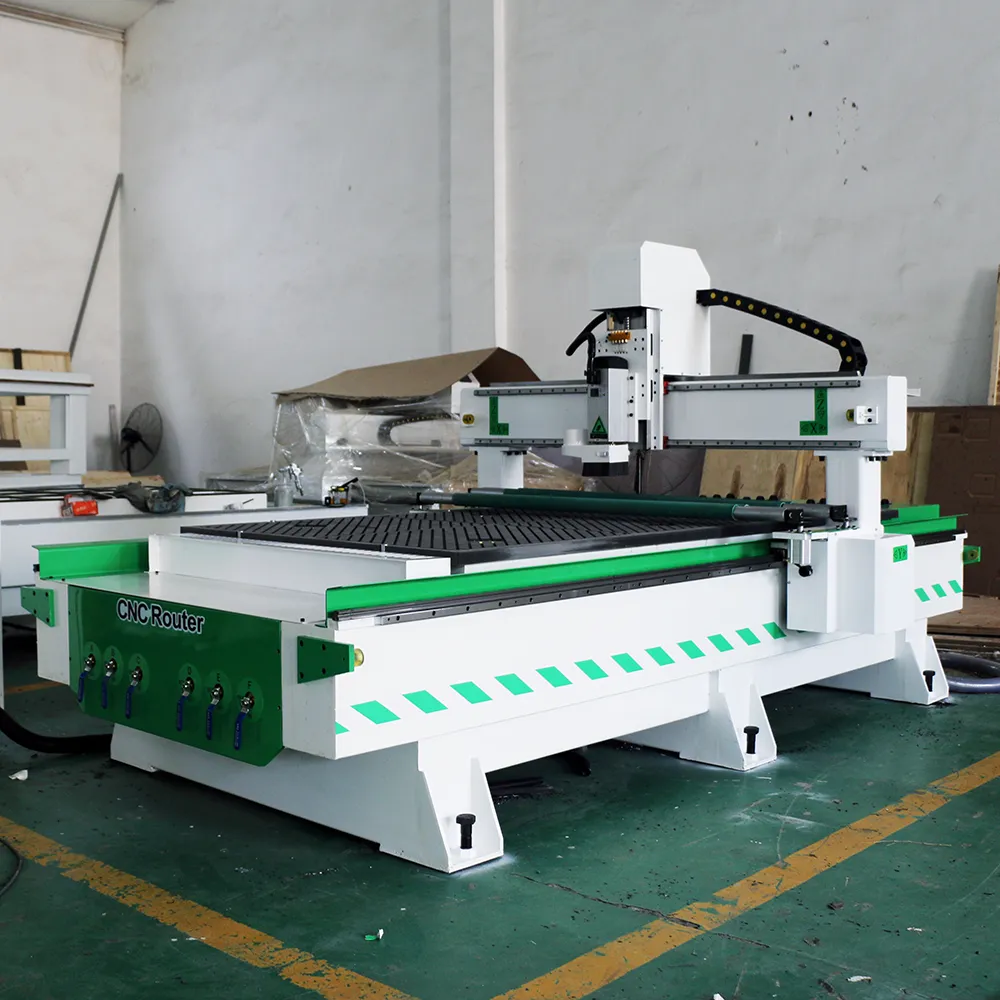

The YH1325 Single-Head with Press Roller is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to producing repeatable cabinet parts, wardrobe panels, drawer components, and fitting openings. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• The machine combines CNC motion, vacuum holding, and spindle processing for panel-furniture work.
• The working area is suitable for common furniture components and repeatable production routines.
• Automatic lubrication and industrial control components support routine operation and maintenance.
• The configuration can be adapted with optional axes, drilling, loading, or dust-collection equipment where required.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1325 Single-Head with Press Roller
Number of axes	3
Number of Spindles	Single
Total power	6KW(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	30m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump + double auxiliary rubber press rollers
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.03mm
X,Y Resolution	<0.03mm
Net Weight	≈1200KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Solid wood, MDF, particle board, PVC, acrylic

III. Machine Components Overview

Engineered specifically to overcome panel warpage and vacuum loss when nesting thin or distorted sheet stock:

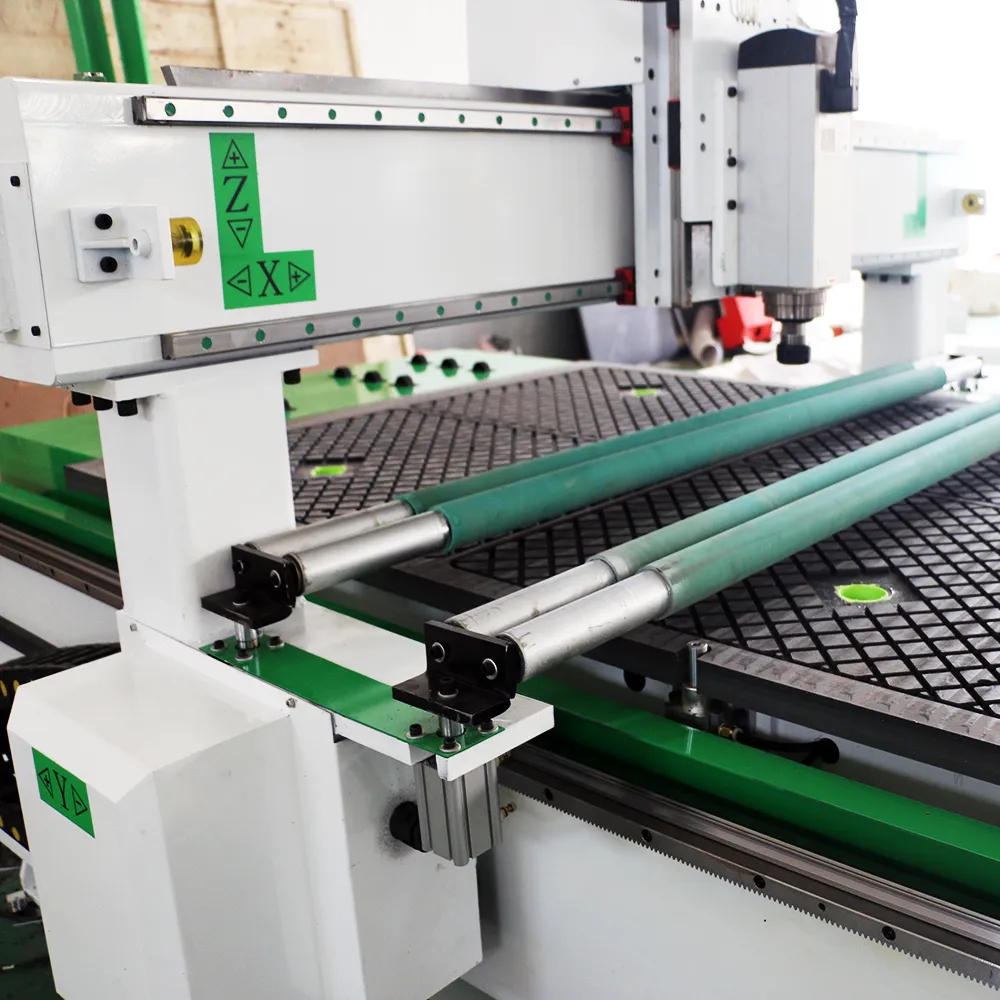

• Dual Pneumatically Actuated Rubber Press Rollers: Heavy-duty follower roller assemblies apply continuous downward mechanical pressure adjacent to the cutting tool, preventing thin MDF, laminated backing sheets, or warped plywood from fluttering or shifting.

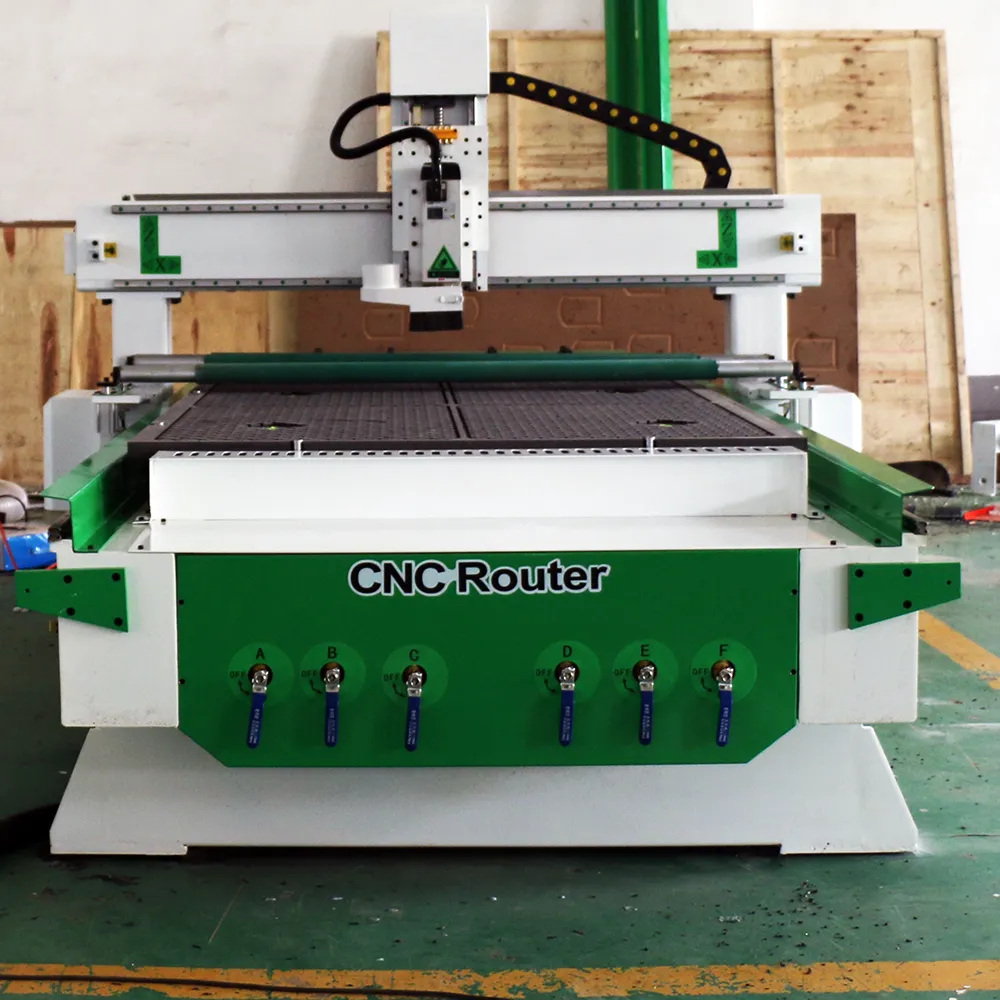

• Multi-Zone Vacuum Grid Matrix: High-density vacuum channels with 6-circuit independent isolation valves deliver supplementary suction directly beneath the active cut zone.
• Closed-Loop Hybrid Servo Drive System: Four dedicated digital closed-loop stepper/servo drivers with integrated LCD status displays provide continuous positional feedback, preventing cutter stalling and step drift on Y-axis dual drives.
• Digital Microcomputer Automated Lubrication Pump: Programmable volumetric timer unit injects precise oil doses at set operational intervals, maintaining pristine slide friction coefficients.
• Taiwan Linear Square Guideways: Heavy-capacity recirculating ball linear rails and hardened helical gear racks ensure vibration-free edge routing at maximum cutting feeds.Engineered specifically to overcome panel warpage and vacuum loss when nesting thin or distorted sheet stock:
  • Dual Pneumatically Actuated Rubber Press Rollers: Heavy-duty follower roller assemblies apply continuous downward mechanical pressure adjacent to the cutting tool, preventing thin MDF, laminated backing sheets, or warped plywood from fluttering or shifting.
  • Multi-Zone Vacuum Grid Matrix: High-density vacuum channels with 6-circuit independent isolation valves deliver supplementary suction directly beneath the active cut zone.
  • Closed-Loop Hybrid Servo Drive System: Four dedicated digital closed-loop stepper/servo drivers with integrated LCD status displays provide continuous positional feedback, preventing cutter stalling and step drift on Y-axis dual drives.
  • Digital Microcomputer Automated Lubrication Pump: Programmable volumetric timer unit injects precise oil doses at set operational intervals, maintaining pristine slide friction coefficients.
  • Taiwan Linear Square Guideways: Heavy-capacity recirculating ball linear rails and hardened helical gear racks ensure vibration-free edge routing at maximum cutting feeds.

IV. Applications and Processed Materials

CNC Router Solution for Thin Panel, Plywood and Lightweight Furniture Materials

The YH1325 Press Roller CNC router is designed for woodworking applications where thin boards and lightweight materials require stable feeding and precise machining. The integrated press roller structure helps keep the material surface flat during cutting, reducing movement and improving machining consistency.

This CNC woodworking machine is suitable for manufacturers producing thin MDF furniture panels, plywood components, decorative boards, cabinet parts, wall panels, and customized furniture elements. Compared with standard vacuum-only fixing methods, the press roller system provides additional mechanical support for materials that may have uneven surfaces or lightweight structures.

The machine is commonly used for panel cutting, nesting, engraving, slotting, decorative carving, and furniture component production. It provides a practical solution for furniture workshops processing different board thicknesses while maintaining stable machining performance.

Typical Applications:

• Thin MDF Furniture Panel Production
  • Cabinet doors, decorative panels, and furniture components
• Plywood Processing
  • Shelves, partitions, furniture structures, and customized parts
• Wall Panel Manufacturing
  • Decorative wall panels and interior components
• Cabinet and Wardrobe Production
  • Side panels, shelves, and customized furniture boards
• Custom Woodworking Production
  • Small-batch furniture and personalized designs

Processed Materials:

• Thin MDF boards
• Plywood
• Particle boards
• Melamine panels
• Veneer boards
• Solid wood panels
• PVC foam boards

V. FAQ

1. Why does this CNC router use a press roller system?

The press roller helps hold lightweight or thin materials firmly during machining. It reduces material vibration and improves cutting stability, especially when processing large thin boards.

---

2. What type of materials are suitable for the press roller CNC router?

It is suitable for MDF, plywood, particle board, veneer panels, melamine boards, and other furniture materials that may require additional surface pressure during machining.

---

3. Can this machine process thin furniture panels?

Yes. The press roller design is especially suitable for thin panels used in cabinets, wardrobes, decorative furniture, and interior applications.

---

4. What problems does the press roller solve?

During CNC machining, thin boards may move or lift due to cutting forces. The press roller provides additional support to improve machining accuracy and reduce processing errors.

---

5. Is this machine suitable for custom furniture production?

Yes. It can process customized furniture panels, decorative components, and personalized designs according to different CAD drawings.

---

6. What machining operations can it perform?

The machine can complete cutting, engraving, grooving, slotting, nesting, and other common woodworking processes.
