Description

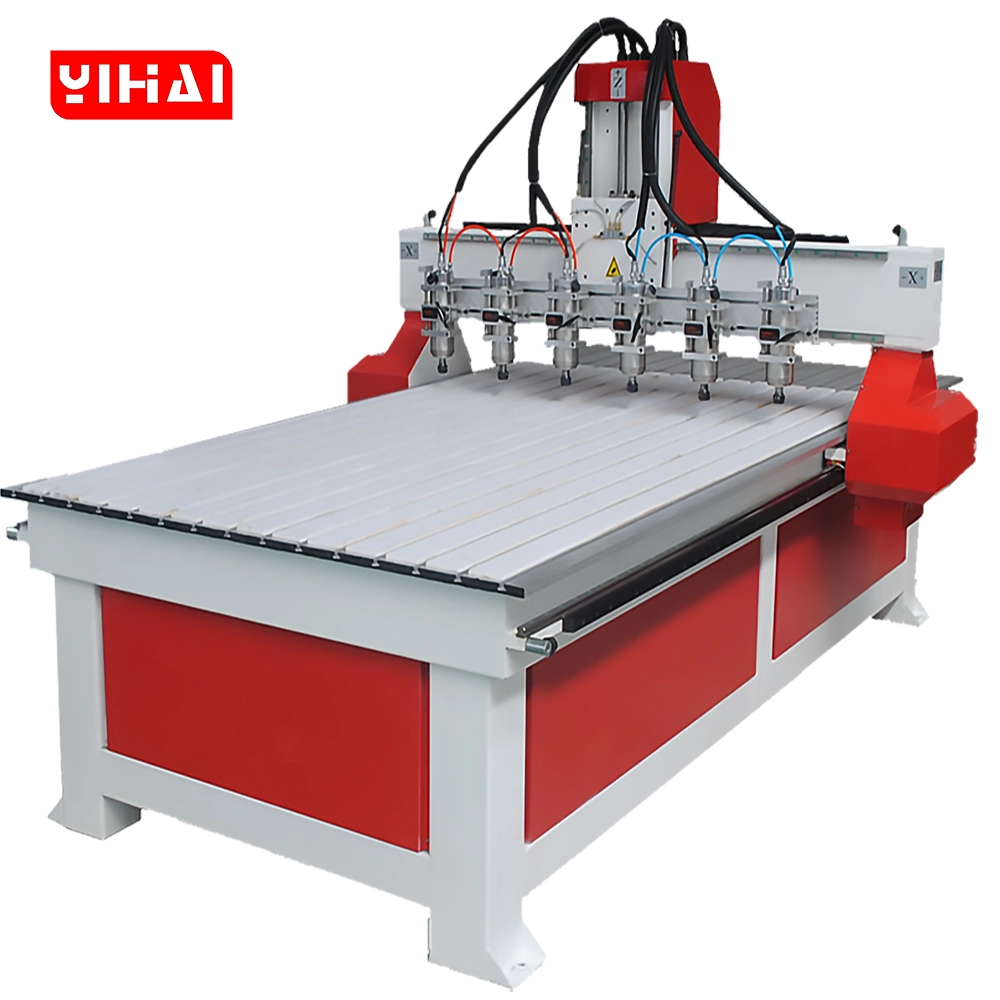

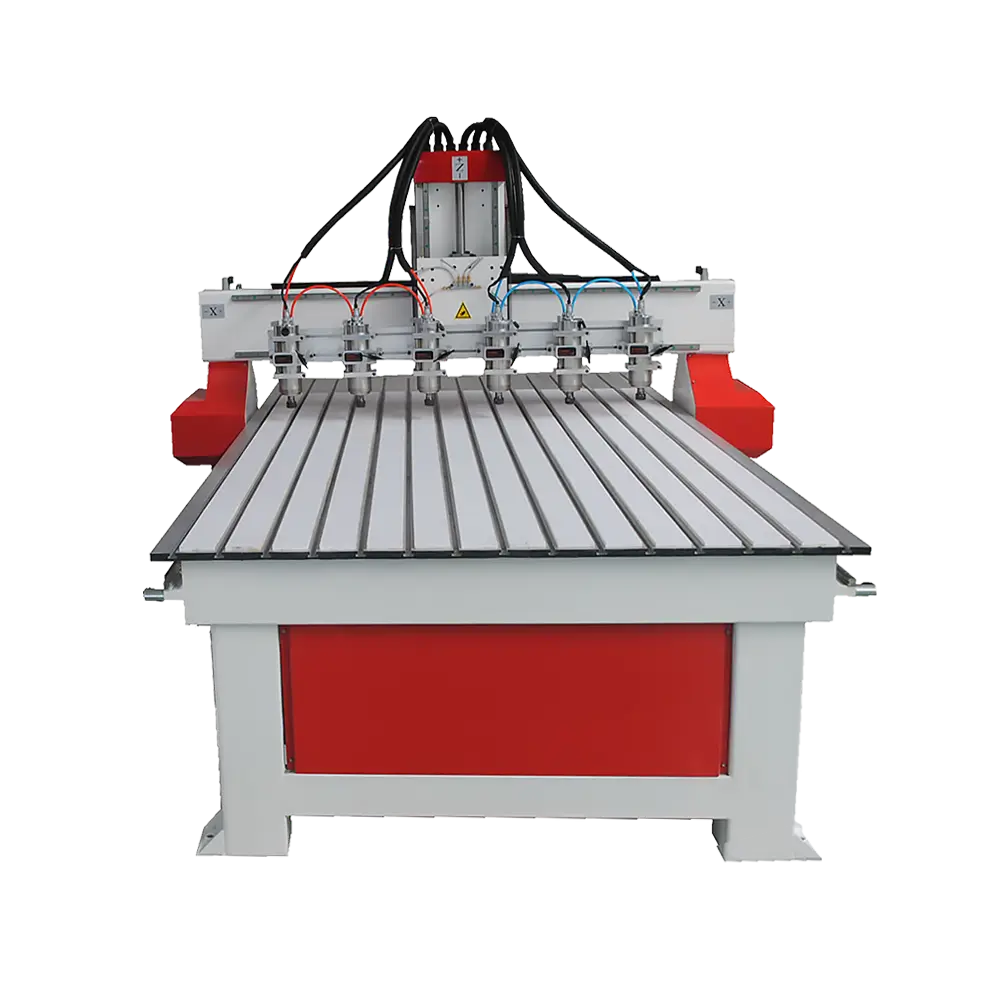

6-Head CNC Router – High-Efficiency Advertise CNC Router for Mass Production
Transform your advertising production with unprecedented efficiency. The YIHAICNC 6-Head CNC Router delivers six times the output of traditional single-spindle machines, processing six identical products simultaneously with synchronized precision.
Why Choose Our 6-Head Advertise CNC Router?
Revolutionary 6-Spindle Synchronized System
Our advertise CNC router features six independently mounted engraving heads that operate in harmony, controlled by precision pneumatic cylinders. This synchronized multi-head system enables you to produce six identical advertising signs, channel letters, or promotional displays in a single operation – dramatically reducing production time and labor costs.
Massive 1300mm × 2500mm Working Area
The generous T-slot table configuration accommodates large-format advertising materials, making this CNC wood router ideal for billboard components, oversized signage, and commercial displays. The T-slot design ensures secure material fixation across the entire work surface.
True 3-Axis Precision Engineering
Built on a robust 3-axis CNC router platform, each of the six spindles follows the same cutting path with exceptional accuracy. Whether cutting acrylic, engraving wood, or routing PVC, all six workpieces maintain consistent quality and dimensional accuracy.
Industrial-Grade Construction
Heavy-duty steel frame construction minimizes vibration and ensures stability during high-speed operations. The solid gantry design and reinforced structure deliver long-term reliability for demanding production environments.
TECHNICAL SPECIFICATIONS
| Feature | Specification |
| Type | Advertise CNC Router |
| Brand | YIHAICNC |
| Model | YH1325(6-Head Multi-Spindle) |
| Number of axes | 3(Optional rotary axis Customizable) |
| Number of Spindles | 6 Synchronized Heads |
| Total power | 3KW*6Head(Customizable) |
| X, Y, Z, Working Area | 1300*2500*200mm(Customizable) |
| Table size | 2200*3500*1800mm(Customizable) |
| Precision (mm) | 0.02 |
| Positioning accuracy(mm) | 0.02 |
| Driver And Motor | Stepper/ Hybrid-servo/Servo(Customizable) |
| Frame | Vacuum/T-Slot Aluminum Table |
| Repeatability | 0.05mm |
| Travel speed | 25m/min |
| Processing speed | 15m/min |
| Spindle Power | 3kw*6Head Water Cooling Spindle(Customizable) |
| Spindle Speed | 0-24000rpm |
| Working Voltage | 220V/380V,50/60Hz (customizable) |
| Command Language | G Code |
| X, Y Resolution | ＜0.03mm |
| Net Weight | 1200KG |
Advertising Industry Applications
Signage Production
The 6-head CNC router enables simultaneous cutting and engraving of letters, logos, and panels from materials like MDF, acrylic, and PVC, making it indispensable for sign shops handling high-volume orders.
Channel Letter Manufacturing
Produce six identical channel letters simultaneously – from face cutting to back panel routing. This CNC router for advertising dramatically accelerates LED sign production and reduces per-unit costs.
Display and Exhibition Materials
Create retail displays, trade show booths, and promotional stands with consistent quality. The large working area accommodates full-size display panels and exhibition graphics.
3D Advertising Elements
Carve dimensional logos, raised lettering, and decorative relief patterns across multiple workpieces. The synchronized heads ensure every piece matches precisely.
Additional Applications:
- Billboard components and outdoor signage
- Real estate signs and directional markers
- Vehicle graphics templates and stencils
- Point-of-purchase displays
- Lightbox panels and backlit signage
- Acrylic awards and recognition plaques
Unmatched Production Efficiency
| Feature | Traditional Single-Head | YIHAICNC 6-Head Router |
|---|---|---|
| Production Speed | 1 piece per cycle | 6 pieces per cycle |
| Operator Requirement | 1 operator per machine | 1 operator for 6 pieces |
| Floor Space | Multiple machines needed | Single integrated unit |
| Quality Consistency | Varies between batches | Guaranteed identical output |
| Setup Time | Repeated for each piece | One setup for six pieces |
| Energy Efficiency | 6× power consumption | Consolidated power use |
| Production Cost/Unit | Standard | Reduced by 60-70% |
6X Faster Production Speed
Complete six projects in the time it takes a single-spindle CNC wood router to finish one. This multiplied efficiency translates to faster order turnaround and increased profit margins.
Synchronized Precision
All six engraving heads follow identical tool paths simultaneously, ensuring every finished piece matches perfectly. Ideal for producing matched sets and standardized advertising products.
Reduced Labor Costs
One operator can manage six simultaneous production runs, dramatically reducing per-unit labor expenses compared to operating multiple single-head machines.
Lower Per-Unit Production Cost
Amortize machine operation costs across six pieces simultaneously, making small-batch custom orders as economical as mass production runs.
Consistent Quality Control
Since all six workpieces are processed under identical conditions during the same operation, quality consistency is guaranteed across every batch.
Floor Space Efficiency
Replace the footprint of multiple single-spindle routers with one integrated multi-head system, freeing valuable workshop space.
Premium Components & Engineering
Six Water-Cooled Spindle System
High-speed 3.0KW spindles with advanced cooling systems ensure continuous operation without overheating. Each spindle delivers consistent power across extended production runs.
Pneumatic Head Control
Precision pneumatic cylinders enable instant synchronization of all six engraving heads. Engage or disengage heads as needed for production flexibility.
Heavy-Duty T-Slot Table
The industrial T-slot table design allows secure clamping of materials in any configuration. Multiple workpiece sizes can be fixed simultaneously for maximum versatility.
Precision Linear Guide Rails
High-quality linear motion systems ensure smooth, accurate movement across all axes. Minimal backlash guarantees dimensional accuracy on every cut.
Advanced Control System
User-friendly DSP or NCStudio controller with offline operation capability. Process files directly from USB without computer connection during production.
Dust Collection System Compatible
Integrated dust ports connect to extraction systems, maintaining a clean work environment and prolonging spindle life.
Simple 6-Step Production Process
Step 1: Design Preparation
Create your design in compatible CAD/CAM software (Type3, ArtCAM, Vcarve, etc.) and generate G-code for the CNC router.
Step 2: Material Positioning
Arrange six identical material blanks on the T-slot table, using the spacing that matches your spindle configuration.
Step 3: Secure Workpieces
Fasten materials using T-slot clamps, vacuum hold-down, or fixture mounting to ensure stability during machining.
Step 4: Tool Setup
Install appropriate cutting tools in all six spindles. The synchronized system ensures identical tool heights across all heads.
Step 5: Program Loading
Transfer G-code to the controller via USB and set origin points. The machine automatically calculates paths for all six spindles.
Step 6: Production Run
Initiate the cutting cycle and monitor progress. All six workpieces are completed simultaneously with identical results.
FAQ
Q: Can the six spindles work independently?
A: The six engraving heads are designed to work synchronously, controlled by pneumatic cylinders. They operate together or not at all, following identical tool paths. This ensures six identical products with each production cycle.
Q: What is the maximum material thickness I can process?
A: The Z-axis travel of 200mm allows processing materials up to 150mm thick, though optimal performance is achieved with materials between 3-50mm for most advertising applications.
Q: How difficult is it to operate this multi-head CNC router?
A: If you have experience with standard CNC routers, the learning curve is minimal. The workflow is similar to single-spindle operation – the main difference is positioning six workpieces instead of one.
Q: Can I use different tools in different spindles?
A: No, all six spindles should use identical tooling since they follow the same path simultaneously. This ensures consistent results across all workpieces.
Q: What software is compatible with this machine?
A: The machine accepts standard G-code from popular CAD/CAM software including Type3, ArtCAM, Vcarve Pro, Fusion 360, and similar programs used in the advertising industry.
Q: What happens if I need to process fewer than six pieces?
A: You can still operate the machine with fewer workpieces – simply leave some spindle positions empty. However, maximum efficiency is achieved when processing six pieces simultaneously.
Q: How long does setup take compared to a single-head machine?
A: Initial setup takes slightly longer as you position six workpieces, but this time is minimal compared to the productivity gain of producing six finished pieces in one cycle.
Q: What is the typical tool life when running all six spindles?
A: Tool life depends on material and cutting parameters, but is comparable to single-spindle operation. Since all six spindles share the cutting load timing, tools wear evenly and predictably.
Dmitry Volkov 🇵🇱 (Poznan, Poland) –
Massive production capacity—running 6 heads simultaneously has cut our promotional sign production time drastically. However, during the first week, spindle #4 had an intermittent limit-switch alarm which paused our batch. The YIHAI support team helped our technician diagnose the loose wiring terminal via multimeter over WeChat/WhatsApp within an hour. Tightened the screw and it hasn’t skipped a beat since. High performance, good support, just make sure to double check all terminal screws after sea shipping.
Alex_Zhang –
Hello Dmitry, thank you for your professional assessment. Sea voyages over several weeks with rough sea swells can occasionally cause terminal screws to loosen under vibration. We appreciate your valuable feedback and have updated our factory checklist to apply thread-locking compound to all cabinet terminal blocks prior to crating. We wish your facility continued high output!
Mehmet Yıldız 🇹🇷 (Istanbul, Turkey) –
We installed the 6-head 1325 in our commercial sign facility three months ago, and it’s been running like a dream. Six synchronized water-cooled spindles cutting six identical acrylic letters simultaneously—our output has increased dramatically. The T-slot table is versatile and the 1300x2500mm work area handles full sheets efficiently. The machine is built like a tank—heavy-duty steel frame, minimal vibration, and consistent precision. We’re processing about 200 square meters of acrylic per week on this machine. Best investment we’ve made. 5 stars!
Alex_Zhang –
Merhaba Mehmet! Thank you for the outstanding review. 200 square meters of acrylic per week—that’s impressive throughput! We designed the 6-head synchronized system specifically for high-volume sign production, and it’s great to see it delivering results for your facility in Istanbul. The heavy-duty construction is indeed built for continuous industrial use. Thank you for trusting YIHAICNC!
