Description

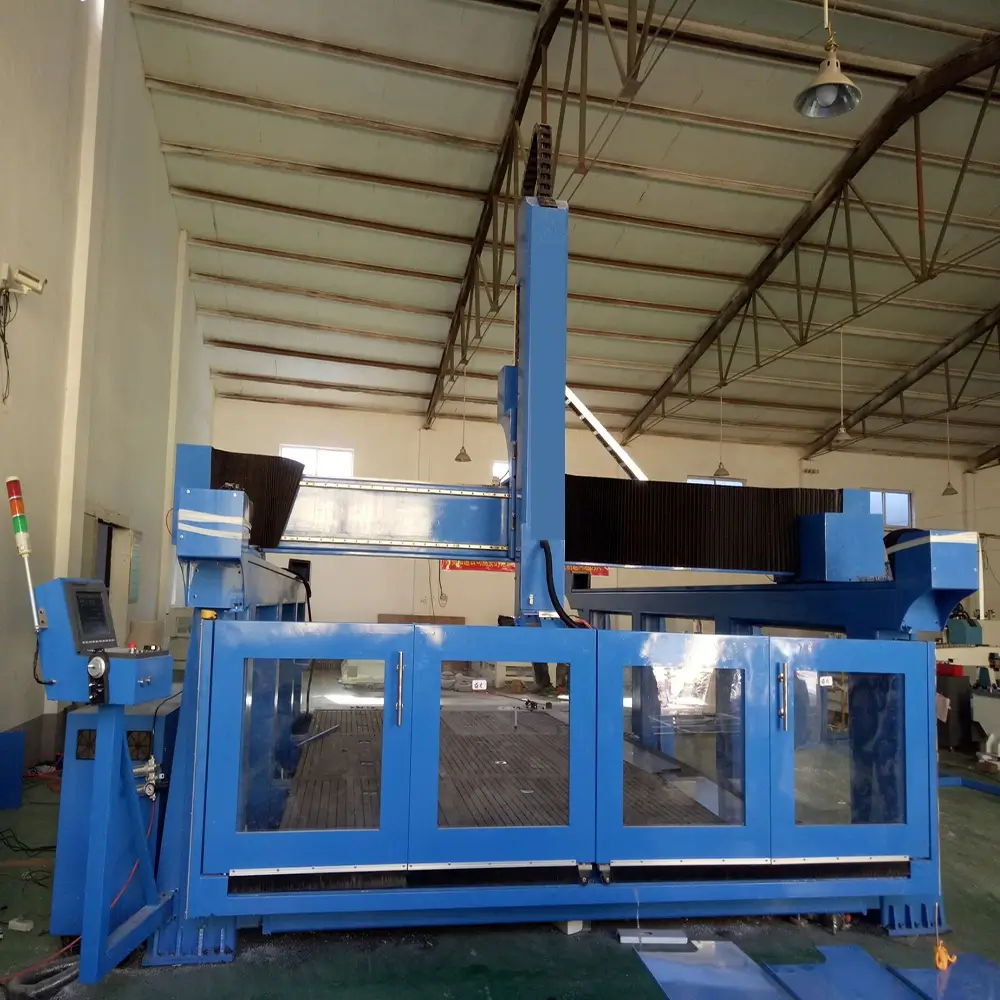

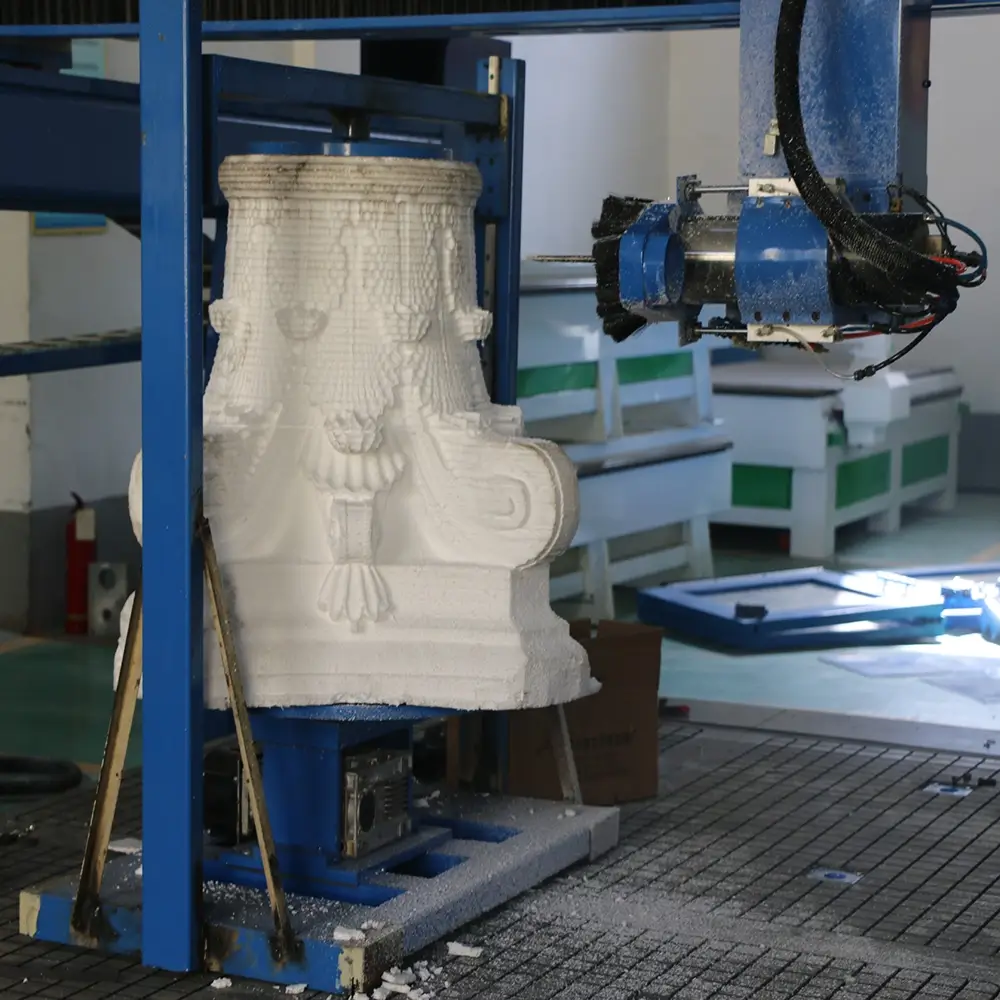

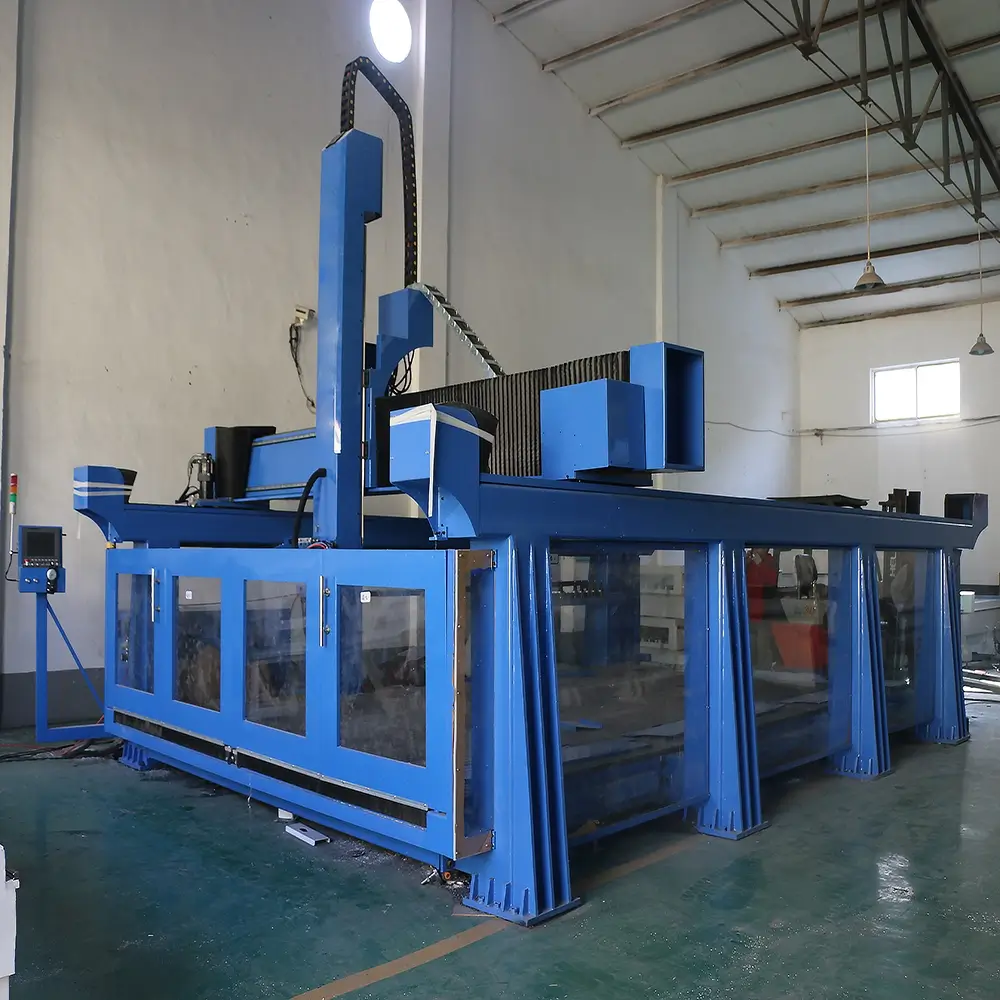

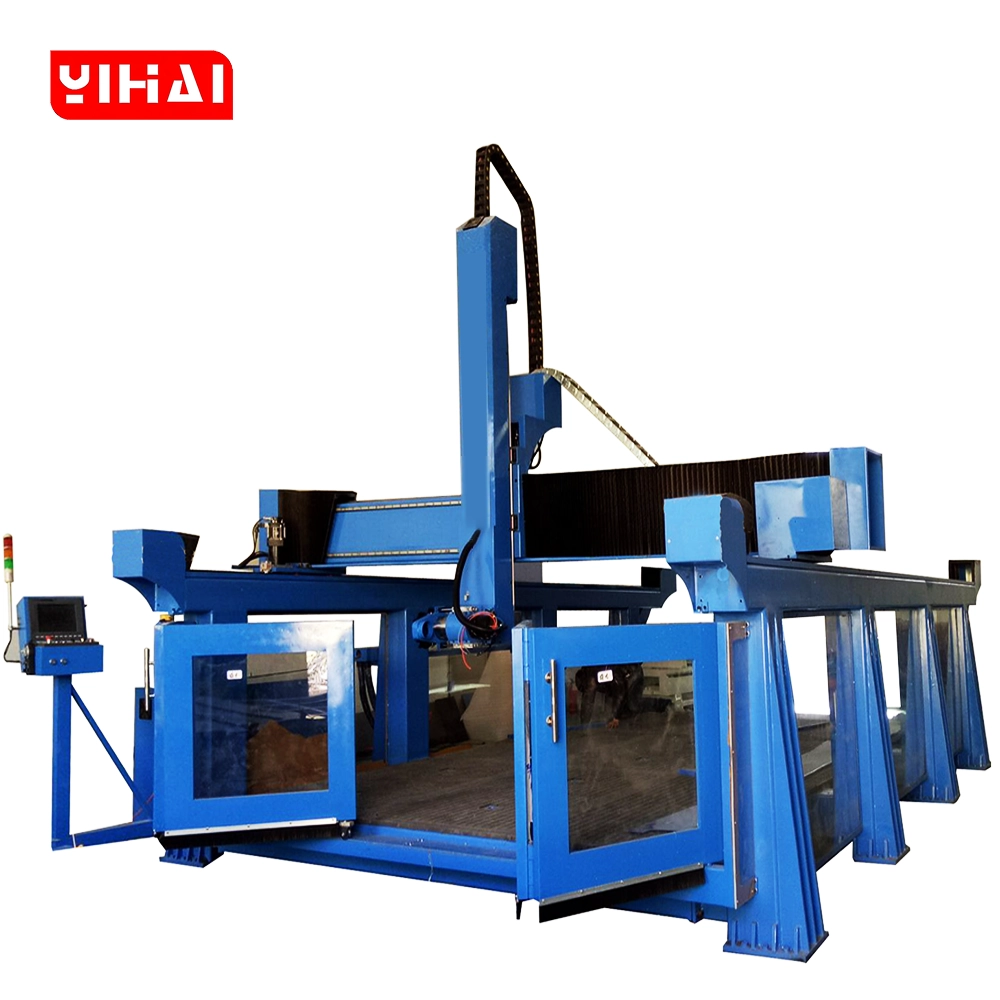

The YIHAI 3560 represents the pinnacle of foam machining technology. This industrial 5-axis CNC with a continuous 360° tilting head and ATC tackles the most monumental projects—from full-scale vehicle prototypes to massive art installations—with unmatched geometric freedom and efficiency in a huge 3500x6000mm area.
Furthermore 3560 5-axis CNC router with a rotary device can realize multiple complex and heavy-duty woodworking cutting and 3D carving processes. It adopts the moving gantry and fixed worktable structure, ensuring great flexibility and a wide processing range.
Features
- Heavy-duty welded steel frame and gantry guarantee the maximum straightness and rigidity.
- It reduces repeated clamping and tooling time, which greatly shortens the product development cycle and improves work efficiency.

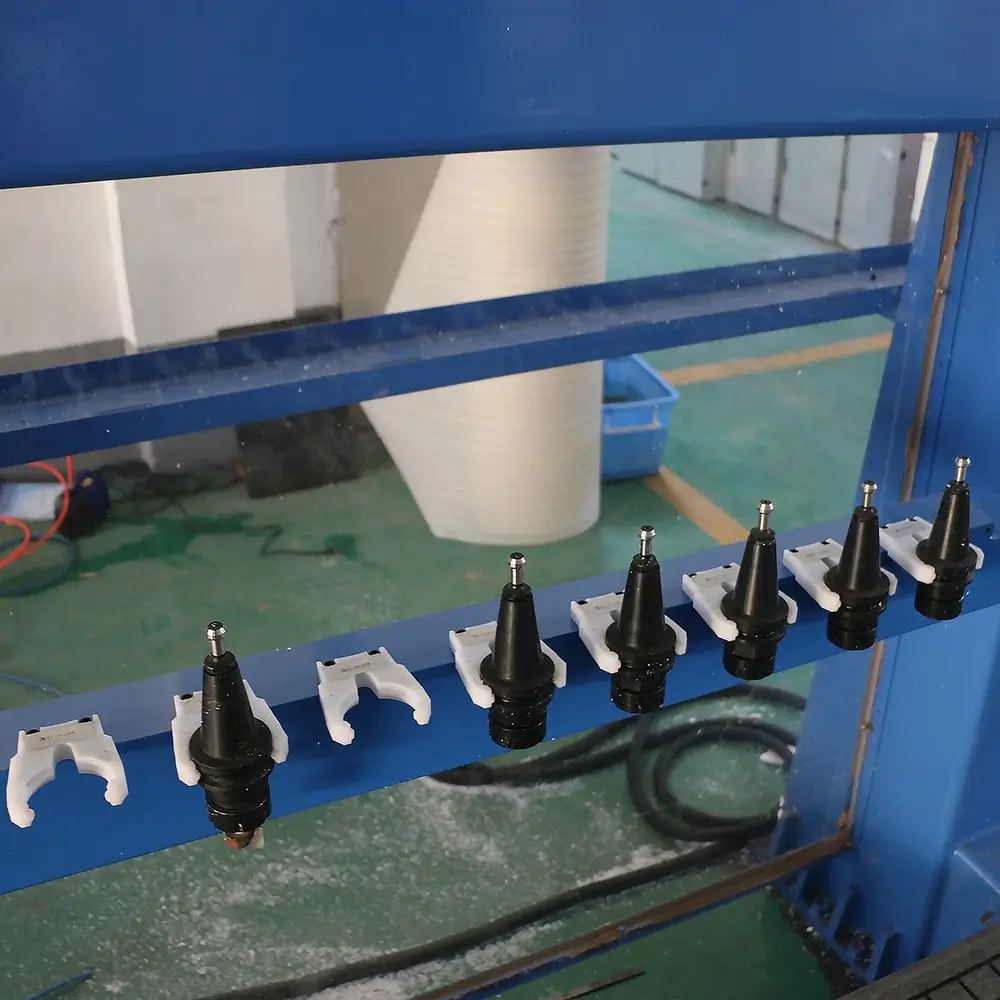

- Equipped with a linear tool changer, it can change tools automatically and achieve multiple machining processes.
- Employs a vacuum adsorption worktable, which can adsorb and fix any large-sized materials, ensuring processing accuracy and stability.
- It can process multiple materials, such as stone, styrofoam, wood, aluminum, etc.
| Feature | Specification |
| Type | CNC Foam Router/5 Axis CNC Router |
| Features | Z-Axis Heightened(Heightened Customizable) With Spindle180-Degree Swing(Degree Customizable) With Rotary Axis(Number Customizable) With ATC |
| Brand | YIHAICNC |
| Model | YH3560(Spindle360-degree swing With ATC) |
| Color Scheme | Blue |
| Number of axes | 5(Adding Other Axes) |
| Number of Spindles | Swing Spindle(Customizable) |
| Working Area | 3500mmx6000mmx1500mm(Customizable) |
| Total power | 9 kw water-cooled spindle(Customizable) |
| Table Surface | Vacuum Adsorption(Customizable) |
| X, Y, Z Traveling Positioning Accuracy | ±0.03mm |
| X, Y, Z Repositioning Positioning Accuracy | ±0.03mm |
| Precision | 0.2mm |
| Travel speed | 30000mm/min |
| Dictate Formate | G code |
| Operating Voltage | 220v/380v 50HZ-60HZ |
| Running Environment Temperature | 0-45 Centigrade |
| Net Weight | 2000KG |
