I. Key Features and Production Value

The YH1325 Double-Process with Side Drilling Spindle is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to producing repeatable cabinet parts, wardrobe panels, drawer components, and fitting openings. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• The vertical spindle handles cutting and engraving while the horizontal spindle handles side drilling and grooving.
• Pneumatic switching combines two work directions in a single processing setup.
• The configuration addresses cabinet side holes, connector grooves, and panel edge operations.
• Vacuum adsorption keeps panels stable during vertical and horizontal operations.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1325 Double-Process with Side Drilling Spindle
Number of axes	3
Number of Spindles	Double(Vertical + Horizontal)
Total power	12KW(6KW Vertical + HQD Horizontal, Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	30m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.03mm
X,Y Resolution	<0.03mm
Net Weight	≈1500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, side drilling, cutting and blanking

III. Machine Components Overview

An all-in-one panel furniture nesting center engineered to execute vertical face milling and horizontal edge boring on a single clamping cycle:

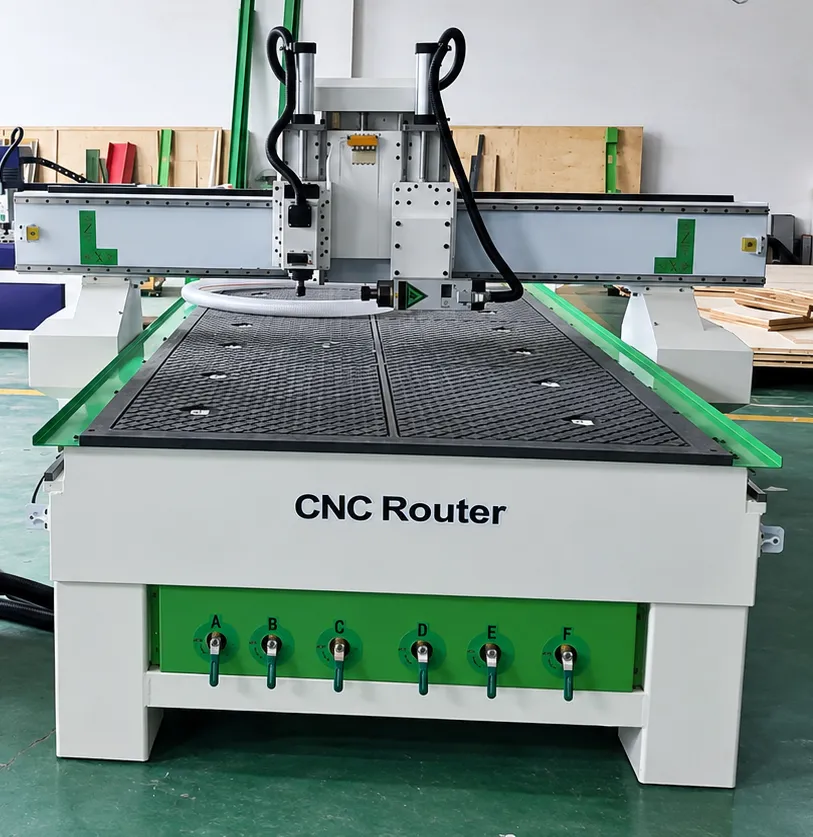

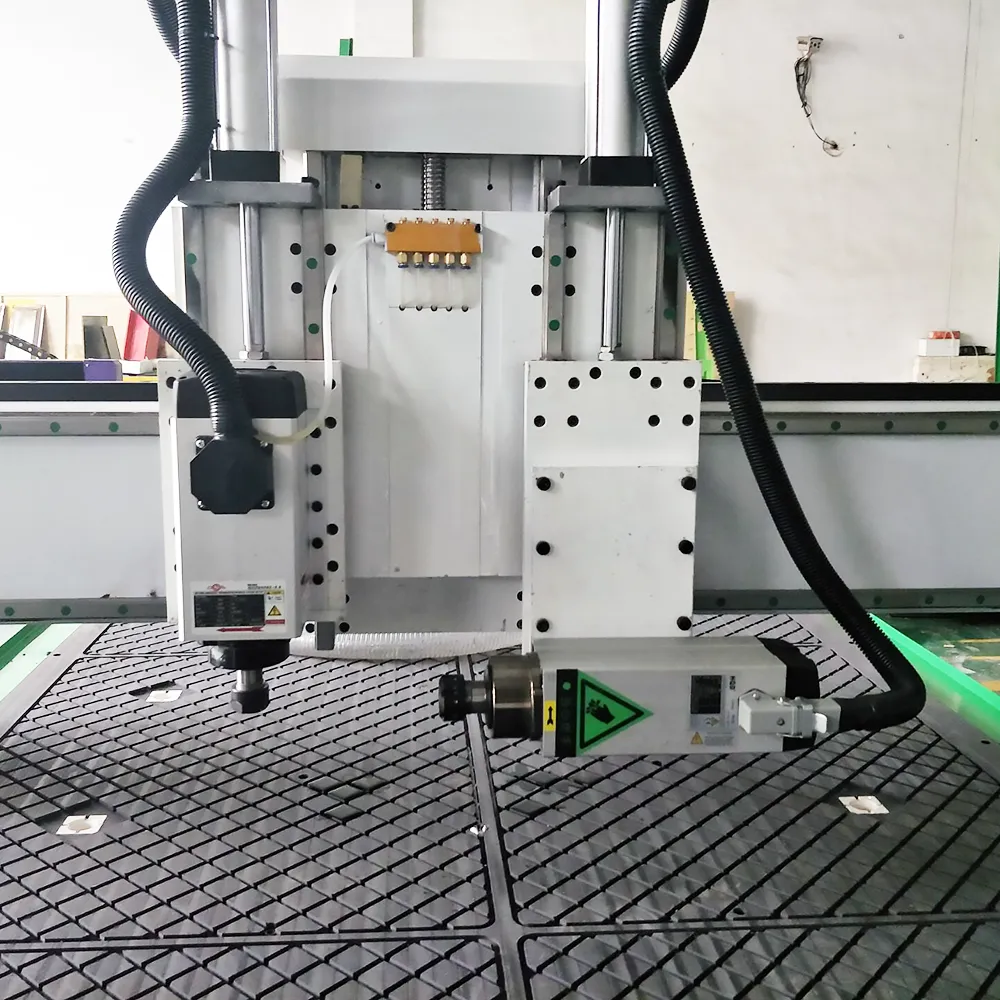

• Dual-Axis Vertical & Horizontal Spindle Layout: Features one high-power vertical spindle for nesting, cutouts, and top boring, paired with an HQD horizontal side-mounted spindle for edge drilling and cam-lock pocketing.
• Independent Pneumatic Head Shifting: Fast pneumatic changeover mechanism retracts the idle spindle while instantly engaging the active tool, preventing workpiece collision and eliminating secondary edge-boring machines.

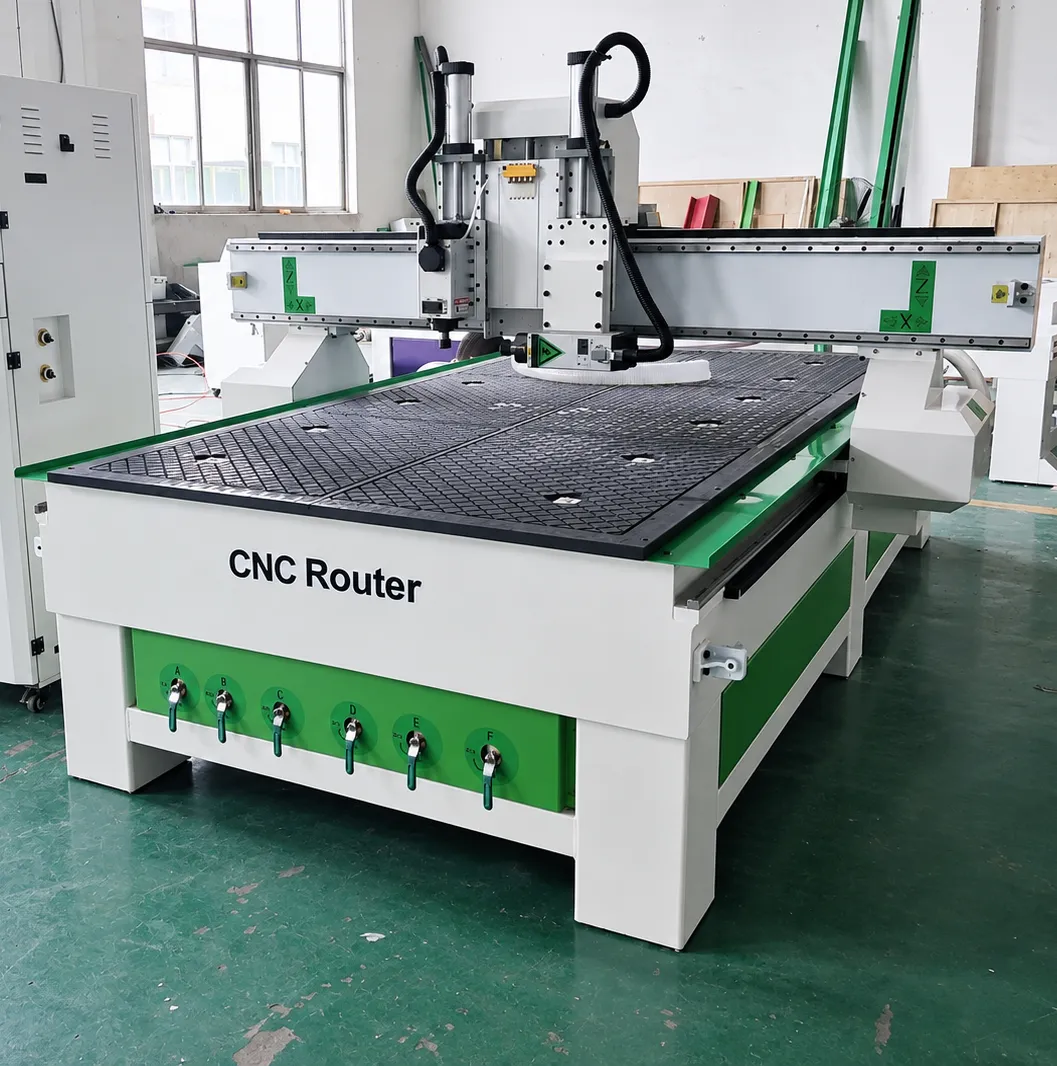

• Multi-Zone Phenolic Vacuum Matrix Bed: High-density grid table equipped with 6-circuit independent isolation valves (A–F) delivers concentrated negative pressure for standard 4×8 sheet goods and narrow cabinet components.

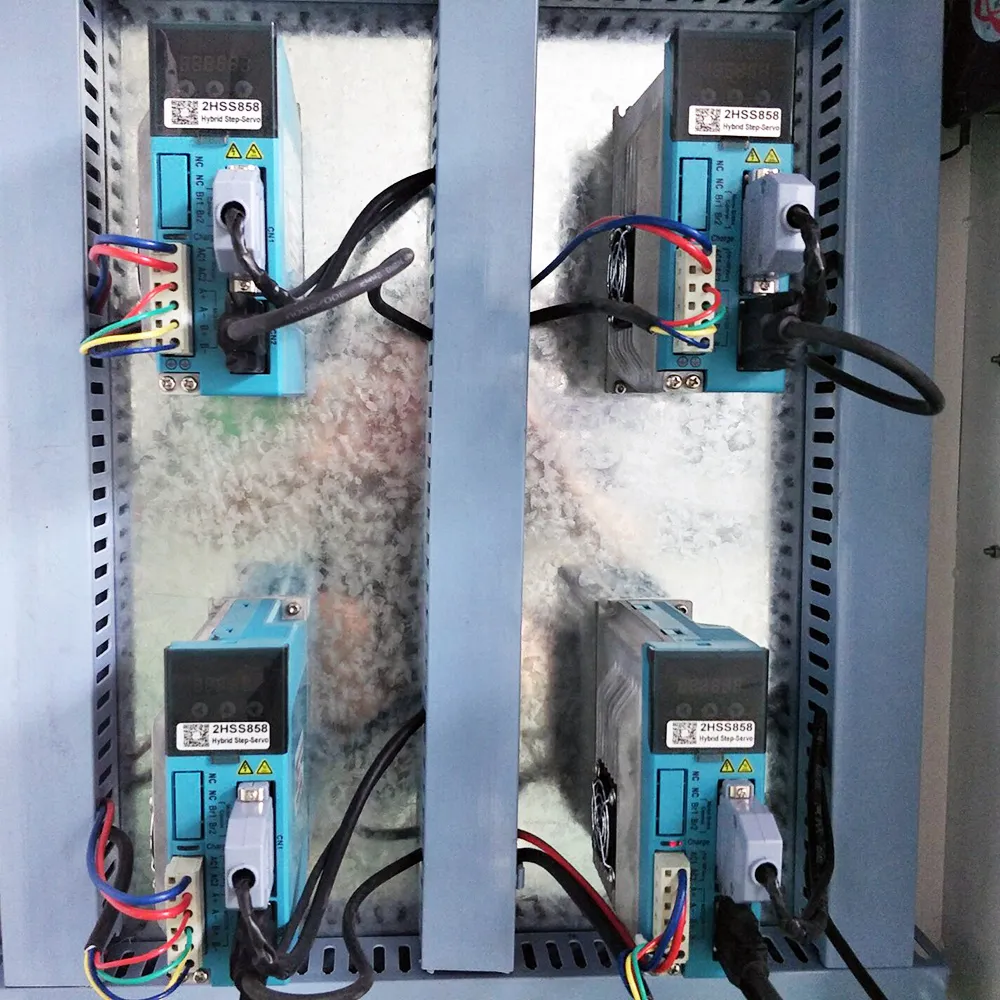

• Digital Closed-Loop Hybrid Step-Servo System: Four high-torque 2HSS858 closed-loop drivers provide continuous optical encoder positioning verification to safeguard against dropped steps during deep side boring.

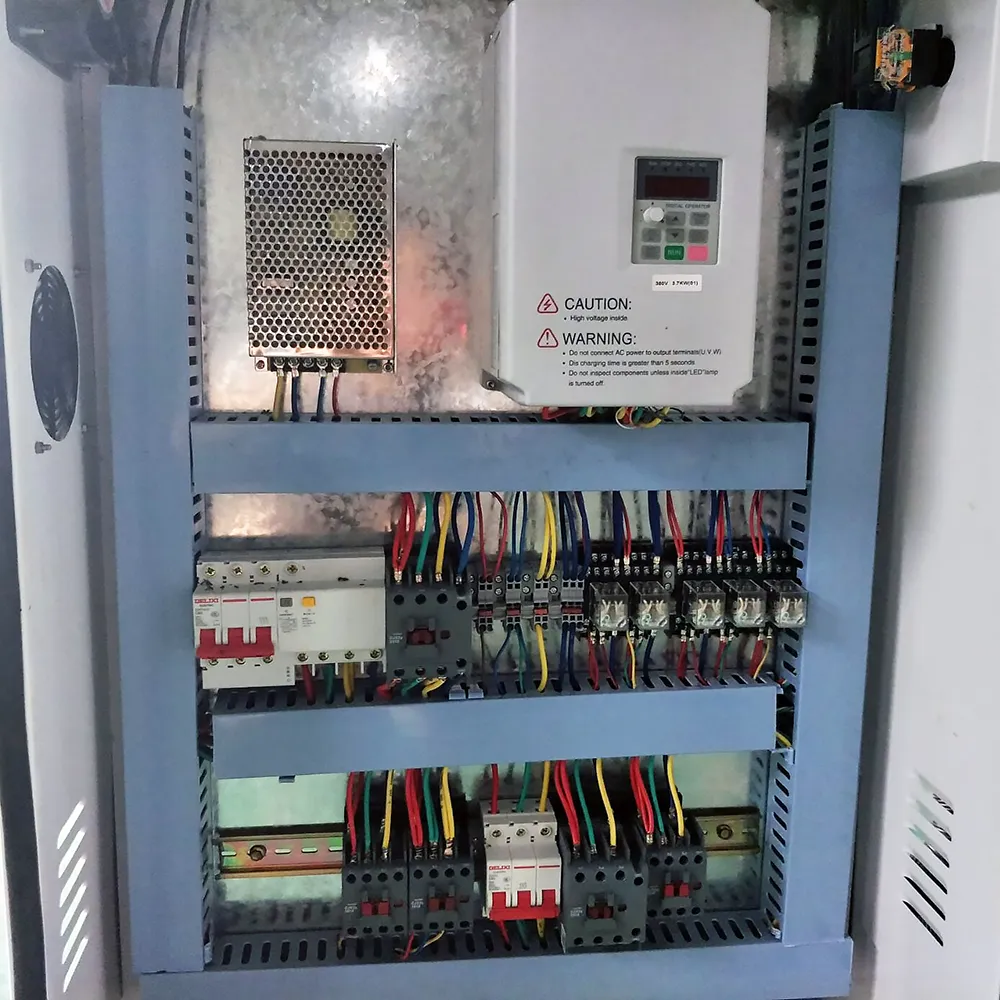

• Integrated Air Filtration & Pressure Regulator Assembly: Factory-mounted two-stage pneumatic regulator station maintains precise, dry air delivery to all head-shifting cylinders.

IV. Applications and Processed Materials

CNC Furniture Machine with Side Drilling Function for Cabinet Manufacturing

The YH1325 Double Process Side Drilling CNC router is developed for panel furniture manufacturers requiring both CNC machining and side hole drilling capability in one machine.

The integrated side drilling unit allows manufacturers to process cabinet connection holes, dowel holes, and structural drilling operations without transferring panels between different machines.

This CNC furniture machine is widely used for kitchen cabinet production, wardrobe manufacturing, panel furniture assembly, office furniture processing, and customized cabinet production.

By combining cutting, engraving, and side drilling functions, the machine helps furniture factories simplify workflow, reduce manual handling, and improve production efficiency.

Typical Applications:

• Kitchen cabinet manufacturing
• Wardrobe production
• Panel furniture assembly
• Office furniture components
• Cabinet connector hole processing
• Customized furniture production

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine panels
• Solid wood panels
• Composite boards

V. FAQ

1. Why is side drilling important for cabinet production?

Many panel furniture structures require side holes for connectors and assembly. Integrated side drilling eliminates the need for separate drilling equipment.

---

2. Can this machine replace a separate side drilling machine?

For many cabinet production applications, the integrated drilling function can reduce the need for additional processing equipment.

---

3. What furniture products can be produced?

It is suitable for kitchen cabinets, wardrobes, office furniture, shelves, and customized panel furniture.

---

4. What advantage does double process provide?

The double process structure improves workflow efficiency by reducing tool replacement and allowing different machining operations to be completed faster.

---

5. Who should choose this machine?

It is suitable for cabinet manufacturers and furniture factories looking for an integrated CNC solution combining cutting and drilling operations.
