Description

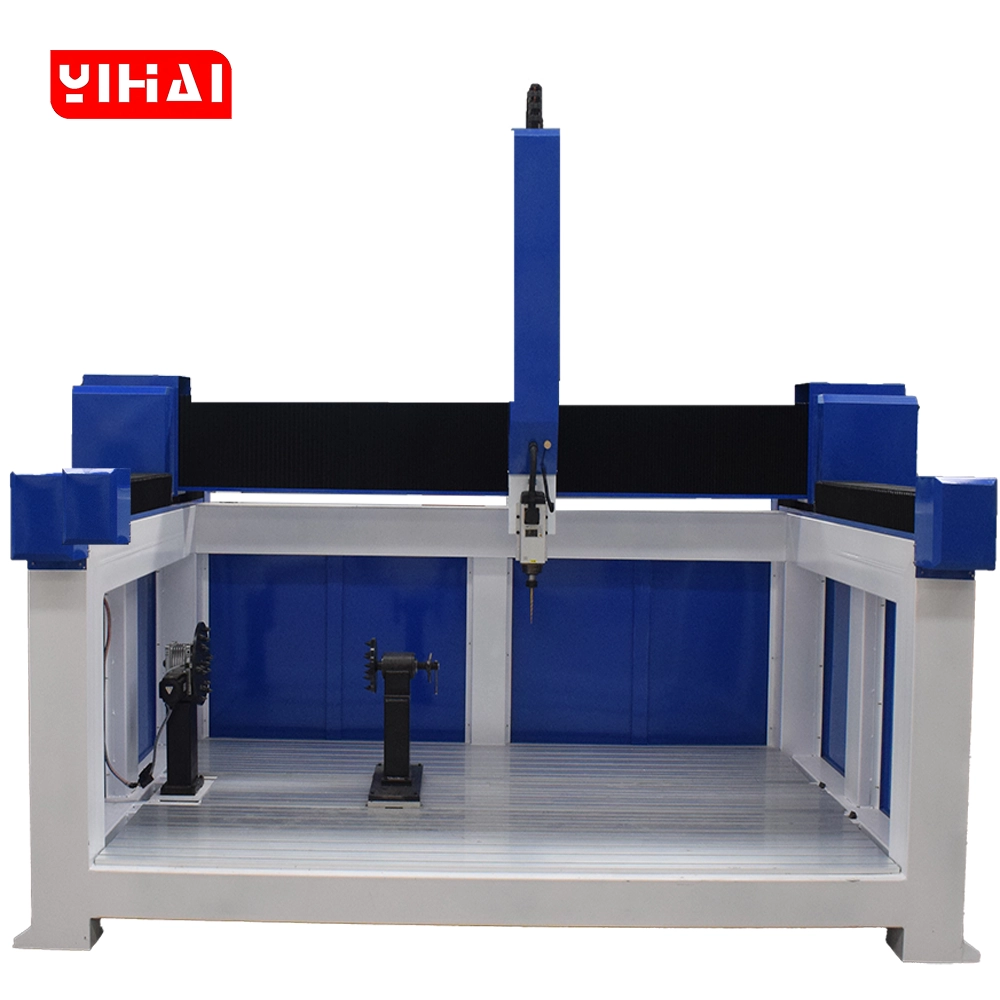

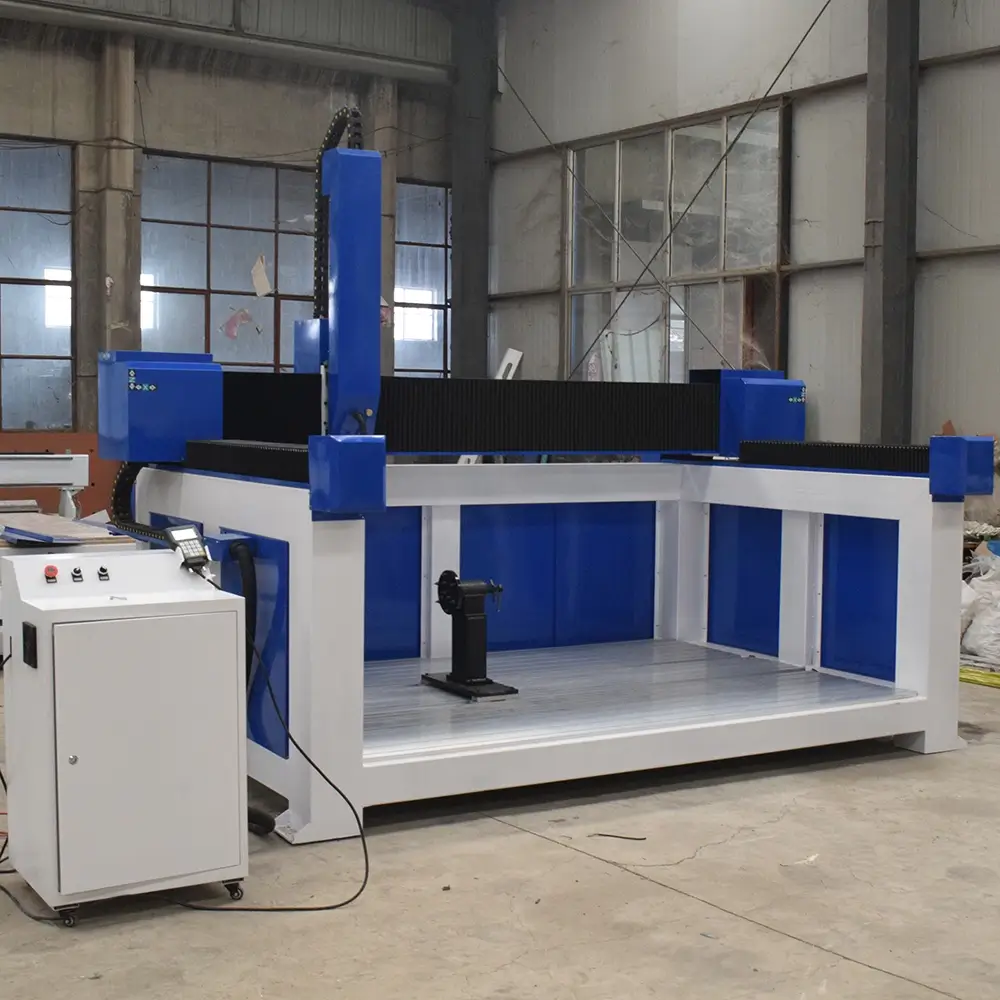

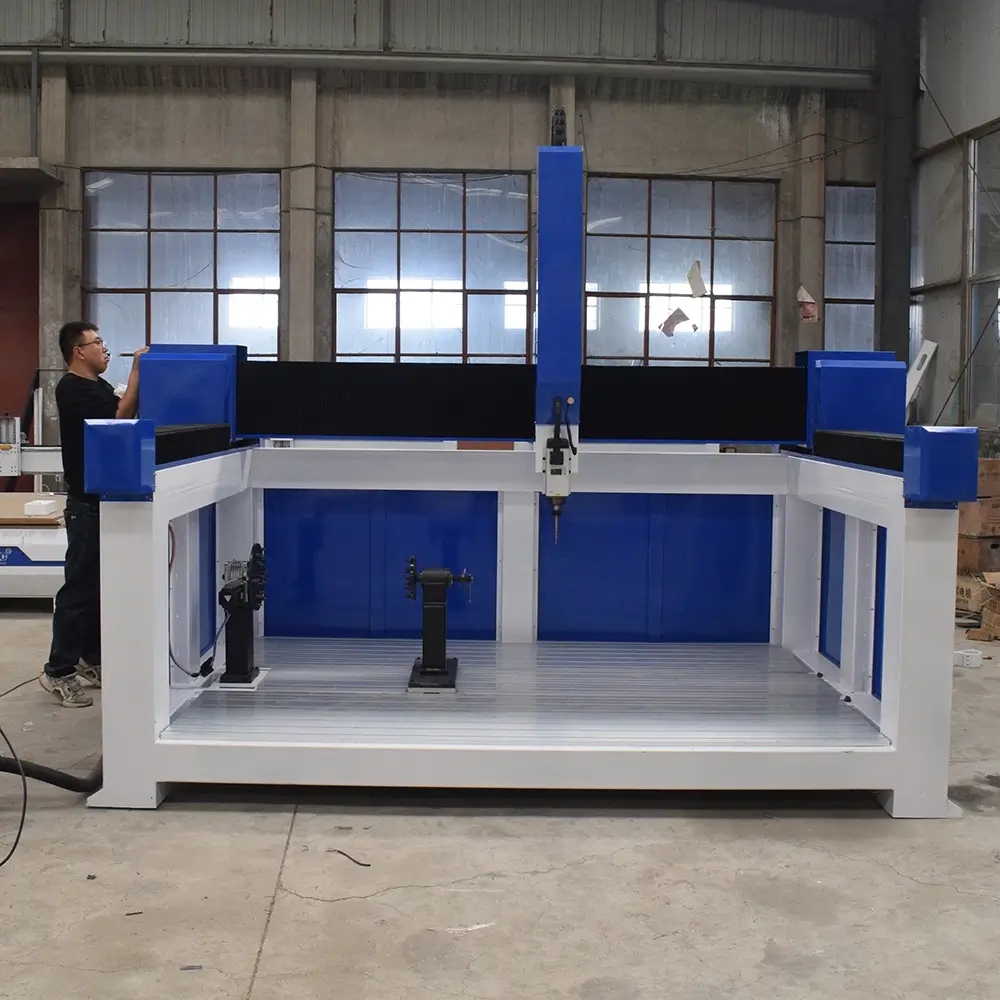

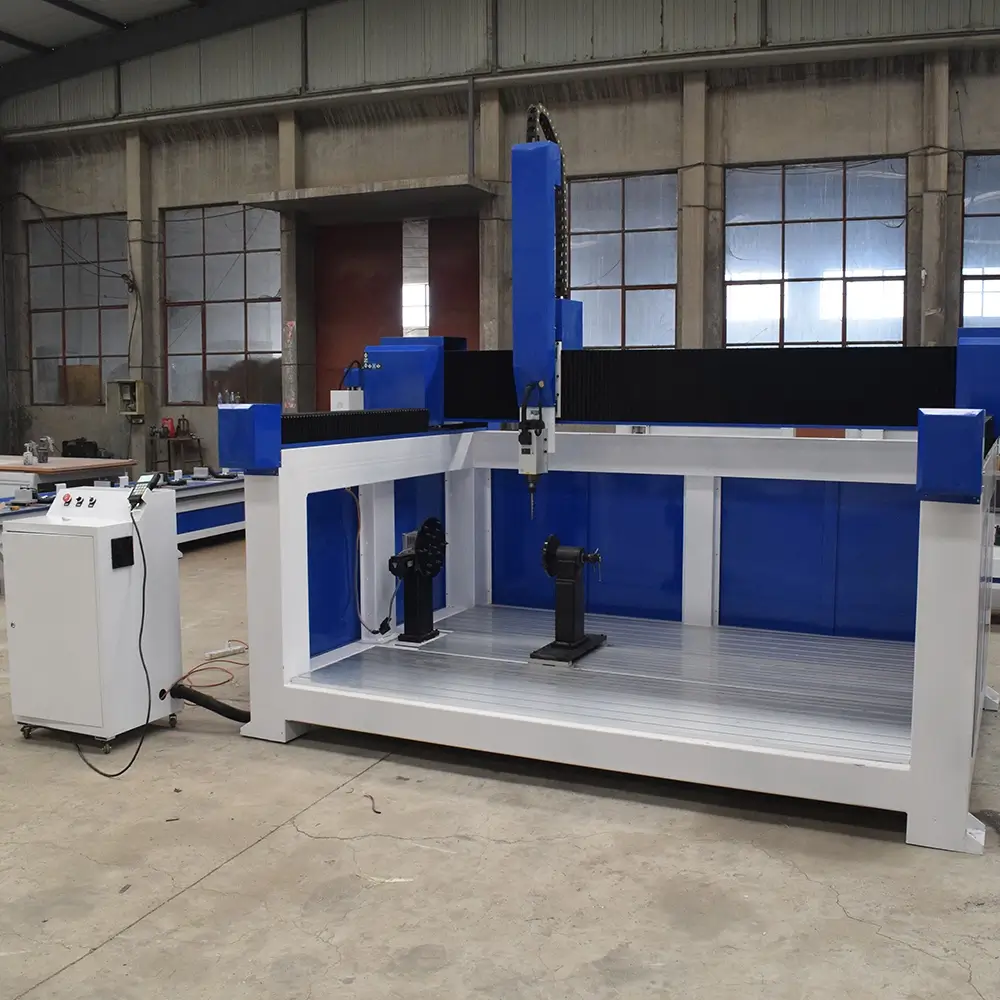

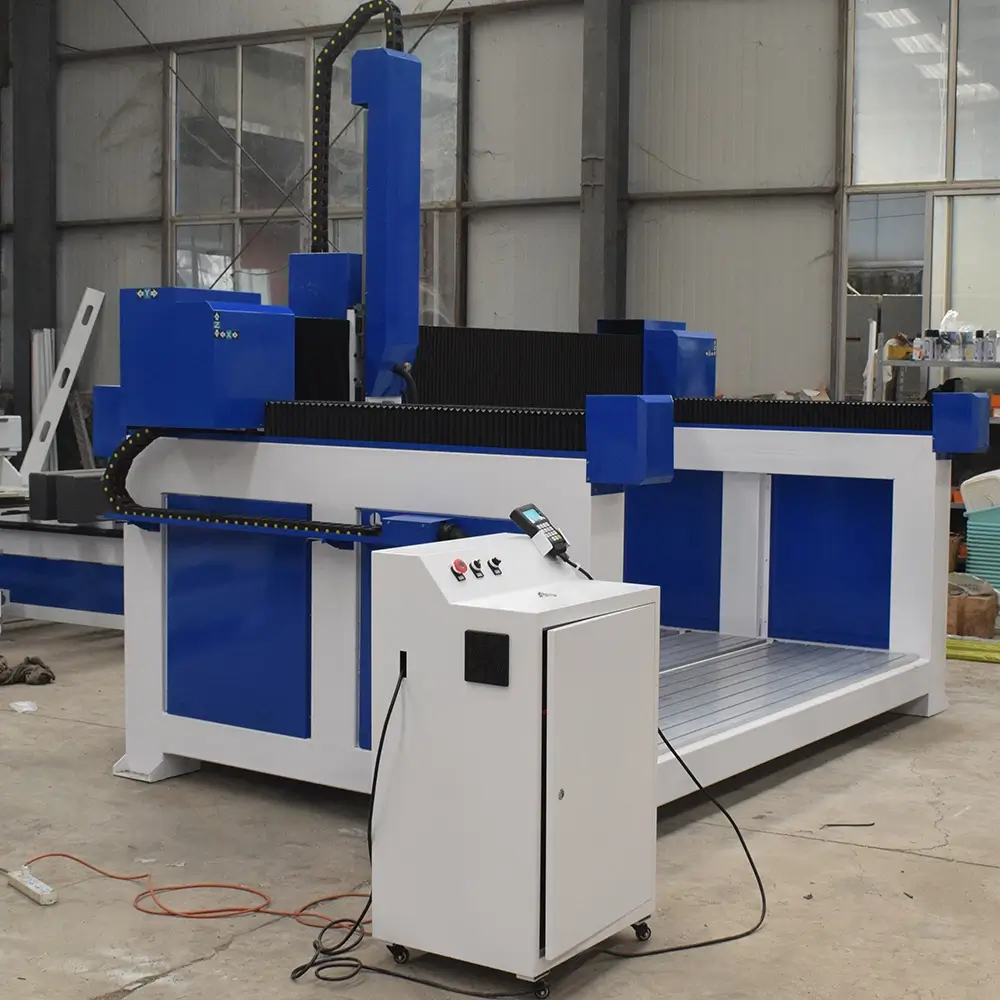

Enhance your production capabilities with our 1325 4-axis CNC foam router. The integrated rotary axis allows for continuous 360° carving on cylindrical workpieces like columns and model prototypes, dramatically expanding your design possibilities.
| Feature | Specification |
| Type | CNC Foam Router |
| Features | Z-Axis Heightened With Rotary Axis |
| Brand | YIHAICNC |
| Model | YH1325(With Rotary Axis/Z-Axis Heightened) |
| Color Scheme | Blue And White |
| Number of axes | 4(Adding Rotary Axes or Other Axes) |
| Number of Spindles | Single(Adding Swing Spindle/Customizable) |
| Working Area | 1300mmx2500mmx900mm(Customizable) |
| Total power | 4.5 kw Spindle(Customizable) |
| Table Surface | T-slot Aluminum Profile |
| X, Y, Z Traveling Positioning Accuracy | ±0.03mm |
| X, Y, Z Repositioning Positioning Accuracy | ±0.05mm |
| Precision | 0.3-0.5mm |
| Travel speed | 18000mm/min |
| Positioning precision | 0.03/300mm |
| Dictate Formate | G code |
| Operating Voltage | 220v/380v 50HZ-60HZ |
| Running Environment Temperature | 0-45 Centigrade |
| Net Weight | 1100KG |
Bambang Wiryawan 🇮🇩 (Jakarta, Indonesia) –
Hello, I’m evaluating the high-efficiency 4-axis foam cutter for our exhibition stand fabrication business in Jakarta. We produce large-scale display props and themed environments. The 18000mm/min travel speed and 1300x2500mm work area look impressive. The blue and white color scheme is also very professional. What’s the maximum foam density this machine can handle? We sometimes work with high-density PU foam for structural elements.
Alex_Zhang –
Selamat siang Bambang! The 4-axis foam cutter handles foam densities up to 150kg/m³ for EPS and up to 300kg/m³ for PU foam. For high-density PU structural elements, we recommend using the appropriate tooling and feed rates—our technical team can provide specific parameter recommendations. The 18000mm/min travel speed keeps production moving fast. We’ve shipped several units to Indonesia and can provide references. We’ll send you a detailed proposal today!
Vladimir Kuznetsov 🇷🇺 (Yekaterinburg, Russia) –
We bought the high-efficiency 4-axis foam cutter for our Yekaterinburg production facility three months ago. This machine is FAST. The 18000mm/min travel speed is not just a number—we’re cutting EPS foam sheets 40% faster than our previous machine. The rotary axis is smooth and precise, and the 900mm Z-axis provides ample depth for our 3D props. The blue and white design looks great in our workshop. We’re running it 10 hours daily for themed environment production and it hasn’t missed a beat. The 4.5kW spindle is perfectly matched for foam work. Excellent machine!
Alex_Zhang –
Privet Vladimir! 40% faster cutting—that’s exactly the efficiency gain we designed for. The 18000mm/min travel speed combined with the 4.5kW spindle is a powerful combination for high-volume foam production. We’re glad the machine is performing reliably in Yekaterinburg’s demanding production environment. Thank you for your trust!
Paulo Henrique Santos 🇧🇷 (Recife, Brazil) –
This is my third CNC router from YIHAICNC. I started with a small 6090 advertising machine back in 2020, upgraded to a 1325 wood router in 2022, and now the 4-axis foam cutter. Each machine has been better than the last. The high-efficiency 4-axis foam cutter is a masterpiece—fast, accurate, and reliable. The blue and white design is a nice touch too. The rotary axis works flawlessly for cylindrical props. I’ve recommended YIHAICNC to several colleagues in Recife’s event production industry. 5 stars, as always.
Alex_Zhang –
Muito obrigado Paulo! Three machines since 2020—that’s an incredible journey of growth and partnership. We’re honored to have been your CNC partner through all these upgrades. The high-efficiency 4-axis foam cutter is indeed our most advanced foam machine for event and display production. Thank you for recommending us to your colleagues—word-of-mouth from loyal customers like you means the world to us!
