Description

I. Key Features and Production Value

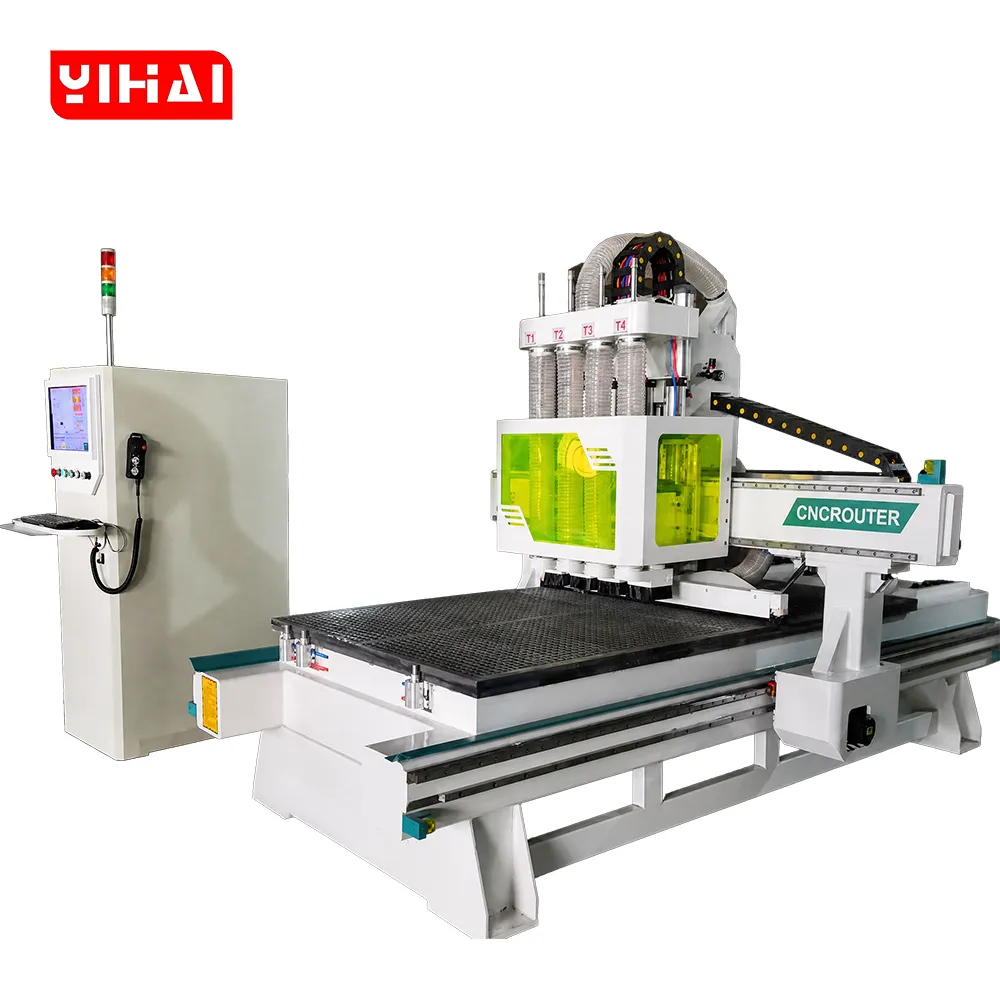

The YK4PRO is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to make desks, conference tables, shelving, reception elements, and display fixtures. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• Four process spindles support sequential cutting, drilling, milling, and engraving without repeated manual tool changes.
• The full dust-cover enclosure helps contain chips around the processing area and supports a cleaner working routine.
• Pneumatic positioning cylinders help locate panels before processing.
• The configuration is suited to cabinet doors, wardrobes, office furniture, and whole-house customization.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YK4PRO
Number of axes	3(Adding Rotary Axes or Other Axes)
Number of Spindles	Four(Any Number Customizable)
Total power	9KW per spindle(Customizable)
Working Area	1220mmx2500mm/1220mmx2800mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System

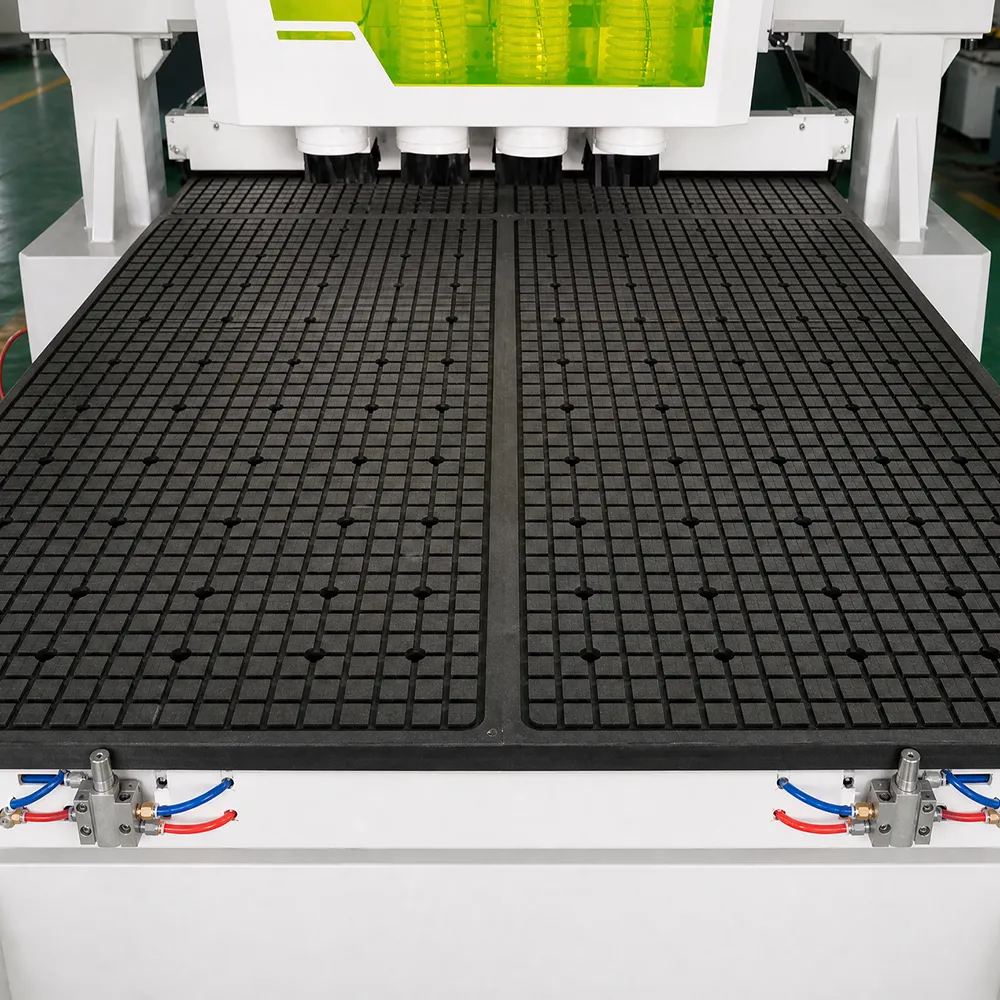

Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.02mm
Repeatability	±0.02mm
X,Y Resolution	<0.02mm
Net Weight	≈1500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

The YK4PRO integrates a multi-station mechanical architecture engineered for automated, dust-controlled panel furniture nesting:

• Pneumatically Shifted 4-Spindle Gantry Array: Four high-power air-cooled spindles mounted on independent pneumatic slide carriages, switching instantly between drilling, mortising, grooving, and perimeter cutting in seconds.
• Fully Enclosed Safety Dust Hood with Transparent Shield: Custom protective gantry casing with a high-visibility inspection window fully encloses the cutting area, paired with a synchronized 4-hose centralized extraction network to contain airborne dust.

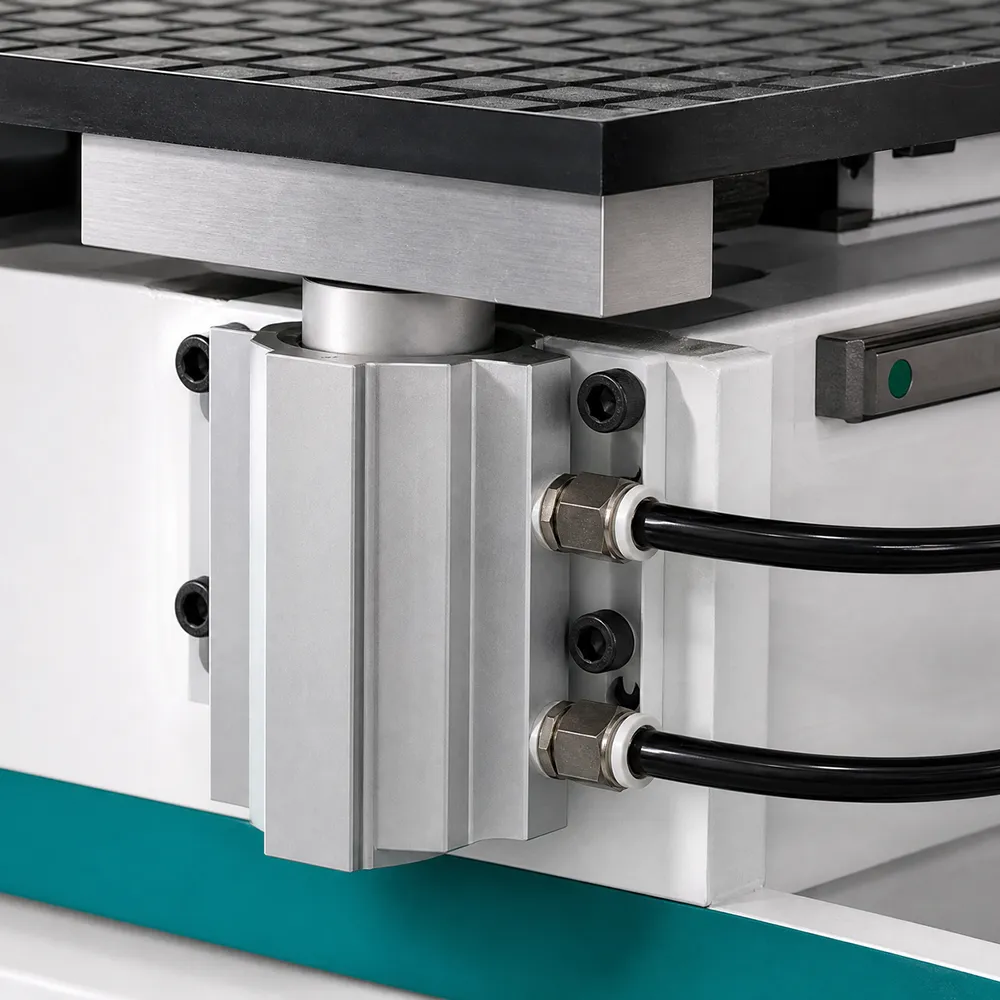

• Heavy-Duty Pneumatic Sheet Alignment Pins: Retractable pneumatic locator cylinders on the table front and side edges enable instant, foolproof zero-referencing for full-size 4×8 ft panels.

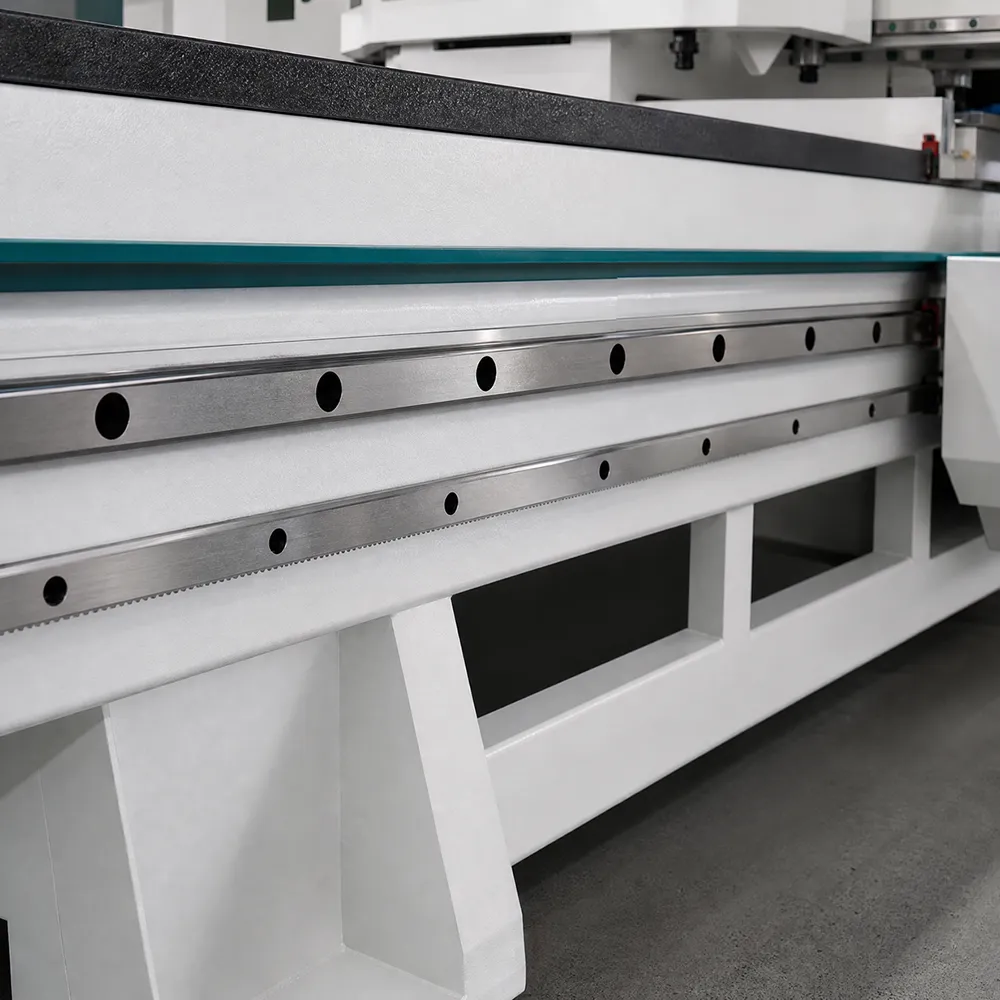

• Industrial Closed-Loop AC Servo Motion: High-torque AC servo drives mated to precision helical racks and planetary gearboxes eliminate step loss during aggressive high-speed roughing cycles.
• Automated Centralized Lubrication Unit: Programmed cyclic oil delivery to all linear bearings and drive blocks prevents abrasive friction and extends component service life.

IV. Applications and Processed Materials

Four-Process CNC Router Solution for Cabinet and Panel Furniture Manufacturing

The YK4PRO four-process CNC router is developed for furniture factories that need efficient multi-step machining without frequent manual tool replacement. With four independent processing units and an integrated dust protection structure, this CNC woodworking machine provides a practical solution for cabinet manufacturing, panel furniture production, and customized woodworking applications.

Unlike conventional single-spindle CNC routers, the YK4PRO can quickly switch between different machining operations, making it suitable for furniture components that require repeated processes such as cutting, drilling, grooving, engraving, and pocketing. This helps improve production efficiency for cabinet doors, side panels, shelves, wardrobe components, and decorative furniture parts.

The machine is widely applied in kitchen cabinet factories, wardrobe manufacturers, office furniture workshops, and custom furniture production lines. It can process various materials including MDF, plywood, particle board, melamine panels, solid wood boards, acrylic, and PVC materials.

The dust cover design helps reduce dust accumulation around the machining area, making it more suitable for furniture workshops requiring cleaner working conditions and easier daily maintenance.

Typical Applications:

• Kitchen Cabinet Production
  • Cabinet panels, shelves, drawer parts, and connector machining
• Wardrobe Manufacturing
  • Closet panels, decorative components, and customized furniture structures
• Office Furniture Manufacturing
  • Workstations, storage cabinets, and commercial furniture panels
• Wood Door and Decorative Panel Processing
  • Pattern engraving, grooves, and recessed designs
• Custom Furniture Production
  • Flexible machining for customized furniture orders

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine board
• Solid wood
• Acrylic
• PVC foam board
• Composite panels

---

V. FAQ

1. What is the advantage of four processing units?

The four-process configuration allows different machining operations to be completed with dedicated tools, reducing manual tool changes and improving production efficiency for furniture manufacturers.

---

2. Why choose YK4PRO instead of a single-spindle CNC router?

For furniture production, different processes often require different tools. YK4PRO reduces downtime caused by manual tool replacement and improves workflow efficiency for repeated cabinet and panel machining.

---

3. Is YK4PRO suitable for cabinet production lines?

Yes. The machine is suitable for cabinet factories producing doors, side panels, shelves, drawer components, and other furniture parts requiring multiple machining steps.

---

4. How does the dust cover benefit furniture workshops?

The dust cover helps contain machining dust around the working area, improving workshop cleanliness and reducing dust accumulation on machine components.

---

5. Can YK4PRO process customized furniture orders?

Yes. The CNC system supports flexible design changes, allowing manufacturers to produce customized cabinets, wardrobes, decorative panels, and special furniture components.

---

6. What materials are suitable for YK4PRO?

The machine can process MDF, plywood, particle board, melamine panels, solid wood, acrylic, and other commonly used furniture materials.

---

7. Does YK4PRO improve production consistency?

Yes. CNC control provides repeatable machining accuracy, helping furniture manufacturers maintain consistent dimensions and quality during batch production.

---

8. What type of customers usually choose YK4PRO?

YK4PRO is suitable for furniture factories, cabinet manufacturers, woodworking workshops, and companies requiring higher production efficiency than basic CNC routers.
