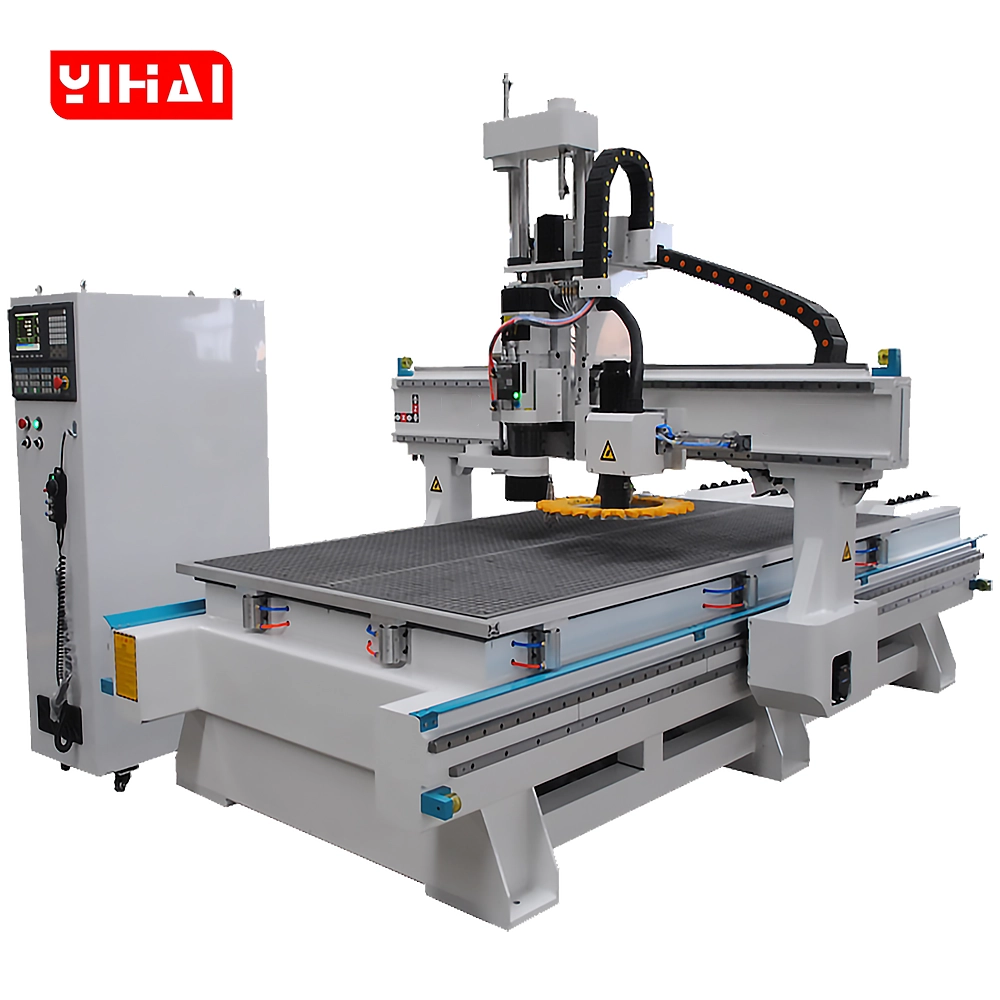

YKS12 Circular Tool Change CNC Machining Center – Professional Furniture Manufacturing Automation

The YIHAICNC YKS12 Circular Tool Change CNC Machining Center is designed for contemporary furniture manufacturers, cabinetry producers, and professional woodworking shops that seek to automate complex production workflows. This three-axis machining center combines the speed and precision of industrial CNC technology with an intelligent carousel-style automatic tool changer, enabling seamless transitions between multiple cutting, drilling, and engraving operations without operator intervention.

Unlike traditional CNC routers that require manual tool swaps or rely on slower linear magazine systems, the YKS12′s disc-arranged tool magazine rotates horizontally beneath the spindle, positioning the required tool in seconds. This circular arrangement reduces tool change time while maintaining the compact footprint essential for workshop environments. Manufacturers using the YKS12 report production efficiency gains of 30-40% compared to manual tool-change systems, particularly in cabinet door production, furniture carving, and complex joint operations.

The Circular Advantage: Why Disc-Arranged Tool Changers Lead the Industry

The YKS12 features a horizontal carousel (disc) automatic tool changer—a design choice that delivers measurable advantages over competing systems:

Faster Tool Changes Through Rotary Design

The circular tool magazine rotates to position the next required tool directly below the spindle. Unlike linear arrangements, where the magazine must index sequentially from position 1 to position 8, the disc system takes the shortest rotational path to any tool. Tool changes complete in 4-6 seconds, reducing non-productive cycle time and enabling rapid design modifications during production runs.

Customizable Tool Capacity (8-12 Tools Standard)

The disc configuration accommodates 8-12 different router bits, burrs, and drilling tools without occupying significant floor space. This capacity balances storage efficiency with workspace requirements—manufacturers can equip the magazine with specialized tools for cabinet doors, edge profiling, drilling, and finishing operations, all accessible within a single setup.

Superior Precision Through Integrated Tool Sensing

The YKS12 incorporates automatic Z-axis tool height measurement. When the spindle loads a new tool from the carousel, the machine automatically contacts a calibration sensor, updating the Z-axis offset without manual measurement. This eliminates positioning errors common in manual tool swaps and ensures dimensional consistency across production batches, which is critical for furniture components that must interlock precisely.

Reduced Labor Costs & Operator Fatigue

Manual tool changes on traditional CNC routers require operators to:

• Stop the machine
• Remove the current tool using wrenches
• Manually position the new tool
• Re-measure Z-axis position
• Resume cutting

The YKS12 eliminates this. Operators load design files and material; the machine handles tool management autonomously. A single operator can oversee multiple stations, increasing throughput per labor hour.

Safety & Tool Protection

The vacuum-sealed carousel protects tools from dust and wood chips, extending tool life by 25-40%. The pneumatic clamping system (powered by the integrated 7.5KW water-cooled vacuum pump) securely holds each tool, preventing slippage during high-speed cutting up to 80m/min.

---

Built for Production-Scale Furniture Manufacturing

Working Area: 1220mm × 2500mm (48″ × 98″)

Accommodate full-size cabinet doors, solid wood panels, melamine boards, and composite furniture components in a single setup. The spacious cutting bed reduces material waste and enables efficient nesting of multiple parts.

Spindle Speed: 0-24,000 RPM with Automatic Control

Variable-speed spindle adapts to material type:

• Hardwoods (oak, walnut, ash): 12,000-18,000 RPM for smooth, splinter-free edges
• Softwoods (pine, cedar): 15,000-24,000 RPM for rapid material removal
• Composites & MDF: 8,000-12,000 RPM to prevent delamination

The ATC (Automatic Tool Changer) function integrates with the control system—operators specify spindle speed in the toolpath file, and the machine adjusts RPM automatically when loading each tool.

Feed Speed: Up to 80m/min

Rapid traverse movements minimize non-cutting time. Combined with the circular tool changer, the YKS12 achieves 15-20 production cycles per hour on standard cabinet door profiles—competitive with machines costing 40% more.

Vacuum Adsorption Workbench (7.5KW System)

The integrated vacuum pump creates negative pressure across the cutting table, firmly securing materials without clamps. Benefits:

• Eliminates clamp marks on visible surfaces
• Accommodates irregular or warped materials
• Enables full-surface access for multi-sided carving
• Reduces setup time between parts

---

Circular Vs. Linear Vs. Manual Tool Changers – Detailed Comparison

How Disc-Arranged Tool Changers Outperform Alternatives

Feature	Circular (YKS12 Disc)	Linear Magazine	Manual Tool Change
Tool Change Time	4-6 seconds (average 2-tool sequence)	6-8 seconds (index from magazine end)	3-5 minutes (operator-dependent)
Tool Capacity	8-12 tools (disc circumference)	8-12 tools (linear arrangement)	1 tool (manual swap required)
Rotational Path	Shortest path via disc rotation	Sequential indexing required	N/A
Space Footprint	Compact circular base, rear-mounted option	Lengthy linear frame	None (manual operation)
Fastest Tool Access	50% faster—disc rotates to the nearest tool	All tools require sequential scanning	N/A
Precision (Z-axis)	±0.05mm with auto-sensing	±0.10mm with auto-sensing	±0.15mm (manual measurement)
Production Uptime	92-96% (automated changes)	88-92% (periodic indexing delays)	65-75% (manual intervention)
Labor Cost per Part	$0.80-1.20	$1.10-1.50	$2.50-4.00
Quality Consistency	Excellent (eliminates operator error)	Good (minor inconsistencies)	Variable (operator-dependent)
Typical ROI (vs. manual)	18-24 months	24-30 months	Baseline

Key Insight: The circular design of the YKS12′s carousel is 40-50% faster than linear systems for random tool access patterns typical in furniture production, where projects require drilling, edge profiling, and then fine detail carving without sequential order.

---

Technical Specifications

Feature	Specification
Type	Wood Furniture CNC Router
Features	Circular Tool Change With ATC
Brand	YIHAICNC
Model	YKS12
Number of axes	3(Adding Rotary Axes or Other Axes)
Number of Spindles	Single(Any Number Customizable)
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1220mmx2500mm/1220mmx2800mm(Customizable)
Maximum Operating Speed	80m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	SYNTEC/WEIHONG Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%

---

Applications & Industry Use Cases

Cabinet & Wardrobe Manufacturing

The YKS12 excels at producing cabinet components: doors (flat-panel, raised-panel, frame-and-panel), drawer fronts with decorative profiles, and internal dividers. The circular tool changer enables a single operator to sequence drilling pilot holes (with drill bit #1), edge profiling (with router bit #2), and detail carving (with specialty burr #3) without manual intervention. Production time: 8-12 minutes per cabinet door versus 25-35 minutes with manual tool swaps.

Solid Wood Furniture Production

From table legs with turned profiles to chair backs with intricate carving, the YKS12′s 4-6 second tool changes enable rapid transitions between roughing and finishing cuts. The vacuum clamping system securely holds irregular workpieces without clamp marks—ideal for high-end furniture where surface appearance is critical.

Wooden Doors & Architectural Millwork

Custom wooden doors, decorative panels, and architectural elements require multi-stage processing: edge profiling, decorative grooving, inlay routing, and finishing. The carousel-style tool changer manages this complexity automatically, reducing labor per door from 1.5 hours (manual tools) to 0.5-0.7 hours.

Musical Instrument Components

The YKS12′s precision and smooth spindle acceleration (no jarring tool changes) make it suitable for routing guitar bodies, violin necks, and other delicate components. The automatic Z-axis adjustment ensures depth consistency across production batches.

Craft & Custom Design Production

Small-batch producers and contract manufacturers benefit from rapid tool-switching when transitioning between customer projects. Load a new design file and tool set; the machine executes autonomously.

---

Why Choose Yihaicnc for Your Machining Center

Industry-Leading Build Quality

YIHAICNC manufactures CNC equipment to ISO 9001 standards with precision-ground components and reinforced gantry structures. The all-steel construction ensures rigidity during high-speed cutting, maintaining ±0.05mm accuracy over extended production runs.

Proven Track Record

Over 2,000 YKS-series installations worldwide in furniture factories, custom shops, and production facilities across North America, Europe, and Asia.

Dedicated After-Sales Support

• Lifetime technical consultation (phone/email/video)
• Remote diagnostics and software troubleshooting
• Local parts availability in major markets
• Comprehensive training programs (on-site or online)

Customization Options

• Extended working areas (up to 3000mm length)
• Rotary axis (4th axis) add-on for cylindrical components
• Multi-spindle configurations for high-volume production
• Custom tool changer setups (expandable to 16-20 tools)

Competitive Pricing & Financing

The YKS12 delivers professional-grade CNC performance at mid-market pricing, with financing options available to qualified businesses.

---

FAQ

Q: How does the circular tool changer compare to my current linear ATC machine?

A: The disc-arranged carousel rotates to the shortest tool position, typically saving 2-4 seconds per tool change versus sequential indexing in linear systems. For furniture production with frequent tool changes, this translates to 3-5 additional cycles per 8-hour shift.

Q: Can I use the YKS12 for both hardwoods and composites?

A: Yes. The variable spindle speed (0-24,000 RPM) and precision tool positioning adapt to material type. For hardwoods, run 12,000-18,000 RPM with sharp router bits; for composites, reduce to 8,000-12,000 RPM to prevent delamination.

Q: What is the learning curve for operating the YKS12?

A: Operators familiar with CAD/CAM software typically become proficient within 1-2 weeks. The SYNTEC control system is intuitive; complex programming is handled through standard CAM software (ArtCAM, Type3). YIHAICNC provides comprehensive training.

Q: How often do I need to maintain the vacuum system?

A: The 7.5KW vacuum pump requires quarterly filter cleaning and annual seal inspection. Routine maintenance adds 30 minutes every three months—minimal downtime for the efficiency gains.

Q: Is the YKS12 suitable for one-person operation?

A: Absolutely. A single operator loads material and selects design files; the machine executes tool changes and cutting autonomously. Ideal for small shops or contract manufacturers running multiple machines in parallel.

Q: Can I upgrade my current CNC router with a circular tool changer?

A: Retrofitting a carousel ATC onto an existing linear-table machine is technically possible but often cost-prohibitive. For most operations, the YKS12′s integrated design offers better value.
