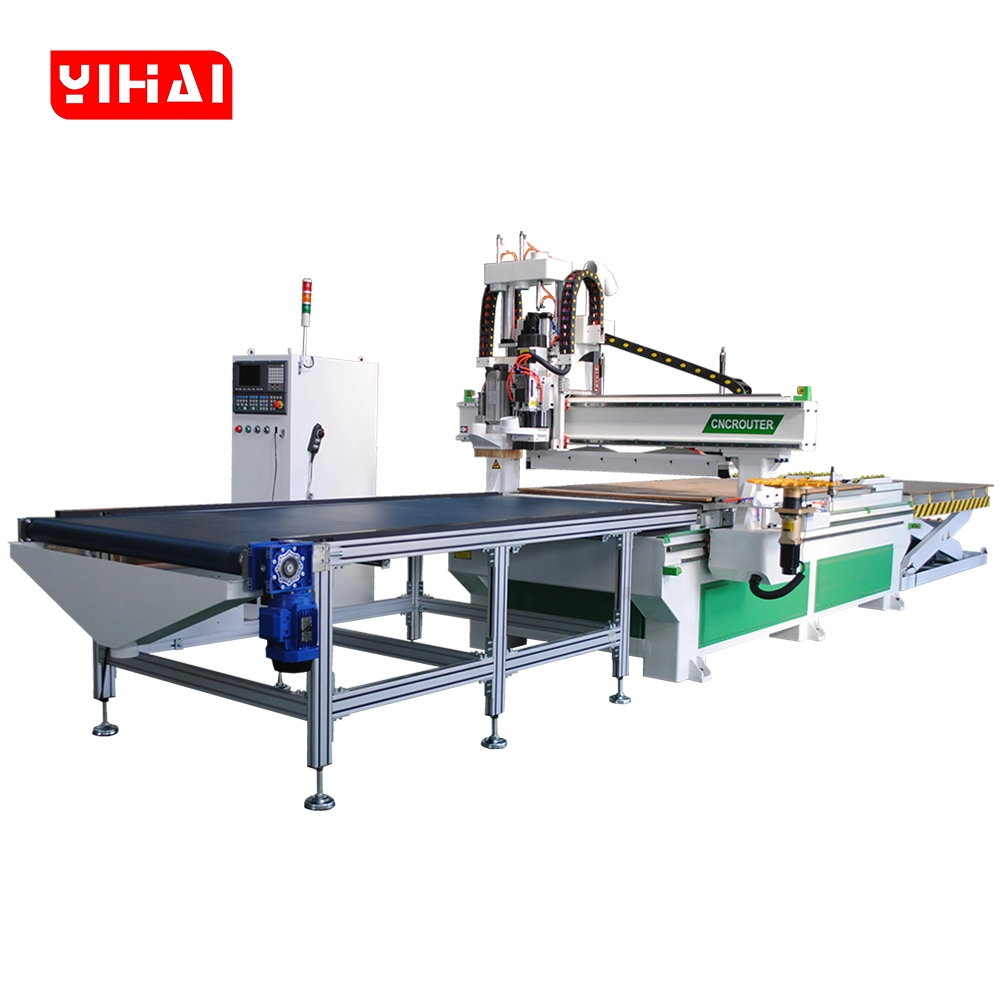

YKS12L Automatic Loading and Unloading CNC Router Machine – Industrial Furniture Production Automation

The YIHAICNC YKS12L represents the evolution of professional wood CNC manufacturing. Building on the proven YKS12 platform, the YKS12L adds fully automatic loading and unloading systems with conveyor-belt material handling, combined with an upgraded 9KW water-cooled spindle and enhanced vacuum clamping infrastructure. The result is a manufacturing powerhouse capable of autonomous, lights-out production for cabinet doors, furniture components, architectural millwork, and high-volume panel processing.

Traditional CNC routers require operator intervention between cycles: manually loading materials, waiting for processing, and then removing finished parts. This workflow creates bottlenecks, increases labor costs, and limits production scale. The YKS12L eliminates this. Stack materials on the automatic loading platform, input your production schedule, and the machine operates autonomously—loading, positioning, processing, tool-changing, and unloading—with zero manual intervention until the job completes.

Real-World Efficiency

Cabinet manufacturers report production increases of 45-60% when transitioning from semi-automated CNC routers to the YKS12L. A single operator supervises multiple YKS12L stations simultaneously, with each machine running automated cycles back-to-back throughout an 8-hour shift or beyond.

---

What Is Automatic Loading and Unloading? Why It Matters？

Understanding the Game-Changing Technology

Automatic loading and unloading transforms CNC routers from labor-dependent machines to fully autonomous production systems. Here′s how the YKS12L system works:

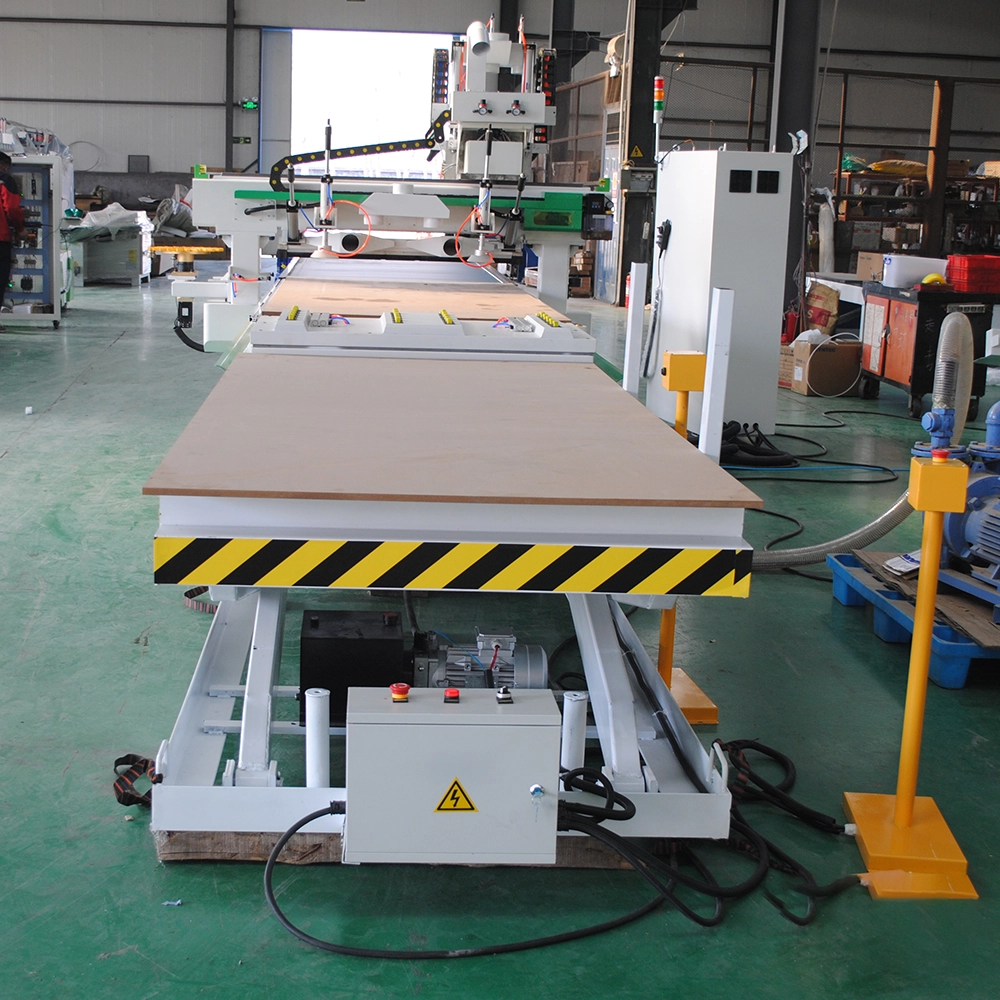

Automatic Loading Platform

The loading device consists of a lifting loading platform equipped with material transport suction cups and positioning cylinders. Hydraulic controls automatically adjust the platform′s height based on the thickness of stacked sheets, ensuring it remains level with the machine′s worktable. When processing begins, material transport suction cups pick up a sheet from the loading platform and move it horizontally onto feed rollers, which reduce friction and prevent material damage.

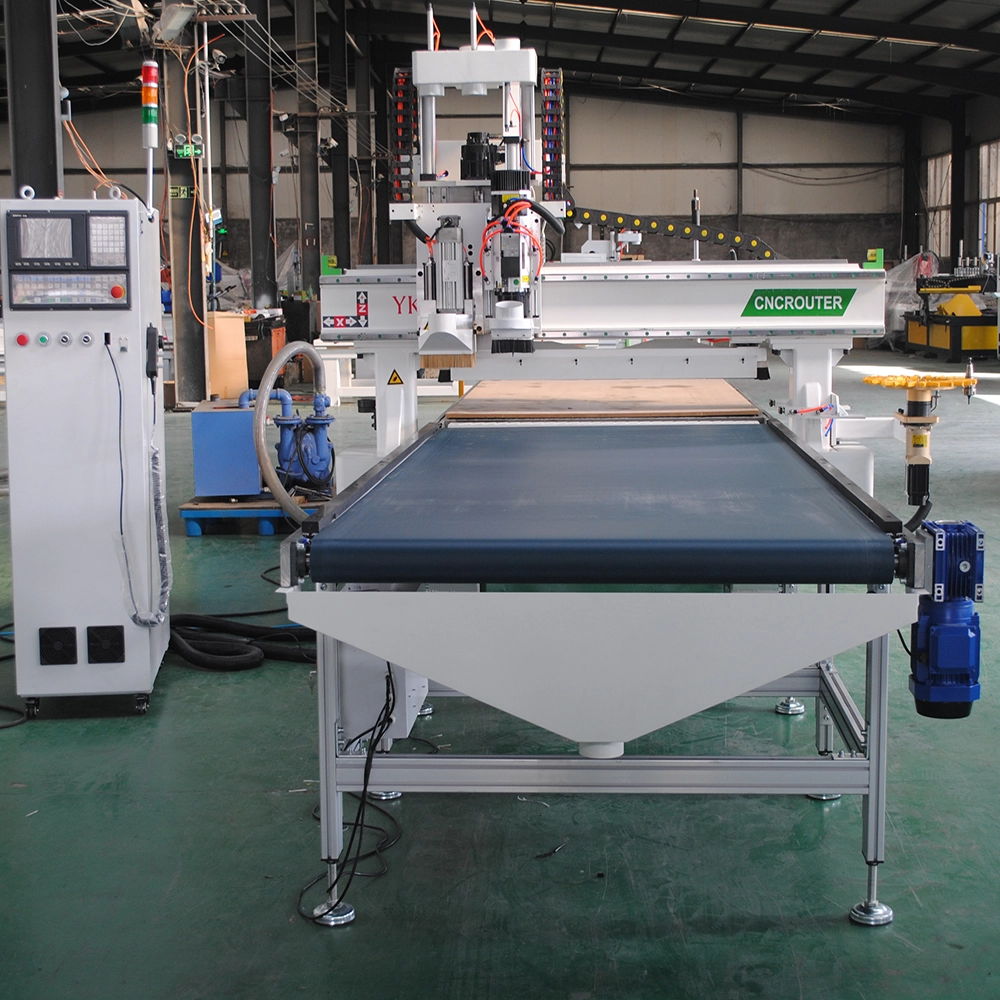

Automatic Unloading Conveyor

After the sheet is processed, the gantry moves to the machine′s rear end, and a pushing mechanism mounted beneath the gantry descends. As the gantry moves forward, the pushing mechanism drives the sheet forward onto the unloading platform. The unloading platform is equipped with a conveyor belt, which can directly transport the sheet to other production lines or stop after unloading is complete.

The Result

This automation saves manual picking time, realizes complete automation, and effectively reduces labor costs. The conveyor belt unloading system, combined with automatic material handling, enables continuous batch production without interruption in the process, maximizing efficiency and output.

Quantified Benefits Over Manual Intervention:

Factor	Manual Loading/Unloading	YKS12L Automatic System	Time Saved per Cycle
Load Time	2-3 minutes	15-20 seconds	2.5-2.75 minutes
Material Positioning	1-2 minutes	Automatic (included in load)	1-2 minutes
Unload Time	2-3 minutes	10-15 seconds	2.75-2.85 minutes
Quality Inspection	30-60 seconds	Integrated (no delay)	Optional
Total Cycle Addition	5-6.5 minutes	25-35 seconds	5-6 minutes/cycle
Cycles per 8-hour Shift	73-96 cycles	480-576 cycles	+400-480 cycles
Production Multiplier	1× (baseline)	5-6×	500-600% increase

---

YKS12L VS. YKS12 – COMPLETE UPGRADE ANALYSIS

The YKS12L is not a replacement for YKS12—it′s an enhanced platform purpose-built for high-volume production. Here′s what you gain:

Circular Tool Changer (Identical to YKS12):

• Disc-arranged carousel with 8-12 tool positions
• 4-6 second tool changes (vs. 6-8 for linear systems)
• Automatic Z-axis tool measurement
• Full compatibility with the YKS12 lineup

NEW: Automatic Loading Platform

• The hydraulic lifting system accommodates stacks of 5+ sheets
• Automatic height adjustment based on material thickness
• Suction cup material transfer to the worktable
• Reduces loading time from 2-3 minutes to 15-20 seconds
• Supports materials from 3mm to 50mm in thickness

NEW: Automatic Unloading Conveyor Belt

• Pneumatic pushing system transfers finished parts off the worktable
• Variable-speed conveyor belt (adjustable via frequency drive)
• Secondary dust collection during push (cleaner workbench)
• Finished parts are automatically transported and stacked
• Compatible with downstream production lines (edge banding, labeling, etc.)

Upgraded Spindle: 9KW Water-Cooled (vs. YKS12′s 9KW)

• Enhanced Water Cooling: Water-cooled spindles are found to be more effective in temperature regulation, with temperatures typically not exceeding 40 degrees after water circulation. They deliver greater accuracy with axial and radial runout less than 0.003mm, enable longer service life with proper maintenance, and support maximum rotational speeds of 24,000 RPM.
• Extended Operation: Water-cooled spindles can work continuously during CNC machine operation without thermal damage. Air-cooled spindles working continuously for more than 4 hours risk damage and reduced service life, whereas water-cooled systems enable all-day, multi-shift production.
• Noise Reduction: Water cooling eliminates fan noise, creating a quieter workshop environment suitable for urban locations or facilities with noise restrictions.

Enhanced Vacuum Clamping: 7.5KW System (Upgraded)

• Increased vacuum capacity to secure heavier materials and prevent lift during rapid tool changes
• Faster recovery time between cycles (vacuum pressure stabilizes in 2-3 seconds vs. 5+ seconds on standard YKS12)
• Better integration with automatic loading/unloading forces

Optimized Machining Parameters for Automation

Because the automatic loading/unloading system introduces additional mechanical forces (suction cup grip, conveyor push), the YKS12L′s control system optimizes several parameters to maintain surface quality and cycle consistency:

• Feed Rate Adjustments

Slightly higher feeds (up to 85m/min vs. 80m/min on YKS12) to compensate for increased cycle time

• Spindle Acceleration Profiles

Enhanced ramp-up and soft-start to reduce load shock on materials being gripped by suction cups

• Vacuum Pressure Monitoring

Real-time sensors adjust clamping force based on material type, preventing marking or crushing

• Tool Change Sequencing

Integrated delays between tool changes and material loading to prevent collision

---

Circular Tool Changer System – Yihaicnc Advantage

The YKS12L retains the disc-arranged circular tool changer that defines the YKS12 platform—the same system that delivers a 40-50% speed advantage over linear tool magazines.

How the Disc-Arranged Carousel Works:

Unlike linear tool magazines, where the system must index sequentially from position 1 through 12 to reach a tool on the far end, the circular carousel rotates horizontally to find the shortest path. For a machine running a random sequence of tools—common in furniture production—this design saves 2-4 seconds per tool change across a typical production day.

Example Production Scenario

A cabinet door requires drilling (bit A), edge profiling (bit B), decorative carving (bit C), and inlay routing (bit D).

• Linear ATC Machine: Load A (6 sec) → Load B (6 sec) → Load C (6 sec) → Load D (6 sec) = 24 seconds tool-change overhead per door
• YKS12L Circular ATC: Load A (4 sec) → Load B (5 sec) → Load C (5 sec) → Load D (4 sec) = 18 seconds tool-change overhead per door

Multiplied Across Production

Manufacturing 500 cabinet doors = 500 × 6 seconds saved = 50 minutes recovered per production run. Combined with the automatic loading/unloading time savings, the YKS12L gains 5+ hours of productive time daily compared to semi-automated systems.

Automatic Tool Height Measurement (Z-Axis Calibration)

When the carousel loads a tool, a proximity sensor contacts an automatic measurement device on the spindle head. The control system instantly records the Z-axis position for that specific tool—eliminating manual measurement and preventing depth errors that cause scrap parts. This is especially critical in automatic mode, where operator intervention isn′t possible to correct positioning errors mid-cycle.

---

Automatic Loading & Unloading System – the Production Multiplier

How It Works: Complete Material Flow

Step 1: Material Staging

Stack cut material sheets on the automatic loading platform (up to 50mm height per stack, multiple stacks possible). The hydraulic platform automatically lifts to position the top sheet level with the vacuum table. Infrared sensors detect material presence and signal readiness to the CNC controller.

Step 2: Automatic Transfer

Suction cups beneath the X-Y gantry descend, grip the top sheet via negative pressure, and move along the Y-axis to position the material precisely on the vacuum-adsorption workbench. Positioning cylinders push the sheet against fixed stops, ensuring consistent registration for repeatable cutting accuracy.

Step 3: Autonomous Machining

The CNC executes the programmed toolpath: circular tool changer automatically selects tools, spindle runs at optimized speeds and feeds, vacuum clamping maintains material stability throughout. The control system monitors cycle progress; there is no operator interaction.

Step 4: Automatic Unloading

Upon cycle completion, the gantry reverses toward the rear position. A pneumatic pushing mechanism (integrated into the Z-axis structure) descends and contacts the finished part. As the gantry retracts forward, it pushes the part onto the conveyor-belt unloading platform. During this push, secondary dust collection activates—a vacuum nozzle removes chips and sawdust, leaving the vacuum table clean for the next load.

Step 5: Conveyor Transport

The variable-speed conveyor belt (controlled by frequency drive) transports the finished part to a collection/staging area or directly to the next production stage (edge banding, drilling, assembly, etc.). The machine simultaneously signals the loading platform to lower and prepare the next sheet.

Step 6: Continuous Cycle

If additional sheets are staged on the loading platform, the process repeats immediately. If the loading platform is empty, the machine pauses with the worktable clean and ready, awaiting new material input. No downtime, no lost cycles.

Practical Production Examples

Example 1: Batch Production – 100 Cabinet Doors

Traditional CNC Router (Manual Tool Changes, Manual Loading/Unloading):

• Setup & program loading: 5 minutes
• Per-door cycle time: 6 minutes (machining) + 3 minutes (manual loading) + 3 minutes (manual unloading) = 12 minutes
• Total: 5 + (100 × 12) = 1,205 minutes = 20 hours

YKS12L Automatic System:

• Setup & program loading: 3 minutes (simpler interface)
• Stage all 100 doors on the loading platform: 8 minutes
• Per-door cycle time: 7 minutes (includes automatic load/unload/tool changes)
• Total: 3 + 8 + (100 × 7) = 711 minutes = 12 hours

Time Saved: 8 hours per 100-door batch = Labor cost savings of $80-120 per batch (assuming $10-15/hour labor)

Example 2: Multi-Shift Production – Cabinet Factory Running 16 Hours Daily

Manual System:

• Operator cost: $15/hour × 16 hours = $240/day
• Production: ~130 parts/day (800 minutes ÷ 6.15 min/part avg.)
• Cost per part: $1.85

YKS12L Automatic:

• Operator cost: $15/hour × 4 hours (setup, monitoring, material staging) = $60/day
• Production: 560-640 parts/day (one operator can supervise 2-3 machines simultaneously)
• Cost per part: $0.11-0.14
• Daily Savings: $180/day × 250 working days/year = $45,000 annual labor reduction

---

Upgraded Spindle Power & Water Cooling Advantage

The YKS12L′s 9KW water-cooled spindle system represents a significant upgrade in production capability and system longevity.

Why Water Cooling Matters for Automatic Production?

Water-cooled spindles maintain superior temperature regulation, typically not exceeding 40 degrees after water circulation. This enables continuous operation for extended periods without thermal damage, whereas air-cooled spindles working continuously beyond 4 hours risk performance degradation and shortened service life.

In automatic production mode, the YKS12L runs continuously—sometimes 8, 10, or even 16 hours per day in high-volume furniture shops. A spindle that performs reliably at hour 14 of a production run is essential. Water cooling guarantees this.

Spindle Performance Specifications

Speed Range: 0-24,000 RPM (variable via VFD)

• Low speeds (6,000-12,000 RPM): Dense hardwoods (oak, walnut), deep cuts, high torque
• Medium speeds (12,000-18,000 RPM): General wood cutting, drilling, and profiling
• High speeds (18,000-24,000 RPM): Finishing passes, fine detail work, acrylic/plastic

Power Delivery: 9KW continuous at full load

• Equivalent cutting torque: 35+ Nm (Newton-meters)
• Acceleration time from 0 to 18,000 RPM: 2-3 seconds (soft-start reduces mechanical shock)
• Runout accuracy: ±0.003mm (ensures repeatable hole sizes, profile consistency)

Water Cooling System Integration

The YKS12L includes an integrated water-cooling circuit:

• Central cooling pump with flow monitoring (minimum 15-20 L/min)
• Heat exchanger module cools spindle discharge water
• Auto-fill and drain ports for seasonal maintenance
• The temperature sensor alerts the operator if the coolant temperature exceeds 42°C (automatic spindle shutdown to prevent damage)

Maintenance: Drain and refill cooling water every 6 months; annual inspection of pump seals and connections.

Benefits of Automatic Production

• Reliable All-Day Operation

No thermal throttling or performance loss as the day progresses

• Precision Consistency

Cool spindle bearings maintain tight tolerances—hole diameters, profile depths, and surface finishes remain consistent from part 1 to part 500

• Extended Spindle Life

Proper temperature management extends spindle bearing life by 2-3 years compared to air-cooled systems operating at the same intensity

• Reduced Vibration

Cool spindle bearings have less thermal expansion, resulting in smoother cuts and better edge quality

---

Technical Specifications

Feature	Specification
Type	Wood Furniture CNC Router
Features	Circular Tool Change With ATC Automatic Loading and Unloading Device
Brand	YIHAICNC
Model	YKS12L
Number of axes	3(Adding Rotary Axes or Other Axes)
Number of Spindles	Single(Any Number Customizable)
Spindle Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	80m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	SYNTEC/WEIHONG Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%

---

Applications & Industry Use Cases

The YKS12L is purpose-built for high-volume production environments where material handling and labor costs directly impact profitability.

Cabinet & Custom Furniture Manufacturing

Produce cabinet doors (flat-panel, raised-panel, five-piece), drawer fronts, interior dividers, and face frames at production rates impossible with manual systems. The automatic loading/unloading system staggers door production—while one door is machining, the next is positioned on the loading platform, and the completed door is automatically unloaded. A single YKS12L can produce 50-70 cabinet components per 8-hour shift, equivalent to 2-3 manual CNC routers operating in parallel.

Architectural Millwork & Custom Doors

Produce custom wooden doors with complex profiles, decorative panels, and inlay routing at commercial production speeds. The circular tool changer enables rapid tool sequencing (edge profiling → detail carving → inlay routing) without operator intervention. The YKS12L reduces labor per custom door from 1.5-2 hours to 0.4-0.6 hours, enabling small shops to take on higher production volumes.

Solid Wood Furniture Production

From chair backs with carved details to table tops with decorative routing, the YKS12L′s vacuum table securely holds irregular workpieces without clamp marks. The automatic unloading conveyor allows finished parts to be transported directly to finishing (staining, assembly) without intermediate handling.

Panel Furniture & Flat-Pack Systems

High-volume production of sheet components (sides, backs, dividers) for flat-pack furniture. The automatic loading/unloading system shines here—stack 20-30 sheets on the loading platform in the morning, and the machine produces finished components continuously throughout the day. Suitable for MDF, plywood, and hardwood panels up to 50mm thick.

Nesting Operations (Multiple Parts per Sheet)

When cutting multiple small components from a single sheet (e.g., 12 shelf brackets from one 1200×2500mm MDF panel), the automatic system truly excels. Program the complete nesting file; the machine cuts all parts, automatically unloads the sheet with finished components, and loads the next blank—all without operator intervention.

Batch Production & Job Shops

Contract manufacturers handling diverse customer projects benefit from rapid setup changes. Load a new design file and tool set; the machine operates autonomously with the same efficiency regardless of part complexity or batch size.

---

System Comparison Chart – Yihaicnc Product Lineup

Decision Guide: Choose YKS12 if your shop runs diverse, low-batch projects requiring flexibility. Choose YKS12L if you have high-volume production (500+ parts/month) and labor cost reduction is a priority.

---

FAQ

Q: How does automatic loading/unloading improve production compared to manual systems?

A: The automatic system removes the largest time bottleneck in CNC production—operator intervention between cycles. Manual loading and unloading require 5-6 minutes per part (including material positioning, wait time, and part removal). The YKS12L completes this in 25-35 seconds, enabling 5-6× higher throughput. For a cabinet shop producing 100 doors daily, that′s an 8-hour time savings, translating to $80-120 labor cost reduction per batch.

Q: What happens if I run out of material on the loading platform?

A: The YKS12L′s logic system detects when the loading platform is empty. It completes the current cutting cycle, automatically unloads the finished part, and then pauses with the worktable clean and ready. The machine does not crash or malfunction—it simply enters a standby state. Stage fresh material on the loading platform, press “Resume,” and production continues.

Q: Can the YKS12L handle materials thicker than 50mm?

A: The standard machine is configured for materials up to 50mm. Thicker materials (up to 80mm) can be accommodated with a Z-axis extension and suction-cup adapter modification. Contact YIHAICNC for a custom quote if thickness requirements exceed standard specifications.

Q: How often does the water-cooling system require maintenance?

A: Drain and refill the cooling circuit every 6 months (approximately 15-minute process). Inspect pump seals and radiator fins annually. The integrated monitoring system alerts you if coolant temperature rises above 42°C, prompting inspection. Proper maintenance extends spindle life by 2-3 years compared to air-cooled alternatives.

Q: What′s the learning curve for programming the YKS12L?

A: Operators experienced with CAM software (ArtCAM, Type3, etc.) typically become proficient within 1-2 weeks. The SYNTEC control system is intuitive—most complexity is handled upstream in CAM software. YIHAICNC provides 2-3 days of on-site training for all customer purchases, covering design import, tool setup, production simulation, and troubleshooting. Remote training is also available for international customers.

Q: Can I supervise multiple YKS12L machines simultaneously?

A: Yes—this is a primary advantage of the automatic system. A single operator can supervise 3-4 YKS12L machines running in parallel production. Operator tasks: load material on staging platforms, monitor cycle progress via the central dashboard, perform quality checks on finished parts, and manage tool inventory. This supervision model enables small shops to achieve large-scale production with minimal additional labor.

Q: What′s the difference between the YKS12L and the YKS12?

A: The YKS12L adds automatic loading and unloading systems (conveyor belt + lifting platform), upgraded water-cooled spindle (vs. air-cooled on YKS12), and enhanced vacuum pump (7.5KW). Both feature circular tool changers and 9KW spindle power. The YKS12L is designed for high-volume production; the YKS12 is suited for diverse, lower-volume work. YKS12L typically costs $8,000-15,000 more than YKS12 but justifies the investment through labor cost savings on high-volume runs (500+ parts/month).

Q: Is the YKS12L suitable for MDF and composite materials?

A: Absolutely. The YKS12L handles MDF, plywood, melamine, engineered wood, and plastic composites. Spindle speed adjustments optimize cutting for each material (8,000-12,000 RPM for composites, 12,000-18,000 RPM for hardwoods). The vacuum clamping system works equally well on all flat materials. Proper coolant use on the spindle is recommended for long production runs to maintain precision.

Q: What happens if the machine encounters an error during automatic cycles?

A: The SYNTEC control system includes robust error detection. If a tool change fails, the spindle stalls, or the conveyor jams, the machine immediately stops, logs the error, and alerts the operator via the control panel display and (optionally) via email/SMS notification. The operator can inspect the issue, correct it, and resume from the point of interruption. This design prevents scrap parts and unattended damage.
