Description

I. Key Features and Production Value

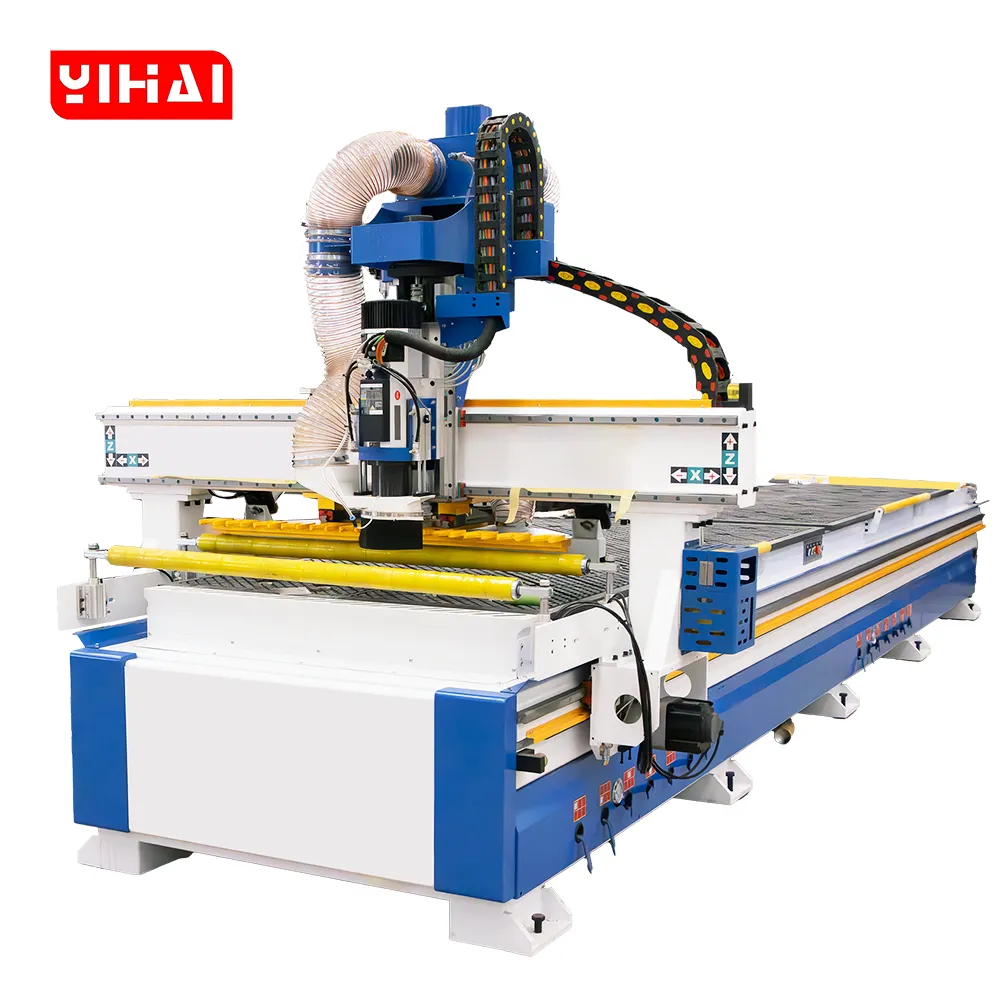

The YK12-2060 Dual-Station is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to processing thin composite boards and flexible panels while reducing movement, lifting, and edge damage. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• The 2000mm × 6000mm dual-station layout supports continuous panel production.
• Automatic loading and unloading reduce manual handling for repeated nesting jobs.
• A 12-tool linear ATC magazine keeps common furniture tools available during long runs.
• Press rollers, vacuum zoning, and positioning cylinders address large-panel stability and handling.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YK12-2060 Dual-Station
Number of axes	3
Number of Spindles	Single
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	2000mmx6000mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump + pneumatic positioning cylinders
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈3500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

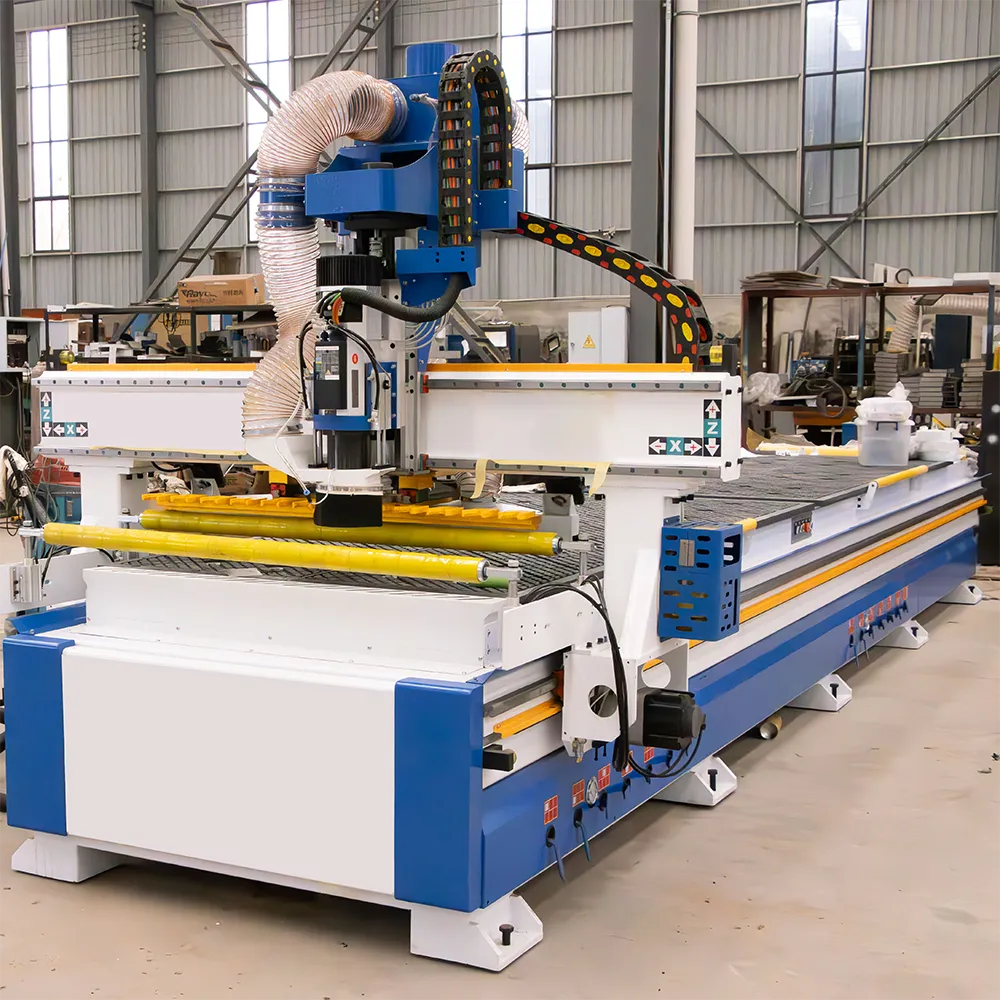

An ultra-large automated manufacturing cell featuring integrated sheet handling, continuous cycling, and 12-tool automatic tool changes:

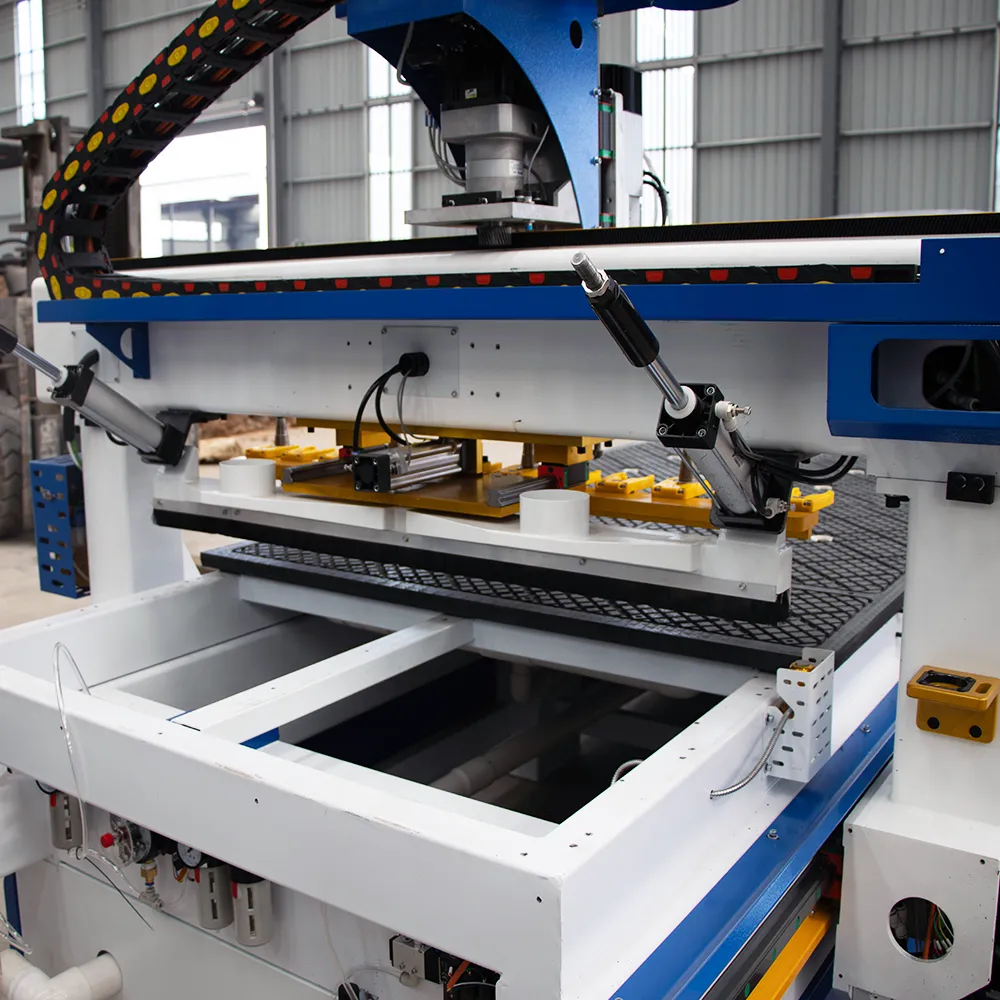

• Integrated Gantry Material Handling System: Features lower pneumatic suction cup lifters for automated raw board infeed and rear-mounted pneumatic sweep arms for automatic finished-part push-off onto the outfeed line.

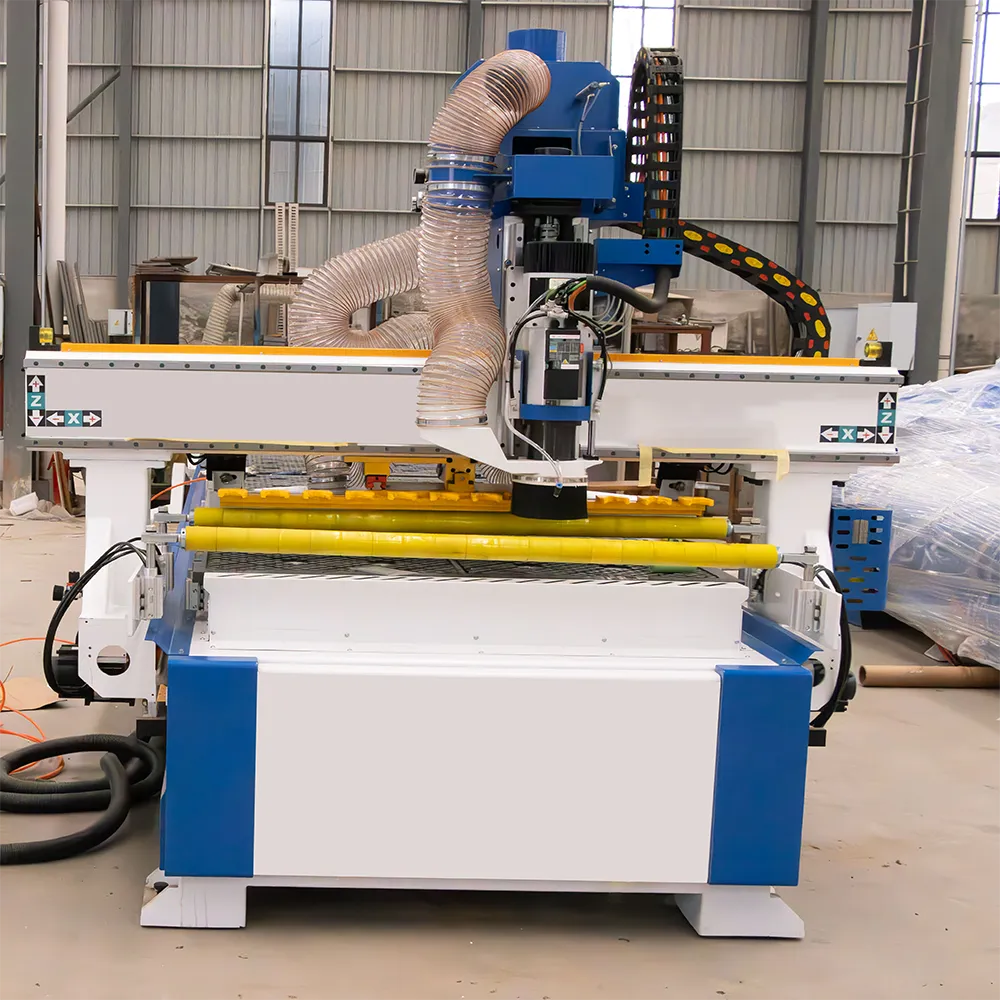

• Dual-Row Pneumatic Polyurethane Hold-Down Rollers: Gantry-mounted spring-cushioned follower press rollers mechanically clamp warped or multi-layered sheet materials flat against the vacuum bed during high-speed cutting.

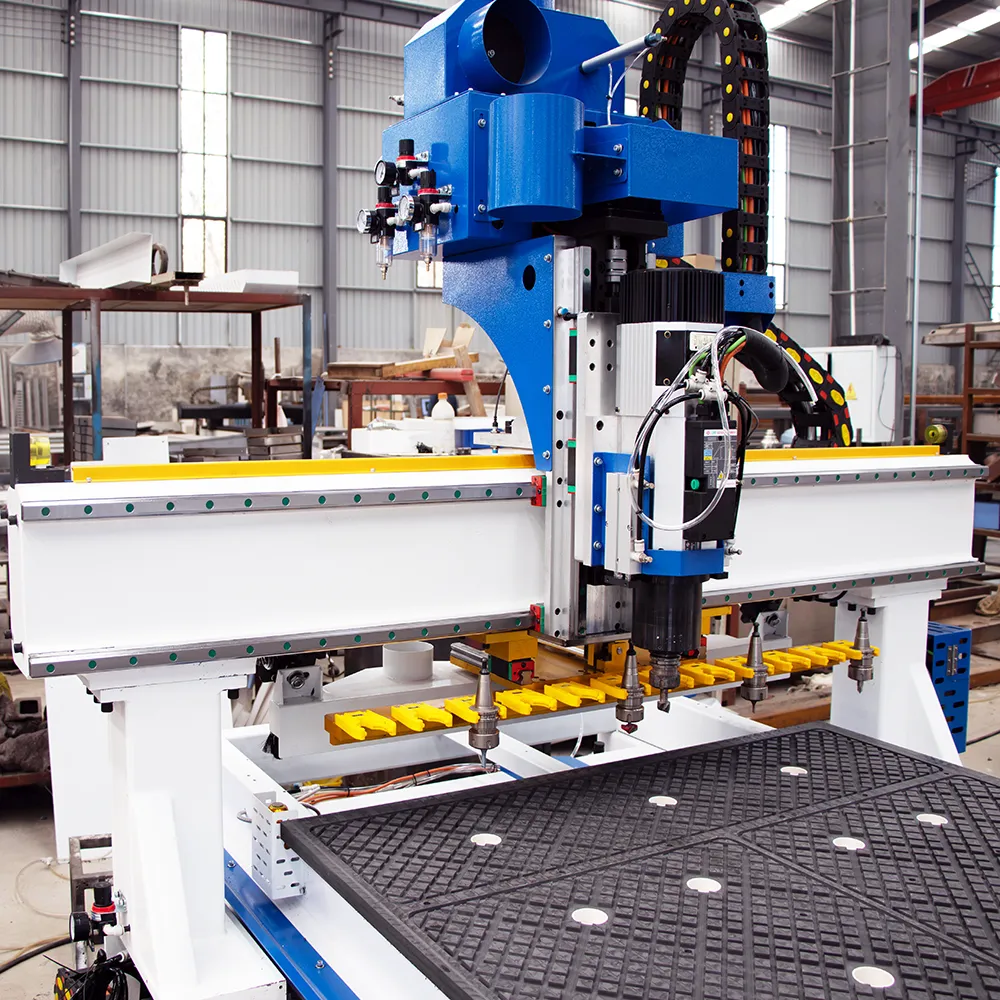

• GDZ 9.0KW Air-Cooled ISO30 Spindle with Auto Dust Shroud: Driven by an 11.0KW Folinn heavy-duty vector VFD, featuring an independent pneumatic lifting brush hood that automatically retracts during tool swaps and seals during nesting.

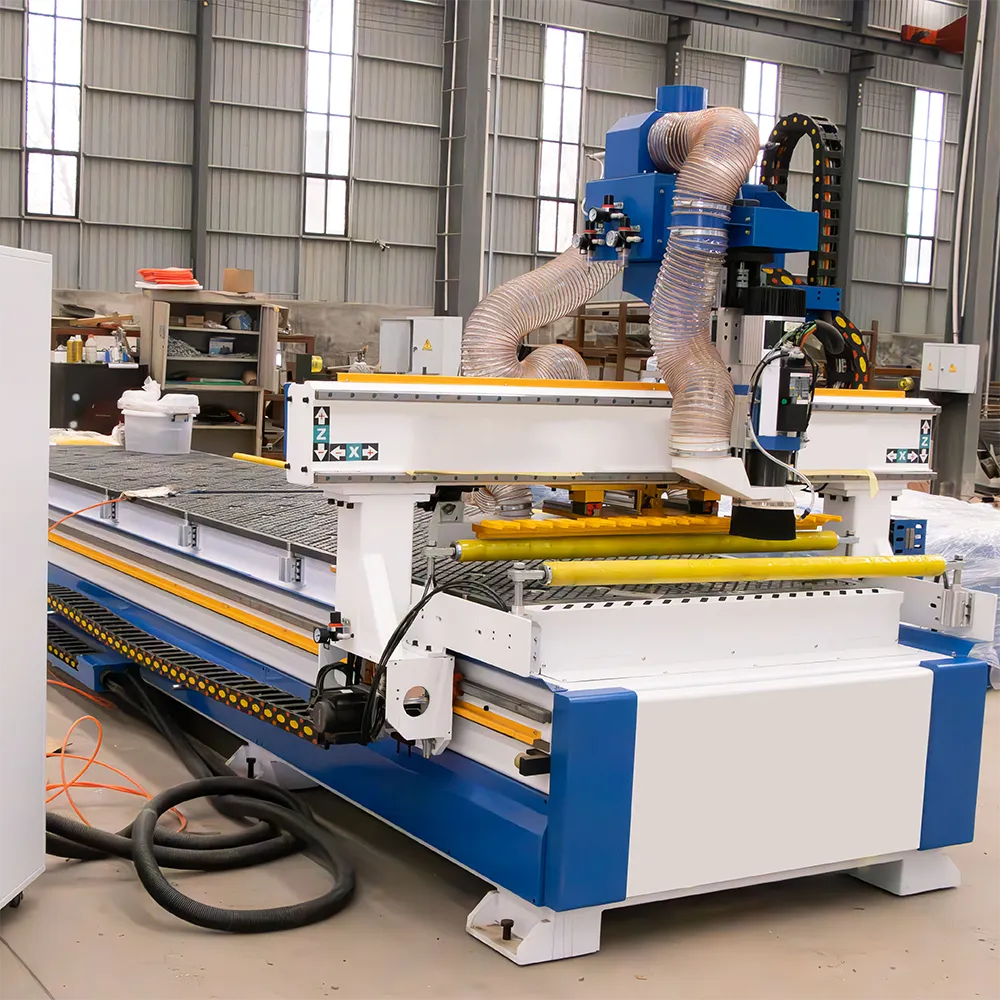

• Dorna Full Closed-Loop Industrial AC Servo System: High-wattage AC servo drives paired with precision planetary reducers provide rapid acceleration across the massive 2000×6000mm dual-zone work area.
• Damaitian Programmable Microcomputer Lubrication Station: Digital timed oil pump delivers measured lubrication across extensive linear guide runs to protect long-travel drive mechanisms.

IV. Applications and Processed Materials

Automatic Loading CNC Router for High-Volume Panel Furniture Production

The YK12-2060 Dual Station Auto Loader CNC router is designed for industrial furniture manufacturers requiring continuous production and reduced manual handling. With a large processing area, dual working stations, and automatic loading capability, the machine provides an efficient solution for high-volume panel processing.

The automatic loading system helps reduce operator workload by improving material feeding efficiency, while the dual-station structure allows continuous machining operations with less waiting time between loading and processing cycles.

This industrial CNC router is ideal for large cabinet factories, wardrobe manufacturers, modular furniture producers, office furniture factories, and panel furniture production lines.

It is suitable for complete panel processing including nesting, cutting, drilling, grooving, and furniture component preparation.

Typical Applications:

• Large-scale cabinet production
• Modular furniture manufacturing
• Wardrobe production lines
• Office furniture factories
• Panel nesting production
• High-volume furniture components

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine panels
• Laminated boards
• Solid wood panels

V. FAQ

1. What is the benefit of automatic loading?

Automatic loading reduces manual material handling and improves production efficiency for factories processing large quantities of panels.

---

2. Why use a dual-station CNC router?

Dual stations allow more continuous operation, reducing idle time between unloading finished parts and loading new materials.

---

3. Who should choose this machine?

It is suitable for industrial furniture manufacturers requiring higher automation and continuous production capability.

---

4. Can it process standard furniture panels?

Yes. It can process MDF, plywood, particle board, melamine boards, and other common furniture materials.

---

5. Does automation reduce labor requirements?

The automatic loading system reduces repetitive manual handling tasks and improves production workflow efficiency.
