Description

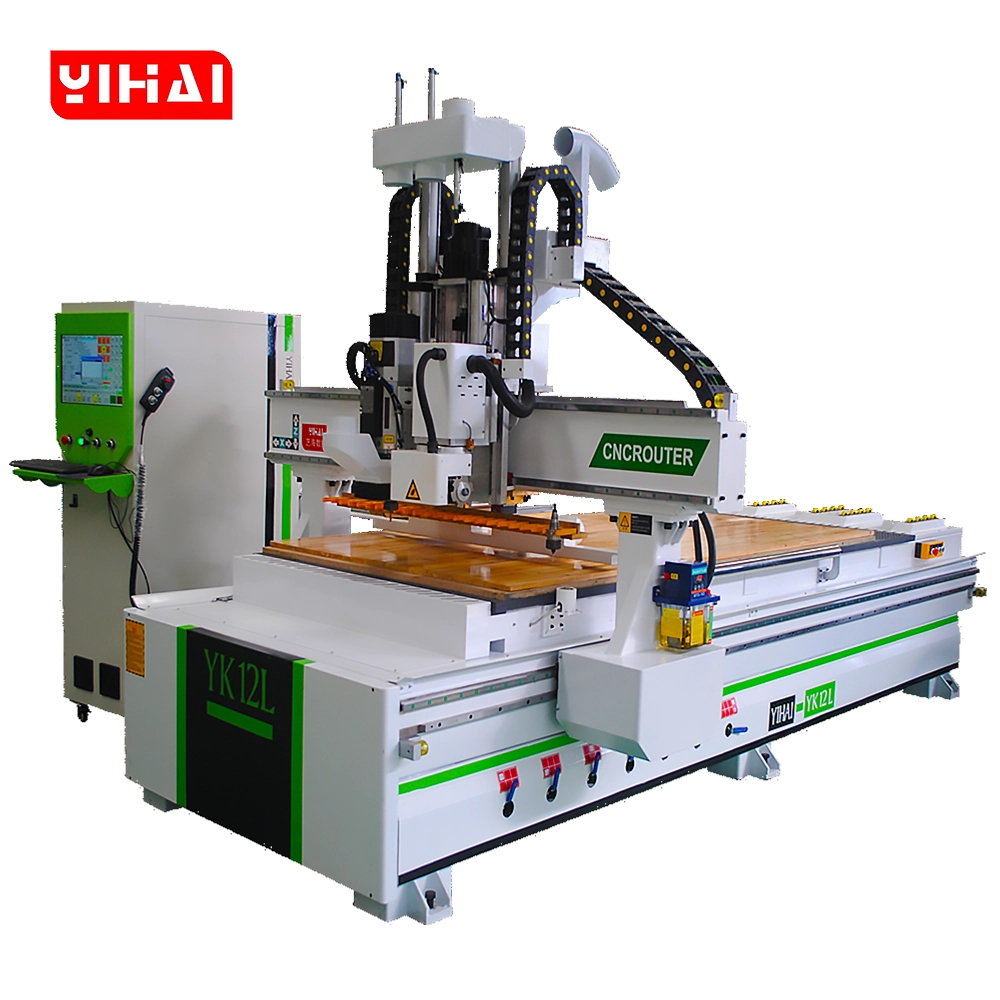

YK12L ATC CNC Router – Professional Wood Furniture Machining with Lamello P-System Processing Capabilities

The YK12L represents the next generation of wood furniture CNC routing. Engineered specifically for manufacturers and cabinet makers who require professional-grade Lamello P-System processing alongside traditional wood furniture machining, the YK12L combines the proven reliability of the YK12 with comprehensive system upgrades designed for demanding joinery applications.

Every component of this wood furniture CNC router has been reimagined. From the reinforced gantry structure to the enhanced spindle parameters and upgraded Z-axis architecture, the YK12L delivers the precision, stability, and performance required for high-volume production environments and complex laminar material applications.

Why Choose YK12L?

Advanced Wood Furniture CNC Router Features:

1. Purpose-Built for Lamello P-System Processing

The YK12L isn′t just another wood furniture CNC router—it′s engineered specifically to master Lamello biscuit joinery. This specialized capability represents a fundamental shift in what′s possible with machine-integrated furniture production:

• Precise laminar connector groove machining with dedicated spindle integration
• Consistent groove depth and dimensional accuracy across production runs
• Seamless compatibility with Lamello P-System biscuits and professional joinery standards
• Dramatically reduced manual assembly labour and material waste
• Professional-grade joint quality on every single production run

2. Elevated Spindle Performance Beyond YK12

The upgraded spindle system delivers measurably increased power and stability compared to the standard YK12. This enhancement enables:

• Faster material removal rates during laminar processing
• Cleaner, more precise cuts in complex wood grain patterns
• Enhanced cutting surface quality with reduced vibration
• Extended tool life through optimised cutting conditions
• Reliable performance during extended production cycles

3 . Structural Excellence: Reinforced Gantry & Z-Axis

The YK12L features a completely redesigned gantry structure utilising premium alloy materials, providing:

• Superior dimensional rigidity throughout the machine frame
• Enhanced resistance to flex and vibration during high-speed operations
• The completely redesigned Z-axis architecture ensures precise vertical positioning critical for laminar groove accuracy
• Improved structural integrity for long-term reliability in demanding environments

4. Comprehensive Component Elevation

While maintaining the proven form factor of the YK12, virtually every critical component has undergone systematic upgrade:

• High-specification servo-driven reduction gears rated for increased continuous duty
• Reinforced electrical cabling system rated for substantially higher power capacity
• Premium-grade electronic components from leading manufacturers for enhanced reliability
• Extended component lifespan through superior material selection and engineering

---

Lamello P-System Processing: Professional Biscuit Joinery for Wood Furniture

Lamello biscuits—also known as laminar connectors—represent the professional standard for high-end furniture joinery. The YK12L′s dedicated laminar processing capabilities enable sophisticated joinery that elevates your entire product portfolio:

Precision Biscuit Slot Machining

The YK12L delivers laminar groove machining at a level previously requiring specialised standalone equipment:

• Exact groove dimensions ensuring perfect biscuit fit within specified tolerances
• Consistent depth control across unlimited production runs
• Multiple groove pattern support for varied joint configurations
• Repeatability that maintains quality standards throughout your production schedule

Expanded Connector Compatibility

Beyond Lamello P-System biscuits, the wood furniture CNC router processes:

• Lamello connectors across the full P-System range
• Lock & Lock connector systems
• 3-in-1 and 2-in-1 multi-functional connectors
• Compatible hardware from established manufacturers
• Ability to expand design options and production capabilities

Production Efficiency Through Integration

Machining laminar connectors with a dedicated CNC system rather than manual methods or standalone equipment delivers:

• Automatic tool changing reduces setup time between operations
• Integrated laminar spindle optimises cutting conditions
• Dramatically faster cycle times vs. manual or semi-automated methods
• Reduced operator training requirements
• Consistent output quality without fatigue-related variables

Dimensional Accuracy for Professional Results

The YK12L achieves ±0.1mm accuracy throughout laminar processing operations:

• The perfect biscuit fits on the first assembly attempt
• Eliminates fitting and adjustment work
• Professional joint appearance and strength
• Quality consistency that reflects on your brand
• Full-plate vacuum adhesion system prevents material slippage during processing
• Independent 6-zone vacuum control enables processing various board sizes and thicknesses

---

YK12L vs YK12: Complete Machine Upgrade Breakdown

Strategic Evolution: From YK12 to YK12L

The YK12L builds upon the proven YK12 foundation with systematic, engineering-focused upgrades across every critical system. This approach combines reliability with innovation—maintaining the industrial design customers trust while delivering capabilities the market demands.

Detailed Upgrade Comparison:

Component	YK12	YK12L	Performance Impact
Spindle System	Standard specifications	Upgraded power & torque parameters	Enhanced laminar machining capability
Gantry Structure	Standard industrial design	Premium alloy reinforced gantry	Increased rigidity and dimensional stability
Z-Axis Architecture	Standard configuration	Completely redesigned structure	Superior vertical precision for groove depth
Primary Materials	Industrial-grade alloys	High-specification premium alloys	Extended service life and reliability
Reduction Gearbox	Standard duty rating	High-specification servo reduction	30%+ higher continuous power capacity
Electrical Cabling	Standard gauge	Upgraded high-capacity conductors	Supports increased power draw safely
Electronic Components	Industrial standard brands	Premium manufacturer selection	Enhanced stability and extended lifespan
Laminar Processing	Not supported	Full P-System integration	Complete new capability category

The Technology Behind Component Upgrades

Understanding what changed inside the YK12L reveals why it′s specifically engineered for laminar applications:

Servo Reduction System Evolution

The upgraded reduction gearbox represents far more than a power specification number. The YK12L′s servo reduction unit:

• Sustains 30% higher continuous duty than the YK12 equivalent
• Maintains tight mechanical tolerance stacking for precision
• Delivers consistent torque delivery through extended cutting cycles
• Integrates optimised lubrication pathways for thermal management
• Supports the higher spindle speeds required for laminar groove machining

Electrical Infrastructure Transformation

The YK12L′s electrical system has been comprehensively upgraded:

• All power distribution cables are rated for substantially higher amperage
• Enhanced thermal dissipation design prevents voltage drops during peak loads
• Premium-grade connectors reduce contact resistance
• Component-level electrical efficiency improvements reduce waste heat
• System architecture supports future power capability expansion

Premium Component Selection

From motor windings to bearing specifications, the YK12L utilises components from manufacturers specialising in CNC machine applications:

• Motor components with extended thermal tolerance
• Bearing systems rated for higher continuous duty
• Control circuit components from professional CNC suppliers
• Cooling system components sized for sustained operation
• All components selected for demonstrated reliability in production environments

Why These Upgrades Matter for Your Business

The collective impact of YK12L upgrades creates measurable business advantages:

• Reduced unplanned downtime through enhanced component reliability
• Higher production throughput via improved spindle and feed performance
• Better product quality through superior dimensional stability
• Lower maintenance costs through premium component durability
• Future-proofed equipment investment through substantial upgrade margin

---

Technical Specifications

Feature	Specification
Type	Wood Furniture CNC Router
Features	Lamello P-System processing capabilities Linear Tool Change With ATC
Brand	YIHAICNC
Model	YK12L
Number of axes	3(Adding Rotary Axes or Other Axes)
Number of Spindles	Single(Any Number Customizable)
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%

---

Wood Furniture CNC Router Applications – Professional Manufacturing Solutions

Custom Cabinet Manufacturing Excellence

The YK12L transforms cabinet production through integrated laminar processing:

• Precision door frame and panel cutting with maintained dimensional tolerance
• Lamello connector slot machining integrated into single-pass workflows
• Complex edge profiling and decorative routing in a single setup
• Batch production maintains consistent quality across hundreds of parts
• Multi-operation jobs completed without manual tool changes
• Professional joint quality that survives shipping and assembly

Professional cabinet makers report a 40-60% reduction in assembly labour through integrated laminar joinery—a significant cost advantage for high-volume production.

Wardrobe & Closet System Manufacturing

Laminar processing opens new design possibilities for modular wardrobe systems:

• Precision grooves and connector slots for modular assembly systems
• Lamello biscuit joinery ensures structural integrity in large assemblies
• Side panel routing and edge finishing, maintaining tight tolerances
• Design flexibility enabling custom configurations for unique spaces
• Production scheduling optimised through ATC efficiency
• Quality consistency across production runs, enabling confident warranty programs

Office Furniture Production Integration

Professional office furniture demands precision that the YK12L delivers:

• Desk and table component manufacturing with consistent joint quality
• Panel cutting and edge banding preparation for multiple finish options
• Decorative routing and edge profiling enhance product aesthetics
• Production flexibility through multiple tool capabilities
• Quality standards meeting commercial furniture specifications
• Cost-effective production enabling competitive pricing

Architectural Woodwork & Whole-House Customisation

High-end architectural applications benefit from laminar processing integration:

• Kitchen cabinet systems with professional-grade joinery
• Built-in wardrobe solutions for residential and commercial spaces
• Custom furniture projects requiring precise connector placement
• Architectural millwork and detailed woodwork applications
• Complex multi-piece assemblies requiring dimensional consistency
• Premium aesthetic results justifying higher price points

Laminar Processing Board Capabilities

The YK12L excels at comprehensive board processing operations:

• Milling and hollowing operations for complex forms
• Precise grooving for laminar joinery systems and decorative effects
• Crescent groove routing for specialised connector systems
• Precision hole drilling for hardware installation
• Edge cutting and finishing with maintained dimensional accuracy
• Comprehensive processing reduces secondary operations

---

YK12L Component Systems – Engineering Excellence for Wood Furniture Processing

Dedicated Lamello Processing Spindle

The heart of the YK12L′s laminar capability lies in the purpose-engineered spindle system:

• Optimised RPM and torque balance specifically for biscuit slot machining
• Precise depth control mechanisms enabling ±0.1mm groove accuracy
• Full compatibility with standard Lamello P-System tool profiles
• Advanced thermal management supporting continuous operation cycles
• Reduced vibration through precision bearing selection
• Extended tool life through optimised cutting conditions
• Spindle stability ensures consistent groove wall finish quality

The dedicated laminar spindle integrates directly with the control system, enabling automatic depth adjustment and speed optimisation based on material type and connector specifications.

12-Blade Automatic Tool Changer System

Rapid tool transitions are fundamental to production efficiency:

• 12-position linear tool magazine enabling a comprehensive tool variety
• Automatic tool selection based on programmed operations
• Rapid exchange mechanism reducing changeover time
• Precision tool positioning for an immediate ready-to-cut status
• Support for various bit types, diameters, and spindle interfaces
• Integrated tool offset management through the control system
• Reliability supporting hundreds of changeovers per production day

Full-Plate Vacuum Adhesion System

Material holding is critical for precision processing:

• Full-plate vacuum distribution ensures an even holding force across the entire working area
• 6 independent vacuum zones enabling flexible material size accommodation
• 7.5KW water-cooled vacuum pump providing consistent suction pressure
• Automatic oiling device maintains system cleanliness
• Strong adhesion, preventing material slippage during feed operations
• Quick material positioning enables rapid job changeover
• Compatibility with various board thicknesses and materials

Precision Z-Axis Structure

The redesigned Z-axis architecture represents a fundamental upgrade:

• Completely reimagined structure optimising vertical rigidity
• Enhanced bearing and drive system for smooth feed movement
• Precision screw drive with servo reducer ensuring accurate depth control
• Superior vertical accuracy is critical for laminar groove depth consistency
• Smooth operation across extended depth ranges
• Reliability supporting high-volume production schedules
• Integration with servo reduction, providing consistent vertical feed rates

Baoyuan LNC Control System

Professional control software and hardware deliver:

• Intuitive operator interface minimising setup time
• Advanced programming capabilities for complex multi-operation designs
• Real-time system monitoring and diagnostic reporting
• Seamless CAD/CAM software integration for streamlined workflows
• Tool offset and compensation management
• Production counter and scheduling features
• Emergency stop and safety system integration
• Support for various file formats and design methodologies

---

Why YIHAICNC? Leadership in Wood Furniture CNC Router Solutions

Specialised Expertise in Wood Furniture Production

YIHAICNC represents something different from generalist CNC equipment manufacturers. Our entire company focuses exclusively on wood furniture routing solutions, bringing decades of concentrated expertise to every machine design decision:

• Sole focus on the wood furniture industry requirements
• Deep understanding of cabinet making, wardrobe manufacturing, and office furniture production
• Continuous feedback integration from professional furniture makers
• R&D efforts directed entirely toward furniture manufacturing challenges
• Application knowledge that translates directly into product capability

Lamello P-System Leadership

The YK12L demonstrates our commitment to emerging market opportunities. Rather than adapting generic routers to laminar processing, we engineered the YK12L from an initial concept around this specific capability:

• Recognised market demand for integrated laminar processing
• Engineered dedicated spindle and drive systems for biscuit joinery
• Designed Z-axis architecture optimised for precise groove depth control
• Integrated control system optimisation for laminar applications
• Field-tested extensively with professional furniture manufacturers

Quality Through Continuous Improvement Philosophy

The YK12L′s evolution from the YK12 illustrates our operational philosophy: take proven foundations and systematically upgrade every component to meet advancing market demands.

• Invested in premium component sourcing from leading CNC suppliers
• Implemented rigorous testing protocols for every system upgrade
• Ongoing optimisation based on customer feedback and field performance
• Transparent communication with customers regarding improvements
• Long-term support commitment ensuring continued value realisation

Comprehensive Customisation & Configuration Options

Standard specifications represent just the starting point:

• Working area customisation enabling optimal shop floor fit
• Axis expansion options adding capability for specialised applications
• Spindle quantity options for multi-operation processes
• Power specifications scalable to production demands
• Tool changer configurations supporting various implement types
• Control system customisation options for integrated workflows

Full-Spectrum Support & Partnership

Your investment includes comprehensive support systems:

• Pre-delivery machine calibration and system testing
• Operator training programs ensure team proficiency
• Comprehensive documentation and video tutorial libraries
• Priority technical support responsive to production challenges
• Genuine spare parts availability ensures continuous operation
• Ongoing software updates and capability enhancements
• Extended warranty options for high-volume production environments

---

FAQ

Q: What is the fundamental difference between YK12 and YK12L?

A: The YK12L is engineered specifically for Lamello P-System processing with comprehensive system upgrades. Compared to the YK12, the YK12L features upgraded spindle performance delivering higher power and torque, a reinforced gantry structure utilising premium alloys, a completely redesigned Z-axis architecture optimised for precise groove depth control, and premium-grade components throughout. While maintaining the proven YK12 industrial design, virtually every critical component has been upgraded to handle the demanding requirements of precision biscuit joinery processing and sustained high-volume production.

Q: Can the YK12L process connectors beyond Lamello P-System biscuits?

A: Yes. The YK12L processes Lamello P-System biscuits, Lock & Lock connector systems, 3-in-1 connectors, 2-in-1 multi-functional connectors, and compatible hardware from established manufacturers. This connector′s versatility enables expanded design flexibility and production capability across multiple joinery methodologies.

Q: What precision level can I expect for laminar groove machining?

A: The YK12L delivers ±0.1mm accuracy throughout laminar processing operations. This precision ensures consistent groove dimensions enabling perfect connector fit across unlimited production runs, seamless first-assembly positioning, and professional joint appearance and structural integrity.

Q: Does the YK12L require specialised operator training?

A: The Baoyuan LNC control system is designed for user-friendly operation. We provide comprehensive operator training covering machine operation, program development, maintenance procedures, and laminar processing optimisation. Most operators achieve production proficiency within 1-2 weeks of hands-on training and guided operation.

Q: Can I upgrade an existing YK12 to YK12L specifications?

A: Significant system changes make complete retrofitting impractical. However, specific component upgrades may be possible. We recommend consulting our technical team for a detailed assessment of your particular situation and available upgrade pathways.

Q: What is the maintenance schedule, and what does it involve?

A: Proper maintenance ensures reliable operation. Daily procedures include spindle cooling system verification and vacuum system quick-check. Weekly maintenance involves a comprehensive vacuum system inspection. Monthly service includes lubrication system verification and electrical system check. Quarterly maintenance includes deep system cleaning and a complete inspection. Detailed maintenance protocols with specific procedures and timelines are provided in the comprehensive operator manual.

Q: What warranty coverage applies to the YK12L?

A: Standard warranty includes comprehensive 12-month machine protection and spare parts coverage. Extended warranty options are available for high-volume production environments and demanding applications. Contact our sales team for a detailed warranty structure and available options.

Q: How does the 6-zone vacuum system improve processing capability?

A: The 6 independent vacuum zones enable flexible material positioning and secure holding across various board sizes and thicknesses. Operators can activate only the zones supporting the material being processed, reducing vacuum load and enabling faster material changeover. This flexibility significantly improves production efficiency for shops processing multiple material dimensions.

Q: What is the typical production throughput increase compared to manual laminar processing?

A: Production metrics vary based on specific applications, but professional furniture makers report a 40-60% reduction in assembly labour through integrated laminar joinery. This improvement combines fast ATC tool changing, integrated groove machining, and elimination of secondary assembly operations.

Q: What CAD/CAM software integrates with the YK12L control system?

A: The Baoyuan LNC control system supports multiple file formats and integrates with leading design and CAM software packages. We provide detailed integration documentation and can assist with software configuration during initial setup.
