Description

I. Key Features and Production Value

The YH1325 Single-Head Auto Vacuum is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to cut cabinet sides, shelves, backs, and door blanks from MDF, plywood, particle board, and solid wood panels. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• Six independently controlled vacuum zones help match holding force to different panel sizes.
• Auxiliary feed rollers make it easier to place and move panels across the working area.
• The single-spindle layout keeps operation and maintenance straightforward for general furniture work.
• The machine covers cutting, grooving, drilling, carving, and panel blanking with the appropriate tooling.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1325 Single-Head Auto Vacuum
Number of axes	3
Number of Spindles	Single
Total power	6KW(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	30m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Type/Speed	Air-cooled or water-cooled spindle/0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic or manual lubrication system
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.03mm
X,Y Resolution	<0.03mm
Net Weight	≈1200KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Solid wood, MDF, particle board, PVC, acrylic

III. Machine Components Overview

Engineered as a cost-effective workhorse for panel furniture workshops, this unit balances structural rigidity with low operational complexity:

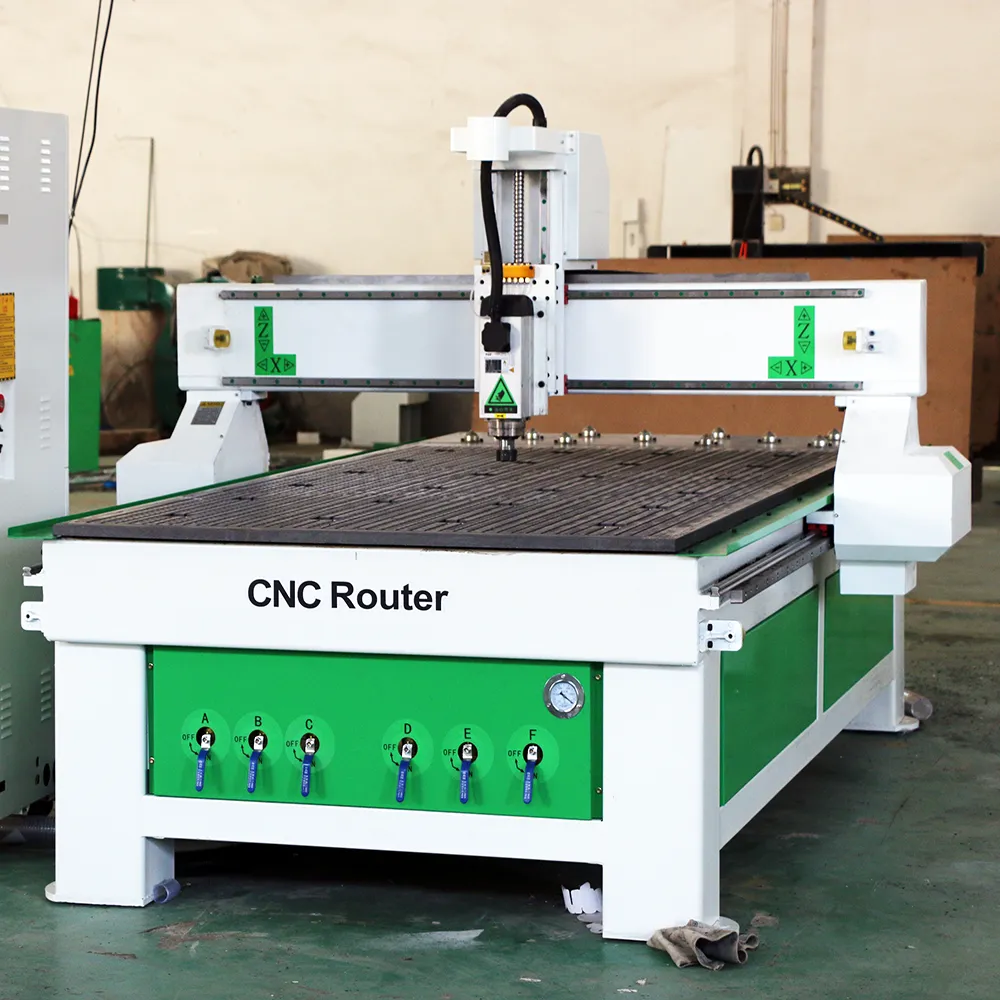

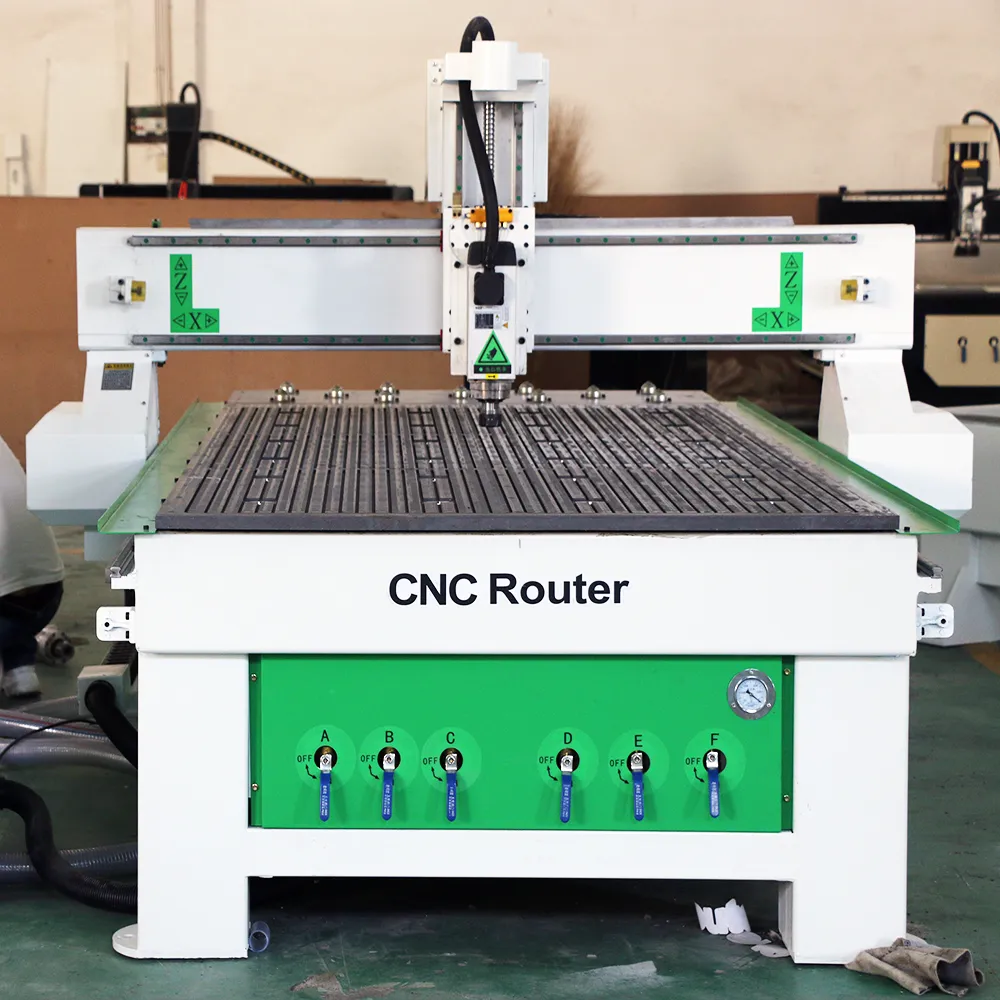

• 6-Zone High-Flow Vacuum Grid Table: Segmented phenolic worktable equipped with six independent manual brass ball valves (Zones A–F), allowing instant concentration of negative pressure beneath specific panel sizes.
• Universal Front Material Feed Rollers: Inset omnidirectional ball rollers along the front table edge eliminate surface friction and scratching during single-operator loading of heavy full-size panels.

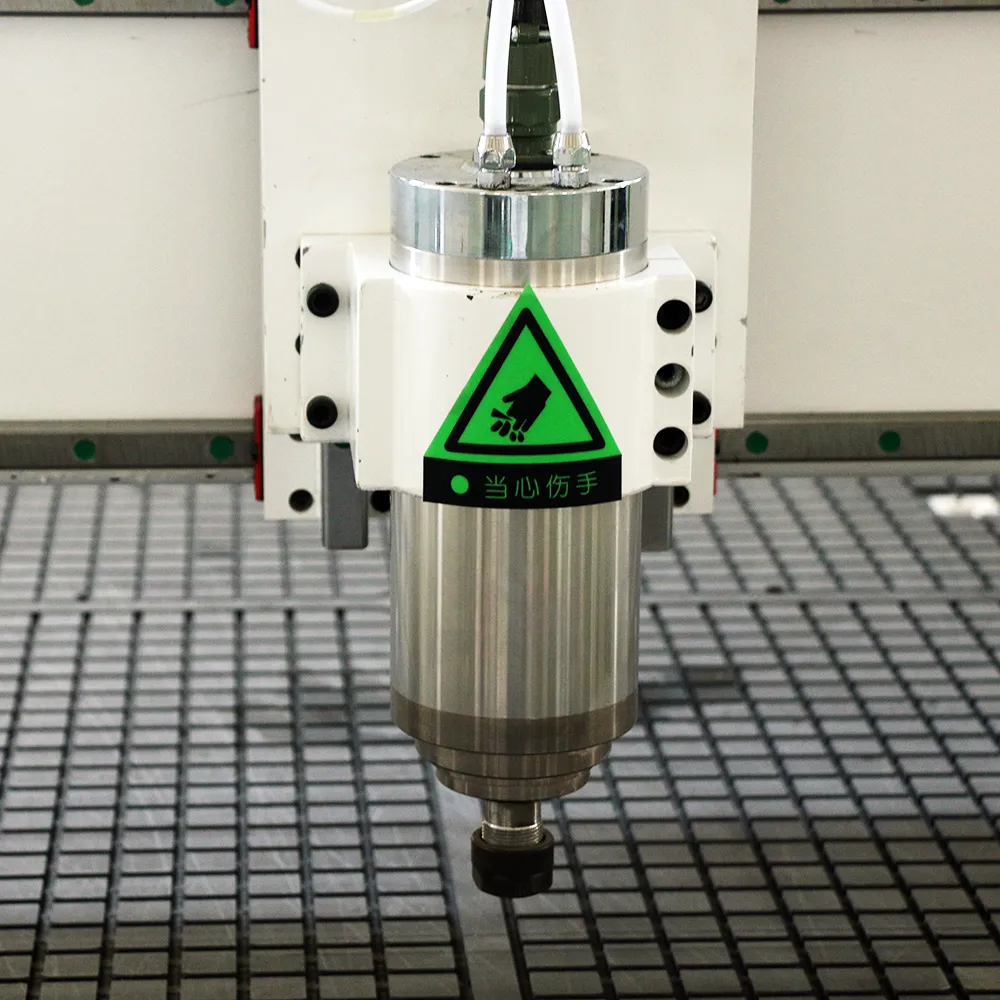

• Heavy-Duty High-Speed Milling Spindle: Standard industrial high-frequency spindle utilizing ER precision collets, driven by a heavy-duty Fuling variable frequency drive (VFD) and a pure copper core transformer.
• Dual-Driven Y-Axis & Anti-Backlash Transmission: Twin high-torque stepper/hybrid motors drive the gantry along precision-ground helical gear racks, while the Z-axis features a preloaded anti-backlash ball screw.
• Centralized Manual Brass Lubrication Station: A lever-actuated central reservoir with multi-branch brass metering blocks distributes clean lubricant directly to all linear carriage blocks simultaneously.

IV. Applications and Processed Materials

CNC Router with Automatic Vacuum Table for Efficient Panel Processing

The YH1325 Single-Head Auto Vacuum CNC router is designed for furniture manufacturers who need reliable sheet material fixing and efficient CNC cutting performance. The automatic vacuum table provides convenient material holding during machining, helping operators process MDF, plywood, and panel materials with improved stability.

This CNC wood router is suitable for cabinet manufacturing, furniture panel cutting, wardrobe production, wooden door processing, and customized furniture components. It is commonly used for nesting, cutting, engraving, and slot machining of large furniture boards.

The automatic vacuum system reduces the need for manual clamping, making it suitable for workshops requiring faster loading and unloading operations. It provides an economical CNC solution for manufacturers entering automated furniture production.

Typical Applications:

• Cabinet panel cutting
• Wardrobe board processing
• Furniture component nesting
• Wooden door machining
• Decorative panel engraving
• Custom furniture production

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine board
• Solid wood panels
• Acrylic
• PVC boards

V. FAQ

1. What is the benefit of an automatic vacuum table?

The vacuum table helps securely hold sheet materials during machining, reducing manual fixing operations and improving production efficiency.

---

2. Is this machine suitable for furniture panel nesting?

Yes. The YH1325 Auto Vacuum CNC router is suitable for nesting MDF, plywood, and particle boards used in cabinet and furniture manufacturing.

---

3. What furniture products can be produced?

It can produce cabinet panels, wardrobe components, shelves, wooden doors, decorative panels, and customized furniture parts.

---

4. Is this machine suitable for small furniture factories?

Yes. It provides an efficient CNC solution for small and medium-sized furniture manufacturers looking to improve production speed and machining accuracy.

---

5. What materials can be processed?

The machine can process MDF, plywood, particle board, melamine board, solid wood, acrylic, and PVC materials.

---

6. How does vacuum holding improve machining quality?

Stable material fixing reduces movement during cutting, helping achieve more consistent machining results and cleaner edges.
