Description

I. Key Features and Production Value

The YH2325 Three-Head Independent is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to processing long, wide, or heavy panels for furniture, vehicle interiors, architectural products, and composite-board work. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• Three independent Z-axis heads can process three matching parts at the same time when the job layout allows.
• The configuration increases output for repeated small and medium furniture components.
• Independent head control allows the operator to adapt the work to different part arrangements.
• Vacuum zoning helps hold multiple workpieces across the table.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH2325 Three-Head Independent
Number of axes	3
Number of Spindles	Three independent heads
Total power	9KW(3×3KW, Customizable)
Working Area	2300mmx2500mm(Customizable)
Maximum Operating Speed	20m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.05mm
Repeatability	±0.05mm
X,Y Resolution	<0.03mm
Net Weight	≈2000KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

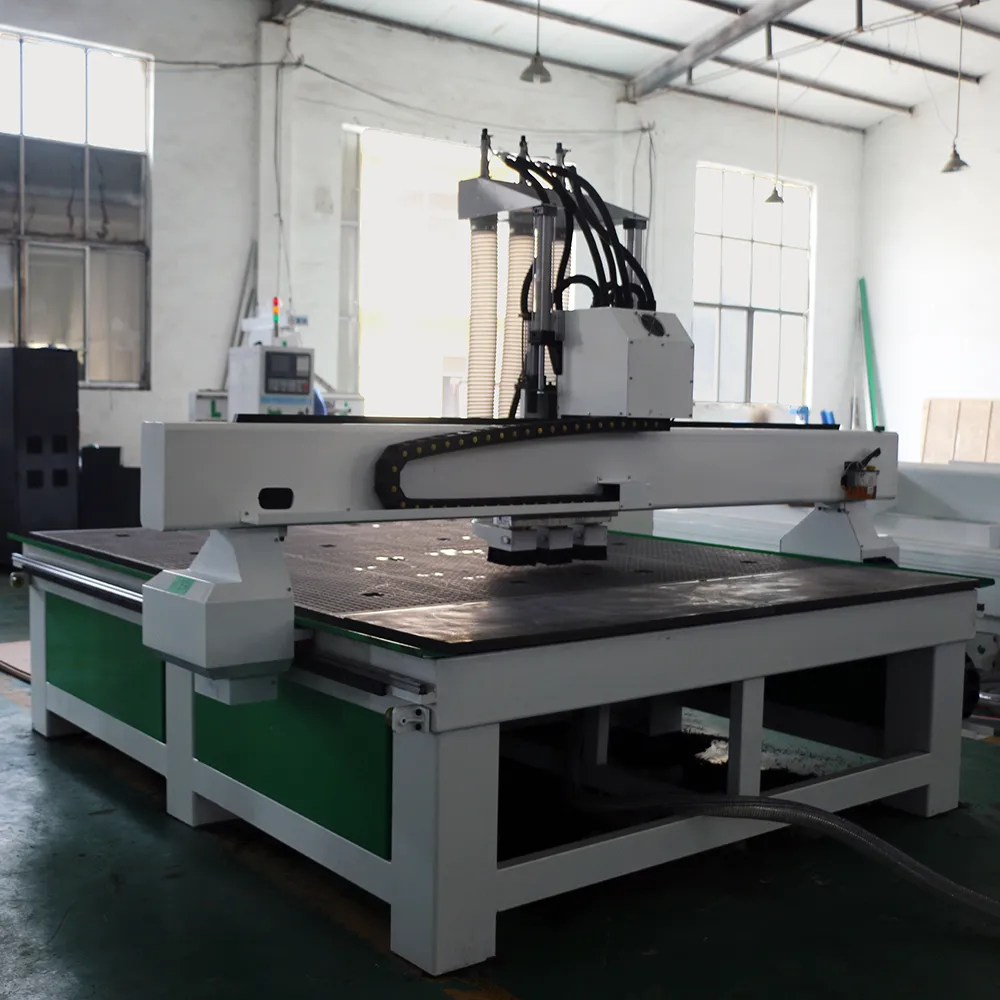

An extra-wide 2300×2500mm heavy manufacturing platform engineered for simultaneous 3-piece carving across wide timber slabs and architectural panels:

• Triple Synchronized Independent Z-Axis Carriages: Three standalone vertical axis assemblies driven on a wide-span bridge gantry, tripling throughput for carved architectural screens, door panels, and decorative millwork.

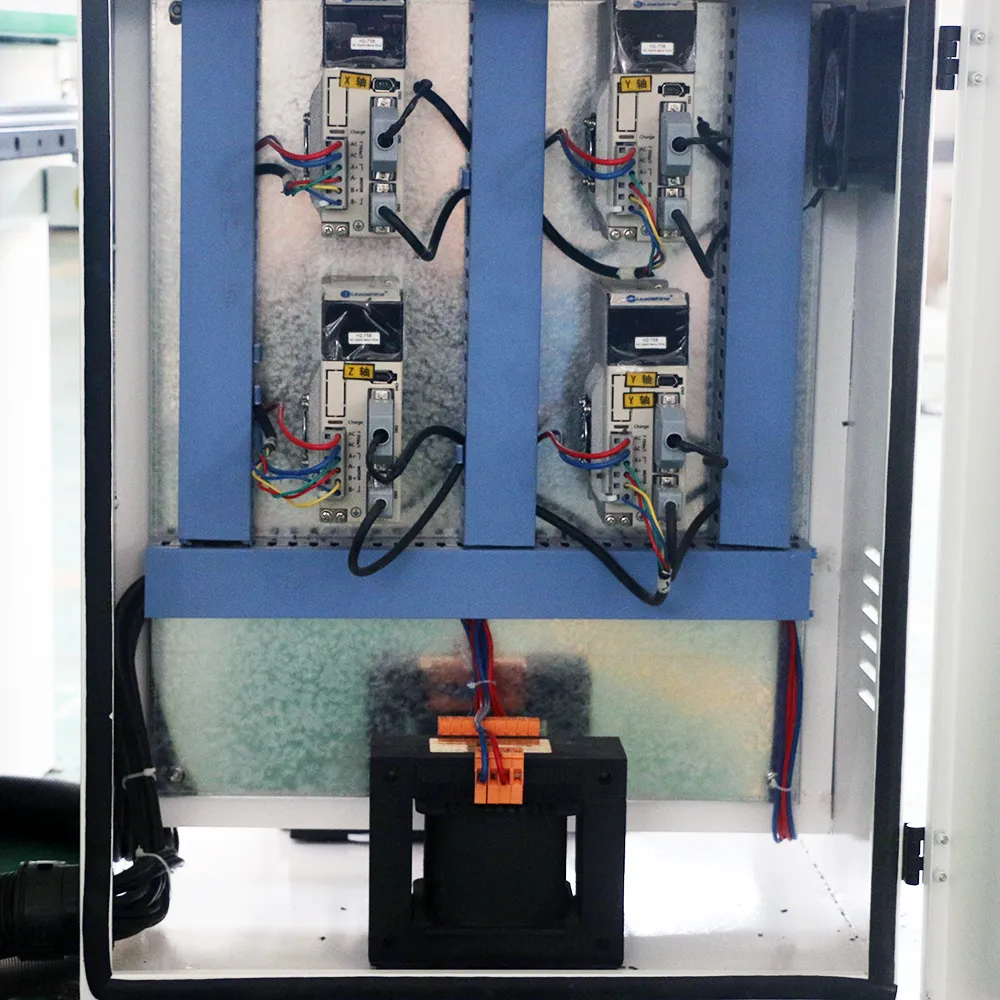

• Leadshine H2-758 AC Hybrid Closed-Loop Servos: High-torque hybrid servo drive system with encoder feedback eliminates step-loss errors during rapid multi-head 3D relief contouring.

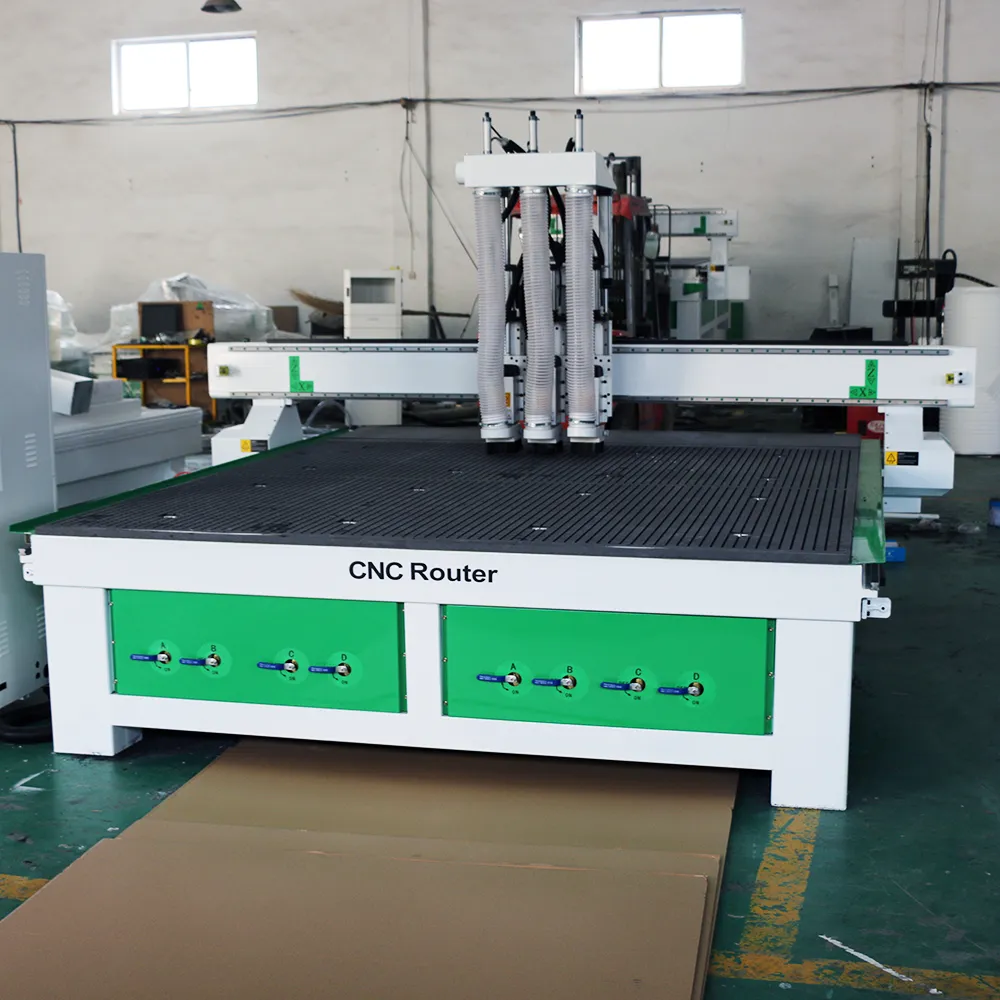

• Dual-Bank 8-Circuit Vacuum Grid Table: Heavy-duty segmented vacuum worktable with separate left and right manifold control stations (8 manual valves total) for flexible large-format or multi-station clamping.

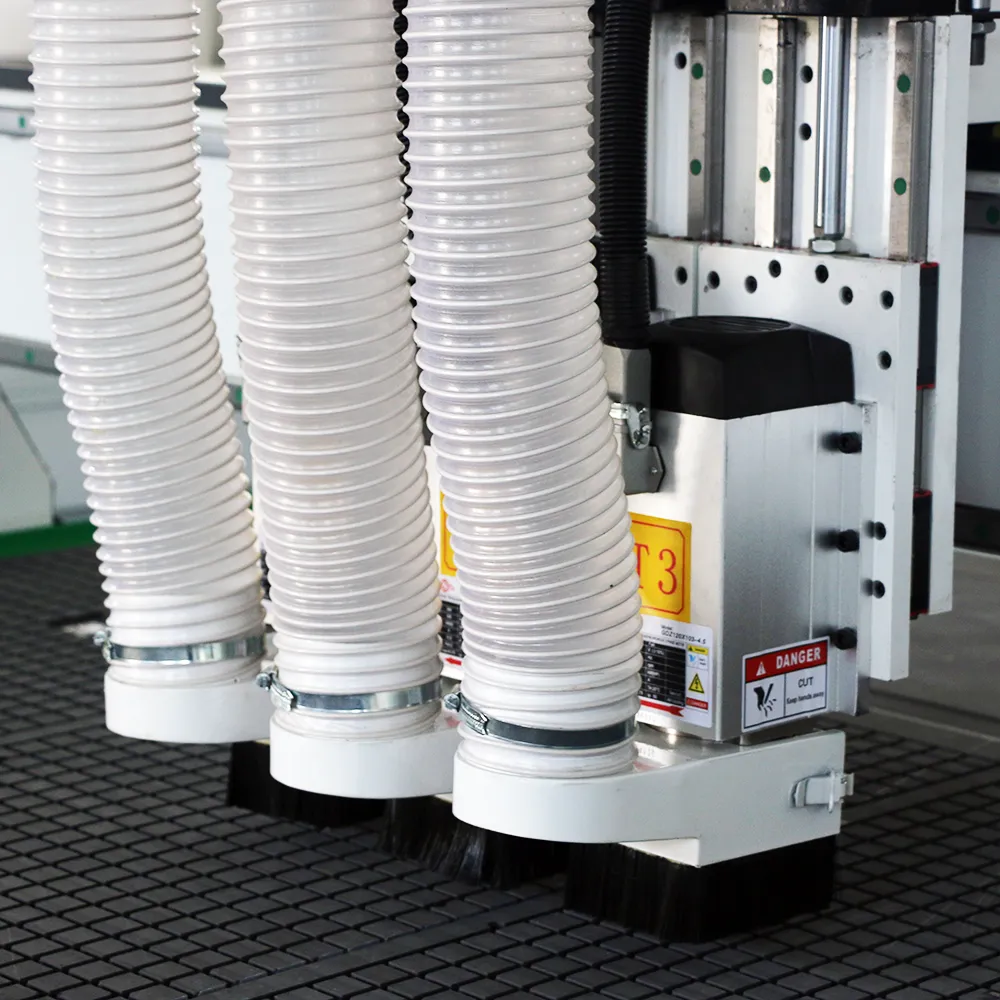

• Triple-Hose Manifold Dust Extraction Network: Dedicated brush shrouds on each spindle connect to a centralized overhead 3-way dust collection manifold, ensuring balanced extraction across all three cutting tools.

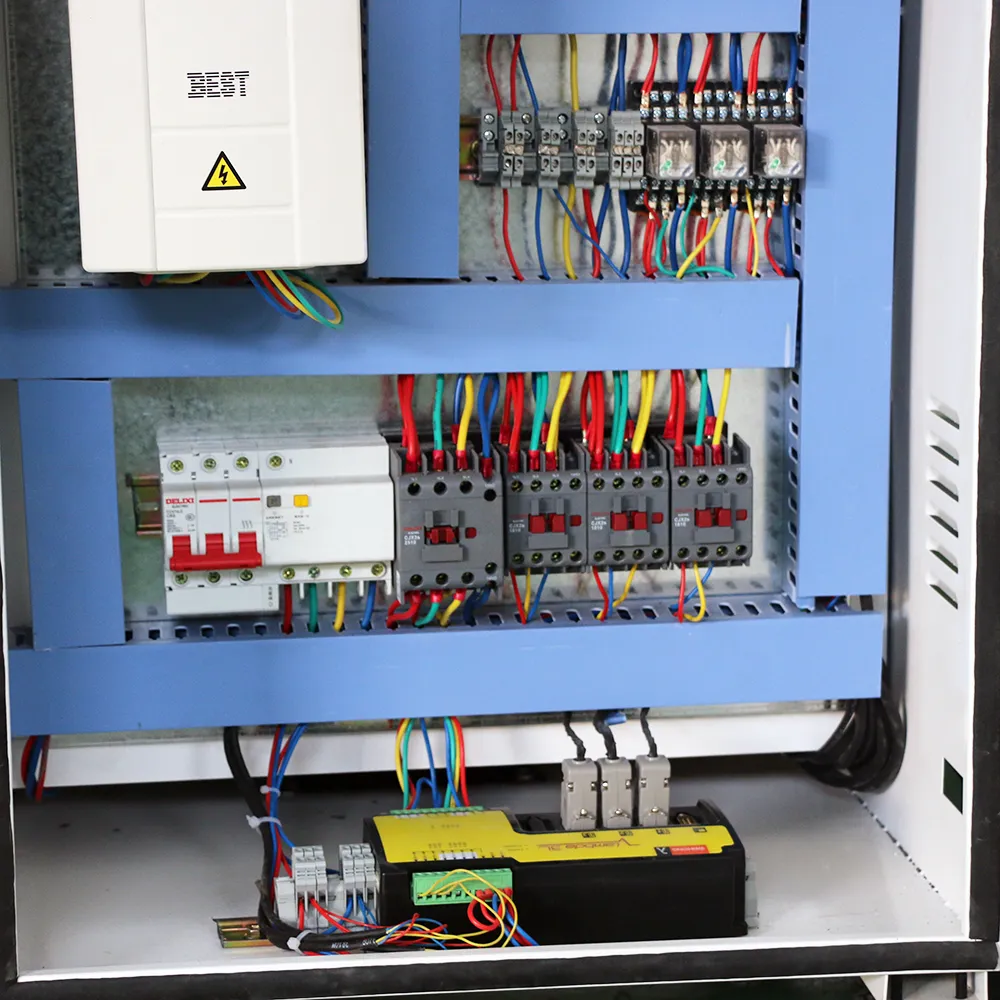

• Heavy-Gauge Cold-Rolled Control Console: Fully sealed standalone industrial cabinet with filtered cooling fans isolates the BEST high-capacity inverters, pure copper transformers, and motion boards.

IV. Applications and Processed Materials

Industrial Multi-Head CNC Router for Large Panel Furniture Production

The YH2325 Three Head Independent CNC router is designed for furniture manufacturers requiring both large working capacity and increased production efficiency. With a larger processing area and three independent machining heads, the machine provides a practical solution for high-volume furniture component production.

This industrial CNC router is suitable for large cabinet panels, wardrobe boards, office furniture components, wooden doors, decorative panels, and batch furniture manufacturing.

The multi-head design allows multiple identical components to be processed simultaneously, while the large working area supports standard furniture panels and oversized workpieces.

It is ideal for manufacturers upgrading from single-head CNC machines to higher-output production systems.

Typical Applications:

• Large cabinet panel production
• Wardrobe manufacturing
• Office furniture components
• Wooden door processing
• Batch furniture production
• Large decorative panels

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine panels
• Solid wood
• Acrylic
• Composite materials

V. FAQ

1. Why choose a large three-head CNC router?

It combines a large working area with multi-head productivity, making it suitable for manufacturers requiring higher output.

---

2. What is the difference between YH1212 and YH2325 three-head routers?

YH2325 provides a larger machining area, making it more suitable for larger furniture panels and industrial production environments.

---

3. Can it process standard furniture boards?

Yes. The large working area is suitable for common panel furniture materials including MDF, plywood, and melamine boards.

---

4. What industries use this machine?

It is commonly used in cabinet manufacturing, furniture factories, wooden door production, and interior decoration industries.

---

5. Can multiple identical parts be produced efficiently?

Yes. The three independent heads improve efficiency when producing repeated furniture components.
