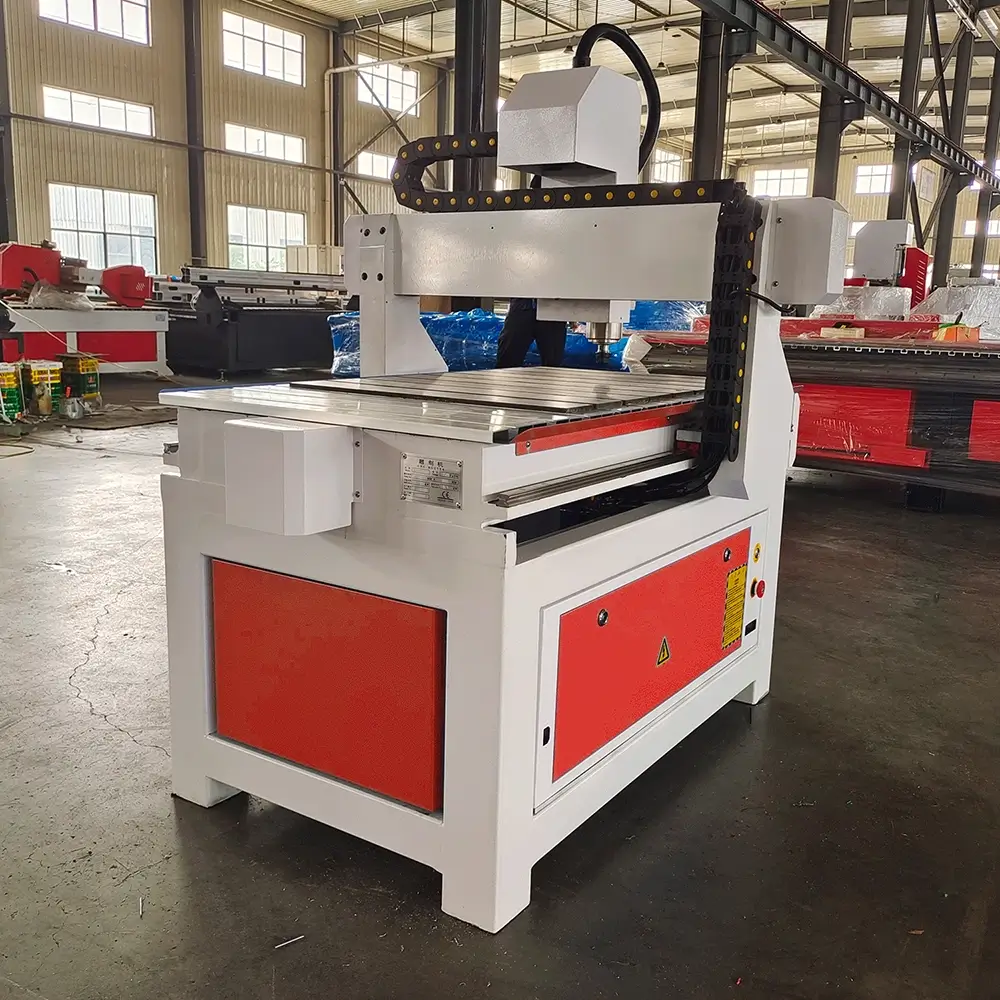

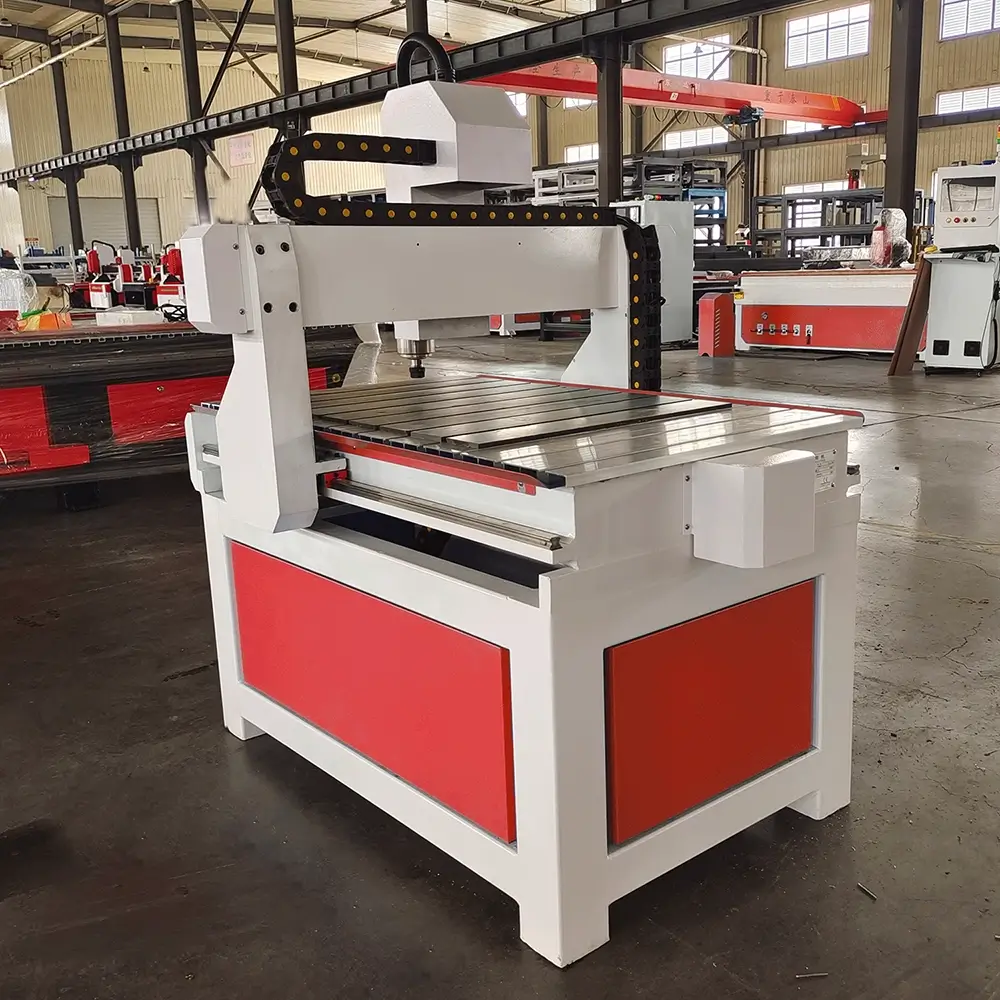

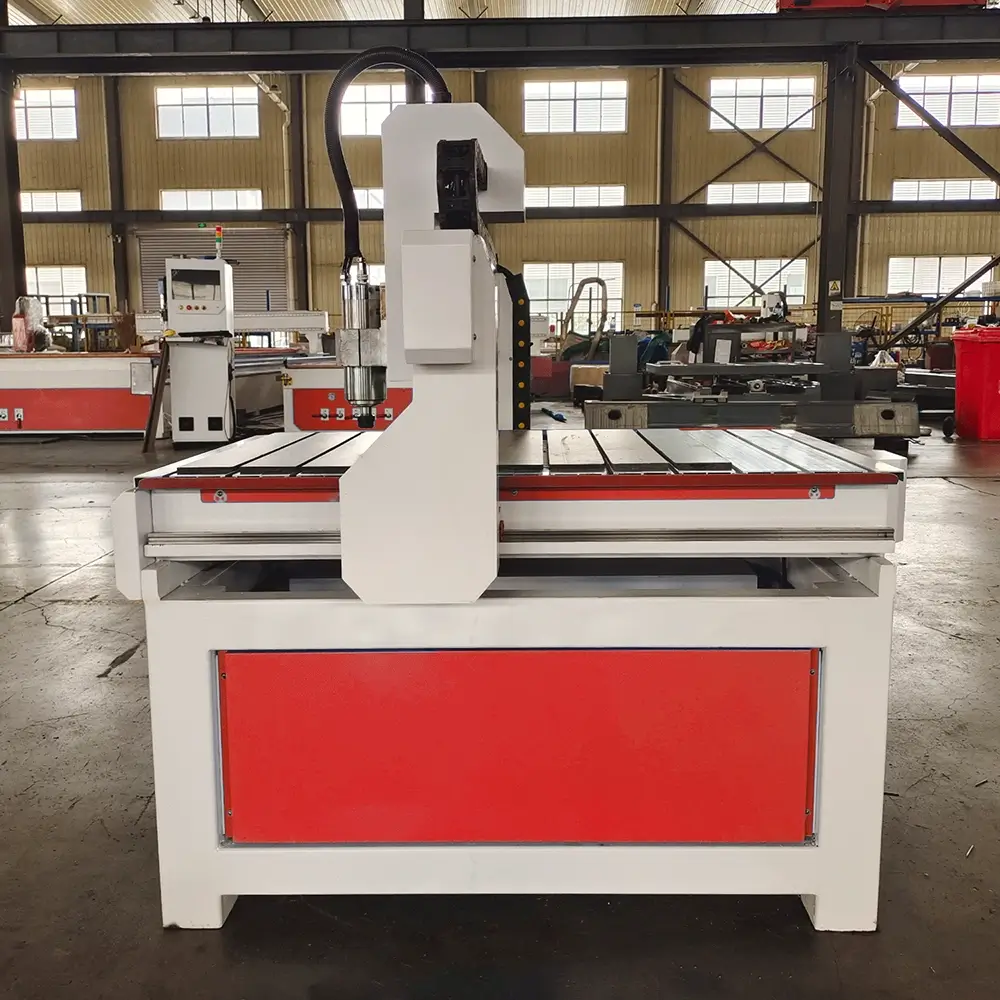

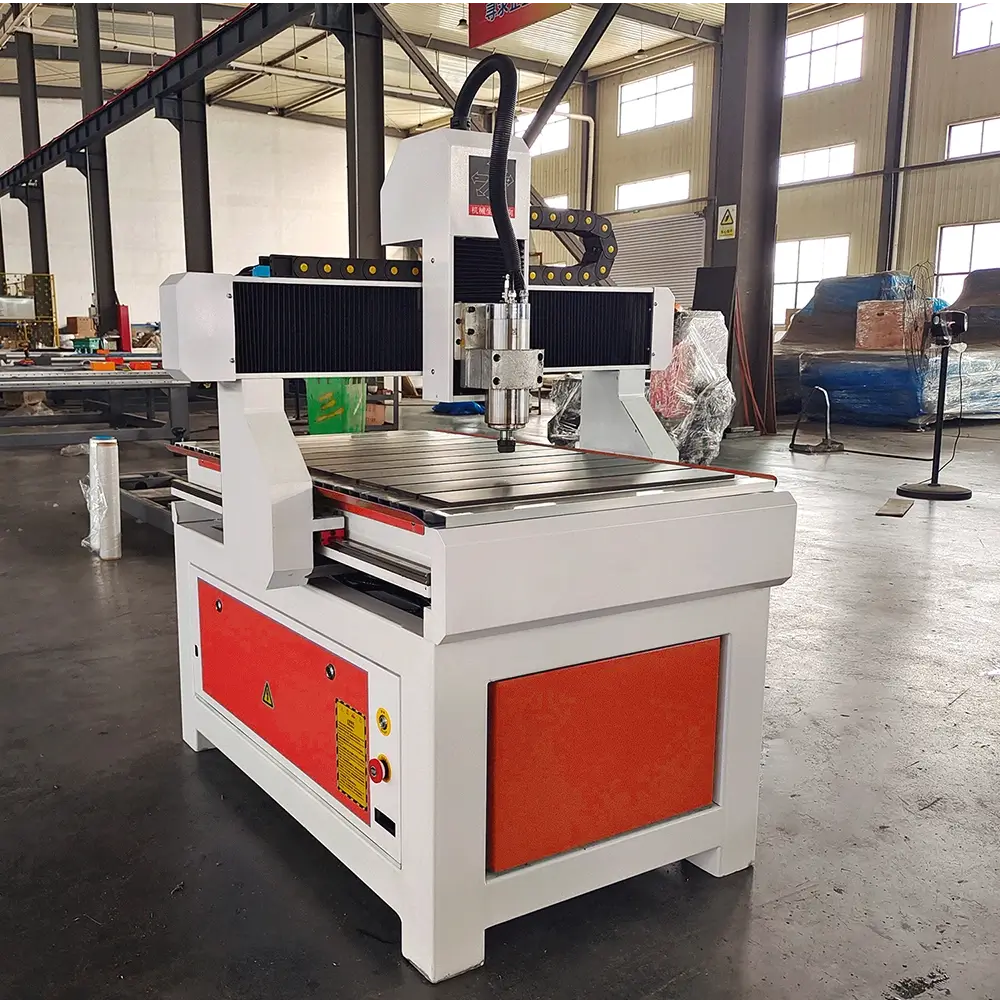

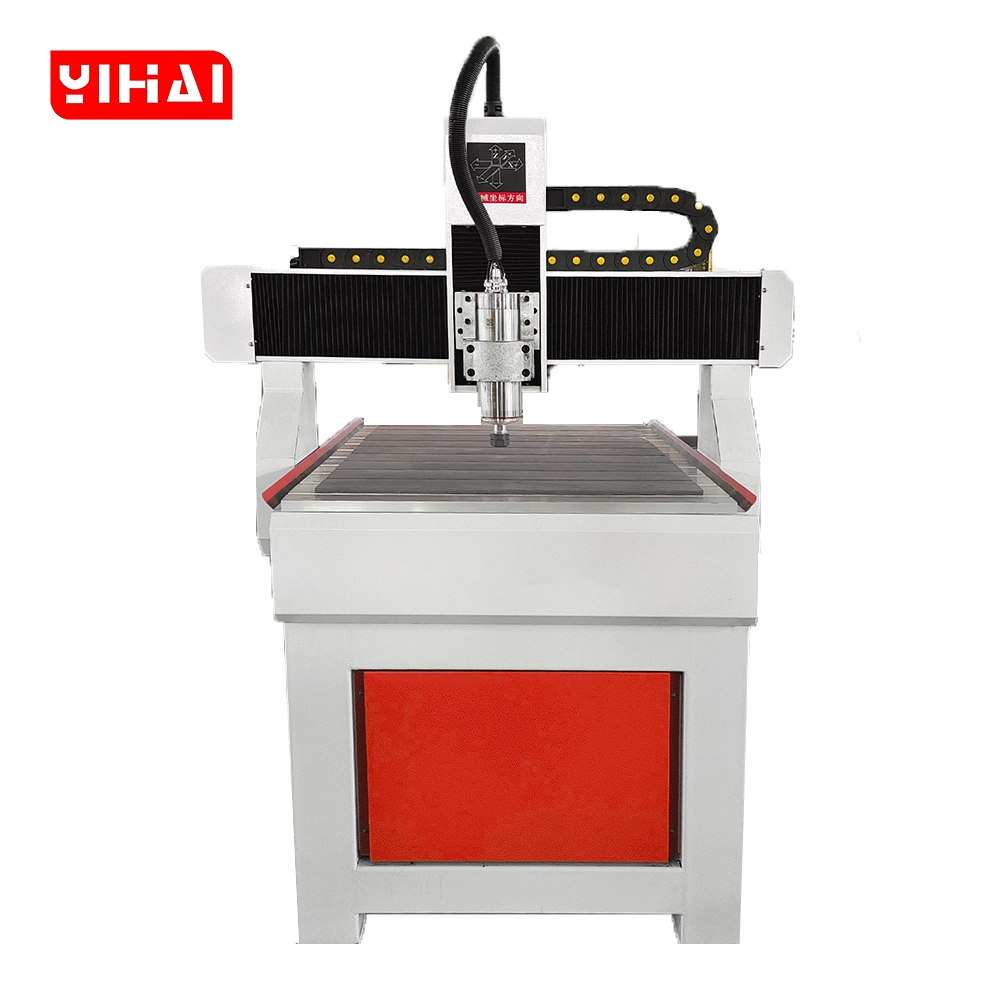

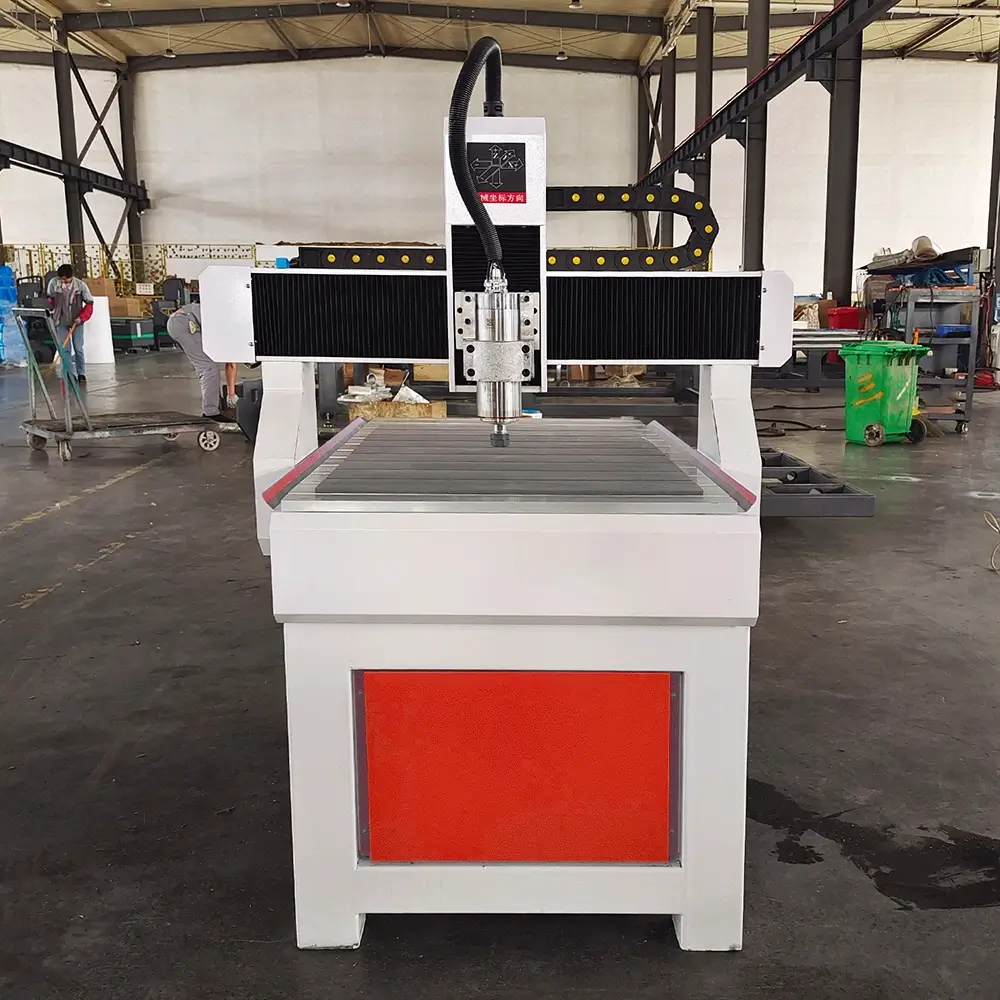

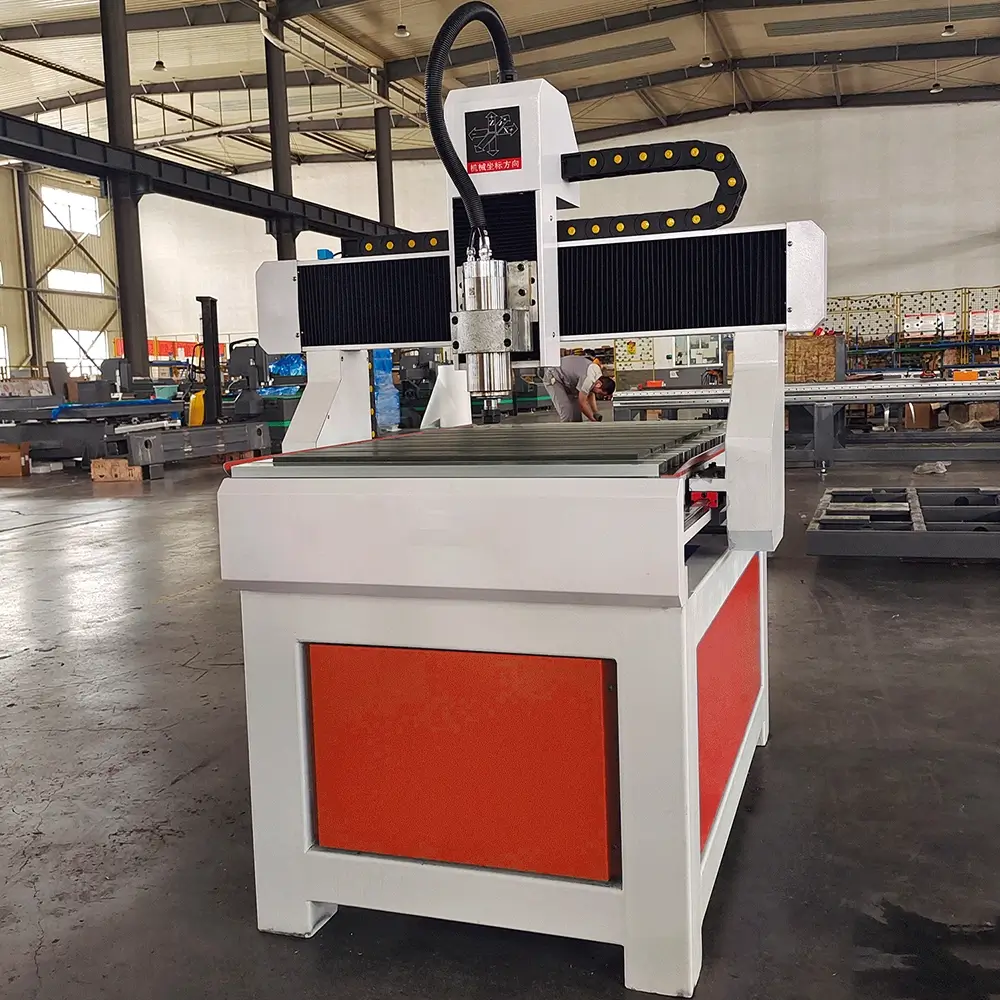

Professional 600x900mm CNC Wood Router for Precision Woodworking
The YIHAICNC 600x900mm CNC wood router delivers exceptional precision and reliability for professional woodworking applications. This compact yet powerful CNC router machine is engineered for small to medium-scale production, hobby workshops, and educational facilities seeking industrial-grade performance in a space-efficient design.
Key Highlights:
- Working area: 600mm x 900mm (24″ x 36″)
- High-precision ball screw transmission system
- Suitable for wood, MDF, plywood, acrylic, and soft metals
- User-friendly control system with USB/DSP controller
- Robust steel frame construction for vibration-free operation
Technical Specifications Section
CNC Wood Router Technical Parameters
| Feature | Specification |
| Type | Advertise CNC Router |
| Brand | YIHAICNC |
| Model | YH6090 |
| Number of axis | 3(Optional rotary axis Customizable) |
| Number of Spindles | Single |
| Total power | 1.5KW(Customizable) |
| X,Y,Z,Working Area | 600*900*120mm(Customizable) |
| Table size | 1100*1200mm(Customizable) |
| Precision (mm) | 0.05 |
| Positioning accuracy(mm) | 0.02 |
| Frame | Steel structure lathe bed, T-slot table |
| Repeatability | 0.05mm |
| Travel speed | 20m/min |
| Processing speed | 12m/min |
| Spindle Power | 1.5KW/2.2KW/3.0KW water cooling spindle |
| Spindle Speed | 0-24000rpm |
| Working Voltage | AC 220V 50HZ |
| Command Language | G Code |
| Computer Interface | USB/Ethernet |
| Working Voltage | AC 220V 50HZ |
| X,Y Resolution | ＜0.03mm |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
| Packing Size | 1.2*1.3*1.8M |
| Net Weight | 500KG |
Features & Benefits Section
Why Choose This CNC Wood Router?
1.Precision Engineering for Superior Results
Our CNC wood router utilizes high-precision ball screws on all three axes, ensuring consistent accuracy of ±0.05mm. This level of precision makes the machine ideal for intricate wood carving, detailed engraving work, and repetitive production runs where dimensional consistency is critical.
2.Robust Construction for Long-Term Reliability
The heavy-duty steel frame construction minimizes vibration during high-speed operations, extending tool life and improving surface finish quality. The reinforced gantry design ensures the CNC router machine maintains accuracy even under continuous production conditions.
3.Versatile Material Processing Capabilities
While optimized as a wood CNC router, this machine handles multiple materials including:
- Solid wood and hardwoods
- MDF, particleboard, and plywood
- Acrylic and plastic sheets
- Soft aluminum and composite materials
- Sign-making materials and foam
4.User-Friendly Control System
The intuitive DSP controller allows operators to load designs via USB drive and control the CNC wood router directly from the handheld panel. No computer connection required during operation, simplifying workflow in production environments.
5.Industrial-Grade Spindle Options
Choose from 1.5KW, 2.2KW, or 3.0KW water-cooled spindles depending on your application requirements. The water cooling system ensures consistent performance during extended operation while maintaining quiet operation compared to air-cooled alternatives.
6.Space-Efficient Design
At 600x900mm working area, this CNC router machine offers an optimal balance between capability and footprint, making it suitable for workshops with limited space while still accommodating substantial workpieces.
Applications Section
CNC Wood Router Applications
This versatile woodworking CNC router excels in numerous applications:
Woodworking & Furniture Manufacturing:
- Cabinet door engraving and panel processing
- Furniture component manufacturing with intricate details
- Chair backs, headboards, and decorative trim work
- Custom joinery and precision cutting operations
Sign Making & Advertising:
- Dimensional letters and logo fabrication
- Retail signage and wayfinding systems
- Trade show displays and promotional materials
- Channel letters and illuminated sign components
Artistic & Decorative Work:
- 3D relief carving and sculptural elements
- Decorative wall panels and architectural millwork
- Custom picture frames with detailed borders
- Musical instrument component manufacturing
Educational & Prototyping:
- Design education and vocational training
- Rapid prototyping for product development
- Small batch production runs
- Sample creation and proof-of-concept work
How It Works Section
Operating Your CNC Wood Router – Simple Workflow
- Design Preparation: Create or import your design using CAD/CAM software (compatible with popular programs like ArtCAM, Type3, Vectric VCarve)
- File Transfer: Export G-code and transfer to USB drive, or connect directly via computer
- Material Setup: Secure your workpiece to the vacuum table or using clamps/fixtures
- Tool Installation: Install appropriate router bit or end mill for your operation
- Zero Setting: Set X, Y, Z origin points using the DSP controller or software interface
- Operation: Start the CNC router machine and monitor the first few passes to ensure proper operation
- Finishing: Remove completed workpiece and perform any necessary post-processing
Package Includes Section
What′s Included with Your CNC Wood Router
- 1x 600x900mm CNC router machine (fully assembled main unit)
- 1x Water-cooled spindle (power rating as selected)
- 1x Spindle inverter/VFD
- 1x DSP/Computer control system
- 1x Complete cable set
- 1x Tool kit for maintenance
- 1x Water pump and cooling system
- 1x User manual and software CD
- 1x Sample materials for testing
Optional Accessories Available:
- Rotary axis attachment for cylindrical engraving
- Automatic tool changer (ATC) system
- Vacuum table system for sheet material hold-down
- Additional collet sets and router bit collections
- Dust collection adapter and system
Why Choose YIHAICNC Section
Your Trusted CNC Router Manufacturer
YIHAICNC specializes in manufacturing high-quality CNC equipment for woodworking, metalworking, and industrial applications. Our 600x900mm CNC wood router represents years of engineering refinement and customer feedback integration.
Our Advantages:
- ✓ Direct manufacturer pricing with no middleman markup
- ✓ Customization options to meet specific requirements
- ✓ Experienced technical team with rapid response times
- ✓ Comprehensive pre-sale consultation and application analysis
- ✓ Worldwide shipping with professional packaging
- ✓ Installation guidance and remote commissioning support
FAQ Section
Frequently Asked Questions About This CNC Wood Router
Q: What thickness of material can this CNC router machine process?
A: The Z-axis travel of 100mm allows processing materials up to approximately 80mm thick, accounting for tool length and clearance requirements.
Q: Is this CNC wood router suitable for beginners?
A: Yes, the DSP controller is intuitive and user-friendly. We provide comprehensive training materials, and the machine includes sample files to help new users get started quickly.
Q: What software is compatible with this woodworking CNC router?
A: The machine accepts standard G-code, making it compatible with popular CAM software including ArtCAM, Type3, Vectric VCarve, Fusion 360, and many others.
Q: How long does installation and setup take?
A: The CNC wood router arrives mostly assembled. Setup typically requires 2-3 hours including unpacking, leveling, electrical connection, and initial calibration.
Q: Can I upgrade components later?
A: Yes, the modular design allows for upgrades including higher-power spindles, servo motor conversion, and additional accessories as your needs evolve.
Q: What maintenance does this CNC router machine require?
A: Regular maintenance includes lubrication of ball screws and linear guides (weekly), cleaning of dust and debris (after each use), and spindle bearing inspection (monthly). Detailed maintenance schedules are provided in the user manual.
Carlos Silva –
The cast iron frame of this 6090 router is very solid, and it cuts acrylic and MDF for my sign business with great precision. The machine itself is excellent and runs smoothly. However, the water cooling tube for the spindle provided in the package was a bit short for my specific workshop layout, so I had to buy a longer one locally. Still, a very reliable machine for the price.
Alex_Zhang –
Dear Carlos, thank you for your honest feedback! We are glad the solid cast iron frame is providing the precision you need for your sign business. We sincerely apologize for the inconvenience regarding the water cooling tube length. We have already fed this back to our packaging department to ensure we provide longer tubes standard in future shipments. Please let us know if you need any further assistance! – Alex Zhang
David Thompson 🇬🇧 (London, UK) –
Hi, I’m setting up a small workshop in my garage and considering the YH6090 as my first CNC router. The 600x900mm working area seems perfect for my furniture components and custom signs. Can you confirm if the 1.5kW spindle is sufficient for cutting 18mm MDF and acrylic sheets? Also, what’s the noise level like compared to air-cooled spindles? I work in a residential area and need to keep noise reasonable.
Alex_Zhang –
Hi David, thanks for your interest! The 1.5kW water-cooled spindle on the YH6090 is more than capable for 18mm MDF and acrylic—just use the right feed rates and single-flute cutters for acrylic to avoid melting. Regarding noise, water-cooled spindles are significantly quieter than air-cooled ones; most of the sound comes from the cutting process itself, not the spindle. Many of our residential workshop customers run it without disturbing neighbors. Feel free to reach out on WhatsApp (+86-17615858876) if you’d like a video showing the machine in operation!
Ahmad Rahman –
Perfect 2×3 CNC for my small workshop in Kuala Lumpur. I mainly use it to carve solid wood panels and small crafts. The ball screw transmission is very accurate, and the DSP handle is much easier to operate than I thought. The support team helped me with the initial calibration step by step via WhatsApp. Great value and excellent service!
Alex_Zhang –
Hello Ahmad, thank you for the wonderful 5-star review! The 6090 model with its ball screw transmission is indeed designed for detailed solid wood carving. We are thrilled to hear that our WhatsApp technical support helped you get up and running smoothly. We look forward to seeing the beautiful wood panels you create! – Alex Zhang
