Description

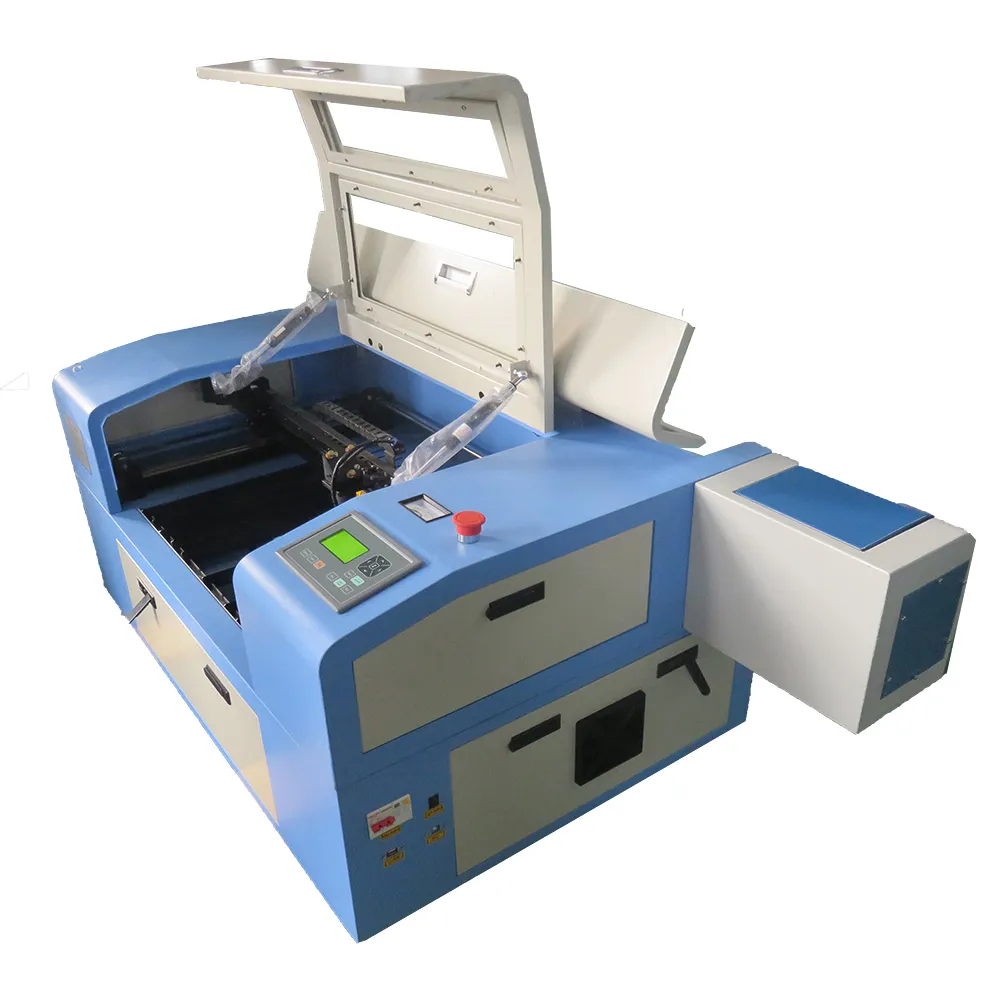

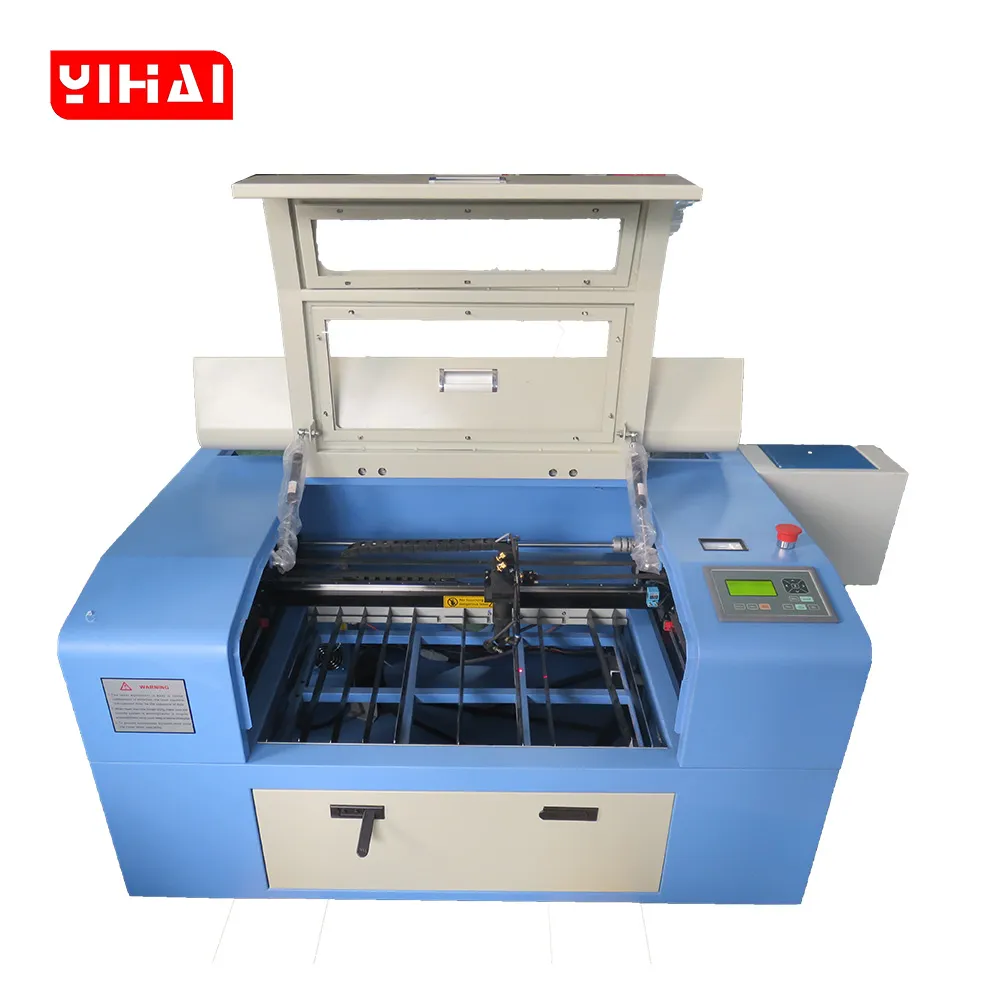

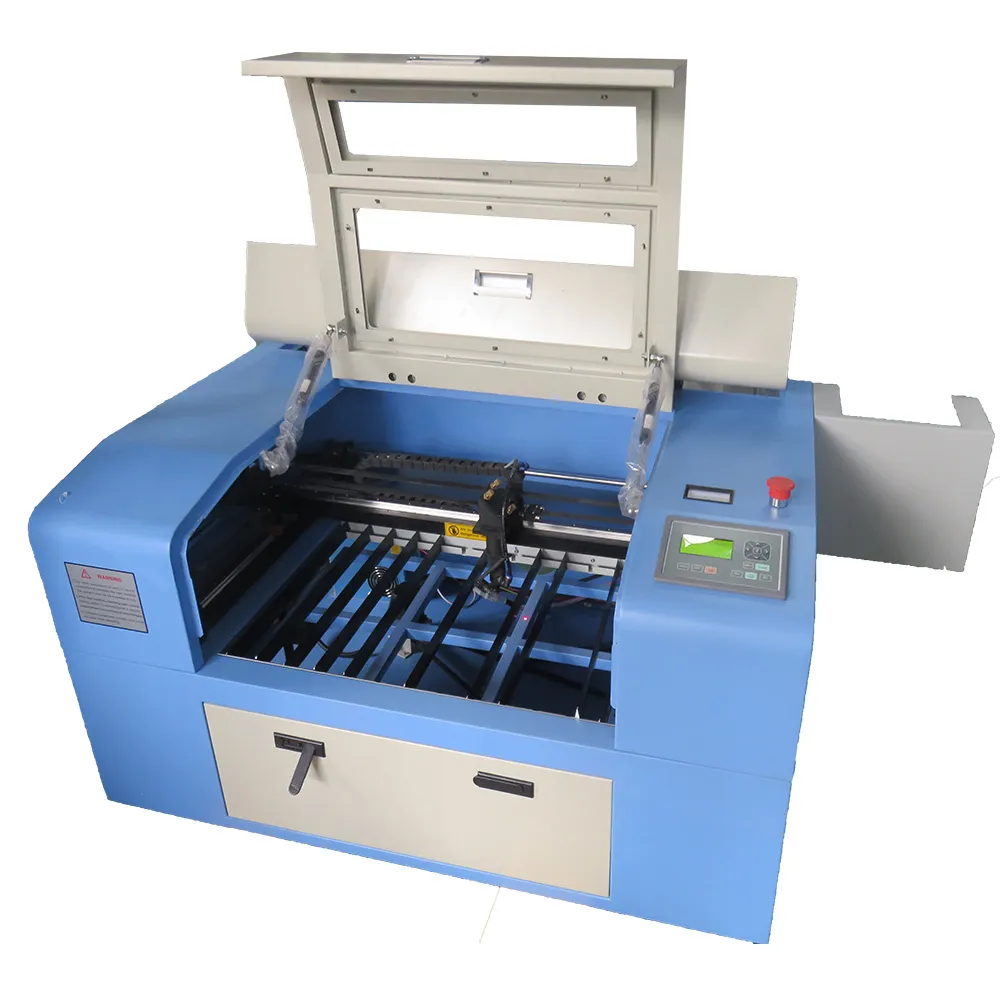

Ⅰ. Features of YH6040 CO2 Laser Engraving Machine

The YH6040 CO2 Laser Engraving Machine is designed by YIHAICNC to provide a professional-grade desktop solution for entry-level users and workshop enthusiasts.

• The machine features a high-grade glass cavity sealed CO2 laser source with a standard wavelength of 10.6μm for superior absorption in organic materials.
• It is equipped with an authentic RECI 40W CO2 laser tube, known for its stable beam quality and longer operational lifespan compared to generic tubes.
• The 600mm x 400mm working area provides ample space for most small-to-medium craft projects while maintaining a compact footprint for small shops.
• A robust Blade Worktable is included as a standard feature, which reduces laser back-reflection and ensures cleaner edges on the bottom of the material.
• For precise motion control, the system integrates Hiwin Square Rails, offering much better rigidity and accuracy than common round rail designs. The transmission utilizes a high-quality Belt Transmission system, allowing for rapid movement without the mechanical noise associated with gears.
• The Leetro MPC6585 Control System provides a dedicated DSP processing environment, ensuring the engraving process remains smooth and uninterrupted.
• The hardware is optimized for precision with a positioning accuracy of 0.05mm and a repetition accuracy of 0.02mm for consistent batch production.
• A built-in Air Assist connection is ready to be used with the included electromagnetic air pump to protect the lens and reduce charring.
• The machine operates on a standard 220V 50Hz-60Hz power supply, making it compatible with most residential and commercial electrical outlets.
• The YH6040 comes with a complete accessory package including an exhaust blower, an electromagnetic air pump, and a durable submersible water pump. The simplified structure of this CO2 Laser Engraving Machine is specifically designed for ease of maintenance, making it a sustainable tool for hobbyists.

---

Ⅱ. Advantages of the YH6040 Laser System

The YH6040 from YIHAICNC offers several industrial advantages that distinguish it from standard hobbyist-grade equipment found in the market.

• By utilizing Hiwin Square Rails, the machine maintains its alignment and accuracy over years of use, preventing the “wobble” often seen in cheaper alternatives.
• The Leetro MPC6585 controller is a professional industrial system that allows for offline operation via USB, meaning your computer doesn’t need to be tethered. While primarily a CO2 Laser Engraving Machine, its stable beam and rigid frame allow it to function as a reliable CO2 Laser Cutting Machine for thin materials.
• The RECI 40W laser source provides an exceptional balance of fine engraving detail and enough power to cut through thin woods, acrylics, and fabrics.
• The absence of a complex lifting platform simplifies the mechanical structure, leading to higher reliability and a much easier learning curve for new users.
• The inclusion of a high-performance Exhaust Blower ensures that smoke and debris are efficiently removed from the cabinet, protecting the internal optics.
• The Electromagnetic Air Pump provides a constant stream of air to the nozzle, which is crucial for preventing the material from catching fire during cutting.
• The machine supports a wide variety of professional graphic formats, including PLT, DXF, BMP, JPG, and AI, for seamless workflow with popular design software.

The YH6040 is built with a reinforced chassis that minimizes vibrations, ensuring that even at high engraving speeds, the lines remain sharp and clear. Every unit undergoes rigorous testing at the YIHAICNC facility to ensure that the mirror alignment and focal settings are optimized before the machine ships. The cost-to-performance ratio of the YH6040 is excellent, offering industrial-spec components like square rails and DSP controllers at a hobbyist price point. The small line width of ≤0.15mm allows for the creation of intricate stamps, jewelry, and detailed photographic engravings on wood and stone surfaces.

---

 Ⅲ. Technical Specifications

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH6040(Without Lifting Platform)
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	40W(Customizable)
Total Power	＜1.5KW
Working Table	Blade Worktable
Working Area	600*400mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Leetro MPC6585(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

 Ⅳ. Key Components Description

	Professional Blade-Strip Worktable Function: Specifically designed for cutting hard materials such as wood and acrylic. It minimizes the contact area between the material and the worktable, effectively reducing laser back-reflection (ricochet) phenomena, thereby ensuring that the bottom edges of the cut remain clean and smooth.
Integrated Industrial Control Cabinet with Leetro MPC6585 DSP System Function: Houses a professional Leetro MPC6585 controller and high-torque stepper motor drivers. The internal wiring is neat and organized; combined with dedicated DSP logic control, it ensures the equipment maintains exceptional stability and superior anti-interference performance during high-speed motion.
	DSP Control Panel & Emergency Stop Button Function: Features an intuitive LCD screen that allows for real-time monitoring of current speed and power parameters. Industrial-grade mechanical buttons provide clear tactile feedback, while the emergency stop button enables instantaneous power cutoff and machine shutdown in critical situations, maximizing operator safety.
Centralized External Interface Panel Function: Simplifies the equipment installation process. Each interface is clearly labeled, covering water cooling inlets/outlets, air assist ports, and power sockets. This “plug-and-play” design philosophy allows you to quickly connect a water chiller and air compressor without the need for complicated wiring.
	Complete Standard Accessories Package Function: A comprehensive “ready-to-run” kit containing a high-power exhaust fan, an electromagnetic air assist pump, and a submersible water circulation pump. All the tools and accessories you need to kickstart your laser engraving projects are conveniently packed within this single box.

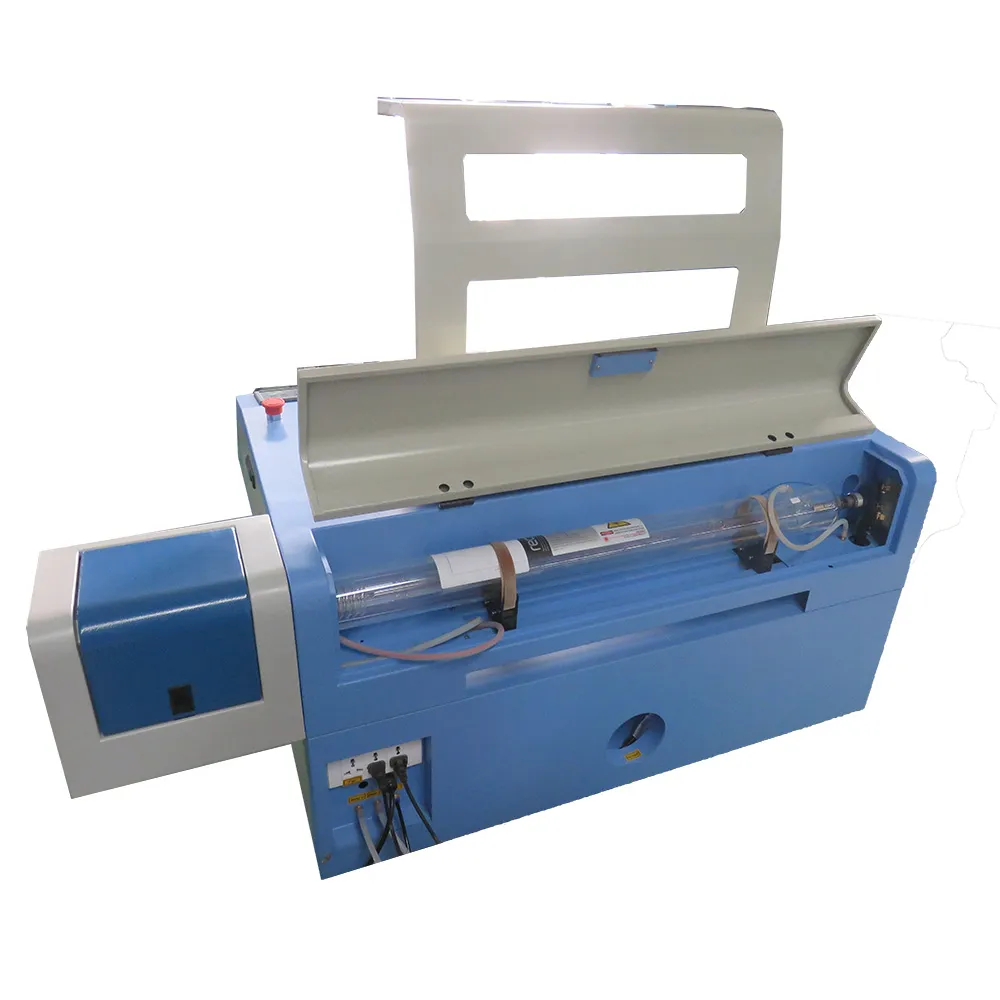

High-Precision CO2 Laser Tube Function: Serving as the “core component” of the entire machine, it emits a high-quality laser beam with a wavelength of 10.6 μm. Optimized specifically for the fine engraving and precision cutting of non-metallic materials, it features stable power output and an extended service life.

---

 Ⅴ. Applicable Materials

The YH6040 CO2 Laser Engraving Machine is exceptionally versatile when it comes to non-metallic substrates. It is the ideal tool for engraving and cutting wood, acrylic, bamboo, and MDF. For soft goods, it handles leather, fabric, and felt with ease. Users can also perform detailed etching on glass, stone, and ceramics. Additionally, it is suitable for processing rubber, paper, cardstock, and various plastics, making it a comprehensive solution for diverse creative and industrial non-metal projects.

---

 Ⅵ. Applicable Industries and Future Prospects

The Personalized Gift and Craft Industry is the primary home for the YH6040. In this sector, the ability to engrave custom names, dates, and photos onto wood or glass creates significant value. Small businesses use this CO2 Laser Engraving Machine to produce bespoke wedding invitations, engraved wine bottles, and custom jewelry. The low entry cost allows entrepreneurs to start a home-based business with minimal overhead.

The Educational and STEM Sector also benefits greatly from this machine. Schools and makerspaces use the YH6040 to teach students about digital design and manufacturing. Its simple but high-quality construction makes it a safe and durable teaching tool. As 3D design becomes more prevalent in schools, the demand for accessible laser tools to turn those designs into physical prototypes is seeing significant growth.

The Advertising and Signage Industry utilizes the YH6040 for the production of small-scale office signs, badges, and promotional items. While it is not intended for large outdoor billboards, its precision is unbeatable for desktop-sized displays and desk nameplates. The speed of the Leetro system allows for quick turnaround times on small batch orders, which is essential for local print and sign shops.

Looking to the future, the DIY and Maker Movement continues to expand globally. More individuals are looking to move beyond mass-produced items toward unique, laser-crafted goods. The YH6040 is positioned as a bridge between professional industrial machines and cheap hobby kits. As software like LightBurn becomes more accessible, the ease of use for this CO2 Laser Engraving Machine will continue to drive its popularity in the global creative market.

---

 Ⅶ . Safety Precautions and Guidelines

• Eye Protection: Never operate the machine without wearing certified laser safety goggles. The 10.6μm wavelength is invisible but can cause permanent eye damage instantly.

• Fire Prevention: Always keep a fire extinguisher nearby. Materials like acrylic and wood can ignite if the laser power is too high or if the air assist is not functioning.

• Water Cooling: Ensure the submersible pump is always running and the water is clean. Operating the laser tube without cooling will cause it to crack within seconds.

• Ventilation: Always run the exhaust blower during operation. The fumes from burning wood, leather, or acrylic can be toxic and must be vented outside the workspace.

• Electrical Grounding: Ensure the machine is properly grounded to prevent high-voltage interference or electrical shocks, especially given the high-voltage laser power supply.

---

Ⅷ. Frequently Asked Questions (FAQ)

Q1: Why does the YH6040 use the Leetro MPC6585 system instead of a cheaper controller?

The Leetro MPC6585 is an industrial-grade DSP (Digital Signal Processing) control system that offers far superior stability compared to the basic boards found in entry-level “K40” style machines. A DSP controller allows the machine to process the motion logic internally rather than relying on your computer’s processor in real-time. This prevents the machine from pausing or stuttering if your computer lags, which is a common cause of ruined projects. Furthermore, the Leetro system provides better support for complex vector paths and high-speed engraving, ensuring that your YIHAICNC machine remains a professional tool even as your skills and project complexity grow over time.

Q2: Is a 40W Reci laser tube enough for cutting, or is it only for engraving?

While the YH6040 is primarily marketed as a CO2 Laser Engraving Machine due to its precision and 40W power, it is certainly capable of acting as a light CO2 Laser Cutting Machine. With a genuine Reci tube, you can comfortably cut through 3mm to 5mm of acrylic or plywood in a single pass at a slow speed. The key to successful cutting on a 40W system is ensuring your focal point is perfectly set and that your air assist is providing enough pressure to clear the debris from the kerf. For hobbyists making models, jewelry, or thin signage, the 40W power provides the perfect balance between fine engraving detail and functional cutting capability.

Q3: Why did YIHAICNC choose Hiwin Square Rails for an entry-level hobbyist machine?

At YIHAICNC, we believe that structural stability is the foundation of quality. Many hobbyist machines use cheap round rails or V-slot wheels which can wear down or develop “play” over time, leading to wavy lines in your engraving. Hiwin Square Rails are an industrial standard used in high-end CNC routers and large-scale laser cutters. They offer much higher load-bearing capacity and a significantly lower coefficient of friction. This results in smoother head movement, less maintenance, and a machine that maintains its “factory-new” precision for years. We include them on the YH6040 to ensure that even our beginners have access to professional-level mechanical reliability.

Q4: How often do I need to change the cooling water and clean the optics?

Maintenance is the key to preserving your investment. We recommend changing the cooling water in your submersible pump reservoir at least once a week if you are using it frequently, or immediately if the water becomes cloudy. Using distilled water is essential to prevent mineral buildup inside the laser tube’s glass cavity. As for the optics, the focal lens and the three reflective mirrors should be checked daily. Dust and smoke residue on the lens will absorb laser energy, causing the lens to overheat and eventually crack. A quick 30-second cleaning with a specialized lens tissue and isopropyl alcohol at the start of each day will keep your YH6040 cutting and engraving at its peak performance.

Q5: Can I upgrade the YH6040 with a rotary device or a honeycomb table later?

Absolutely. The YH6040 is designed with a “Pass-through” capability and a flexible interior. While this specific model does not include a motorized lifting platform to keep the cost accessible for beginners, you can manually place a honeycomb table on top of the blade table to support small or delicate materials like fabric and paper. For cylindrical objects like mugs or rolling pins, you can install a rotary device. You simply disconnect the Y-axis motor and connect the rotary device in its place. This modular approach allows you to expand your creative capabilities as you take on more diverse projects without needing to buy a whole new CO2 Laser Engraving Machine.

Q6: What is the benefit of the Blade Worktable compared to other table types?

The Blade Worktable consists of a series of thin aluminum slats. This design is the industry standard for cutting operations. Because the contact area between the material and the table is so small, there is a significantly reduced risk of “back-flash”—where the laser hits the table and reflects back into the bottom of your material, causing burn marks. This is especially important when cutting clear acrylic or light-colored woods where a clean bottom finish is required. The open space between the blades also allows for better smoke extraction from the bottom of the machine, which helps keep your workspace cleaner and prevents the smoke from interfering with the laser beam’s path.
