Description

I. Key Features and Production Value

The YK12-1530 is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to make desks, conference tables, shelving, reception elements, and display fixtures. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• A 12-tool linear ATC magazine supports large-panel furniture jobs with several tool types.

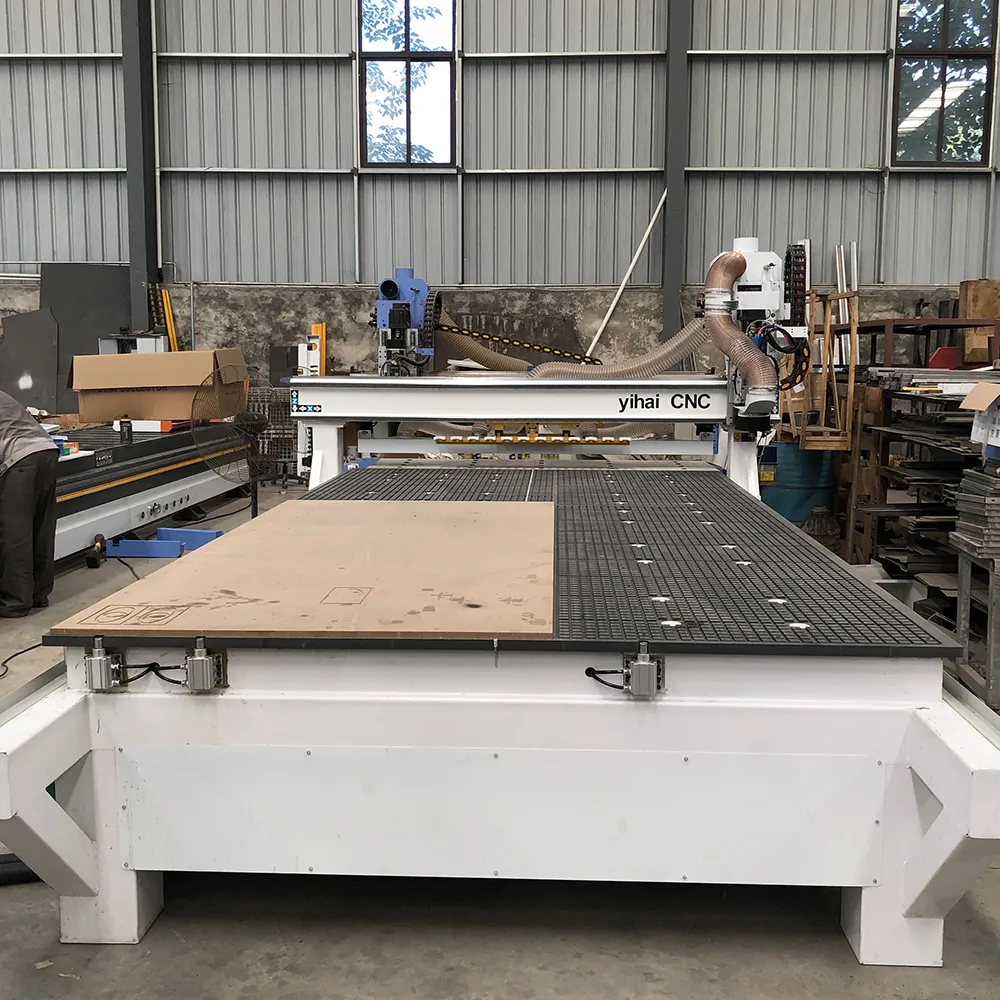

• The 1500mm × 3000mm bed accepts larger nesting layouts than a standard 1325 format.
• The 9KW ATC spindle supports continuous cutting, grooving, drilling, and engraving.

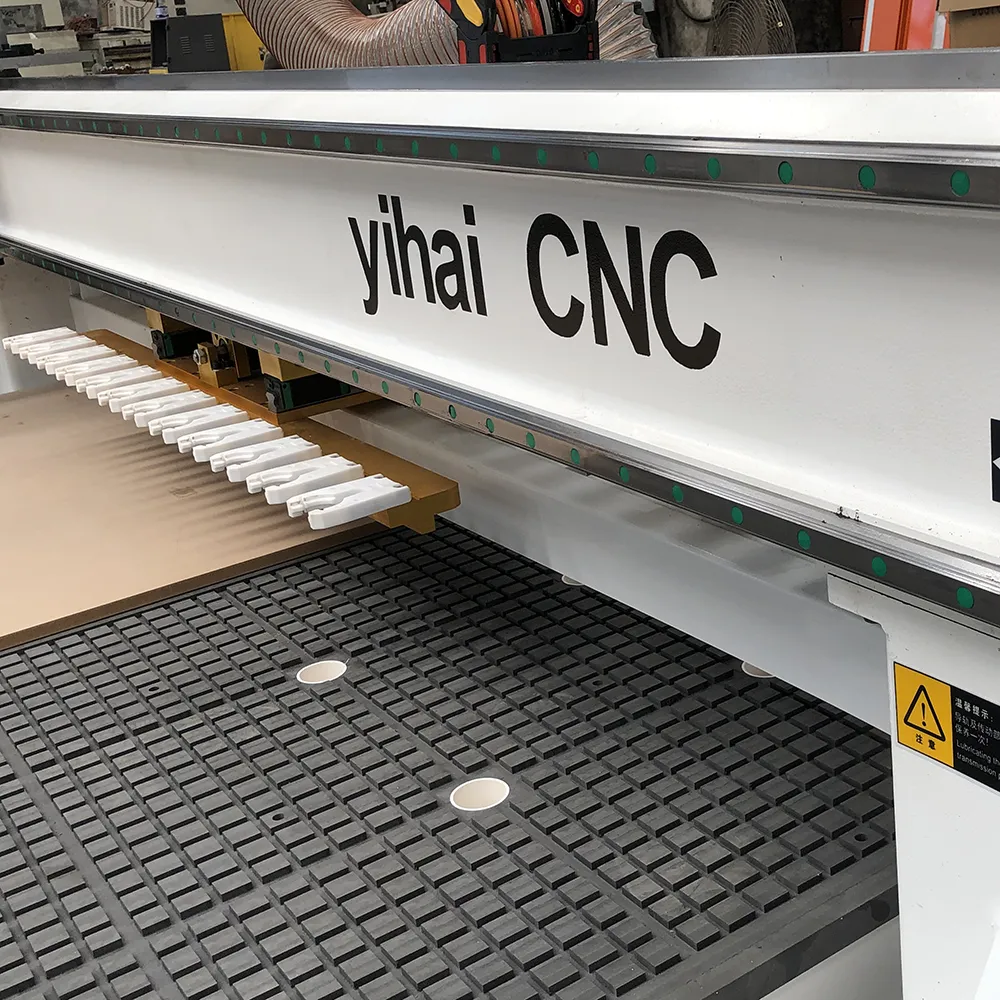

• Vacuum zoning and positioning cylinders help keep large sheets aligned during processing.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YK12-1530
Number of axes	3
Number of Spindles	Single
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1500mmx3000mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈2000KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

Engineered for architectural millwork and oversized 1500×3000mm (5×10 ft) panel processing with automated 12-tool flexibility:

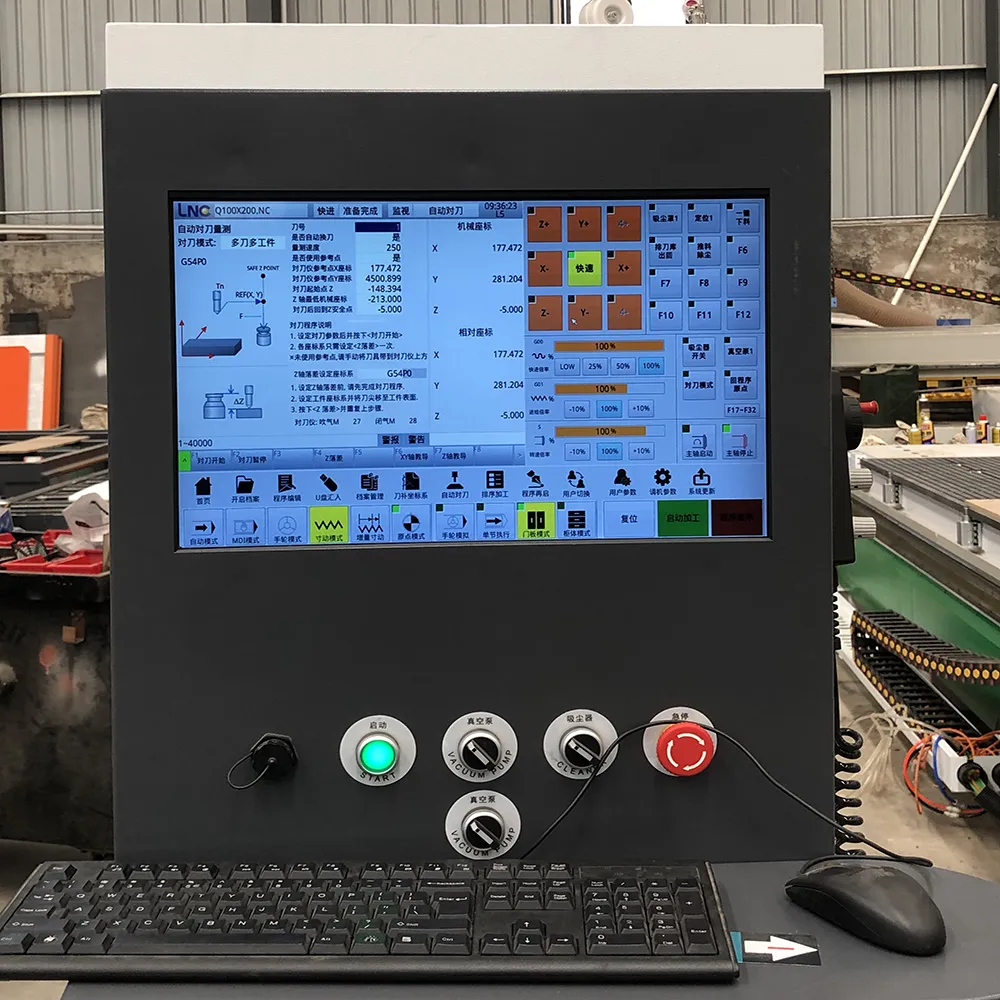

• Taiwan LNC High-End Integrated CNC System: Industrial touchscreen CNC computer supporting full-closed-loop compensation, advanced toolpath look-ahead algorithms, and direct compatibility with major cabinet design/nesting software.

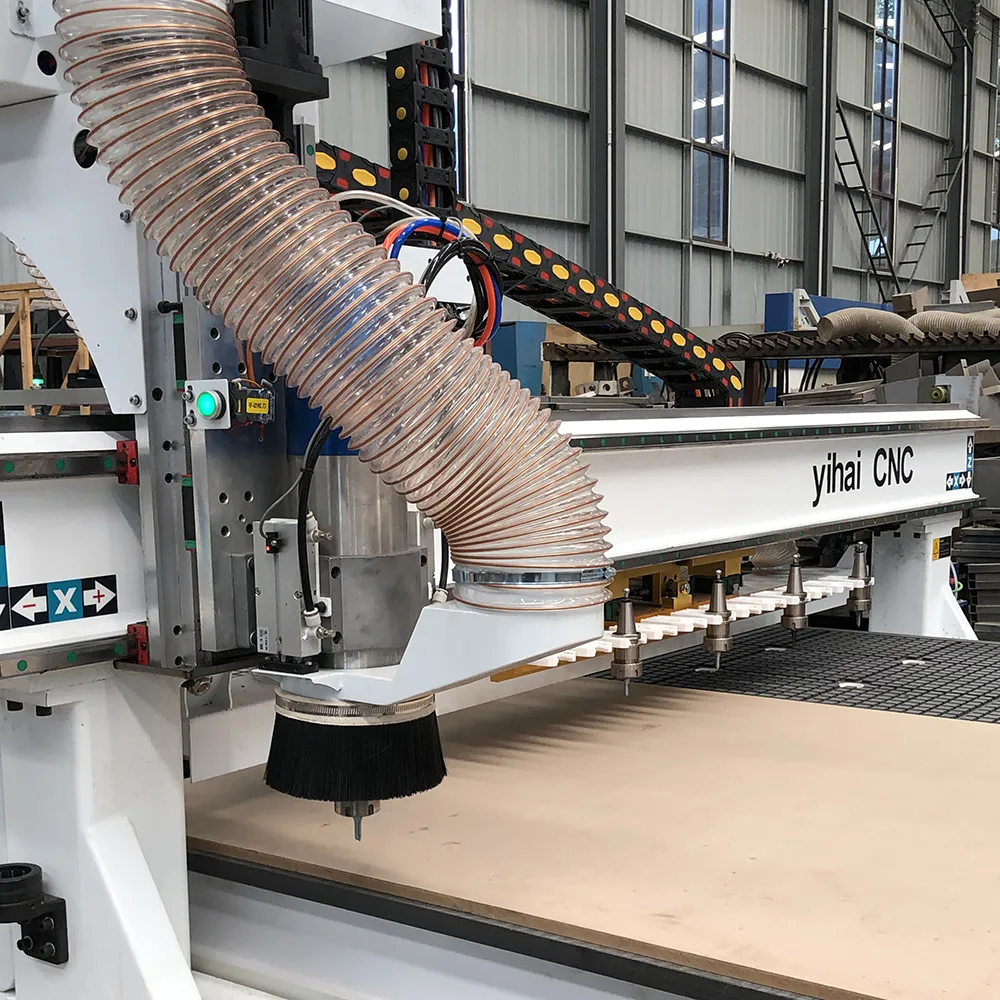

• 9.0KW High-Torque Air-Cooled ATC Spindle: Reaching up to 24,000 RPM with dynamically balanced ISO30 toolholders, delivering continuous heavy-chip removal across thick jumbo plywood, MDF, and solid panels.

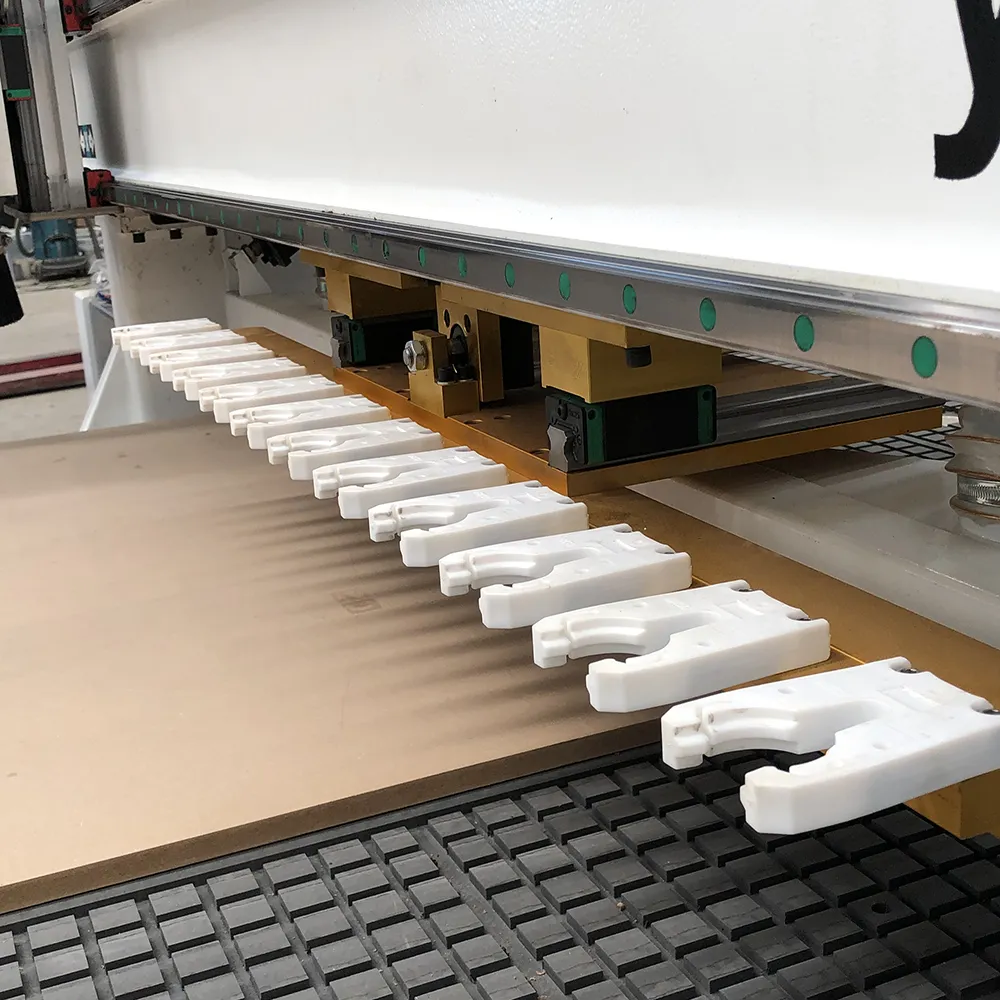

• 12-Tool Gantry-Mounted Linear ATC Rack: Installed directly along the traveling bridge gantry with imported wear-resistant tool clips, enabling rapid local tool changes without traversing back to the bed end.
• Dedicated 3-Stage Spindle Pneumatic Manifold: Specialized air-regulation station providing independent precision control for spindle air sealing, pneumatic tool release, and internal taper blow-off.
• Heavy-Duty Retractable Panel Alignment Cylinders: Precision pneumatic pop-up locator pins along the front and side datum lines guarantee instant, square panel positioning for wide 5×10 sheet stock.

IV. Applications and Processed Materials

Large Format CNC Wood Router for Oversized Furniture Panels and Industrial Processing

The YK12-1530 CNC router is designed for manufacturers requiring a larger working area than standard 4×8 CNC machines. With a 5×10 processing size and automatic tool changing capability, this machine provides greater flexibility for oversized furniture panels and industrial woodworking applications.

The extended working area allows manufacturers to process larger sheets with fewer repositioning operations, improving machining efficiency and dimensional consistency.

This CNC woodworking machine is widely used for large kitchen cabinets, wardrobes, office furniture panels, wooden doors, decorative wall panels, and oversized custom furniture components.

The ATC system allows multiple machining processes including cutting, drilling, engraving, and grooving to be completed efficiently, making it suitable for professional furniture factories.

Typical Applications:

• Large cabinet panel production
• Wardrobe board processing
• Oversized wooden door machining
• Office furniture manufacturing
• Decorative wall panels
• Custom large furniture components

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine panels
• Solid wood
• Acrylic
• Composite boards

V. FAQ

1. Why choose a 5×10 CNC router?

The larger working area allows manufacturers to process bigger panels with fewer material repositioning steps, improving efficiency.

---

2. What is the advantage compared with a 4×8 CNC router?

A 5×10 working size provides additional machining space for oversized furniture panels and reduces limitations when processing large sheets.

---

3. Is YK12-1530 suitable for furniture factories?

Yes. It is designed for professional furniture manufacturers processing large quantities of panels and customized components.

---

4. What products can be produced?

It can produce cabinets, wardrobes, wooden doors, office furniture, decorative panels, and large custom furniture parts.

---

5. Why is ATC useful for large-format CNC machining?

Large panels often require multiple machining operations. ATC reduces manual tool changes and improves production efficiency.
