Description

I. Key Features and Production Value

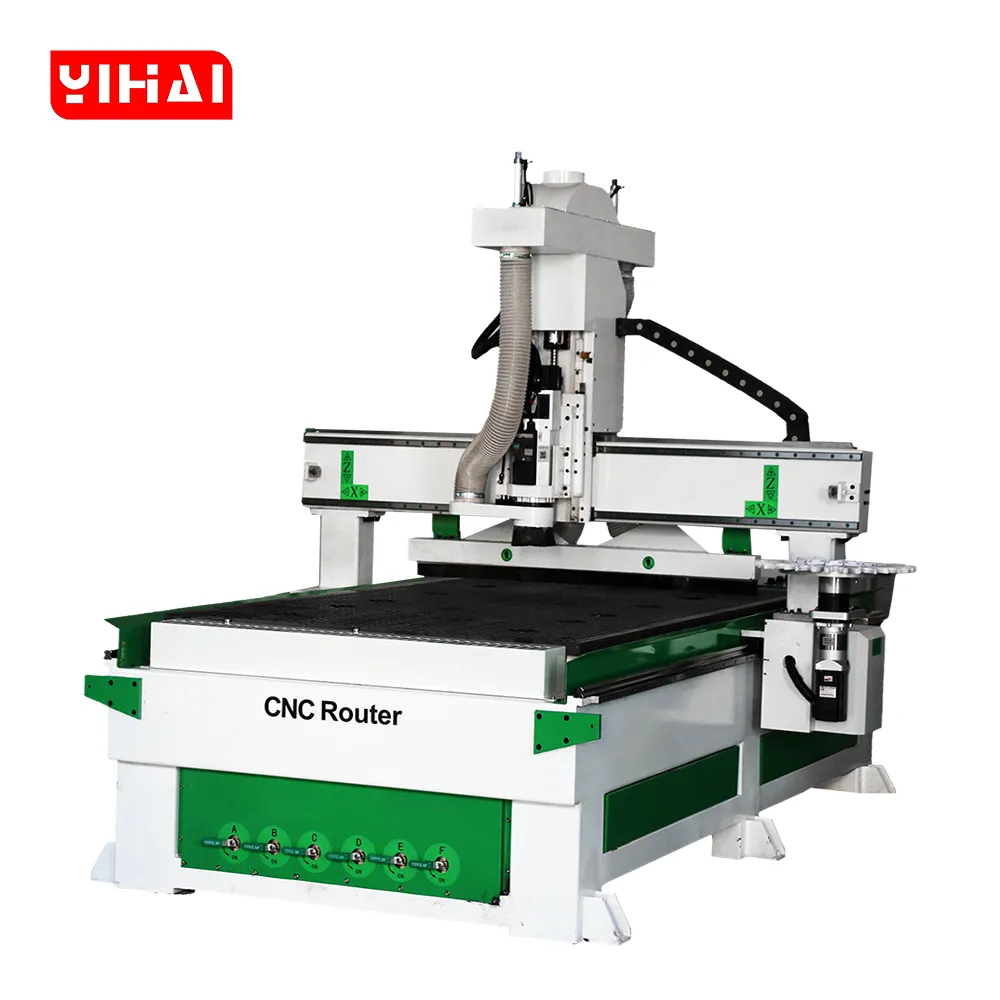

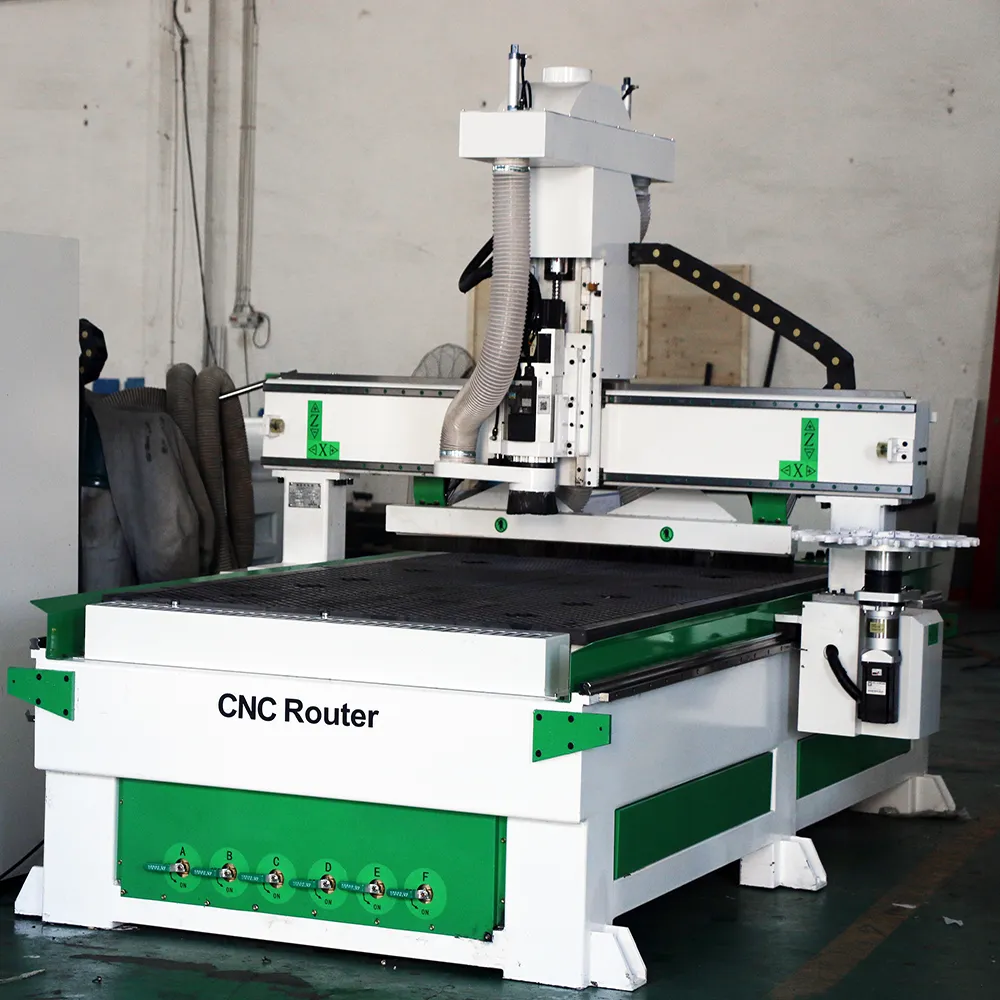

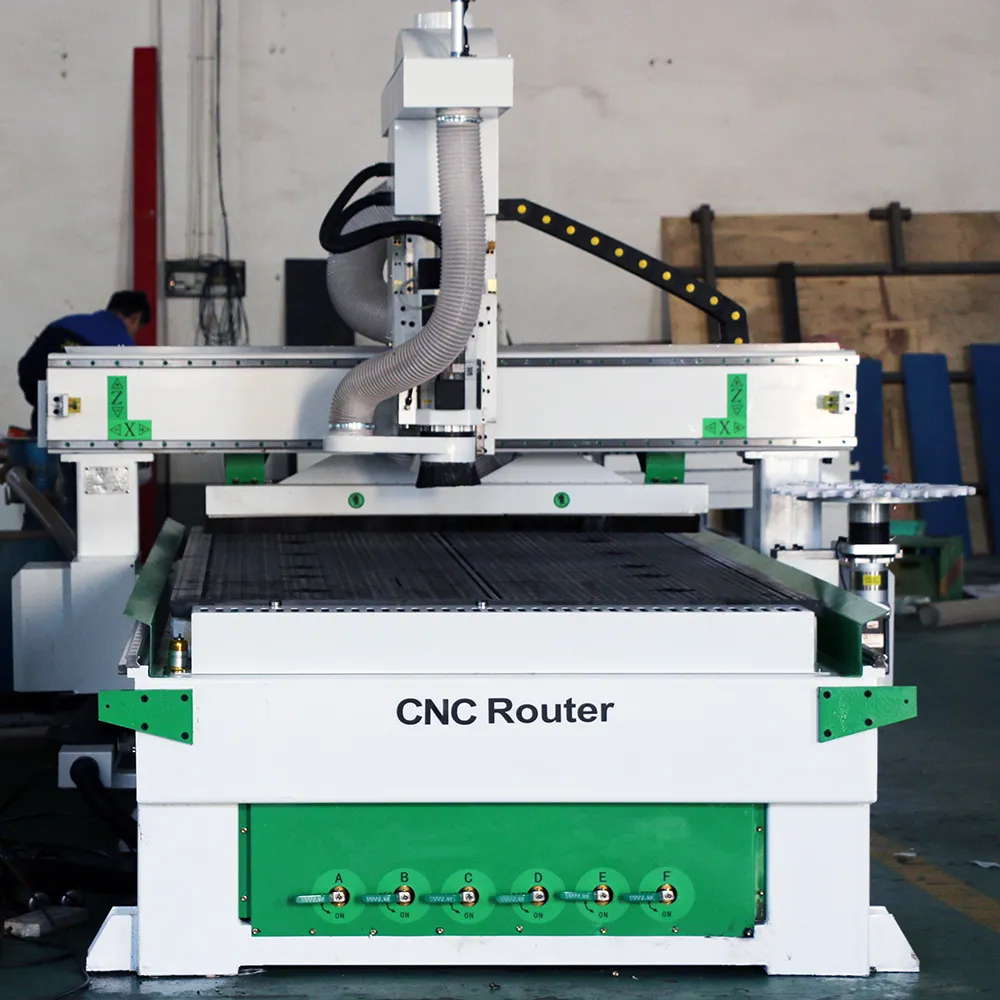

The YH1325 Single-Head Carousel ATC is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to make desks, conference tables, shelving, reception elements, and display fixtures. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• A 12-position carousel ATC magazine shortens changeover time between common furniture tools.
• The 9KW ATC spindle supports cutting, drilling, grooving, and detailed milling in one programmed workflow.
• The NK280 control system provides an industrial interface for repeatable production.
• Vacuum zoning and auxiliary feed support improve panel setup consistency.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1325 Single-Head Carousel ATC
Number of axes	3
Number of Spindles	Single
Total power	HQD/HSD 9KW ATC(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	50m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Weihong NK280 Industrial Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈1500KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

Engineered for high-efficiency cabinetry nesting where continuous multi-tool cycles and fast tool swaps are required:

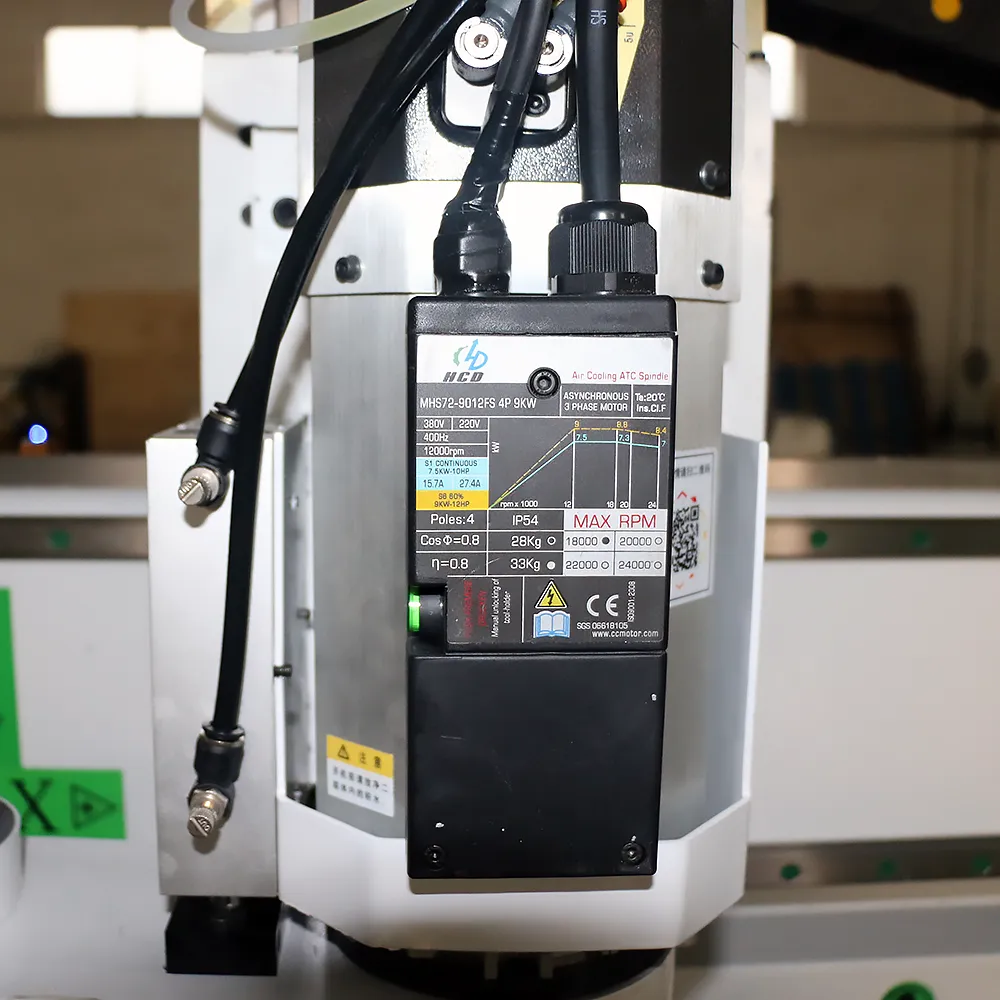

• HQD 9.0KW High-Speed Air-Cooled ATC Spindle: Rated at up to 24,000 RPM with an ISO30 tool interface, delivering industrial-grade torque for deep grooving, nesting cutouts, and fine edge profiling.

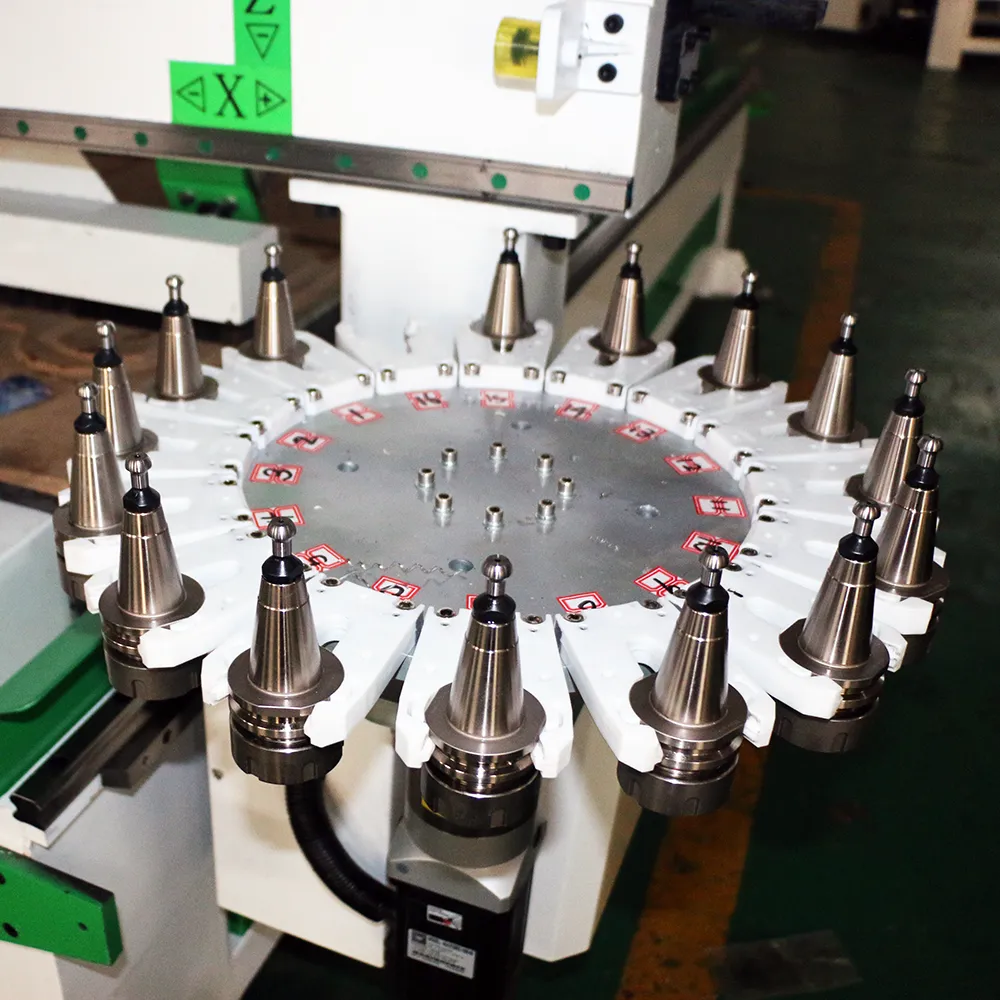

• Gantry-Mounted Carousel (Disk-Type) 12-Tool Magazine: Moving alongside the gantry with wear-resistant tool forks, enabling rapid rotary tool indexing directly above the working zone to minimize traverse cycles.

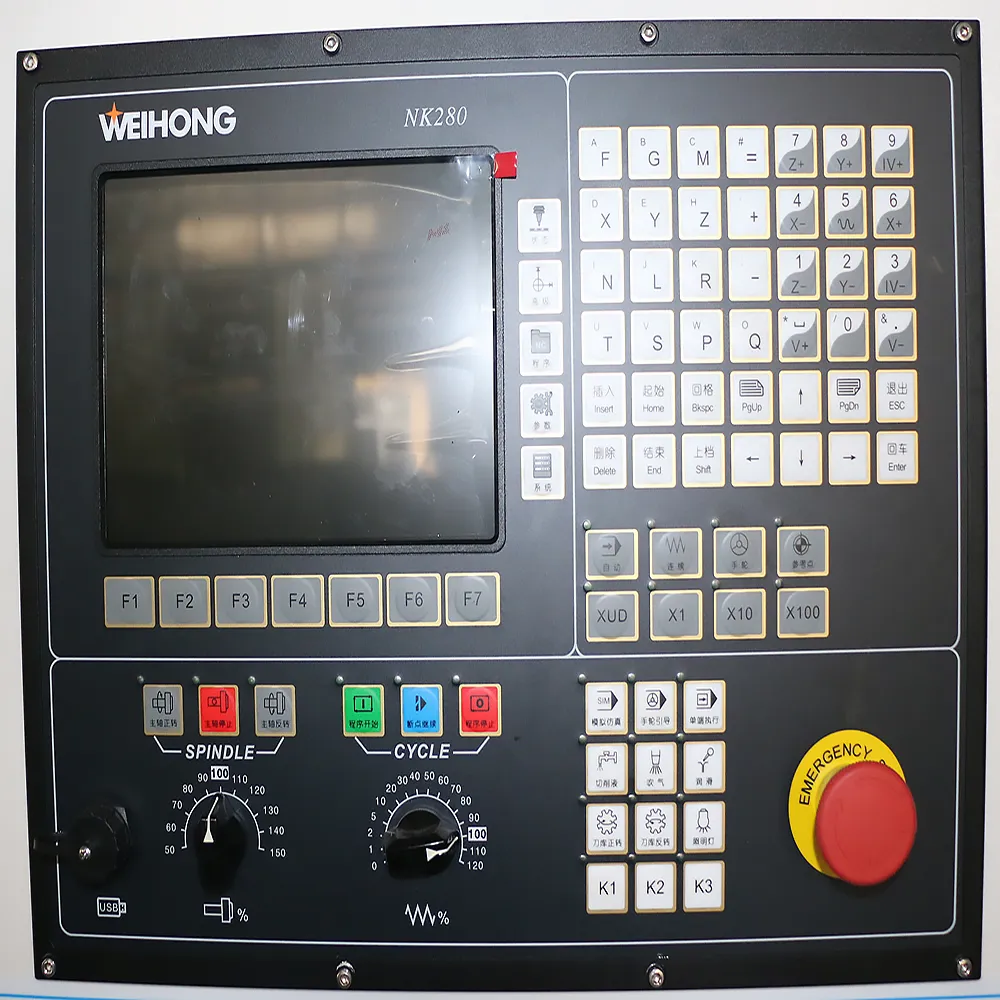

• Weihong NK280 Integrated CNC System: Industrial-grade motion controller with physical push-button control panel, 3-color warning tower, and a high-precision electronic handheld wheel (MPG) for microscopic manual alignment.
• All-Axis High-Power AC Servo Package: Fully enclosed AC servo motors paired with precision planetary speed reducers drive hardened helical racks, ensuring rigid deceleration and zero lost motion.
• Dual-Hose Centralized Extraction Hood: Heavy-duty split dust collector manifold with dual suction ports maintains complete airborne chip extraction during high-feed nesting.

IV. Applications and Processed Materials

Automatic Tool Changing CNC Router for High-Efficiency Furniture Manufacturing

The YH1325 Carousel ATC CNC router is designed for furniture manufacturers requiring faster production and multiple machining processes in one operation. Equipped with a carousel automatic tool changer, the machine can automatically select different cutting tools according to the machining program.

This CNC furniture machine is suitable for cabinet production, wardrobe manufacturing, office furniture, wooden doors, decorative panels, and customized furniture components. The ATC system allows manufacturers to complete cutting, drilling, engraving, and groove machining without frequent manual tool changes.

The machine improves production efficiency for factories producing repeated furniture orders and complex panel designs.

Typical Applications:

• Kitchen cabinet manufacturing
• Wardrobe production
• Office furniture panels
• Wooden doors
• Decorative furniture panels
• Customized furniture components

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine board
• Solid wood
• Acrylic
• PVC

V. FAQ

1. Why choose a carousel ATC system?

The carousel tool magazine provides fast automatic tool changing, reducing downtime during multi-process machining.

---

2. How many tools can the machine automatically change?

The machine supports multiple tools stored in the carousel magazine, allowing different machining operations without manual replacement.

---

3. Is it suitable for cabinet factories?

Yes. It is designed for furniture factories requiring efficient cutting, drilling, engraving, and nesting operations.

---

4. What is the difference between ATC and standard CNC routers?

Standard CNC routers require manual tool replacement, while ATC CNC routers automatically change tools according to the machining program.

---

5. Can it handle customized furniture production?

Yes. The CNC system supports flexible designs for customized cabinets, wardrobes, and decorative furniture products.
