Description

I. Key Features and Production Value

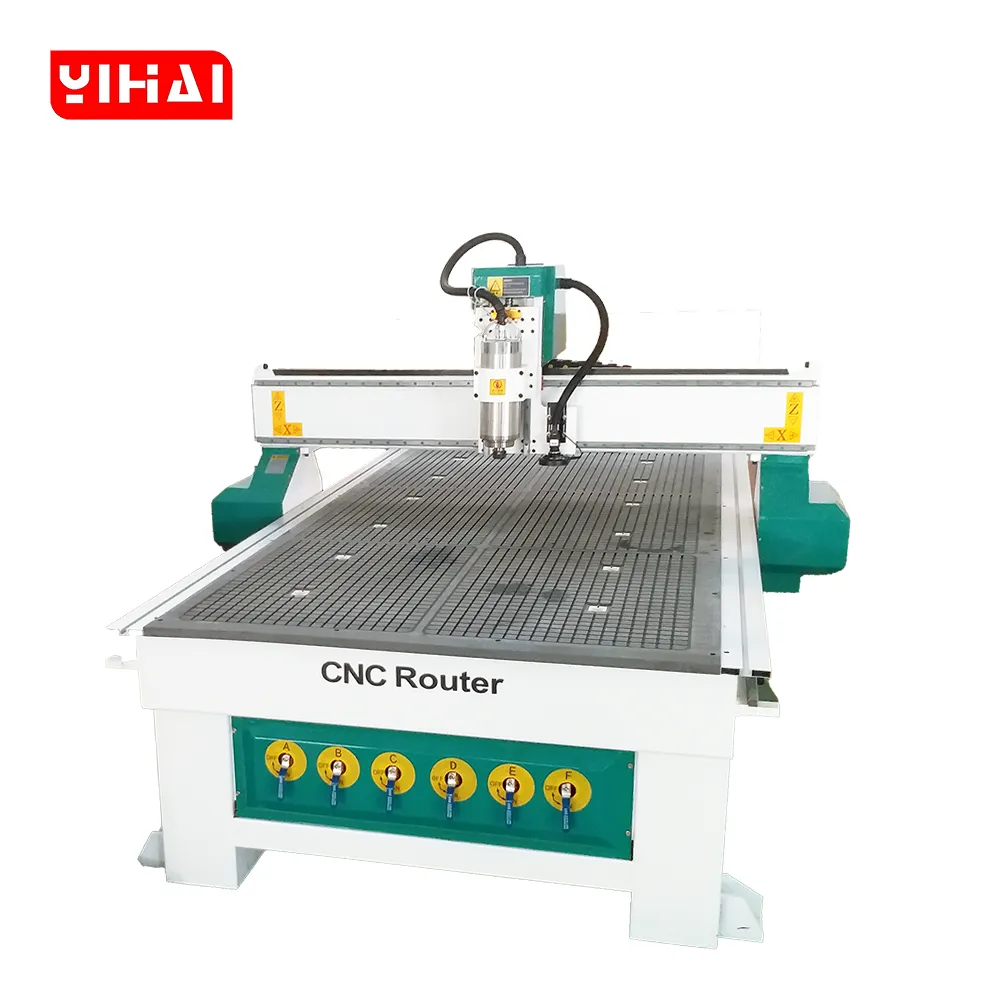

The YH1325 with CCD Vision System is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to cut, groove, carve, and shape hardwood furniture parts and custom components. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• The industrial CCD vision system reads printed marks and helps locate artwork before cutting.
• Automatic edge finding reduces manual alignment work for printed panels and shaped sheets.
• The vacuum table holds the sheet while the camera-based workflow follows the programmed contour.
• The configuration is intended for print-and-cut panels, decorative sheets, and sign-related furniture components.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1325 with CCD Vision System
Number of axes	3
Number of Spindles	Single
Total power	6KW(Customizable)
Working Area	1300mmx2500mm(Customizable)
Maximum Operating Speed	30m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
CCD Vision System	Gigabit industrial CCD camera with adjustable ring light, Mark-point positioning auto edge-finding cutting
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈1300KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Solid wood, MDF, particle board, PVC, acrylic

III. Machine Components Overview

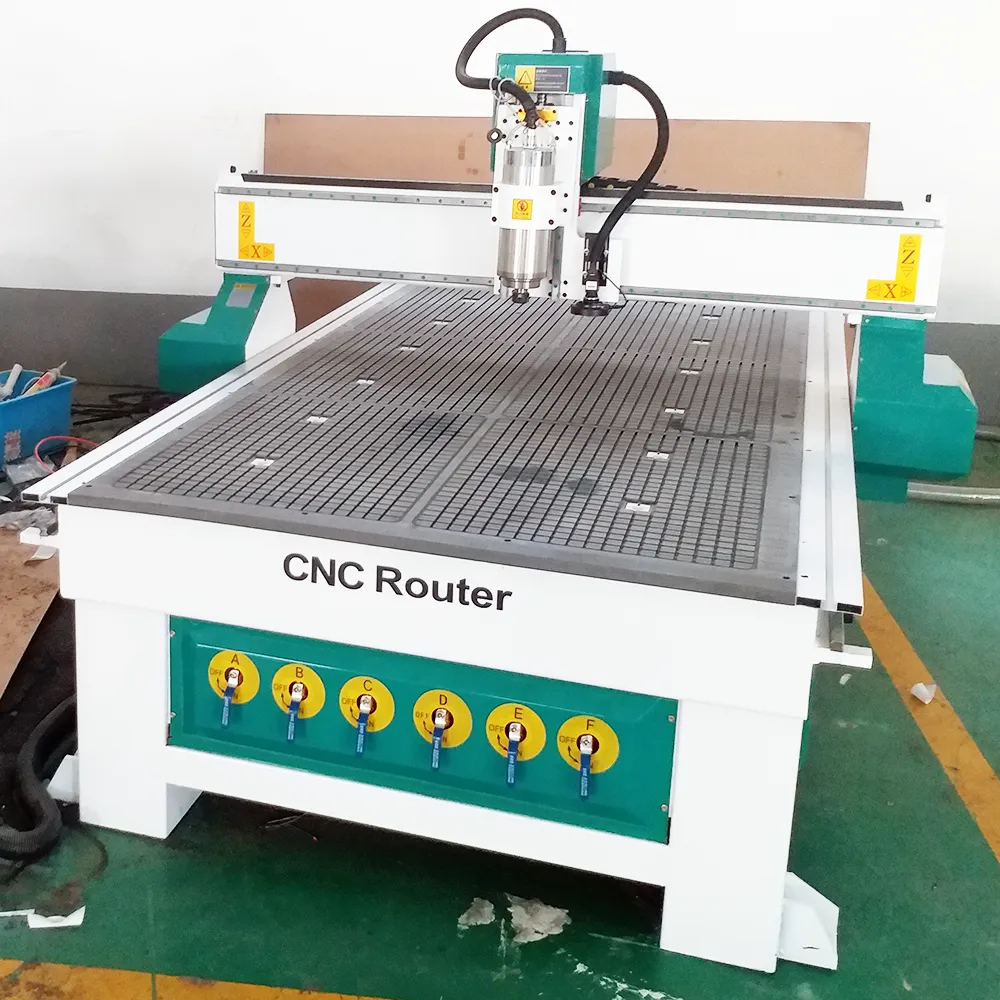

Engineered for precision contour cutting of wide-format printed panels, acrylic signboards, and graphic display boards:

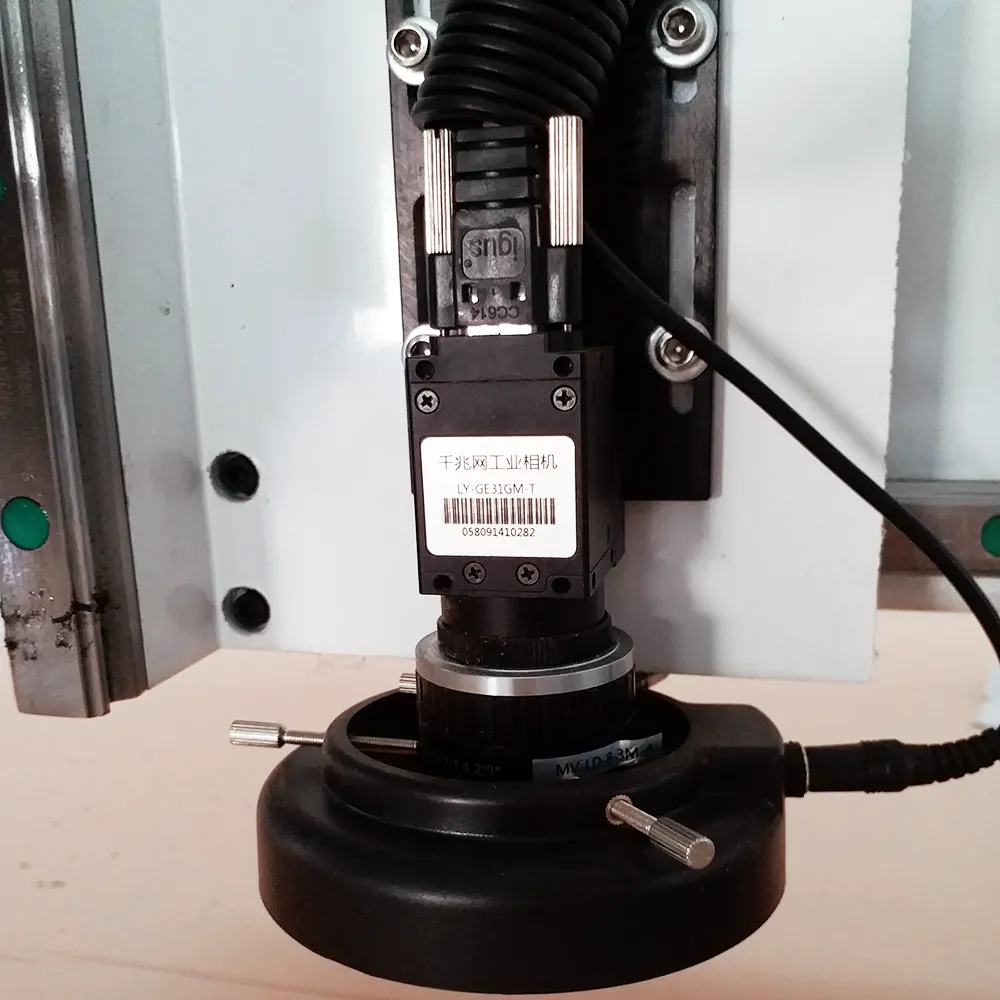

• Industrial Gigabit Ethernet CCD Vision Camera: High-resolution digital imaging sensor with an adjustable high-output circular LED ring light, automatically scanning printed registration Mark points to compensate for panel distortion and optical skew.

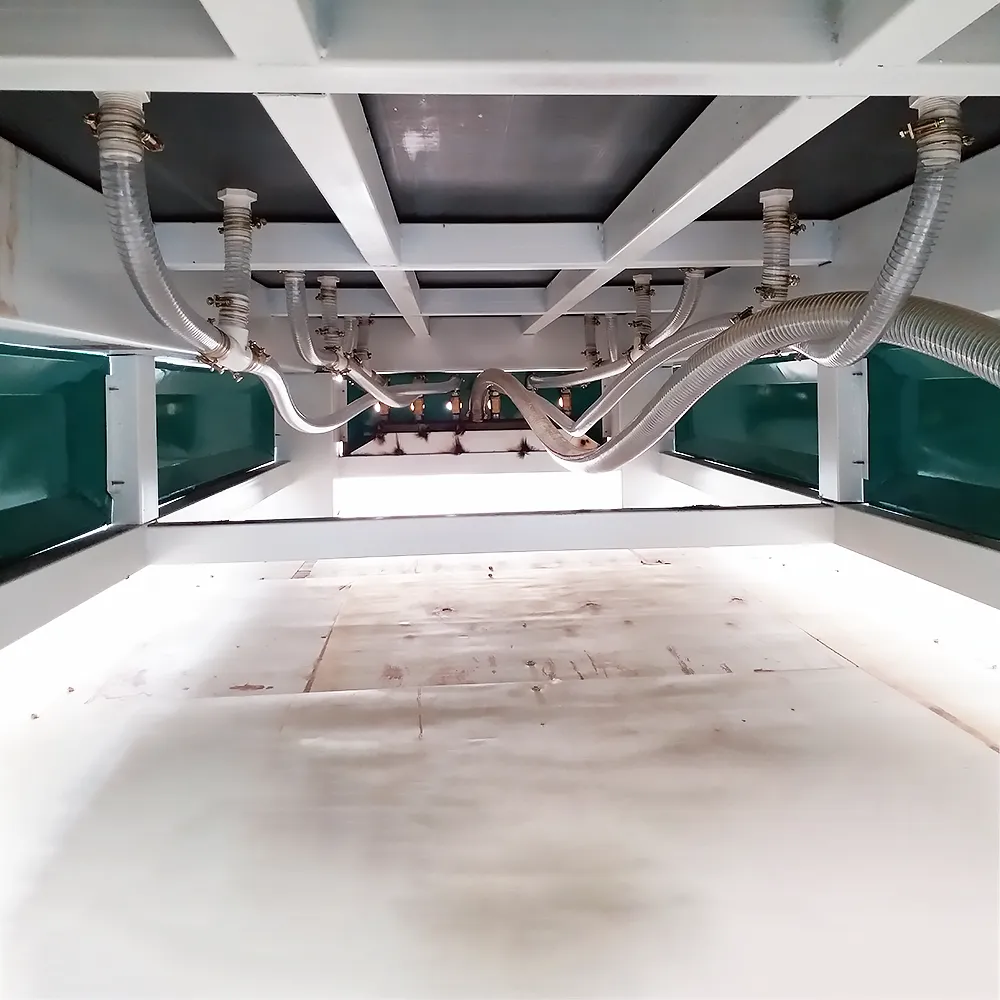

• High-Flow Industrial Vacuum & Negative Pressure Circuit: Cross-braced heavy tubular steel base frame with high-capacity integrated vacuum ducting and multi-circuit manual ball valves for uniform hold-down of warped printed boards.

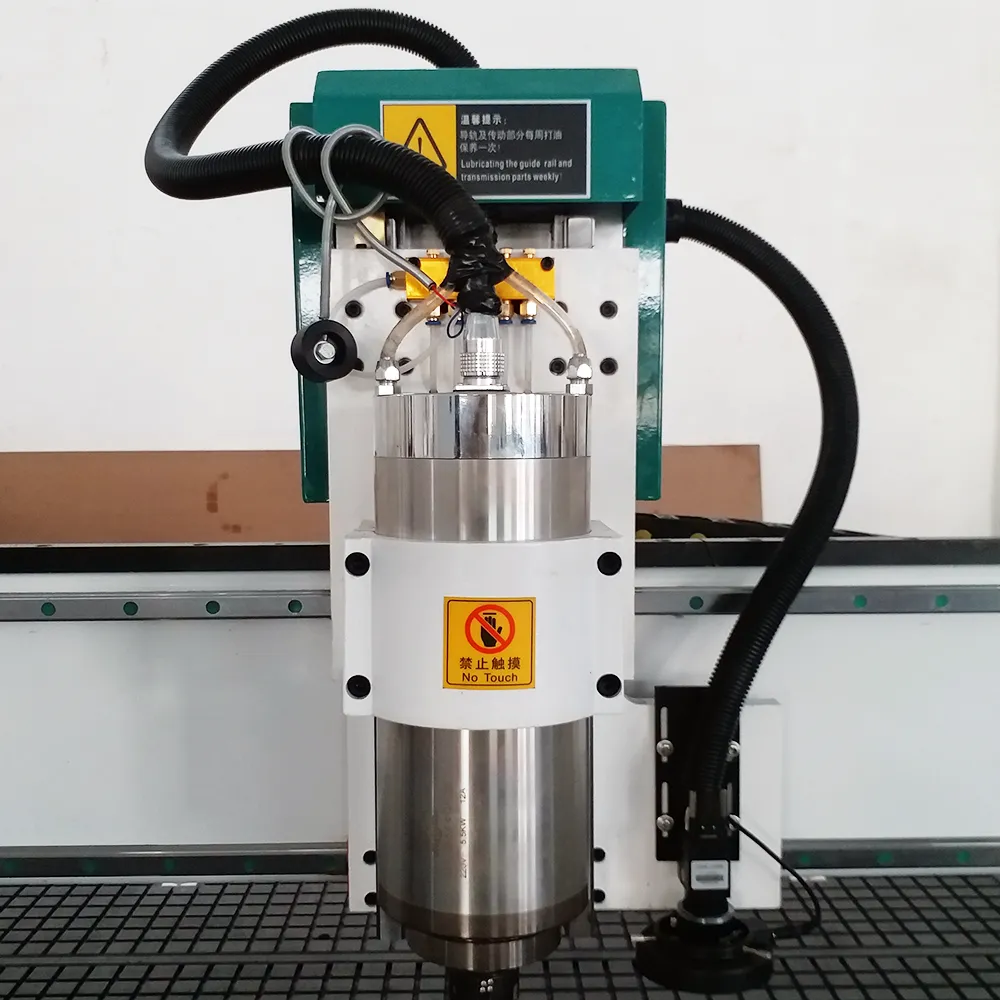

• High-Velocity Water-Cooled Spindle: High-precision milling spindle with tight-tolerance ER collets, supported by a closed-loop industrial water circulation pump for continuous whisper-quiet operation.
• Leadshine DMA860H Microstep Drive Package: Dedicated high-current Leadshine drivers powering dual-driven Y-axis motors deliver smooth, micro-stepping accuracy along Taiwan linear square guides.
• Quick-Release Spring-Latch Dust Shroud: Ergonomic dust hood with perimeter brush ring unlatches instantly for rapid cutter changes and clear lens inspections.

IV. Applications and Processed Materials

CNC Router with CCD Camera System for Accurate Pattern Cutting and Furniture Panel Processing

The YH1325 CCD CNC router is designed for manufacturers processing printed boards, decorative panels, and materials requiring accurate positioning. Equipped with a CCD vision positioning system, the machine can automatically identify printed marks or reference points and adjust the cutting path, improving machining accuracy for products with printed patterns or irregular designs.

This CNC woodworking machine is widely used for UV board cutting, printed MDF panel processing, decorative furniture manufacturing, acrylic sign production, customized cabinet panels, and interior decoration components.

Compared with traditional CNC routers that rely only on fixed coordinates, the CCD system helps compensate for material positioning errors caused by printing deviation, manual placement, or board expansion, making it suitable for high-precision decorative panel production.

The YH1325 CCD CNC router provides an efficient solution for furniture manufacturers producing customized designs, decorative surfaces, and visually demanding components.

Typical Applications:

• Printed Furniture Panel Processing
  • UV boards, decorative MDF panels, and patterned furniture surfaces
• Customized Cabinet Production
  • Printed cabinet doors, personalized panels, and decorative components
• Interior Decoration Manufacturing
  • Wall panels, decorative boards, and customized interior elements
• Acrylic and Advertising Applications
  • Printed acrylic sheets, signs, and display components
• Custom Furniture Production
  • Small-batch personalized furniture designs

Processed Materials:

• MDF printed panels
• UV boards
• Melamine panels
• Acrylic sheets
• Plywood
• PVC boards
• Composite decorative materials

V. FAQ

1. Why does a CNC router need a CCD vision system?

The CCD camera helps identify printed positioning marks and automatically correct machining paths, improving cutting accuracy for printed and decorative materials.

---

2. What problems can CCD positioning solve?

During furniture panel production, printed patterns may not perfectly match the original design position. CCD positioning compensates for these differences and reduces cutting errors.

---

3. What products are suitable for this machine?

It is suitable for printed cabinet doors, decorative furniture panels, UV boards, acrylic products, interior decoration panels, and customized furniture components.

---

4. Is CCD CNC router only used for advertising materials?

No. Although CCD technology is common in advertising applications, it is also widely used in furniture production where decorative patterns require accurate cutting.

---

5. Can the machine process normal MDF and plywood?

Yes. The CCD function is an additional positioning system. The machine can still process standard MDF, plywood, and furniture boards like a conventional CNC router.

---

6. Who should choose a CCD CNC router?

It is suitable for furniture manufacturers, decorative panel producers, custom furniture companies, and businesses processing printed or patterned materials.
