Description

I. Key Features and Production Value

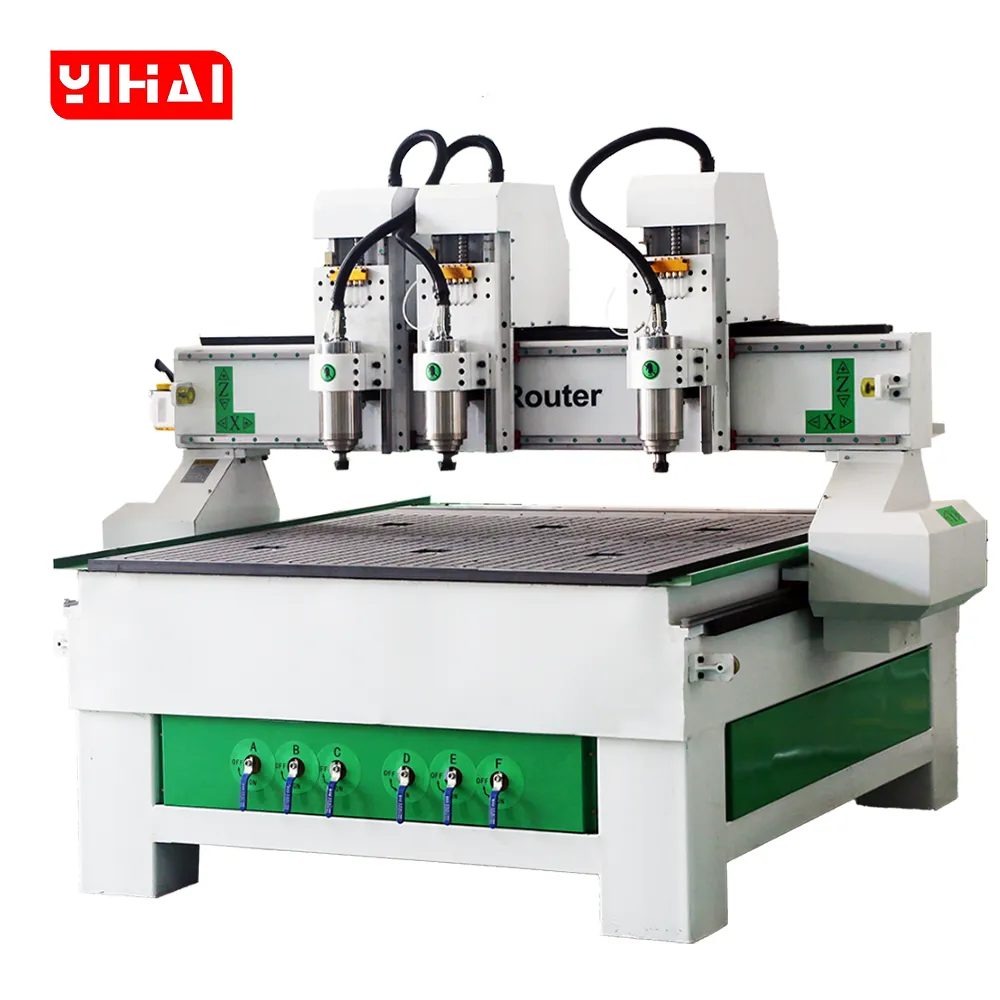

The YH1212 Three-Head Independent is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to creating side holes, dowel holes, connector pockets, grooves, and installation-ready panel features. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• Three independent Z-axis heads can process three matching parts at the same time when the job layout allows.
• The configuration increases output for repeated small and medium furniture components.
• Independent head control allows the operator to adapt the work to different part arrangements.
• Vacuum zoning helps hold multiple workpieces across the table.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1212 Three-Head Independent
Number of axes	3
Number of Spindles	Three independent heads
Total power	9KW(3×3KW, Customizable)
Working Area	1200mmx1200mm(Customizable)
Maximum Operating Speed	20m/min
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	Baoyuan LNC Control System
Clamping Method	Vacuum adsorption + 7.5KW water-cooled vacuum pump
Lubrication System	Automatic Oiling Device
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.05mm
Repeatability	±0.05mm
X,Y Resolution	<0.03mm
Net Weight	≈1000KG
Frame	Steel structure lathe bed
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, cutting and blanking

III. Machine Components Overview

A compact, multi-spindle powerhouse engineered to triple throughput on repetitive wood carvings, musical instruments, and small furniture parts:

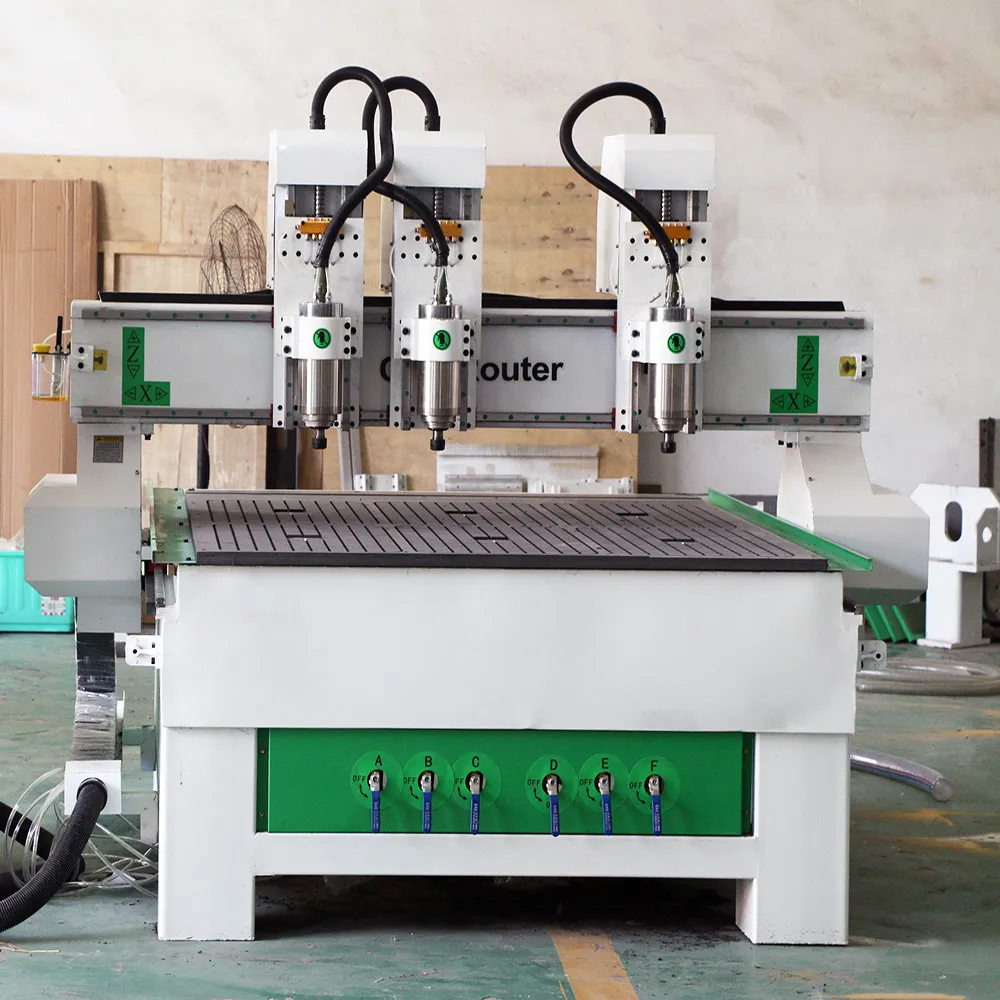

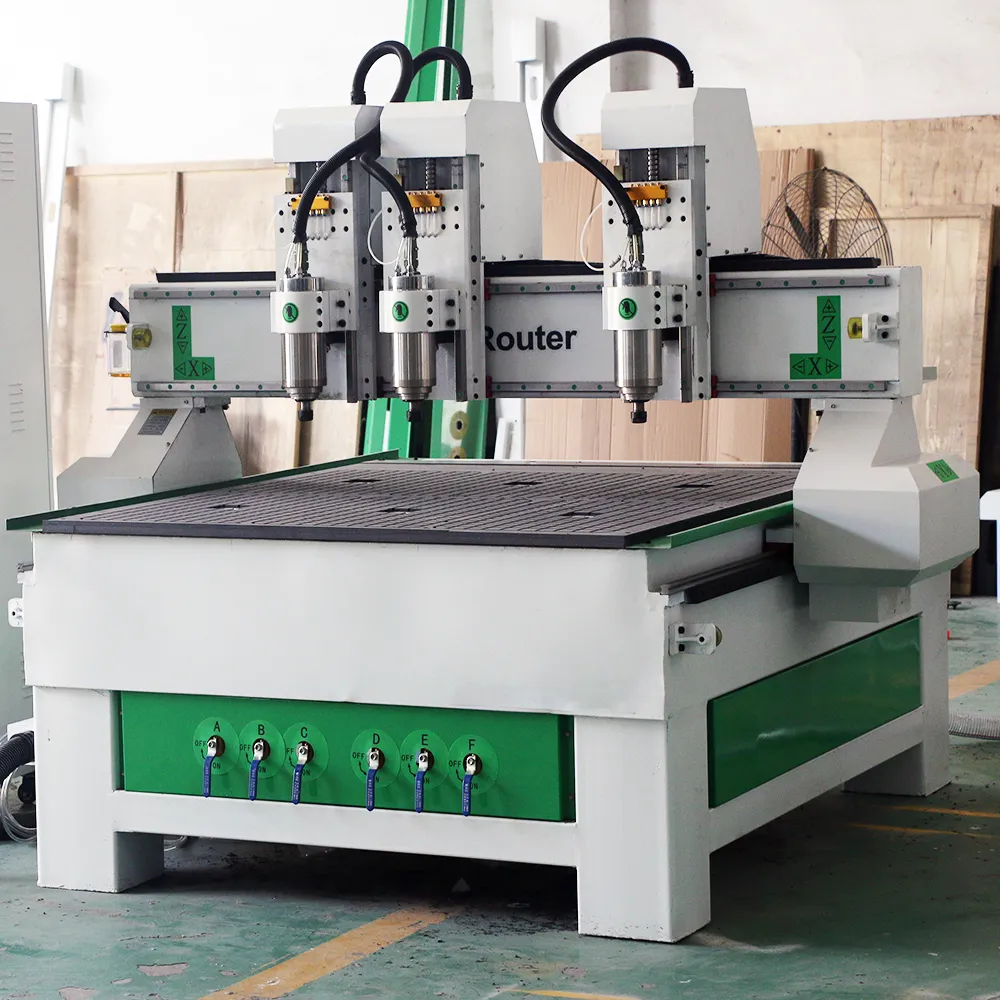

• Triple Independent Z-Axis Gantry Assemblies: Three fully independent vertical slide plates, each carrying a dedicated spindle, allowing synchronized 3-piece batch machining or single-head production with parked idle heads.

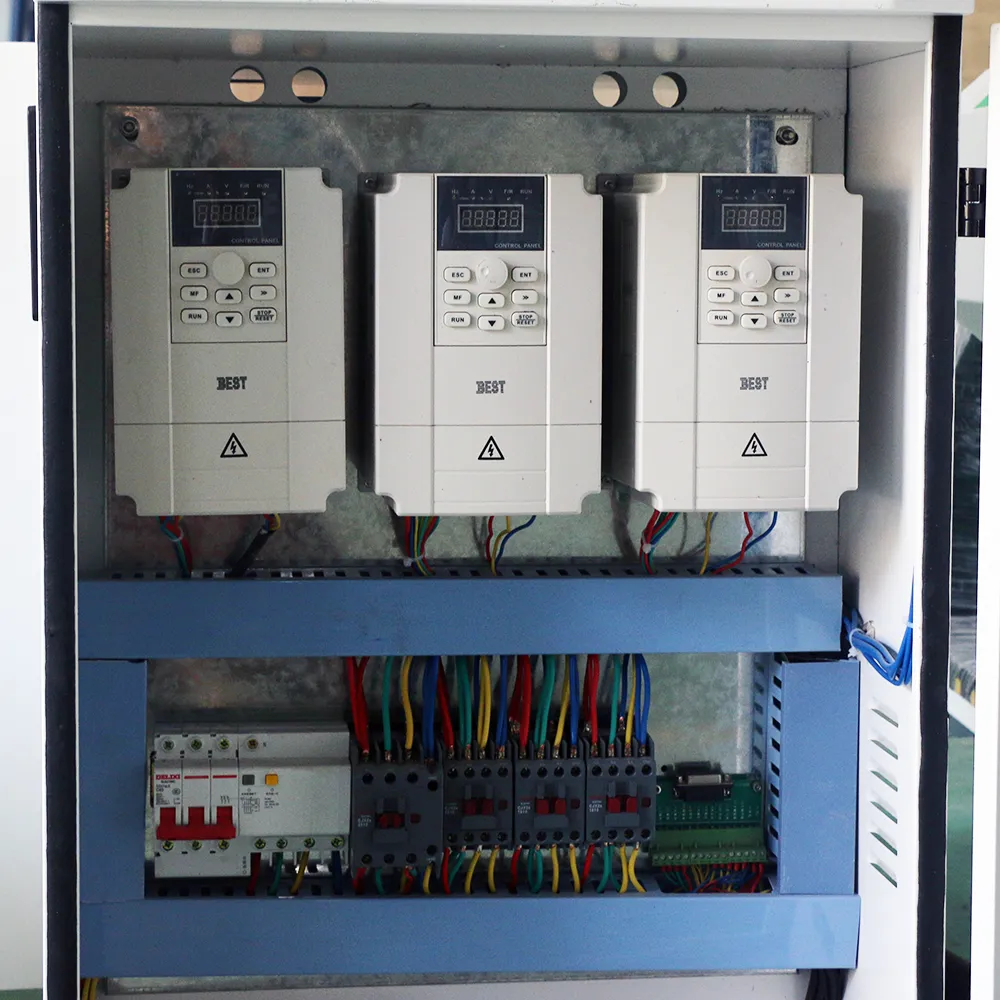

• Three High-Torque Water-Cooled Spindles: High-frequency balanced spindles powered by three dedicated BEST industrial frequency inverters, allowing independent RPM adjustments for balanced cutting loads.
• Compact 1200×1200mm (4×4 ft) Matrix Vacuum Bed: Precision-machined grid table with multi-zone ball valve isolation, delivering strong localized negative clamping for dense nested part arrangements.
• Precision Helical Rack & Ball Screw Transmission: Hardened helical gear racks drive X and Y axes, while all three independent Z-axes utilize preloaded anti-backlash TBI ground ball screws.

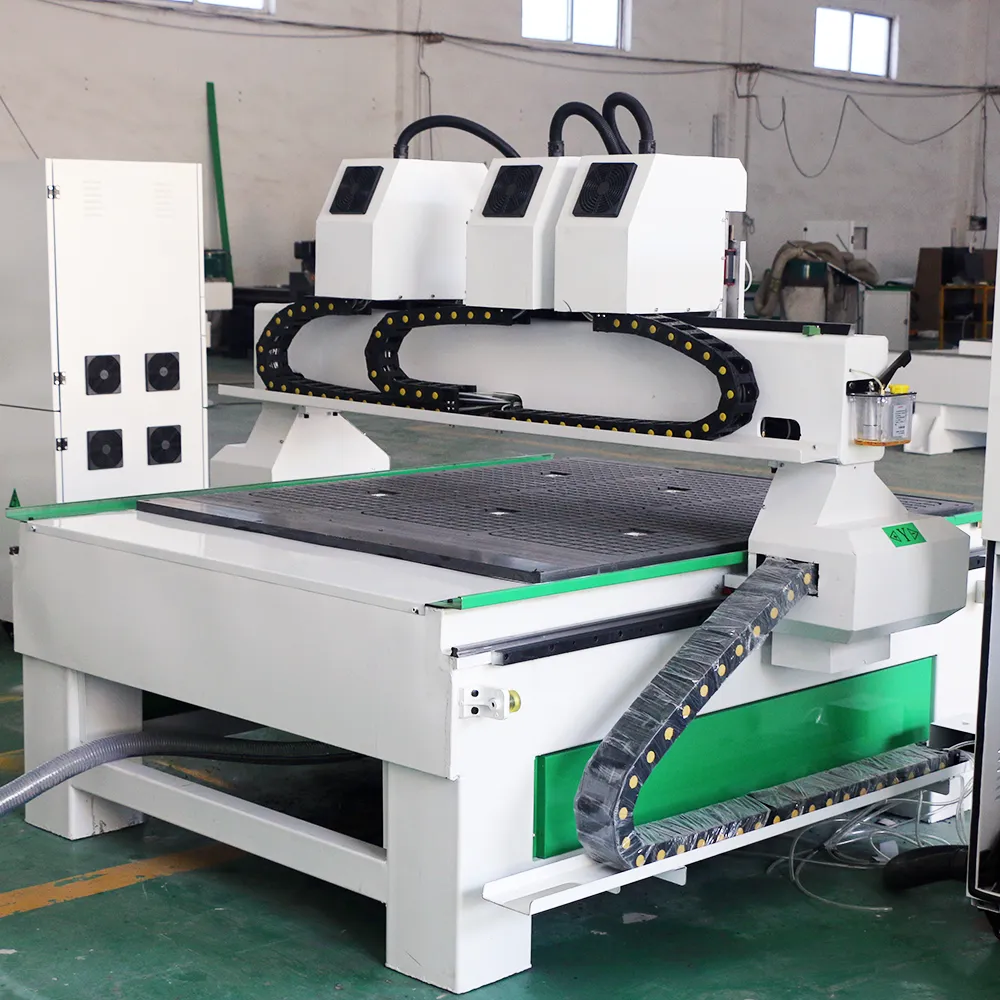

• Gantry-Mounted Manual Central Lubrication Unit: Central oil distributor with flexible nylon lines feeds clean oil directly to all linear bearing blocks across the multi-slide carriage.

IV. Applications and Processed Materials

Multi-Spindle CNC Router for Efficient Batch Furniture Component Manufacturing

The YH1212 Three Head Independent CNC router is designed for manufacturers requiring higher productivity through multi-head machining. Equipped with three independent working heads, the machine can process multiple workpieces simultaneously, improving production efficiency for repeated furniture components.

This CNC woodworking machine is suitable for furniture parts manufacturing, cabinet components, wooden crafts, decorative panels, small furniture production, and batch woodworking applications.

The independent spindle structure allows manufacturers to process multiple identical components at the same time, reducing production cycle time and increasing output compared with single-head CNC routers.

The compact working size makes the YH1212 suitable for workshops with limited space but requiring higher machining efficiency.

Typical Applications:

• Furniture component batch production
• Cabinet door processing
• Wooden decorative parts
• Small furniture manufacturing
• Wooden crafts production
• Repeated woodworking components

Processed Materials:

• MDF
• Plywood
• Solid wood
• Hardwood
• Acrylic
• PVC
• Composite boards

V. FAQ

1. What is the advantage of three independent heads?

Three independent spindles allow multiple workpieces to be machined simultaneously, increasing production capacity for repeated furniture components.

---

2. Is this machine suitable for mass production?

Yes. It is designed for manufacturers producing repeated parts where improving output efficiency is important.

---

3. What products can be produced?

It can produce furniture components, cabinet doors, decorative wooden parts, crafts, and customized woodworking products.

---

4. How is it different from a single-head CNC router?

A single-head router processes one workpiece at a time, while the three-head configuration can increase productivity when producing identical components.

---

5. Is it suitable for small workshops?

Yes. The compact structure makes it suitable for workshops needing higher production efficiency without investing in large industrial equipment.
