Description

I. Key Features and Production Value

The YH1350 Three-Process with Drill Bank is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to routing door panels, decorative reliefs, room dividers, acoustic elements, and architectural millwork. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

• The vertical drill bank creates repeated hole patterns without changing to individual drilling tools one by one.
• The dual-station layout supports continuous loading and processing for long panel runs.
• Two HQD spindles and the drill bank combine cutting, drilling, and grooving in one workflow.
• The 5000mm working length supports long panels and higher-volume cabinet production.

II. Technical Parameters

Feature	Specification
Type	Wood Furniture CNC Router
Brand	YIHAICNC
Model	YH1350 Three-Process with Drill Bank
Number of axes	3(Adding Rotary Axes or Other Axes)
Number of Spindles	Double HQD Spindle + Drill Bank(Any Number Customizable)
Total power	6KW per spindle(Customizable) + drill bank power
Working Area	1300mmx5000mm(Customizable)
Maximum Operating Speed	50m/min(Customizable)
Maximum Feed Height	50mm
Transmission Method	XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive
Spindle Speed	0-24000rpm
Working Voltage	380V 50HZ/60HZ
Control System	SYNTEC 6MA Integrated CNC System (Taiwan)
Clamping Method	Vacuum adsorption + pneumatic positioning cylinders + 7.5KW water-cooled vacuum pump(Optional)
Lubrication System	Automatic Oiling Device / Centralized Lubrication
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
X,Y Resolution	<0.03mm
Net Weight	≈2500KG
Frame	Steel structure lathe bed, double-station
Suitable Industries	Whole-house customization, kitchen cabinets, wardrobes, office furniture
Suitable for boards	Milling, carving, hollowing, grooving, drilling, cutting and blanking

III. Machine Components Overview

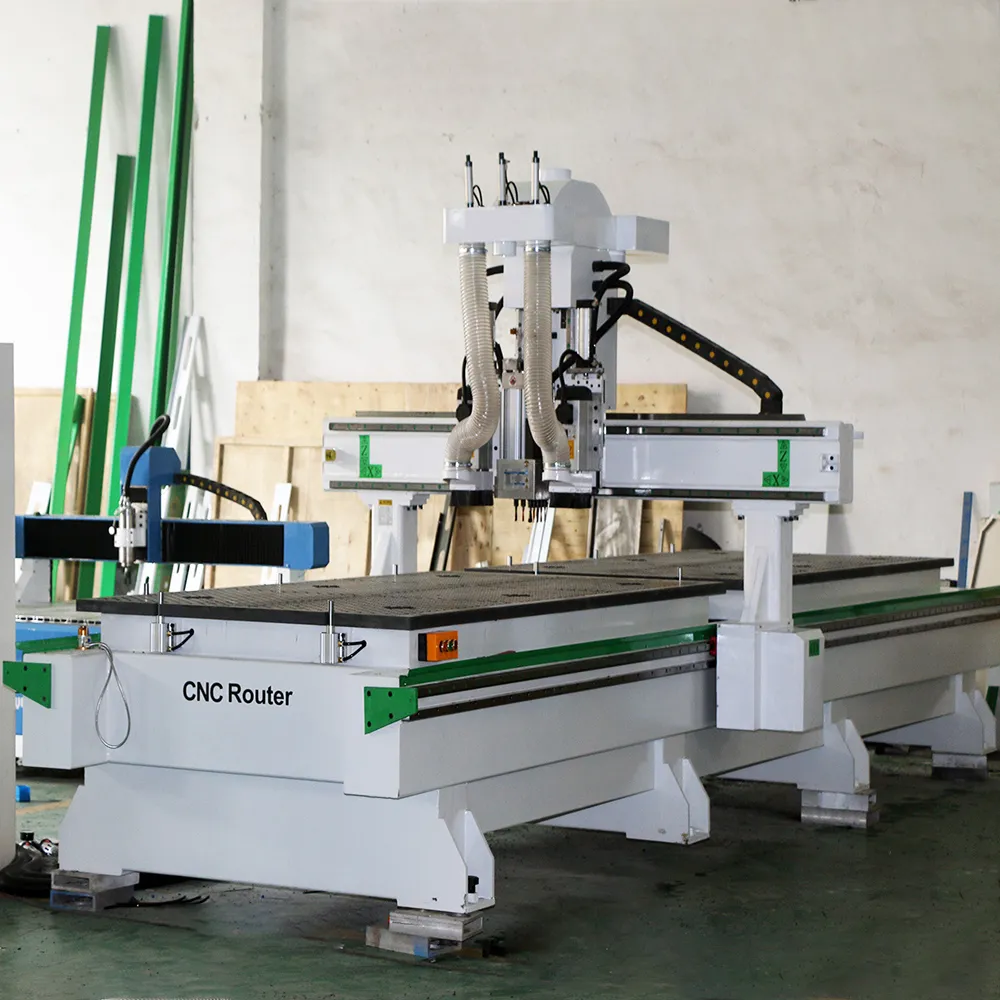

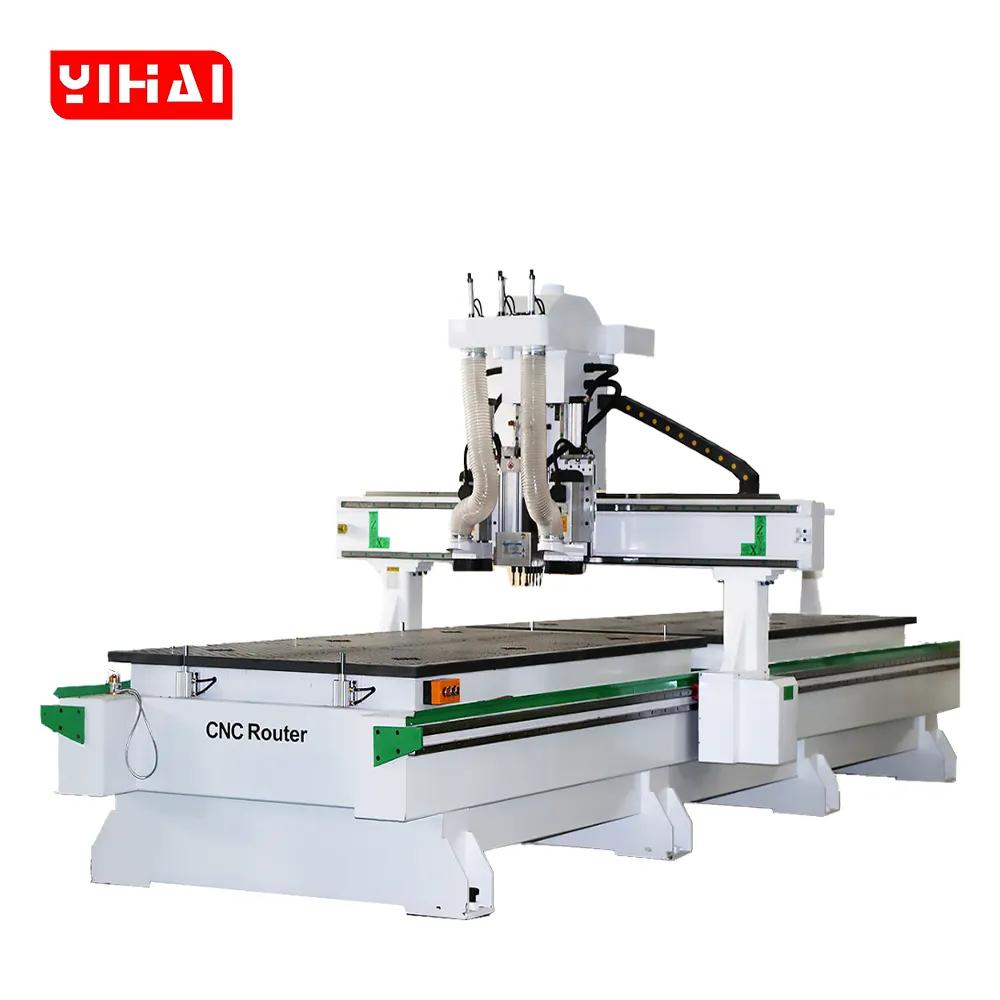

An extended 1300×5000mm dual-zone industrial nesting center engineered for uninterrupted non-stop cabinet production:

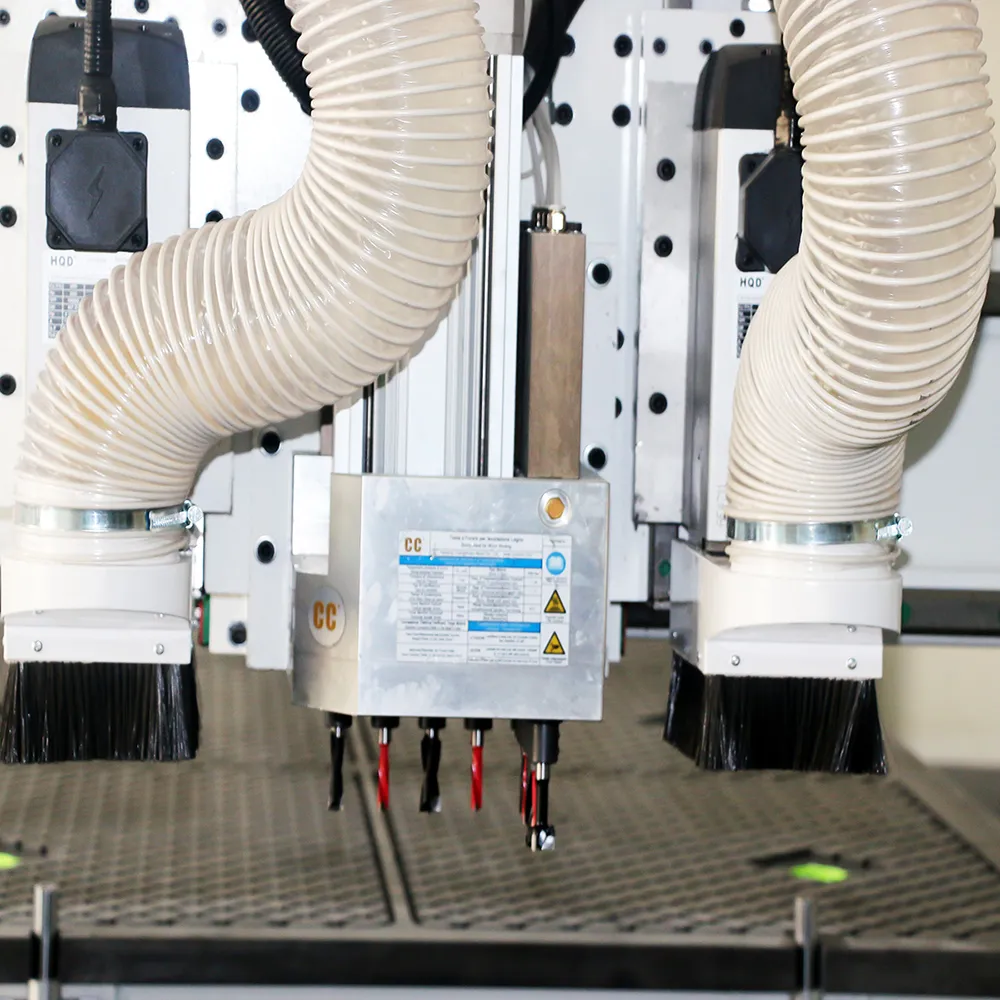

• HQD Dual Vertical Spindles + Dedicated Vertical Drill Bank: Two heavy-duty air-cooled nesting spindles paired with a high-precision multi-spindle vertical drilling head, executing complex multi-diameter hinge and shelf-pin boring in a single plunge.

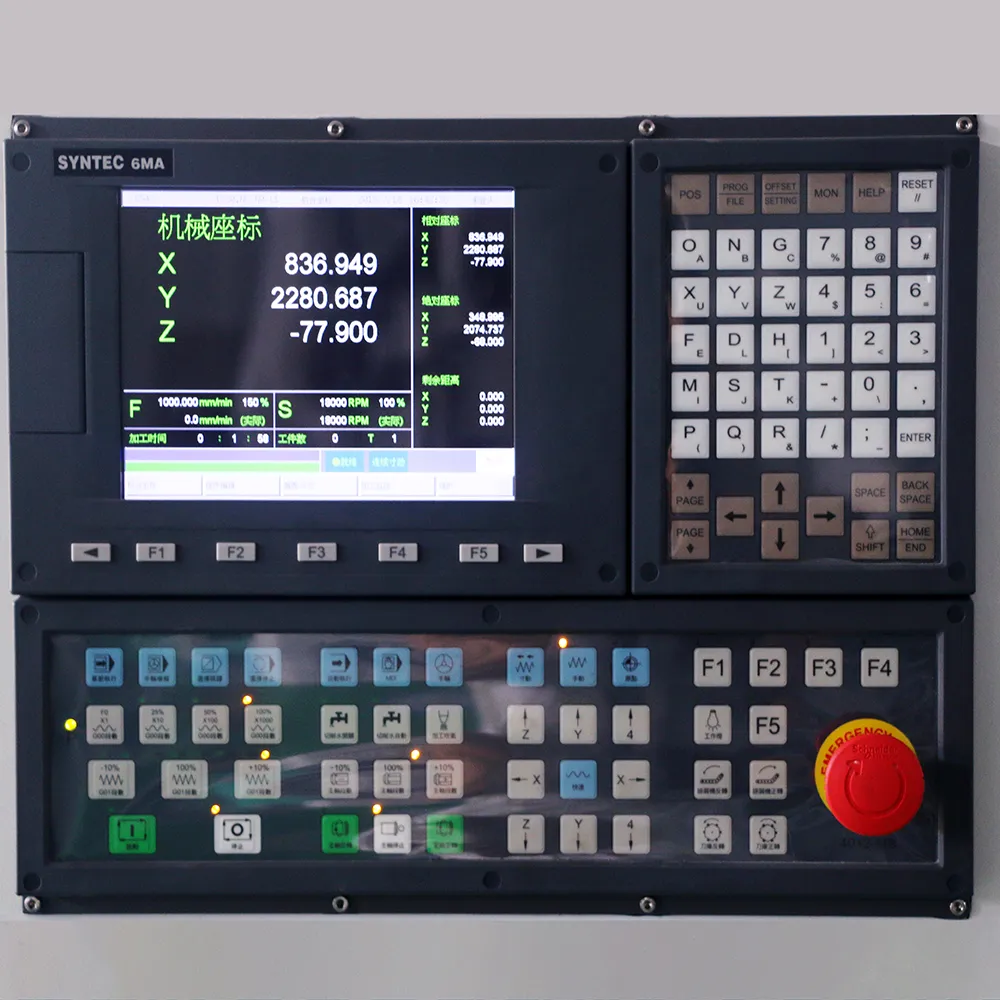

• Syntec 6MA Industrial CNC Controller: Genuine Taiwan Syntec standalone numerical control console with tactile operator keypad, real-time piece counting, and an ergonomic electronic MPG handwheel.

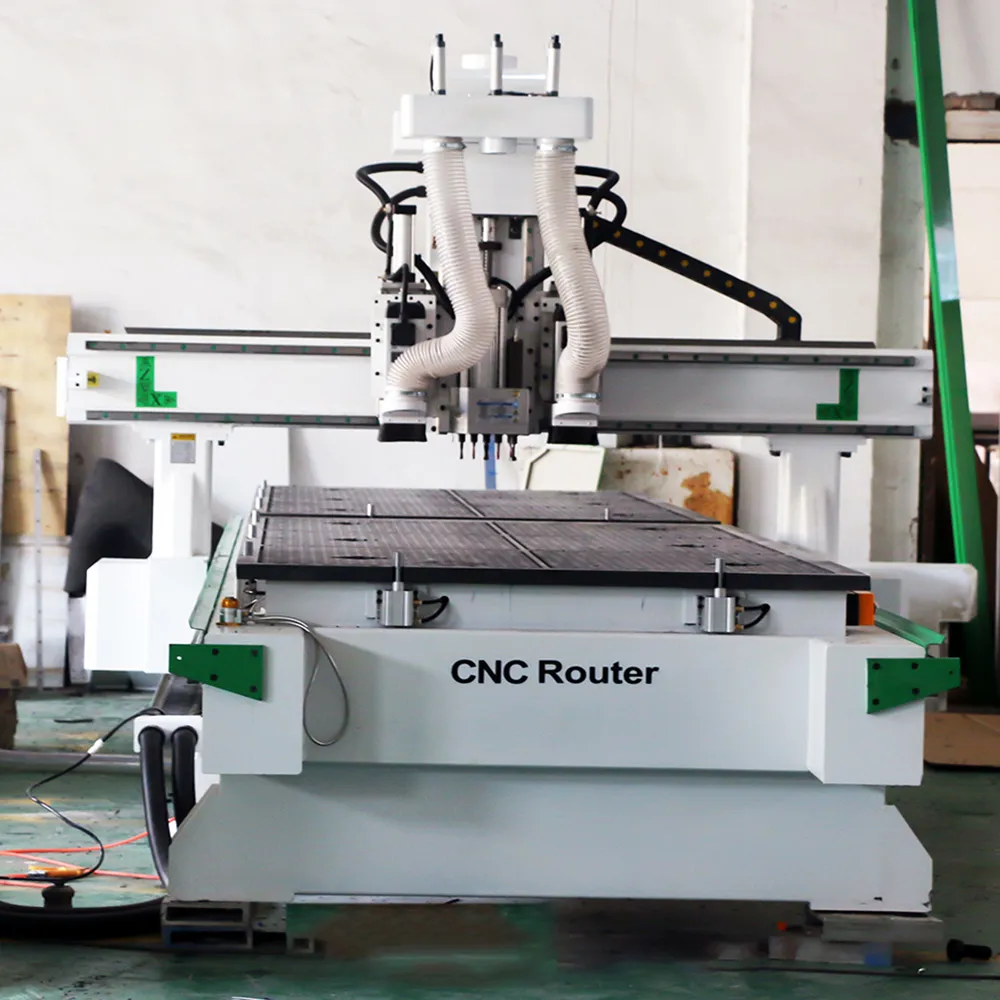

• 1300×5000mm Dual-Station Cycling Table: Extended bed divided into Zone A and Zone B with retractable pneumatic sheet positioning pins, enabling continuous alternating nesting where one zone routes while the other is unloaded.
• Leadshine L5-850 High-Dynamic AC Servo Package: High-response AC servos mated to precision planetary gearboxes drive hardened helical racks, delivering ultra-fast rapids and rapid hole-pitch positioning.
• Parallel Dual-Tube High-Velocity Dust Shroud: Twin suction ducting mounted above the tooling group evacuates dense wood shavings directly at the point of cut.

IV. Applications and Processed Materials

CNC Nesting Machine with Drilling Unit for Complete Panel Furniture Processing

The YH1350 Three Process + Drill Bank CNC router is designed for cabinet and panel furniture manufacturers requiring a complete machining solution from panel cutting to drilling. By combining multiple processing units with a drill bank system, the machine can complete different operations required in modern furniture production without transferring panels between separate machines.

The CNC nesting machine is suitable for kitchen cabinet manufacturing, wardrobe production, panel furniture assembly, office furniture production, and customized furniture processing. It can perform cutting, nesting, grooving, engraving, vertical drilling, and connector hole machining in one workflow.

The integrated drill bank is especially valuable for cabinet manufacturers because furniture panels often require multiple hole patterns for hinges, connectors, shelves, and assembly systems. The YH1350 helps reduce manual positioning errors and improves production efficiency for batch furniture manufacturing.

Typical Applications:

• Kitchen Cabinet Production
  • Cabinet side panels, shelves, doors, and connector holes
• Wardrobe Manufacturing
  • Large panels, structural drilling, and customized closet components
• Panel Furniture Production
  • Nesting, cutting, drilling, and assembly preparation
• Office Furniture Manufacturing
  • Desks, cabinets, partitions, and storage systems
• Customized Furniture Production
  • Small-batch and personalized furniture orders

Processed Materials:

• MDF
• Plywood
• Particle board
• Melamine board
• Laminated panels
• Solid wood panels
• PVC boards

V. FAQ

1. What is the advantage of adding a drill bank to a CNC router?

The drill bank allows automatic drilling operations for cabinet connectors, hinges, and assembly holes, eliminating the need for separate drilling equipment.

---

2. Is this machine suitable for cabinet production lines?

Yes. It is designed specifically for panel furniture manufacturing, especially kitchen cabinets, wardrobes, and customized furniture.

---

3. What operations can YH1350 complete?

The machine can perform nesting, cutting, engraving, grooving, drilling, and cabinet connector hole processing.

---

4. Why choose a nesting CNC machine instead of traditional cutting methods?

CNC nesting optimizes material layout, reduces manual cutting operations, and improves production efficiency for batch furniture manufacturing.

---

5. What type of factories need this machine?

It is suitable for furniture factories, cabinet manufacturers, panel furniture producers, and companies requiring integrated cutting and drilling solutions.
