Description

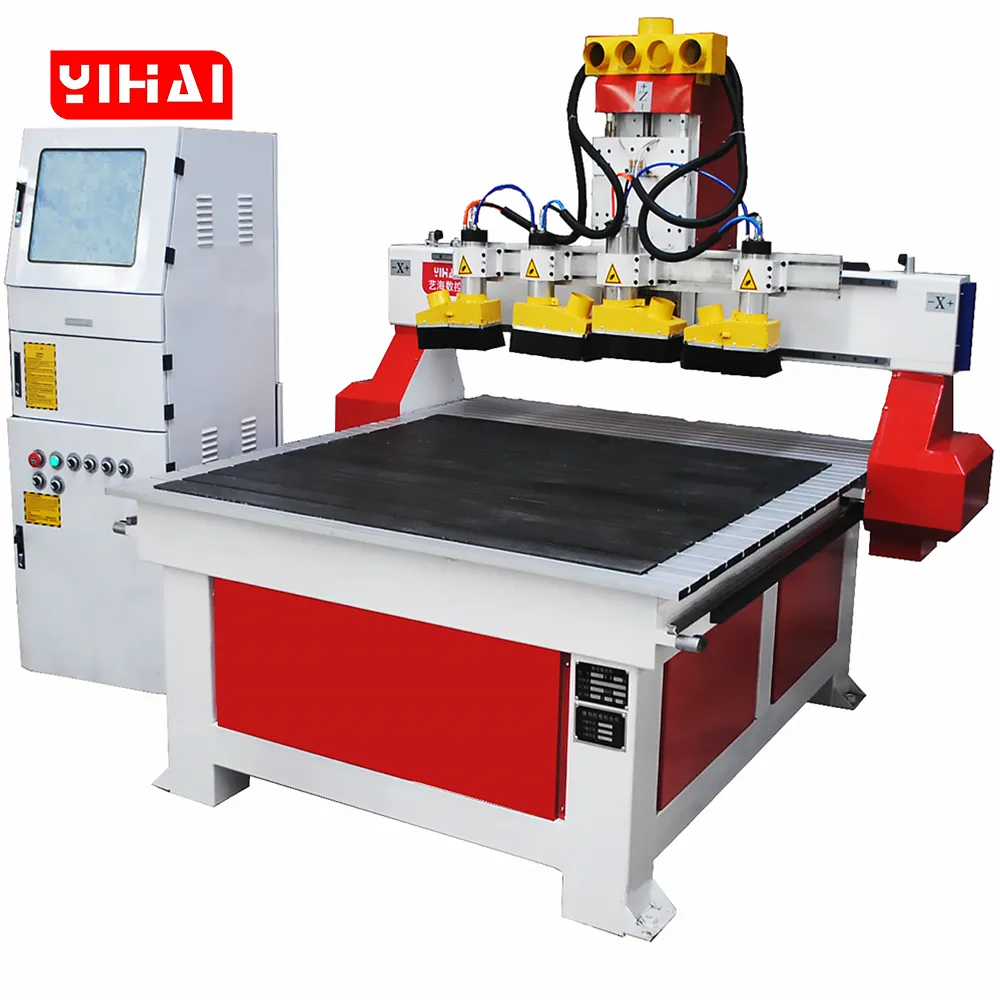

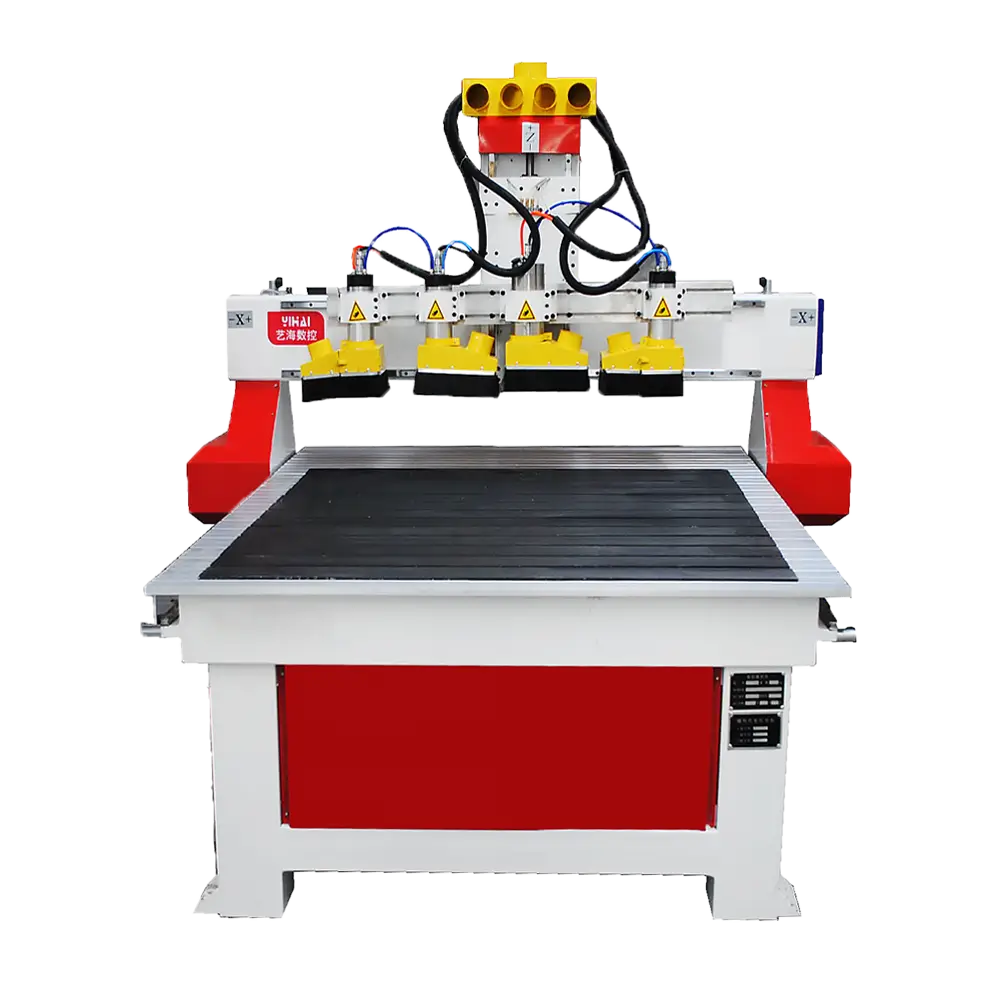

4-Head CNC Router – YH1212 Multi-Spindle Engraving Machine

The YIHAICNC 4-Head CNC Router Advertising CNC Router represents a breakthrough in efficiency for sign shops, advertising companies, and small-scale manufacturing operations. This innovative CNC wood router combines the precision of traditional 3-axis routing with the productivity advantage of four synchronized engraving heads, allowing you to produce up to four identical pieces simultaneously.

Designed specifically for the advertising industry, this compact CNC router machine delivers professional-grade results in a footprint suitable for indoor workshops. Whether you′re crafting acrylic signage, cutting wooden letters, or engraving promotional displays, the 4-Head CNC Router configuration dramatically reduces production time while maintaining consistent quality across all four workpieces.

Key Applications:

• Advertising signage and channel letters
• Acrylic display stands and promotional materials
• Wooden signs and dimensional lettering
• PVC board cutting for indoor/outdoor displays
• Two-color board engraving for nameplates
• MDF decorative panels and craft items

---

TECHNICAL SPECIFICATIONS

Feature	Specification
Type	Advertise CNC Router
Brand	YIHAICNC
Model	YH1212(4-Head Multi-Spindle)
Number of axes	3(Optional rotary axis Customizable)
Number of Spindles	4 Synchronized Heads
Total power	2.2KW*4Head(Customizable)
X, Y, Z, Working Area	1200*1200*150mm(Customizable)
Table size	1800mm*1800mm*1500mm(Customizable)
Precision (mm)	0.05
Positioning accuracy(mm)	0.02
Frame	Steel structure lathe bed, T-slot table
Repeatability	0.05mm
Travel speed	8m/min
Processing speed	6m/min
Spindle Power	1.5KW/2.2KW/3.0KW water cooling spindle
Spindle Speed	0-24000rpm
Working Voltage	AC 220V 50HZ
Command Language	G Code
Working Voltage	AC 220V 50HZ
X, Y Resolution	＜0.03mm
Running Environment Temperature	0-45 Centigrade
Net Weight	600KG

---

REVOLUTIONARY 4-HEAD DESIGN

Multiply Your Production Capacity

The innovative 4-Head CNC Router design sets this advertising CNC router apart from conventional single-spindle machines. While maintaining the simplicity and reliability of a 3-axis CNC router, the four synchronized engraving heads enable you to produce four identical components in a single operation cycle.

How It Works

The four engraving heads are controlled by a pneumatic cylinder system, allowing them to engage or disengage simultaneously. When activated, all four spindles execute the same toolpath in perfect synchronization, ensuring consistent results across all four workpieces. This is essentially four CNC wood routers working in harmony, controlled as one unit.

4-Head CNC Router vs. Single Head CNC Router

Understanding the advantages of the multi-head design helps you make an informed decision:

Feature	Single Head CNC Router	4-Head CNC Router
Production Speed	1 piece per cycle	4 pieces per cycle
Batch Production	Must repeat operation 4 times	All produced simultaneously
Consistency	Can vary between runs	Identical across all 4 pieces
Labor Efficiency	Standard	75% time reduction per unit
Floor Space	Requires 4 machines for equivalent output	Single machine footprint
Setup Time	Individual per piece	One setup for four pieces
Energy Use	Standard per piece	More efficient per unit
Best For	Varied one-off projects	Repeat orders and batches

When to Choose the 4-Head Design:

• Sign shops with recurring client orders
• Production of standardized signage components
• Businesses focused on efficiency and throughput
• Operations with limited floor space
• Companies looking to scale without multiple machines

When Single-Head Might Suffice:

• Highly varied custom work with no repeats
• Very large format projects beyond 1200mm
• Operations requiring independent spindle control
• Budget-conscious startups with limited volume

---

INTEGRATED DUST VENTILATION SYSTEM

Maintain a Clean Working Environment

Every engraving head on this CNC router machine is equipped with dedicated ventilation ducts positioned directly at the cutting point. This professional-grade dust collection system is essential for advertising CNC router operations, where materials like wood, acrylic, and PVC generate significant debris.

Ventilation System Benefits:

• Effective Debris Removal: Wood chips, acrylic shavings, and material dust evacuated instantly
• Improved Visibility: Clear view of cutting path during operation
• Extended Tool Life: Reduced heat buildup on router bits
• Healthier Workspace: Minimized airborne particles in your shop
• Better Cut Quality: Prevents debris from interfering with precision cuts
• Easy Maintenance: Keeps the work area and machine components cleaner

The ventilation system connects to standard dust collection equipment (sold separately), making it easy to integrate into your existing workshop setup.

---

COMPACT SIZE FOR INDOOR WORKSHOPS

Professional Power in a Space-Saving Design

At 1200mm × 1200mm, this advertising CNC router is specifically engineered for indoor operations where space is at a premium. Unlike large-format industrial CNC machines, this compact CNC wood router fits comfortably in sign shops, small manufacturing facilities, maker spaces, and even dedicated workshop areas.

Perfect For:

• Small to medium-sized advertising businesses
• Sign shops with limited floor space
• Prototyping and custom fabrication studios
• Educational institutions and training centers
• Craft businesses scaling up production
• Multi-service print and design shops

Despite its compact footprint, the 1200mm working area provides ample capacity for most advertising and signage applications, from individual letters to full display panels.

---

MATERIAL COMPATIBILITY

Process a Wide Range of Advertising Materials

This advertising CNC router is engineered to handle the diverse materials commonly used in sign making and promotional product manufacturing. The adjustable spindle speed and feed rates accommodate materials from soft woods to rigid plastics.

Recommended Materials:

1.Plastics & Composites:

• Acrylic (PMMA/Plexiglass) – Clear, colored, and frosted
• PVC sheets and foam board
• Two-color engraving plastic
• ABS sheets
• Polycarbonate
• Foam board for temporary signage

2.Wood Products:

• Solid hardwood and softwood
• MDF (Medium Density Fiberboard)
• Plywood
• Particle board
• Bamboo

3.Other Materials:

• Sign foam for dimensional letters
• Phenolic resin boards
• Thin aluminum composite panels
• Cork board
• Rubber materials

Typical Material Thickness: This CNC wood router can process materials up to 50-80mm thick (depending on material hardness and spindle power), covering the majority of advertising and signage applications.

---

TYPICAL APPLICATIONS & INDUSTRIES

Advertising Industry Solutions

The advertising CNC router excels at creating signage, cutting various materials, and producing promotional items for diverse industries. Here′s how different businesses leverage the 4-Head CNC Router capability:

Sign Shops & Advertising Agencies:

• Channel letters for storefront signage
• Dimensional logos and branding elements
• Interior wayfinding signs
• Trade show displays and booth components
• Point-of-purchase displays
• Menu boards and retail signage

Custom Fabrication:

• Architectural models and prototypes
• Decorative panels and room dividers
• Custom nameplates and badges
• Award plaques and recognition items
• Event signage and temporary installations

Woodworking & Crafts:

• Personalized wooden signs
• Decorative wall art
• Custom furniture components
• Gift items and novelties
• Hobby and craft products

Industrial Applications:

• Jigs and fixtures
• Templates and patterns
• Equipment labels and nameplates
• Control panel cutouts
• Protective packaging inserts

---

FAQ

Q: Can the four heads operate independently?

A: No, the four engraving heads operate simultaneously using cylinder control. They cannot be controlled independently. All four execute the same toolpath together, which is ideal for producing identical parts.

Q: What is the maximum material thickness this CNC wood router can handle?

A: The maximum thickness depends on material hardness and spindle power, but typically ranges from 50-80mm for common advertising materials like wood, MDF, and acrylic.

Q: Can I use this machine for materials other than wood and acrylic?

A: Yes, this advertising CNC router is compatible with a wide range of materials including PVC, foam board, two-color engraving plastic, MDF, and thin aluminum composite panels.

Q: Is the T-slot table customizable?

A: Yes, YIHAICNC offers custom table configurations including vacuum tables, different T-slot patterns, or hybrid systems to match your specific production needs.

Q: What software is compatible with this CNC router machine?

A: The machine accepts standard G-code, making it compatible with popular CAM software packages used in the industry. Specific software recommendations can be provided during consultation.

Q: How much space do I need for installation?

A: While the working area is 1200×1200mm, you should allow additional space around the machine for material loading, operator access, and dust collection equipment. A typical installation requires approximately 3×3 meters of floor space.

Q: What maintenance is required?

A: Regular maintenance includes daily cleaning, weekly lubrication of guide rails, and periodic inspection of the cylinder system and spindles. Detailed maintenance schedules are provided with the machine.

Q: Can I upgrade the spindles later?

A: Yes, spindle upgrades and replacements are possible. Contact YIHAICNC to discuss options for your specific requirements.
