Description

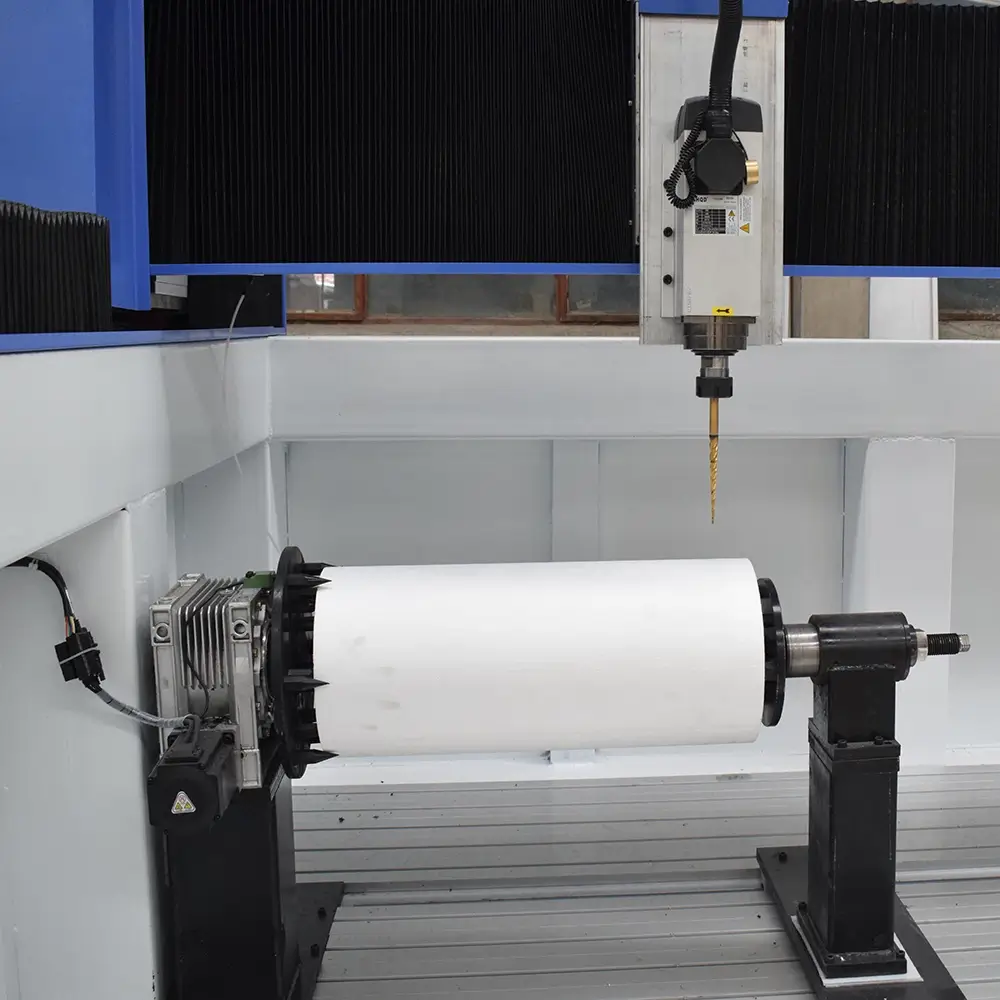

Enhance your production capabilities with our 1325 4-axis CNC foam router. The integrated rotary axis allows for continuous 360° carving on cylindrical workpieces like columns and model prototypes, dramatically expanding your design possibilities.
| Feature | Specification |
| Type | CNC Foam Router |
| Features | Z-Axis Heightened With Rotary Axis |
| Brand | YIHAICNC |
| Model | YH1325(With Rotary Axis/Z-Axis Heightened) |
| Color Scheme | Blue And White |
| Number of axes | 4(Adding Rotary Axes or Other Axes) |
| Number of Spindles | Single(Adding Swing Spindle/Customizable) |
| Working Area | 1300mmx2500mmx800mm(Customizable) |
| Total power | HQD 5 kw Spindle(Customizable) |
| Table Surface | T-slot Aluminum Profile |
| X, Y, Z Traveling Positioning Accuracy | ±0.03mm |
| X, Y, Z Repositioning Positioning Accuracy | ±0.05mm |
| Precision | 0.3-0.5mm |
| Travel speed | 24000mm/min |
| Positioning precision | 0.03/300mm |
| Dictate Formate | G code |
| Operating Voltage | 220v/380v 50HZ-60HZ |
| Running Environment Temperature | 0-45 Centigrade |
| Net Weight | 1000KG |
Pieter van der Merwe 🇿🇦 (Cape Town, South Africa) –
Hello, I run a prop and model-making studio in Cape Town. We produce 3D props for film and theatre—everything from life-size figures to architectural miniatures. The 4-axis rotary foam carving machine with 24000mm/min travel speed looks like exactly what we need. The HQD 5kW spindle seems powerful. Can you tell me more about the software compatibility for 4-axis programming? We currently use Vectric Aspire and Fusion 360. Also, what’s the shipping time to South Africa?
Alex_Zhang –
Hi Pieter! The 4-axis foam carving machine is fully compatible with both Vectric Aspire and Fusion 360 for 4-axis programming. You’ll be able to generate toolpaths seamlessly. For South Africa, shipping typically takes 30-35 days to Cape Town port. We’ve shipped several units to South Africa and can provide references from other prop makers. The HQD 5kW spindle provides excellent torque for dense foam materials. We’ll send you a detailed quotation today!
Carlos Méndez 🇲🇽 (Mexico City, Mexico) –
We purchased the 4-axis rotary foam carving machine for our theme park prop fabrication shop in Mexico City four months ago. This machine is a beast. The 24000mm/min travel speed is incredible—we’re carving large foam props for themed environments at record speed. The rotary axis handles cylindrical pieces effortlessly, and the HQD 5kW spindle provides consistent power for dense PU foam. The 1300x2500mm work area is perfect for our largest props. We’ve produced over 200 props—characters, architectural elements, and custom sculptures—with zero downtime. The machine is built like a tank. Best investment we’ve made for our shop.
Alex_Zhang –
Muchas gracias Carlos! 200 props in four months—that’s outstanding production! The 24000mm/min travel speed combined with the HQD 5kW spindle is a powerful combination for theme park prop fabrication. We’re thrilled the machine is delivering the performance you need for your Mexico City shop. Keep creating amazing themed environments!
