Description

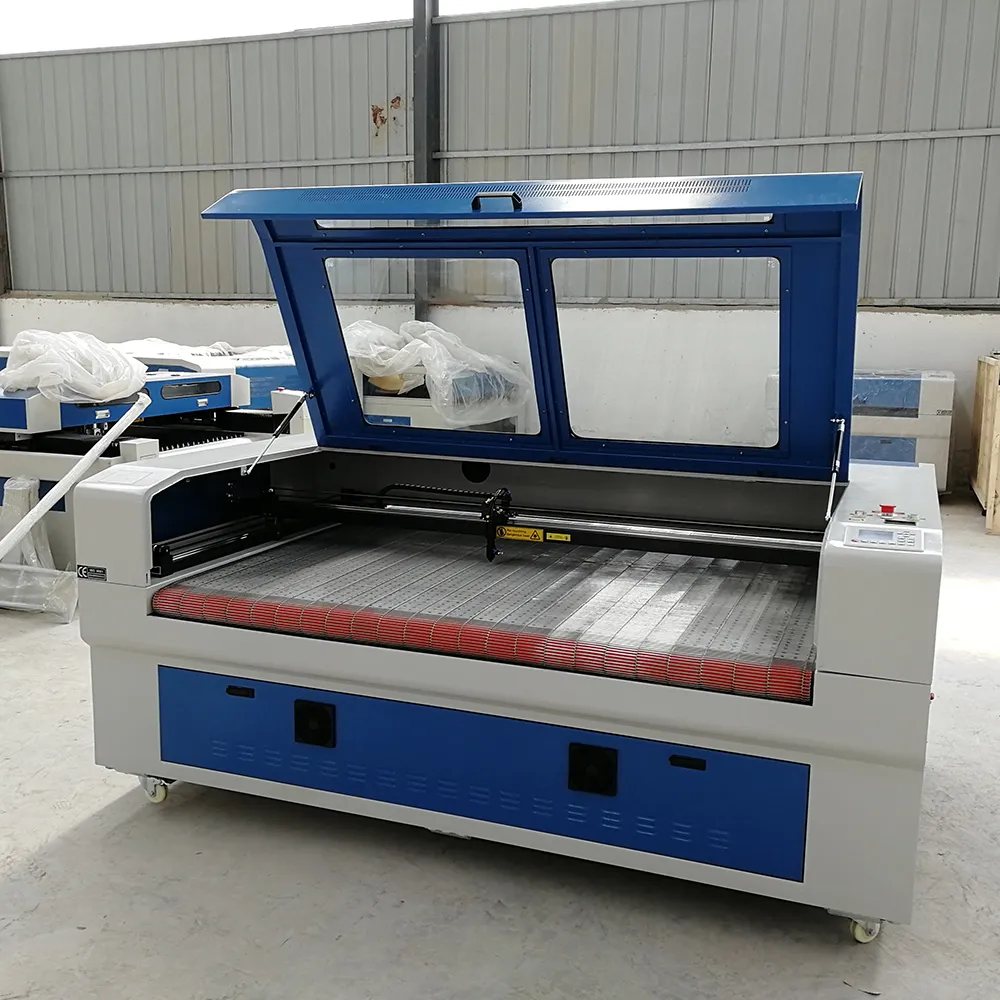

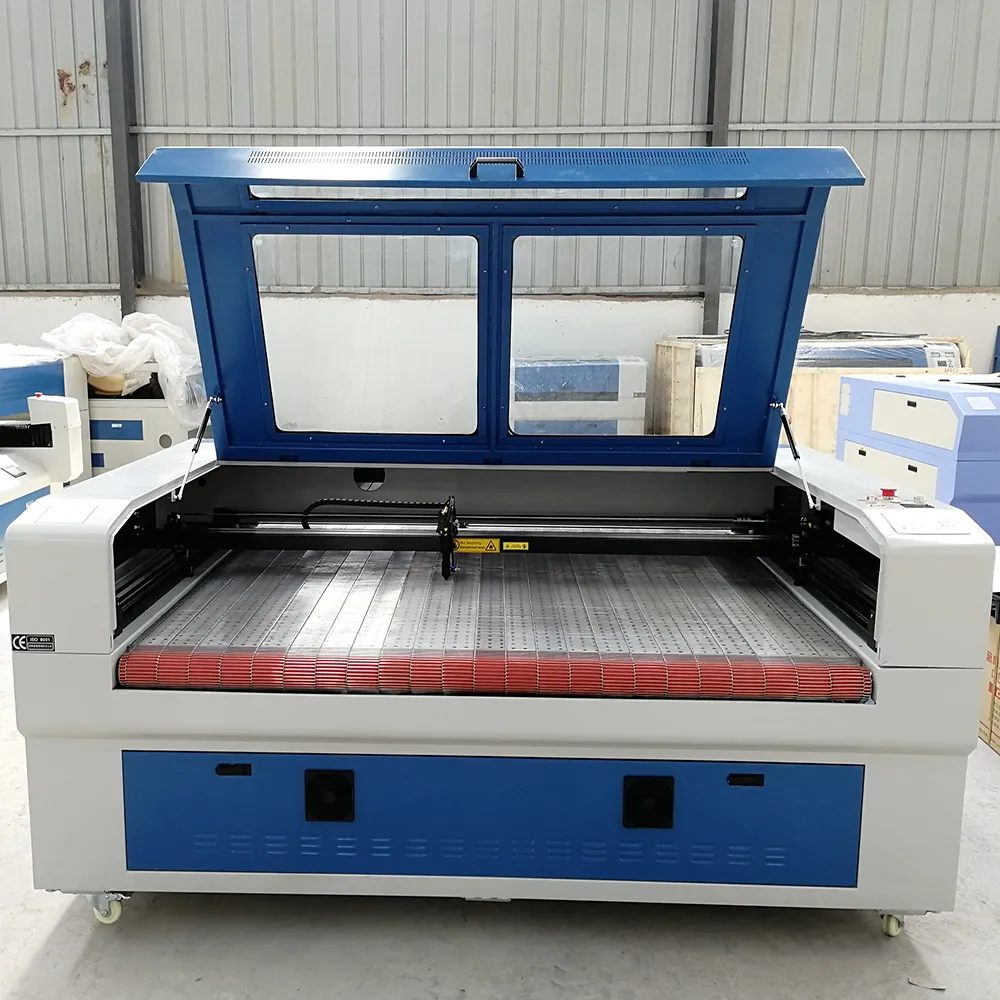

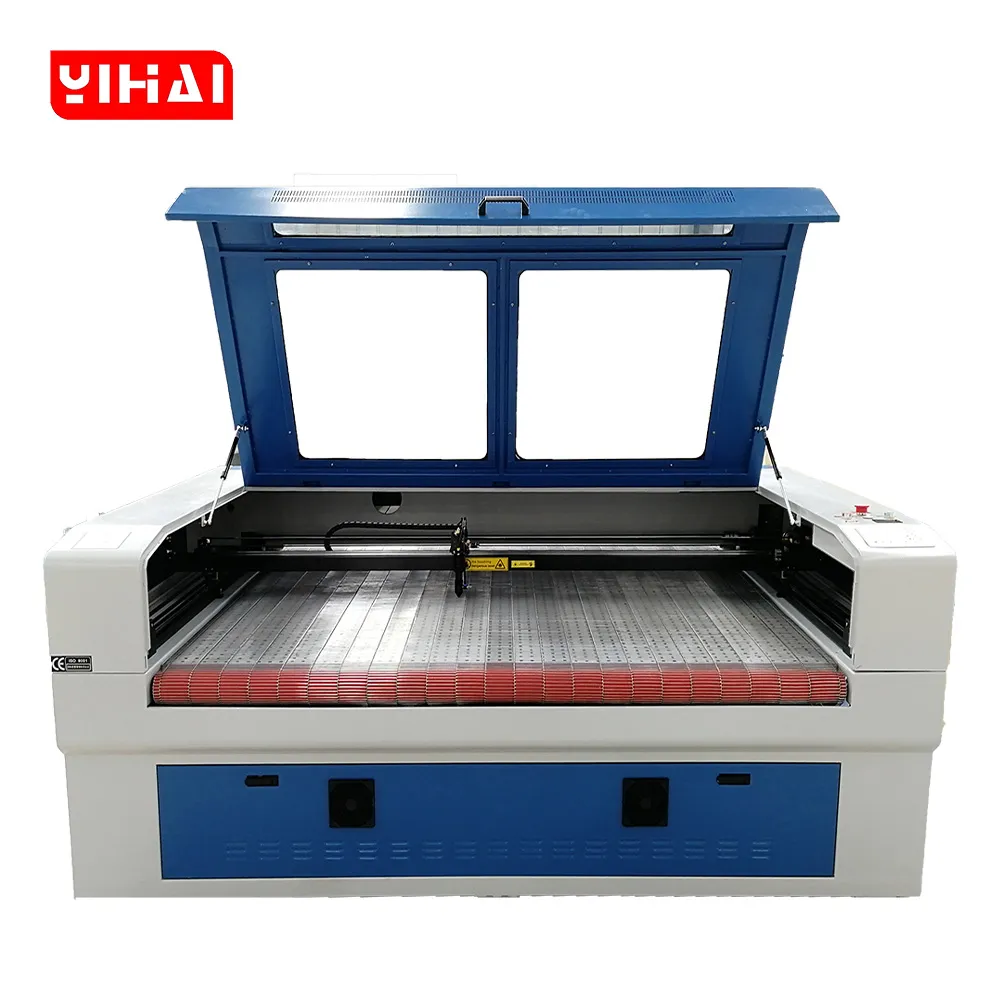

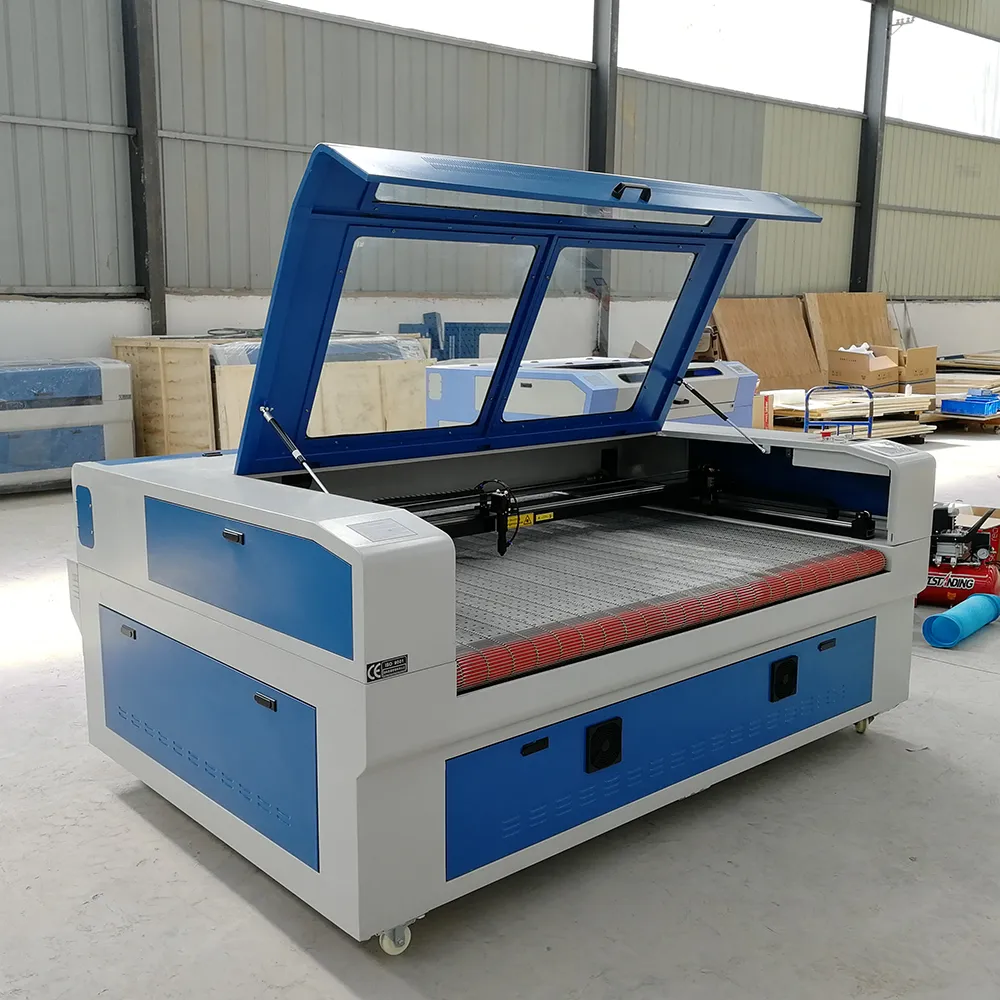

I. Features of the YH1810 CO2 Laser Engraving Machine

• The YH1810 CO2 Laser Engraving Machine features a specialized 1800mm x 1000mm large-format working area, optimized for the continuous processing of wide fabric rolls and textile substrates.

• Equipped with an advanced automatic feeding mesh belt platform, allowing for the seamless transition of flexible materials from the loading rack to the cutting zone without manual intervention.

• Powered by a genuine RECI 100W (Peak 130W) CO2 laser tube, providing a stable 10.6μm wavelength beam for precise engraving and consistent cutting depth on organic materials.

• Incorporates a high-precision Auto-Focus probe, enabling rapid and accurate Z-axis calibration to maintain the optimal focal point on varying material thicknesses.

• Utilizes an authentic Ruida RDC6442S control system, offering industrial-grade DSP logic for synchronized motion control and reliable offline operation.

• The transmission architecture is built with premium Taiwan HIWIN linear square rails and reinforced industrial belts, ensuring mechanical rigidity across the massive 1.8-meter span.

• Features an upgraded high-torque driving system with industrial-grade stepper motors, specifically selected to handle the increased mass of the large-format X-axis bridge.

• Integrated with professional air assist functionality, which works with the included electromagnetic air pump to protect the optics and reduce charring on delicate fabrics.

• The heavy-duty industrial chassis is engineered for continuous production environments, providing a stable foundation that prevents frame vibration during high-speed travel.

• Standard shipping package includes a comprehensive “Ready-to-Work” kit featuring a centrifugal exhaust blower, air assist pumps, and CW series industrial water chillers.

• Supports a diverse range of industrial graphic formats including PLT, DXF, BMP, JPG, and AI, compatible with the most popular CAD and graphic design software suites.

---

II. Advantages of the YH1390 Laser System

• The primary advantage of the YH1810 CO2 Laser Engraving Machine is its exceptional automation capability, turning a standard cutter into a continuous textile production line.

• By utilizing a conveyor-style mesh belt, the machine significantly reduces labor costs and downtime associated with loading and unloading large sheets of material.

• The 1810 large-format bed allows for the processing of full-sized fabric rolls without the need for pre-trimming, maximizing material usage and reducing production waste.

• YIHAICNC’s integration of HIWIN square rails ensures that even with a 1.8-meter bridge, the machine maintains a positioning accuracy of 0.05mm for intricate pattern work.

• This model serves as a robust CO2 Laser Cutting Machine for roll materials, offering a much cleaner and faster edge finish than traditional mechanical blades or die-cutting.

• The upgraded 100W RECI power source provides a significant boost in processing speed, allowing for the rapid fulfillment of large-volume orders in busy manufacturing workshops.

• Our synchronized feeding logic ensures that the material is moved forward with millimeter precision, preventing the misalignment of patterns during long-distance continuous cutting.

• The Ruida RDC6442S controller provides a user-friendly interface that is fully compatible with advanced software like LightBurn, enabling smart nesting and path optimization.

• The reinforced belt drive system is optimized for the larger frame size, providing a smoother and quieter motion than gear-driven systems found in lower-quality alternatives.

• The inclusion of an industrial-grade exhaust system ensures that smoke and debris are efficiently removed, maintaining a clean working environment and protecting the laser beam path.

• Designed for 2026 industrial standards, the YH1810 offers a sustainable and efficient solution for workshops looking to modernize their fabric and leather processing workflows.

---

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1810(Single-Head System with Auto-Feeding)
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	90W(Peak 110W)(Customizable)
Total Power	＜2KW
Working Table	Large-Format Automatic Feeding Conveyor Belt Platform
Working Area	1800*1000mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

IV. Key Components Description

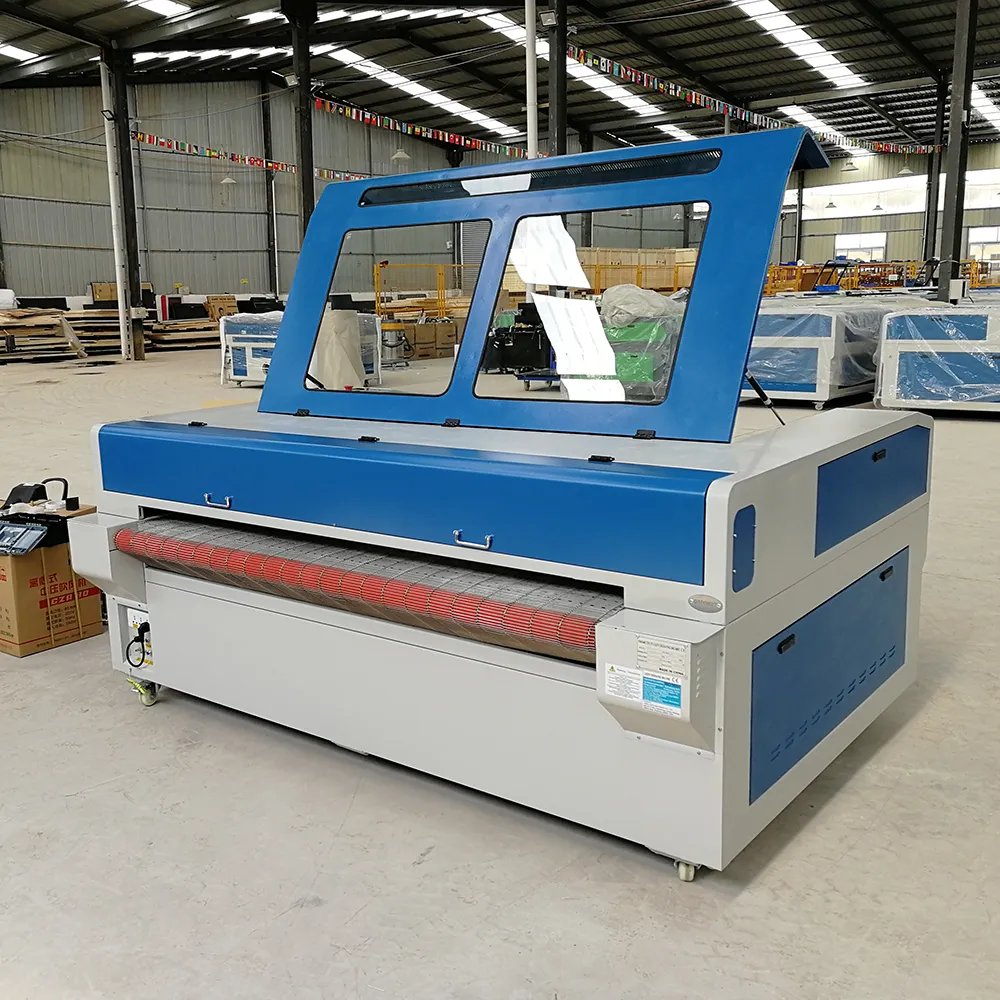

	Automatic Conveyor Belt Platform Function: Equipped with an advanced automatic conveyor belt platform, enabling the seamless transition of flexible materials from the loading rack to the cutting zone without the need for manual intervention.
Close-up views of the Open-Chassis Hydraulic Lifting Platform from various angles
	High-Performance, High-Precision CO2 Laser Tube Function: The core power source, delivering a stable 10.6μm beam. Designed specifically for deep cutting and fine engraving on organic substrates, it features an industrial-grade lifespan and consistent energy output.
Integrated Control Cabinet (Equipped with Ruida RDC6442S System) Function: Managed by the world-renowned Ruida RDC6442S control system, supporting professional features such as asynchronous dual-head control and visual path optimization.

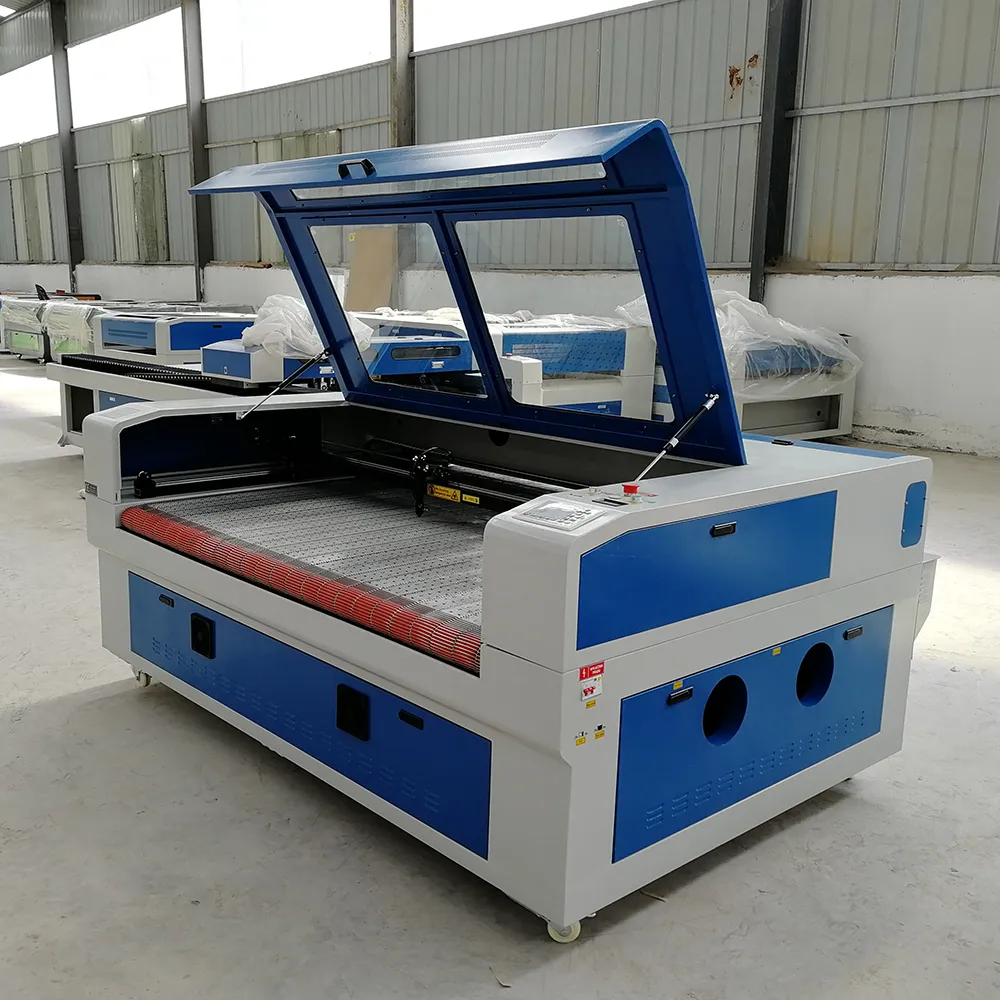

	Centralized External Interface Panel Function: Simplifies the equipment installation process; each interface is clearly labeled, covering water inlet/outlet ports, air assist ports, and power outlets. This “plug-and-play” design philosophy allows you to quickly connect the water chiller and air compressor without the hassle of complex wiring.
DSP Control Panel and Emergency Stop Button Function: Equipped with an intuitive LCD screen, allowing for real-time monitoring of current speed and power parameters. Industrial-grade mechanical buttons provide clear tactile feedback, while the emergency stop button enables instantaneous power cutoff and machine shutdown in urgent situations, thereby maximizing operator safety.
	Complete Standard Accessories Package Function: Includes a centrifugal exhaust fan, an electromagnetic air pump, and a water cooling assembly. This comprehensive kit ensures that your CO2 laser cutter is ready for immediate production use upon delivery.

---

V. Applicable Materials

The YH1810 CO2 Laser Engraving Machine is a specialist in processing roll and flexible substrates. It excels in the cutting and engraving of textiles, fabrics, and genuine leather. It is also highly effective for synthetic leather (PU/PVC), neoprene, and industrial felts. Additionally, the large bed allows for the processing of paper rolls, thin plastics, non-woven fabrics, and lightweight veneers, making it a versatile tool for any industry handling soft, continuous materials.

---

VI. Applicable Industries and Future Prospects

The Garment and Textile Industry is the primary market for the YH1810. With the rise of mass customization in 2026, the ability to continuously feed and cut textile rolls is essential. This CO2 Laser Engraving Machine allows manufacturers to produce intricate lace patterns, precise garment parts, and large-scale fabric panels with zero contact and high precision. As fashion cycles become faster, the automation provided by the YH1810 ensures that local factories can remain competitive by reducing the manual labor required for material handling.

In the Automotive and Home Upholstery sectors, the machine is used for producing large car seat covers, window curtains, and sofa upholstery. The 1810’s large format and auto-feeding system are ideal for processing long rolls of PU leather and heavy upholstery fabrics. Future prospects in this sector include the increasing use of recycled textiles, which require the precise, low-impact processing that a CO2 laser provides to maintain material integrity while creating complex decorative perforations.

The Packaging and Soft Signage Industry utilizes the YH1810 for the production of large-scale fabric banners, flags, and trade show displays. The ability to handle wide rolls of material ensures that sign shops can fulfill oversized orders in one go. As digital printing on fabric continues to dominate the advertising market, the demand for reliable, large-format laser cutting solutions is projected to see significant global growth through 2026.

Looking toward the future, the Smart Manufacturing and Digital Fabrication movement is driving the need for more automated workshop tools. Small-to-medium enterprises are increasingly moving toward on-demand production models. The YIHAICNC auto-feeding series is positioned to be the backbone of these modern workshops, offering the industrial-grade reliability needed for 24/7 production with the flexibility to adapt to new, sustainable materials as they emerge in the global market.

---

VII. Safety Precautions and Guidelines

• Laser Radiation Safety: Always wear certified 10.6μm protective goggles. The laser beam is invisible and can cause immediate, permanent eye injury upon contact.

• Ventilation: Never operate the machine without the centrifugal exhaust fan running. Processing textiles and leather produces significant smoke that must be vented outside.

• Mesh Belt Safety: Keep hands, loose clothing, and jewelry away from the conveyor belt and the auto-feeding rollers while the machine is in operation to prevent injury.

• Fire Hazard: Never leave the machine unattended during a job. Keep a fire extinguisher nearby, as some synthetic fabrics can ignite if the laser power is too high.

• Water Cooling: Verify that the industrial chiller is active and the water flow is steady before firing the laser. Running without cooling will cause the RECI tube to crack.

---

VIII. Frequently Asked Questions (FAQ)

Q1: How does the auto-feeding mesh belt system improve my workshop’s daily productivity?

The auto-feeding system on the YH1810 CO2 Laser Engraving Machine is a major efficiency driver for any textile-based business. In a standard laser machine, the operator must manually place a sheet of material, wait for it to be cut, remove the pieces, and then reload a new sheet. With the YH1810, the machine pulls the material directly from a roll, processes the design, and then automatically moves the finished pieces forward while loading the next section. This continuous workflow eliminates the “re-loading” downtime, effectively increasing your machine’s uptime by up to 50%. For YIHAICNC customers, this means you can fulfill large-volume fabric or leather orders much faster with significantly less manual labor, allowing your team to focus on design and quality control rather than material handling.

Q2: Is the 100W RECI laser tube powerful enough for cutting thick fabrics and upholstery?

The RECI 100W (Peak 130W) tube is the ideal power level for the 1810 format. It provides a highly concentrated beam that is optimized for both speed and precision. For most textiles, garments, and thin leathers, 100W allows for very high-speed cutting, which is essential for maintaining productivity on a large-format bed. Even for thicker materials like industrial felt or heavy synthetic leathers used in automotive interiors, the 100W power acts as a reliable CO2 Laser Cutting Machine, slicing through the material in a single pass with clean, sealed edges that won’t fray. This power level also maintains excellent stability for fine engraving tasks, ensuring that your branding logos or decorative patterns remain sharp and professional across the entire 1800mm width.

Q3: Why does YIHAICNC use a single-head design for this 1800x1000mm model?

While some machines use dual heads, the single-head configuration of the YH1810 is specifically optimized for “Precision and Scale.” Managing a 1.8-meter-wide X-axis bridge requires extreme mechanical stability. By using a single head, we reduce the weight on the moving bridge, allowing for higher acceleration and more stable motion without the vibration that can occur with heavier, dual-head setups on such a wide span. This ensures that the positioning accuracy remains at 0.05mm across every square centimeter of the bed. For customers who prioritize the highest possible quality in their large-format textile or signage work, the single-head YH1810 provides the ultimate balance of speed, mechanical longevity, and pinpoint accuracy.

Q4: How does the Auto-Focus probe benefit the processing of flexible roll materials?

Roll materials like leather and fabric are rarely perfectly flat; they can have slight waves or thickness variations depending on the weave or the tanning process. The Auto-Focus probe on the YH1810 CO2 Laser Engraving Machine allows the operator to quickly and accurately set the Z-axis height at the start of each new roll. By simply clicking a button, the probe measures the exact distance to the material surface, ensuring the laser beam is perfectly focused. This is critical for maintaining a clean cut and preventing “charring” or incomplete cuts caused by the beam being out of focus. This feature, combined with YIHAICNC’s stable mesh belt, ensures that your engraving and cutting quality remains identical from the first meter of the roll to the last.

Q5: What maintenance is required for the auto-feeding mesh belt system?

Maintaining the conveyor system is essential for long-term production stability. Because textile processing produces fine dust and fibers, we recommend using a vacuum or compressed air to clean the mesh belt daily to prevent debris from building up. The auto-feeding rollers should be wiped down weekly to ensure they retain their grip on the material. Additionally, the HIWIN square rails on the 1.8-meter bridge should be wiped and lightly lubricated once a month to keep the motion smooth. Since this machine often runs for long periods, it is also vital to check the water level in your industrial chiller and ensure the exhaust blower is clear of lint. These simple steps will ensure your YIHAICNC machine remains a reliable “production workhorse” for years to come.

Q6: Is the Ruida RDC6442S controller compatible with professional CAD/CAM software?

Absolutely. The Ruida RDC6442S is the global industry standard for high-end CO2 Laser Engraving Machine control. It is fully compatible with LightBurn, which is highly recommended for textile manufacturers due to its advanced “Auto-Feeding” logic and path optimization tools. It also comes with the free RDWorks V8 software, which includes plugins for AutoCAD, CorelDRAW, and Adobe Illustrator. This software compatibility allows you to design your garment patterns or signage in your preferred environment and send them directly to the machine via USB, Ethernet, or even a U-disk. The system also supports “Smart Nesting,” which helps you organize your patterns on the 1800mm wide material to minimize waste and maximize your material yield per roll.
