Description

I. Features of the YH1610 CO2 Laser Engraving Machine

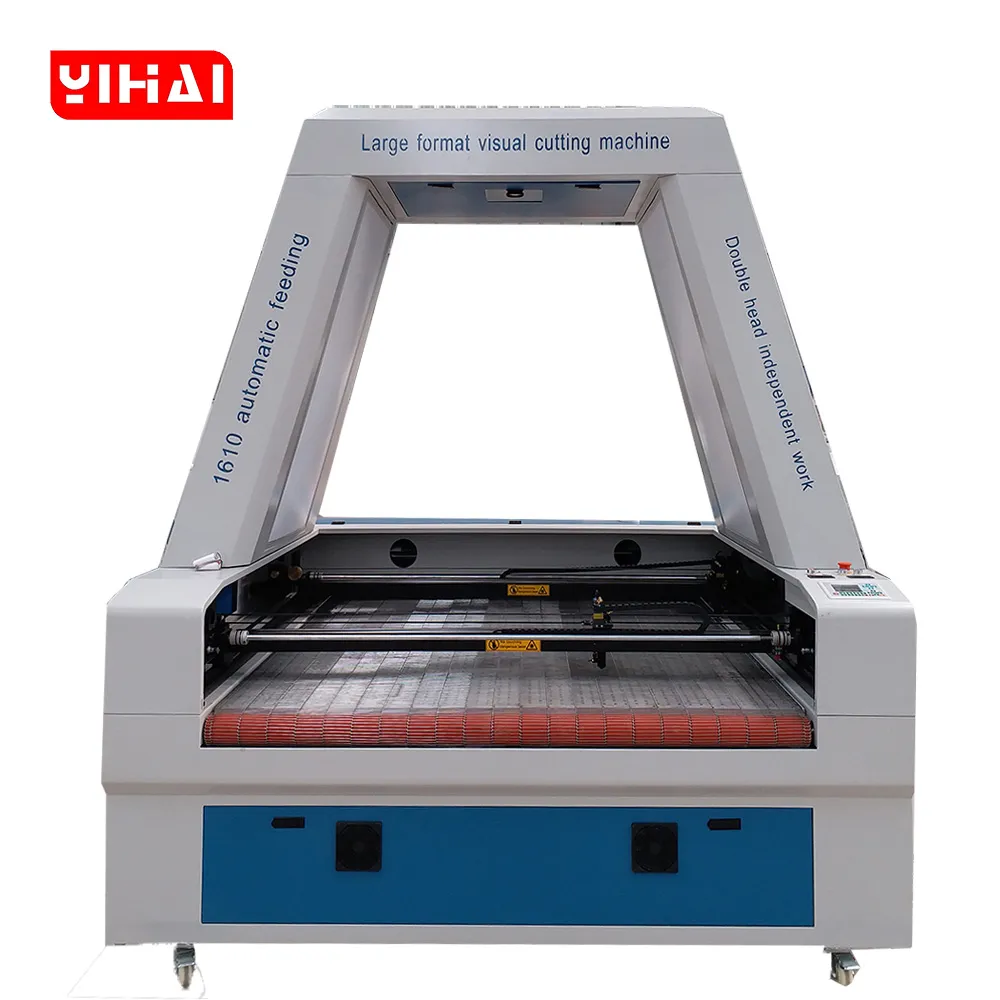

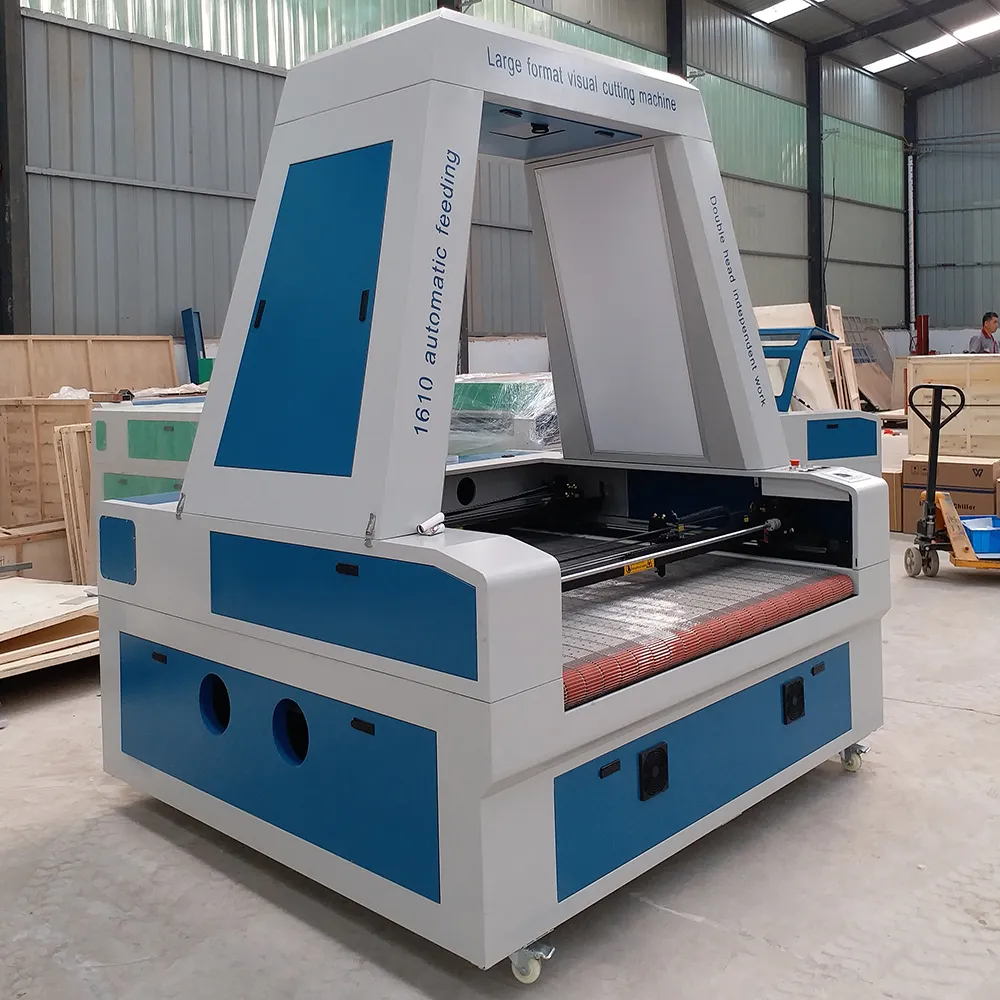

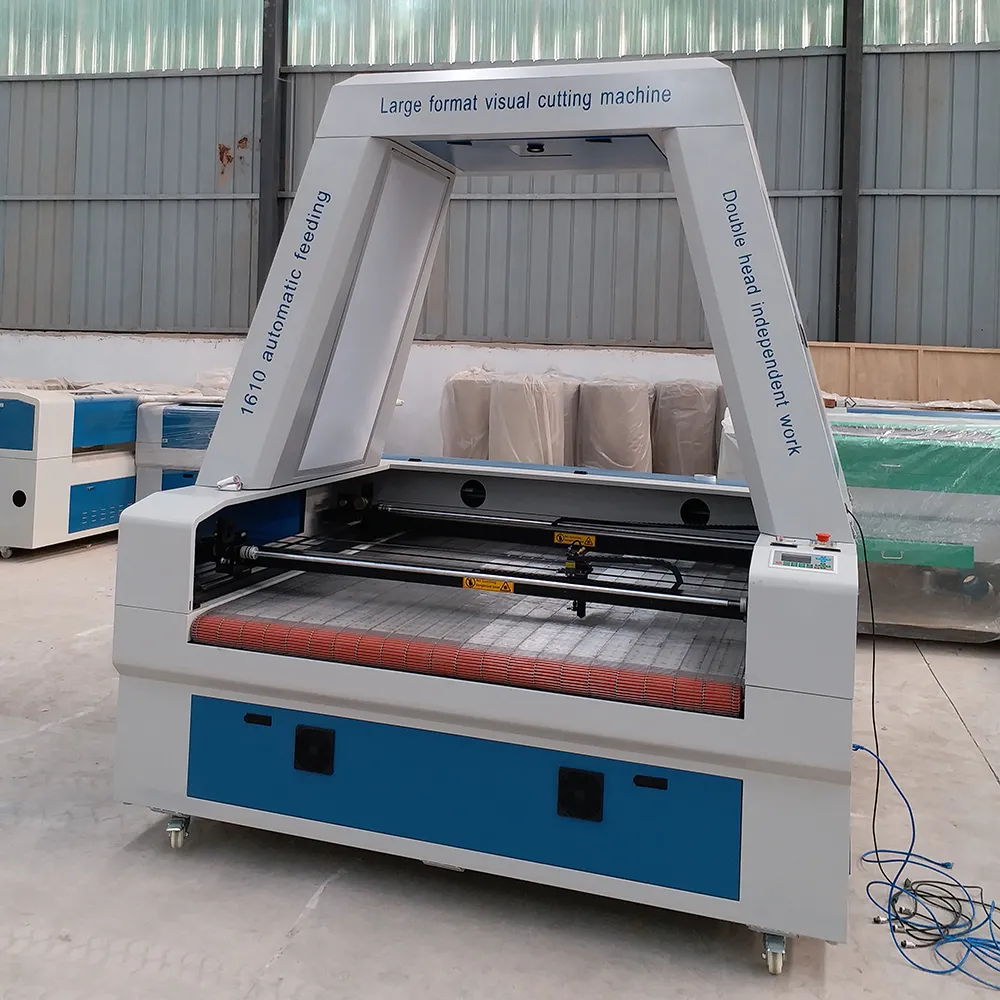

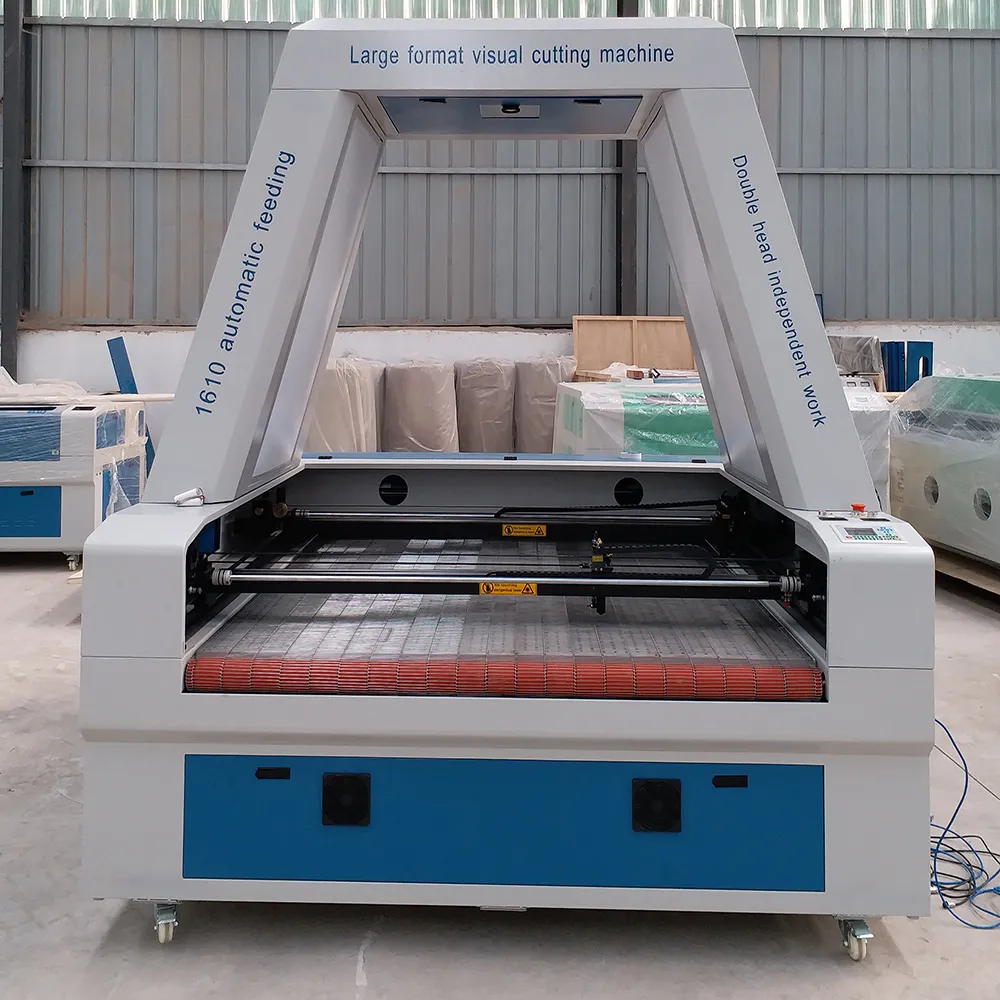

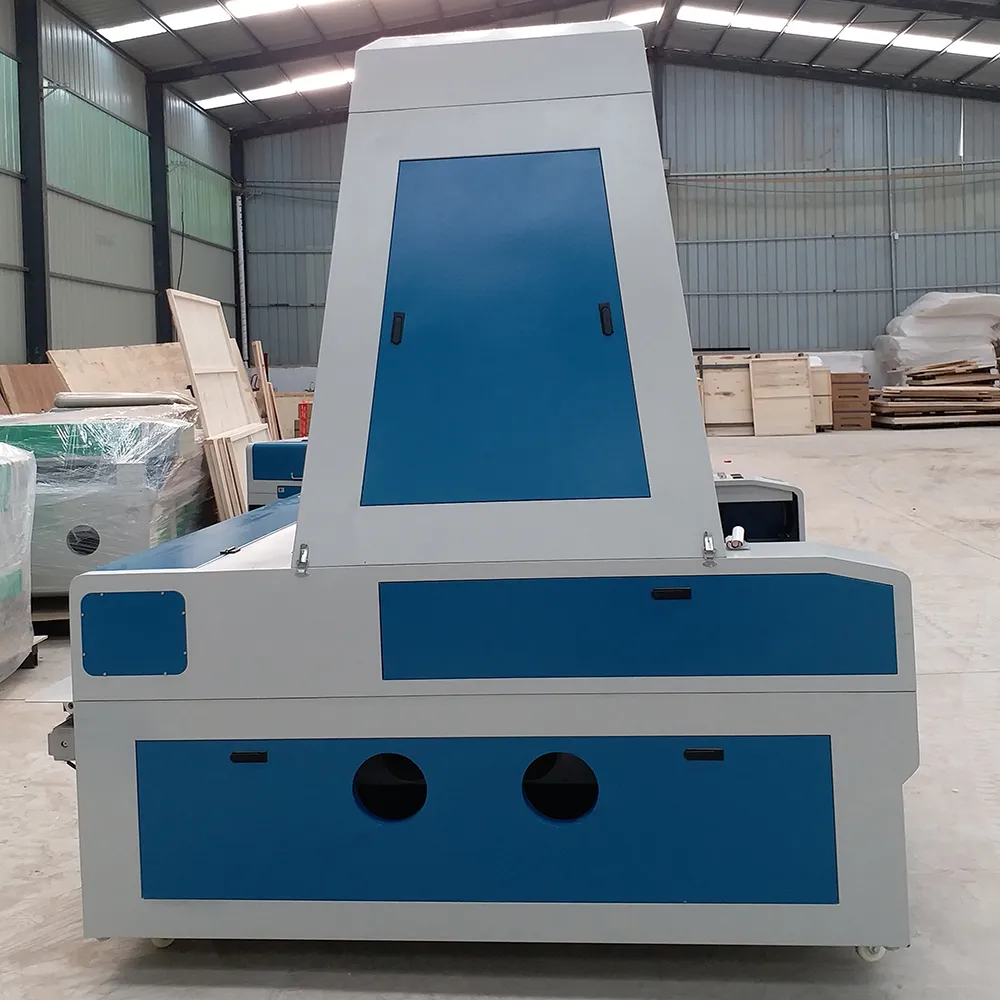

• Equipped with a top-mounted arched structure housing a high-resolution CCD camera for real-time visual recognition and precise contour extraction of printed graphics.

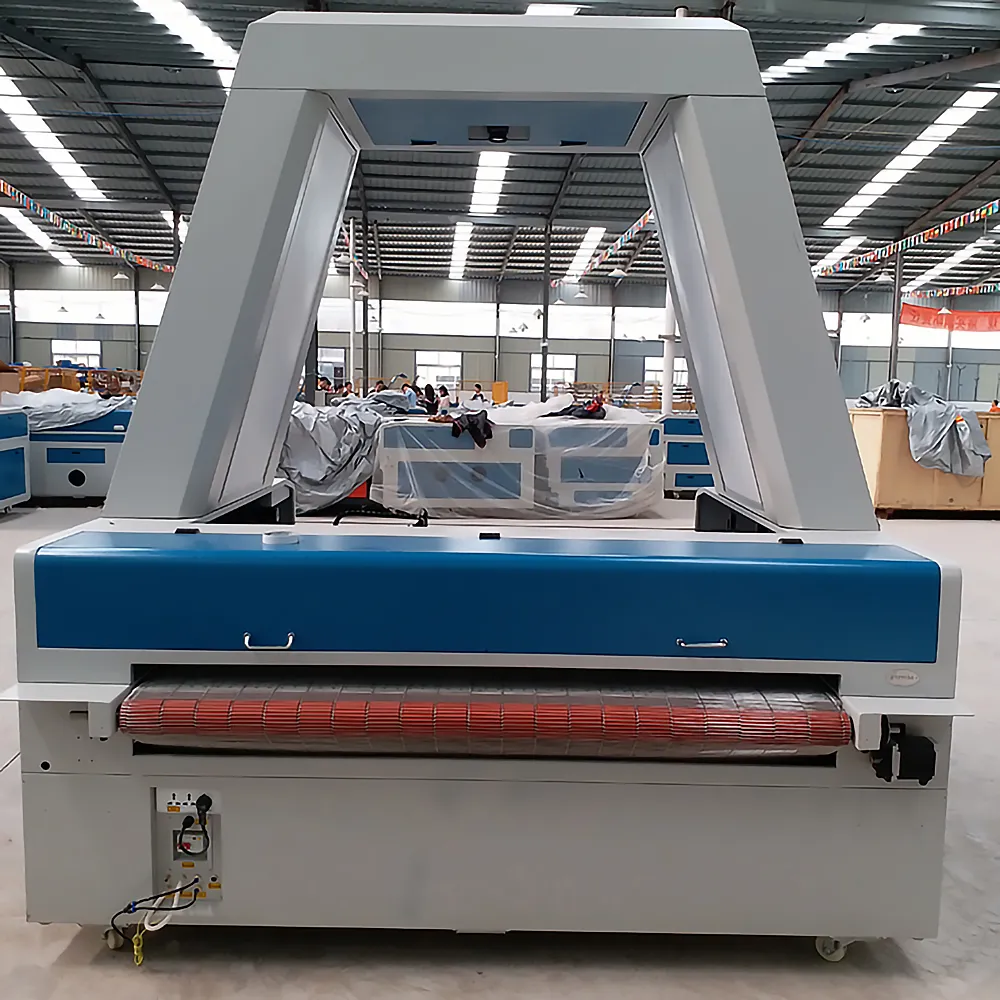

• Features an advanced conveyor-type automatic feeding platform, designed to process roll materials and flexible substrates with an integrated auto-loading function for 24/7 production.

• Utilizes a double-head independent work system, allowing two laser heads to process different tasks or identical patterns simultaneously on the same large-format work area.

• Incorporates a premium dual water-path and dual gas-path design, ensuring independent cooling and air assist for each laser head to maintain optimal processing temperatures.

• Driven by genuine Taiwan HIWIN linear square rails combined with high-tenacity belt transmission for ultra-smooth motion and industrial-grade positioning accuracy.

• Includes two high-quality CO2 laser tubes (up to 150W customizable) that deliver stable beam quality for clean cutting edges on thick fabrics and intricate engravings.

• Managed by the world-renowned Ruida RDC6442S control system, supporting professional features like asynchronous double-head control and visual path optimization.

• Boasts a massive 1600mm x 1000mm (1610) working area, providing the necessary space for large garment patterns, automotive interiors, and wide soft signage projects.

• Integrated with a high-torque stepper motor system that ensures the conveyor table moves with micro-step precision, preventing material misalignment during long feeding cycles.

• Supports a wide range of industrial graphic formats including PLT, DXF, BMP, JPG, and AI, seamlessly integrating with professional CAD/CAM design software suites.

• Standard shipping package includes professional auxiliary components like a centrifugal exhaust blower, electromagnetic air pumps, and CW5000/CW5200 industrial chillers.

• The heavy-duty reinforced chassis is engineered to minimize structural vibrations, allowing the CO2 Laser Engraving Machine to maintain precision at high processing speeds.

---

II. Advantages of the YH1610 Laser System

• The primary advantage of this CO2 Laser Engraving Machine is its ability to double productivity through the independent operation of two laser heads on a single frame.

• The arched CCD visual system eliminates the need for manual positioning, allowing the machine to automatically find and cut complex printed patterns on distorted fabrics.

• By utilizing a conveyor-type platform, the YH1610 transforms from a standard cutter into a continuous production line, saving significant labor costs in material handling.

• The dual-path gas and water system provides a redundant safety layer, ensuring that even if one path experiences a fluctuation, the other head remains fully operational and cooled.

• YIHAICNC’s use of HIWIN square rails ensures that the mechanical precision remains consistent over years of use, preventing the “drift” often seen in round-rail hobbyist machines.

• This machine serves as a versatile CO2 Laser Cutting Machine for roll materials like leather and textiles, offering a cleaner edge than traditional die-cutting or blade systems.

• The arched structure provides a wider field of view for the CCD camera, enabling the system to capture large-format patterns in a single shot for faster recognition speeds.

• Our integrated air assist technology prevents the charring of delicate fabrics and protects the expensive focus lenses from smoke residue, extending the life of the optics.

• The Ruida-based logic allows for “Smart Nesting,” which optimizes the placement of patterns on the material to minimize waste and maximize the yield of every fabric roll.

• Standardized industrial interfaces (USB & PC) allow for easy file management and offline operation, ensuring that your production schedule is never tethered to a single computer.

• The 1610 format is specifically optimized for the global garment industry, fitting standard fabric roll widths without the need for pre-trimming or secondary processing.

• YIHAICNC provides a comprehensive “Plug-and-Play” solution with all necessary chillers and blowers included, ensuring a rapid return on investment for small-to-medium factories.

---

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1610(Top Arched Structure with CCD Camera)
Other Aliases:	Large format visual cutting machine 1610 automatic feeding Double head independent work
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	150W(Customizable)
Total Power	＜2.5KW
Working Table	Conveyor-type Automatic Feeding Platform (with Auto-loading Function)
Working Area	1600*1000mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

IV. Key Components Description

	Curved CCD Vision System Equipped with a top-mounted arched structure housing a high-resolution CCD camera, enabling real-time visual recognition and precise contour extraction of printed graphics.
Conveyor-type Automatic Feeding Platform + Dual-Head Independent Working System Features a dual-head independent working system, allowing two laser heads to simultaneously process different tasks or identical patterns within the same working area. Boasting a massive 1600mm x 1000mm (1610) working area combined with an automatic feeding platform, this system significantly boosts processing efficiency for large-scale garment patterns, automotive interiors, and wide-format soft signage projects.
	Integrated Control Cabinet (Powered by Ruida RDC6442S System) Managed by the world-renowned Ruida RDC6442S control system, supporting professional functions such as asynchronous dual-head control and visual path optimization.
High-Performance, High-Precision CO2 Laser Tubes Includes two high-quality CO2 laser tubes (with customizable power upgrades available), delivering stable beam quality to achieve clean cutting edges and intricate engraving on thick fabrics.
	Centralized Interface Panel (Dual-Channel Design) Features a high-quality dual-water and dual-air channel design, ensuring independent cooling and air assistance for each laser head to maintain optimal processing temperatures.
Emergency Stop Button and Safety Switch The emergency stop function ensures immediate system shutdown, providing industrial-grade safety protection for operators during high-intensity processing cycles.
	DSP Operation Panel Equipped with an intuitive LCD screen, allowing for real-time adjustment of processing parameters.

---

V. Applicable Materials

The YH1610 CO2 Laser Engraving Machine is a specialist in processing roll and flexible substrates. It excels in cutting and engraving textiles, fabrics, and genuine leather. It is also highly effective for synthetic leather (PU/PVC), neoprene, and industrial felts. Additionally, it can process paper rolls, thin plastics, and non-woven fabrics, making it the ultimate tool for industries requiring continuous processing of soft, long materials.

---

VI. Applicable Industries and Future Prospects

The Garment and Textile Industry stands as the primary beneficiary of the YH1610’s capabilities. With the rise of “Fast Fashion” and personalized apparel, the ability to automatically recognize and cut sublimation-printed fabrics is a game-changer. This CO2 Laser Engraving Machine allows manufacturers to move from design to finished cut pieces in record time. As the industry shifts toward on-demand production, the YH1610 provides the flexibility to handle small batches and complex patterns without expensive tooling.

In the Automotive and Transportation Sector, the machine is used for large-scale production of car seat covers, floor mats, and interior trim components. The 1610’s large bed and conveyor system allow for the processing of long hides and synthetic materials used in mass transit and luxury vehicles. Future prospects include the integration of laser technology into the production of sustainable, recycled fabrics which require the precise, non-contact processing that only a laser can provide.

The Advertising and Soft Signage Sector utilizes the YH1610 for the production of banners, flags, and trade show displays. Digital printing on fabric is a massive growth market, and the CCD-equipped YH1610 is the bridge between a digital file and a physical product. By automating the contour cutting process, sign shops can significantly increase their throughput and offer more competitive pricing for custom fabric products.

Looking toward the future, the Home Furnishing and Interior Decor industries are increasingly adopting laser technology for custom upholstery and window treatments. As smart homes and customized interiors become more prevalent, the demand for locally produced, bespoke textile products will grow. The YIHAICNC YH1610 is positioned to be the backbone of these local micro-factories, offering industrial-grade reliability with the precision needed for modern interior design aesthetics.

---

VII. Safety Precautions and Guidelines

• Laser Radiation Safety: Always operate the machine with the arched CCD area clear of obstructions and wear 10.6μm certified laser safety glasses during setup.

• Air Extraction: Ensure the centrifugal exhaust blower is correctly vented. Processing fabrics and leather can produce thick smoke and volatile organic compounds (VOCs).

• Cooling Verification: Before initiating a job, verify that both channels of the CW5000/5200 chiller are active. Running without cooling will cause immediate laser tube failure.

• Conveyor Movement: Keep hands and loose clothing away from the conveyor mesh and the auto-loading rollers while the feeding system is in operation to prevent injury.

• Material Flammability: Never leave the machine unattended when cutting flammable materials. Maintain a CO2 fire extinguisher nearby for emergency suppression.

---

VIII. Frequently Asked Questions (FAQ)

Q1: How does the arched CCD camera system improve production efficiency compared to standard sensors?

The arched CCD structure on the YH1610 is a massive upgrade over head-mounted sensors. By placing the camera at the apex of the arch, the CO2 Laser Engraving Machine gains a much wider field of view, allowing it to “see” the entire 1600mm width of the material at once. The software then uses advanced algorithms to recognize registration marks or pattern outlines. This allows the machine to compensate for fabric stretching or distortion—which is common in textiles—and adjust the cutting path in real-time. This eliminates the need for manual alignment, reducing setup time by up to 80% and ensuring that every cut is perfectly synchronized with the printed graphics, regardless of material deformation.

Q2: What are the specific benefits of the “Double Head Independent” work mode?

The “Double Head Independent” (DHI) system is what makes the YH1610 a true industrial workhorse. Unlike standard double-head machines, where both heads move in unison (synchronous), the DHI system allows the two heads to move independently on the X-axis. This means you can cut two different shapes at the same time, or nest small parts more efficiently across the 1600mm span. If one laser tube requires maintenance, the other can continue to work, ensuring your production line never fully stops. For YIHAICNC customers, this translates to nearly double the output of a single-head machine without requiring double the floor space or two separate operators.

Q3: Why is the dual-path water and gas system considered a “high-end” configuration?

In many budget machines, multiple laser heads share a single cooling line and one air assist pump. This often leads to uneven cooling and inconsistent air pressure, which can ruin delicate fabrics. The YH1610 features a fully separated dual-path system. Each laser head has its own dedicated cooling loop from the CW5000/5200 chiller and its own independent gas line. This ensures that Laser Head A and Laser Head B receive the exact same pressure and cooling efficiency. This redundancy is critical for long-duration industrial runs where maintaining a consistent cutting edge quality is the difference between a high-quality garment and a rejected piece of material.

Q4: How does the conveyor table handle thin or lightweight fabrics without them slipping?

Material stability is the biggest challenge when using an auto-feeding system. The YH1610 addresses this through a high-performance vacuum adsorption system located beneath the conveyor mesh. As the CO2 Laser Engraving Machine processes the material, a powerful negative pressure is created, effectively “sucking” the fabric down onto the mesh belt. This ensures that even ultra-lightweight materials like silk or nylon do not move or bunch up during high-speed laser movements. The mesh belt itself is made of heat-resistant alloy, ensuring it can withstand the laser energy while providing the necessary friction to move the fabric rolls forward with millimeter precision during the feeding cycle.

Q5: Can the YH1610 handle thick leather or only thin textiles?

While the YH1610 is optimized for visual cutting of printed textiles, it is equally capable as a heavy-duty CO2 Laser Cutting Machine for leather. By customizing the machine with 130W or 150W RECI laser tubes, you can easily cut through 3mm to 5mm genuine cowhide or thick synthetic upholstery leathers. The conveyor system is robust enough to pull heavy rolls of leather, and the dual-head system can be used to engrave intricate patterns (like perforation or logos) on one side while cutting the outer contour on the other. This makes the YH1610 a favorite in the automotive interior and luxury handbag industries, where both precision and material thickness are key factors.

Q6: Is the Ruida RDC6442S system compatible with modern design software like LightBurn?

Absolutely. The Ruida RDC6442S is the industry standard for high-end CO2 Laser Engraving Machine control. It is fully compatible with LightBurn, which is the preferred software for many operators in the US and Europe due to its intuitive interface and powerful pathing tools. It also comes with the official RDWorks V8 software for free. Both software options support the specialized “Auto-Feeding” and “CCD Vision” plugins required for the YH1610. This compatibility ensures that YIHAICNC customers can use their existing design workflows in AI or CorelDRAW and send jobs directly to the machine via USB, Ethernet, or even a U-disk for completely offline industrial production.
