Description

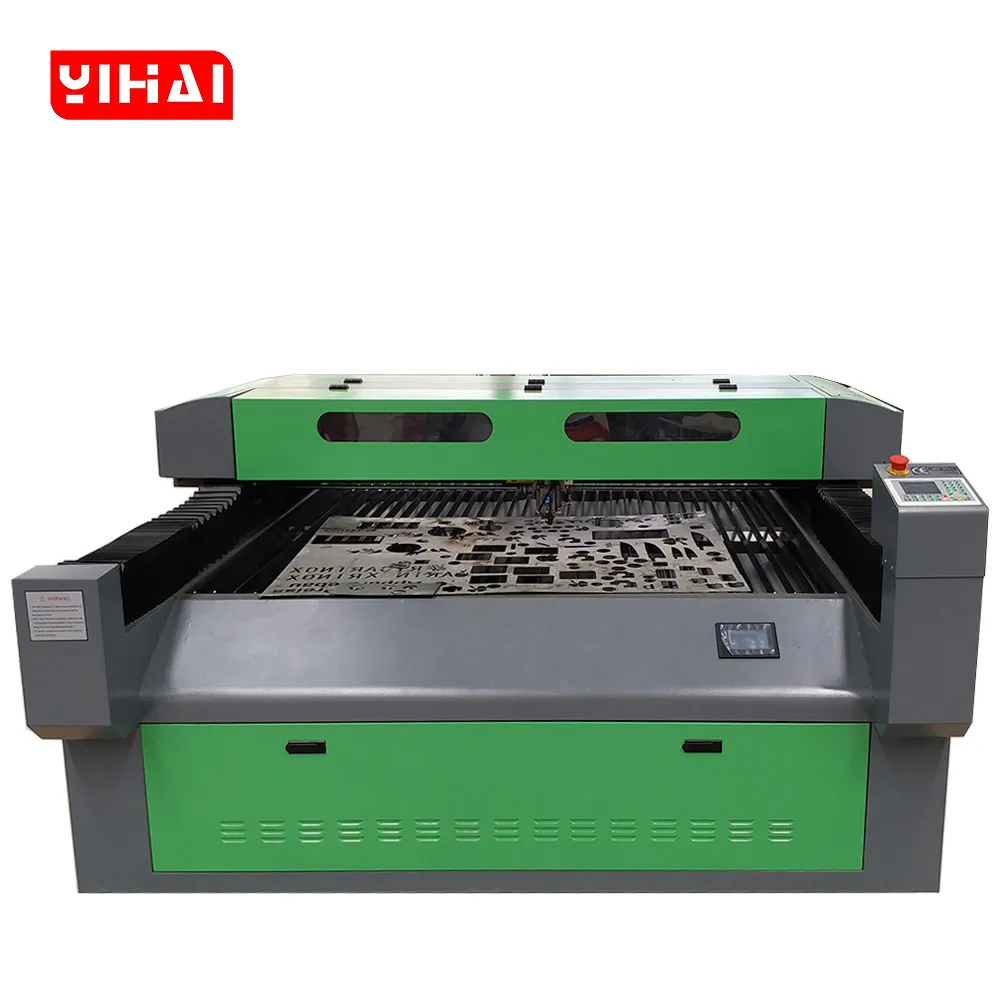

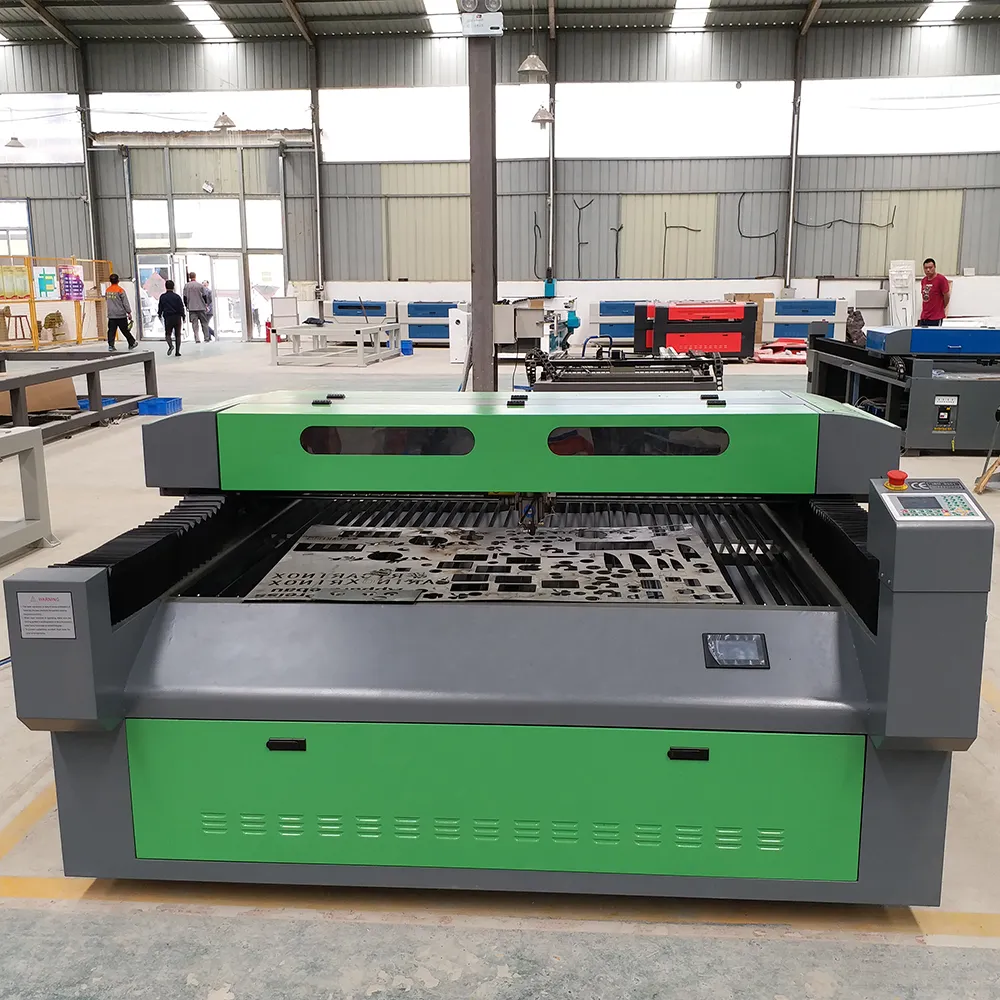

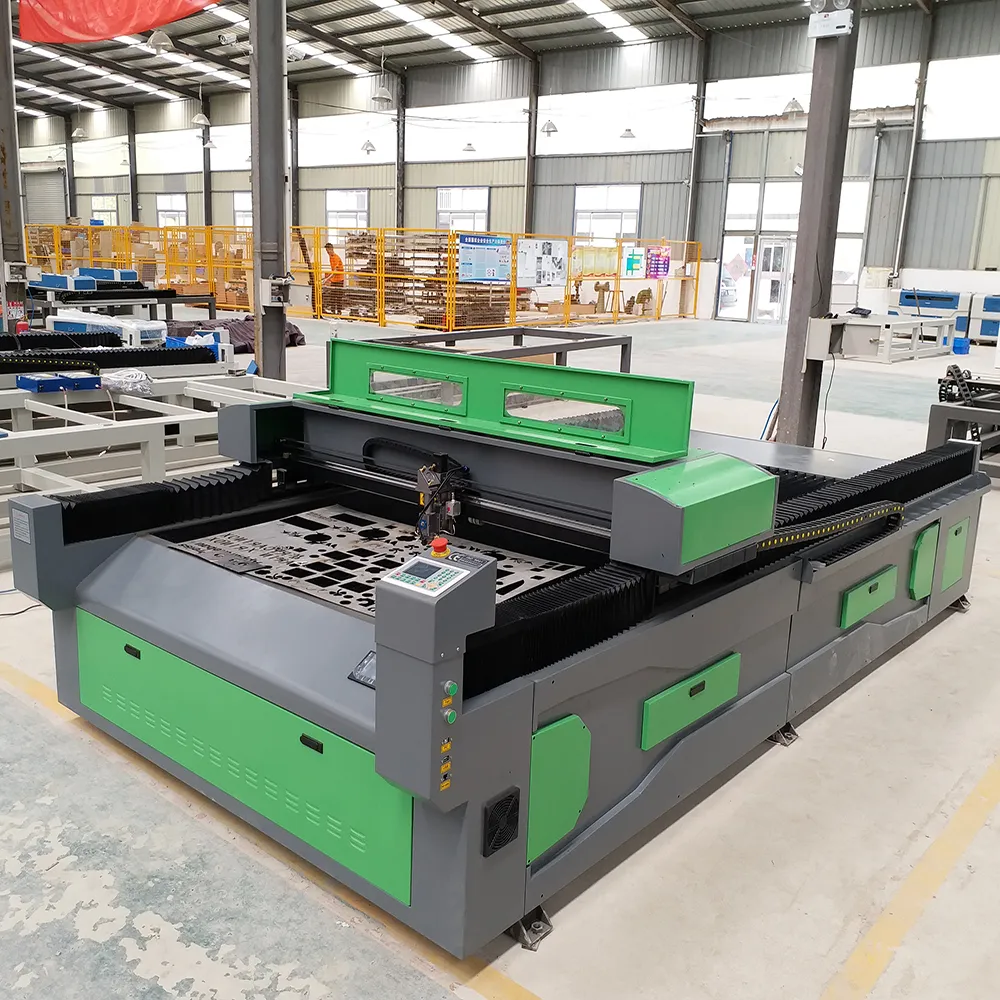

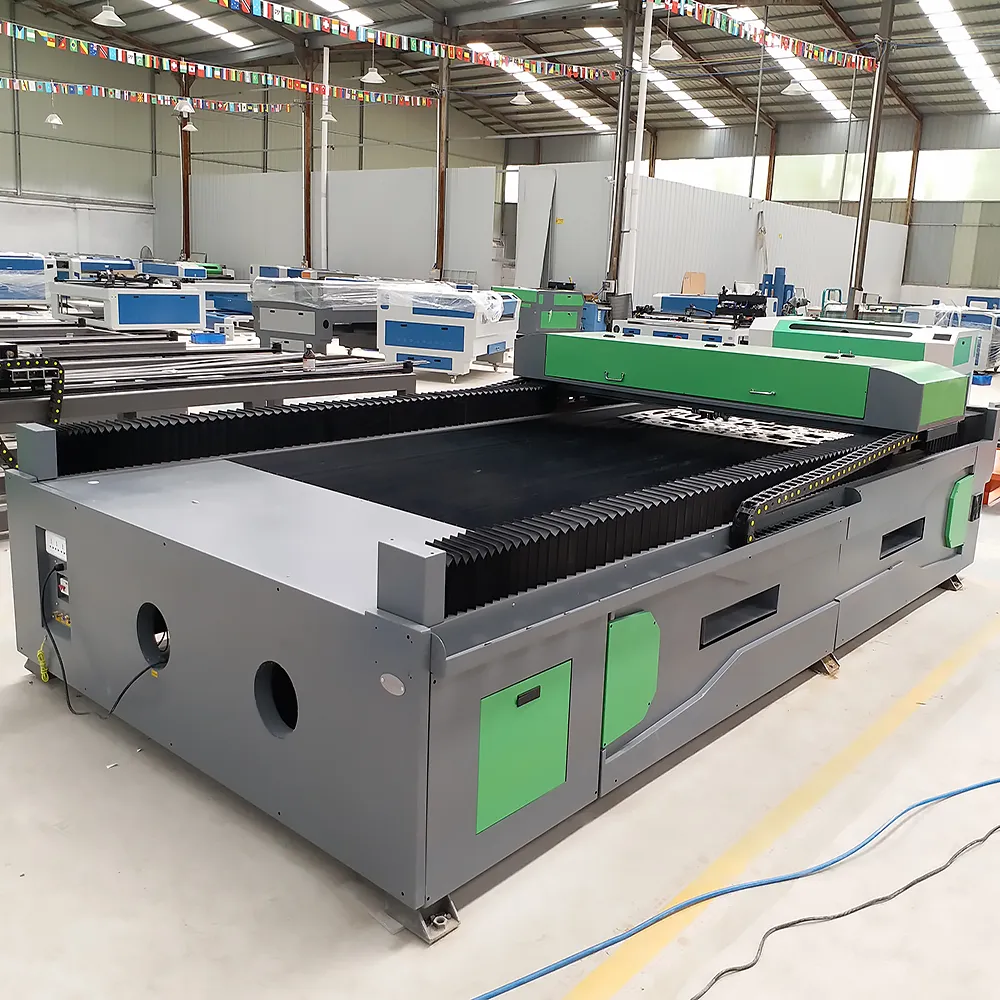

I. Features of the YH1530 CO2 Laser Engraving Machine

• The YH1530 CO2 Laser Engraving Machine provides an expansive 1500mm x 3000mm processing area, ideal for full-sized sheet manufacturing in advertising and industrial sectors.

• Equipped with a specialized hybrid laser head and a capacitive Live Focus System, ensuring the laser nozzle maintains a constant distance from metallic surfaces to prevent crashes.

• The system is driven by premium YAKO stepper motors and drivers, known for their superior dynamic response and reduced vibration compared to standard motion components.

• Utilizes genuine Taiwan HIWIN linear square rails on all axes, providing the mechanical rigidity required for heavy-duty cutting and high-speed vector engraving cycles.

• Features an authentic Ruida RDC6442S control system, offering a stable DSP environment for multi-material processing and reliable offline operation via USB or LAN.

• The transmission is executed via high-tenacity industrial belts, ensuring smooth motion across the 3-meter travel length without the mechanical noise of rack-and-pinion.

• Requires Oxygen (O2) as an auxiliary gas for processing carbon and stainless steel, while compressed air is used for standard organic material engraving and cutting.

• Incorporates a professional Blade Worktable (slat bed), which is engineered to reduce the contact area and minimize laser back-reflection for a cleaner bottom finish.

• Powered by a high-capacity CO2 laser source (customizable up to 300W), capable of penetrating thick non-metals and melting through thin metallic shims effectively.

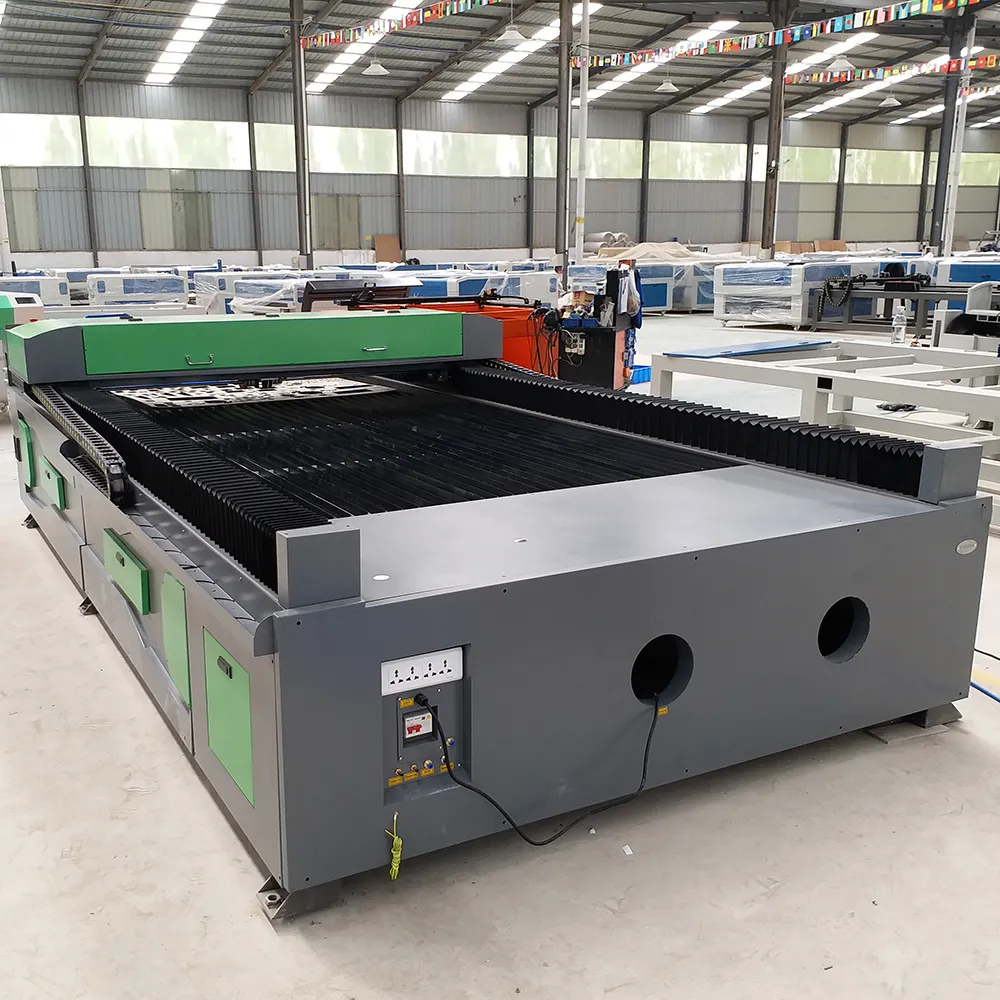

• The system includes a centralized interface connection panel for rapid setup of the included exhaust blower, air assist pump, and industrial water chiller systems.

• The reinforced industrial chassis is finished in a professional green and black color scheme, designed to withstand the rigors of a continuous 24/7 manufacturing environment.

• Supports a comprehensive range of file formats including PLT, DXF, BMP, JPG, and AI, ensuring seamless data transfer from industrial CAD and graphic design software.

---

II. Advantages of the YH1530 Laser System

• The primary advantage of the YH1530 CO2 Laser Engraving Machine is its hybrid capability, allowing users to switch between metal and non-metal tasks on one platform.

• By using a CO2 Laser Cutting Machine setup for mixed materials, workshops can achieve a flame-polished edge on acrylic that fiber lasers simply cannot produce.

• The Live Focus System is a vital safety advantage, as it monitors material warping in real-time and adjusts the Z-axis instantly to protect the focus lens and nozzle.

• YIHAICNC’s integration of YAKO motors ensures that even at high engraving speeds, the machine avoids the “step loss” often found in lower-quality motor configurations.

• The large 1530 format allows for the processing of oversized signage and decorative panels in a single pass, drastically improving the productivity of medium-to-large workshops.

• Our hybrid technology provides a significantly more affordable entry point for steel cutting compared to expensive fiber systems, offering a faster return on investment for SMEs.

• The industrial-grade HIWIN rails ensure that the machine maintains its positioning accuracy of 0.05mm over years of use, reducing the need for frequent mechanical calibration.

• The Ruida RDC6442S controller is compatible with professional pathing software like LightBurn, giving users access to advanced nesting and path optimization features.

• The specialized blade worktable is easily replaceable and durable, making it the choice for industrial cutting where heavy resin or plastic residue is generated.

• Integrated air assist technology protects the optics from smoke and debris, ensuring that the laser beam remains concentrated and effective during long cutting jobs.

• YIHAICNC provides a comprehensive “Full-Kit” shipping package, including the necessary CW chiller and exhaust blower to ensure the machine is production-ready upon arrival.

• The green and black color-coded chassis reflects the machine’s industrial positioning, offering a heavy-duty frame that minimizes vibration during rapid axis acceleration.

---

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1530(Mixed-Cutting (Single Laser Head))
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	100W(Customizable)
Total Power	＜2KW
Working Table	Blade Worktable
Working Area	1500*3000mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

IV. Key Components Description

	Professional Blade Worktable Function: Designed specifically for hard non-metal materials such as wood and acrylic. The blade structure minimizes surface contact and laser back-reflection, ensuring cleaner bottom edges for your CO2 laser cutting projects.
Dedicated CO2 Laser Head for Hybrid Cutting + Auto-Focus Function: Specifically engineered for the hybrid cutting of thin metals and thick non-metallic materials. The integrated auto-focus probe ensures precise focal positioning, thereby maximizing the accuracy of the CO2 laser engraving machine.
	Integrated Control Cabinet (Equipped with Ruida RDC6442S System) Function: Managed by the world-renowned Ruida RDC6442S control system, supporting professional features such as asynchronous dual-head control and visual path optimization.
Linear Guide Rails + Stepper Motor Belt Drive System Function: Utilizes genuine HIWIN linear square rails, high-torque stepper motors, and reinforced belts to ensure vibration-free operation and a repeatability accuracy of 0.02mm, facilitating stable and reliable industrial manufacturing.
	High-Performance, High-Precision CO2 Laser Tube Function: The core power source, delivering a stable 10.6μm beam. Designed specifically for deep cutting and fine engraving on organic substrates, it features an industrial-grade lifespan and consistent energy output.
Complete Standard Accessories Package Function: Includes a centrifugal exhaust fan, an electromagnetic air pump, and a water cooling assembly. This comprehensive kit ensures that your CO2 laser cutter is ready for immediate production use upon delivery.

---

V. Applicable Materials

The YH1530 CO2 Laser Engraving Machine is an expert at processing both metallic and non-metallic substrates. It is optimized for cutting thin stainless steel and carbon steel using Oxygen assist. For organic materials, it provides professional results on wood, acrylic, MDF, and plywood. It is also effective for processing leather, fabric, rubber, and plastics, as well as etching detailed designs onto glass and stone, making it a versatile tool for any industrial manufacturing shop.

---

VI. Applicable Industries and Future Prospects

The Custom Signage and Advertising Industry is the primary market for the YH1530. Sign makers require the flexibility to cut thick acrylic logos and then switch to thin metallic trim or backing plates for the same project. This CO2 Laser Engraving Machine allows them to fulfill comprehensive contracts without outsourcing. As the global demand for sophisticated, illuminated indoor and outdoor signage increases, the YH1530 remains an essential tool for high-end sign production.

In the Furniture and Interior Design sector, designers use the large bed of the YH1530 to create decorative metal screens, intricate wooden room dividers, and bespoke acrylic furniture. The ability to handle full 4×8 or 5×10-foot sheets makes it an efficient production tool. Future prospects include the integration of laser technology into the “Green Building” movement, where sustainable materials require the precise, non-contact processing that a CO2 laser provides.

The Sheet Metal Fabrication and Tooling industry utilizes the YH1530 for cutting gaskets, shims, and templates. The precision of the HIWIN rails and YAKO motors ensures that industrial components meet strict tolerances. As manufacturers move toward more flexible, on-demand production models, the YH1530 provides the necessary bridge between artisanal design and industrial-scale output, securing its place in the 2026 manufacturing landscape.

---

VII. Safety Precautions and Guidelines

• Protective Eyewear: Never operate the machine without wearing certified 10.6μm laser goggles to prevent permanent eye damage.

• Oxygen Safety (O2): When cutting metal, ensure all gas lines are secure. Keep the Oxygen source away from grease and oil to prevent combustion hazards.

• Sensor Calibration: Always calibrate the Live Focus System before processing metallic sheets to ensure the head follows the material height correctly.

• Fume Extraction: Ensure the exhaust blower is properly vented outside. Burning acrylic and MDF releases harmful fumes that must be removed from the workspace.

• Active Cooling: Verify that the water chiller (CW3000/5000/5200) is running and the water is flowing before firing the laser to prevent tube failure.

---

VIII. Frequently Asked Questions (FAQ)

Q1: What is the specific benefit of YAKO motors in the YH1530 industrial configuration?

In a large-format CO2 Laser Engraving Machine like the YH1530, motion stability is paramount. YIHAICNC chose YAKO stepper motors and drivers for this specific model because they offer a much higher level of dynamic response and precision compared to generic alternatives. YAKO motors are designed to reduce the resonance (vibration) that typically occurs during high-speed engraving, which results in smoother curves and sharper corners in your vector designs. For industrial users, this means higher processing speeds without sacrificing the quality of the engraving. Furthermore, these motors are known for their long-term thermal stability, allowing the machine to run for extended production shifts without the risk of overheating or losing its zero-point position.

Q2: Why is the Live Focus System strongly recommended for mixed cutting?

The Live Focus System is the most critical component for any CO2 Laser Engraving Machine designed to cut metal. Unlike wood or acrylic, metal sheets are rarely perfectly flat; they often arrive with slight warps or expand unevenly due to the heat generated during the laser cutting process. Because the focal point of a laser beam is extremely small, a height deviation of even 1mm can cause the cutting to fail. The capacitive sensor in the hybrid head detects the distance to the metal surface thousands of times per second and adjusts the Z-axis height instantly. This prevents the laser nozzle from crashing into the material and ensures a perfectly consistent cut quality across the entire 3-meter working area, protecting your expensive optics from damage.

Q3: Can the YH1530 function as a CO2 Laser Cutting Machine for thick acrylic?

Yes, the YH1530 is an exceptional tool for thick non-metallic materials. While the hybrid head is designed to handle metal using Oxygen, it is equally capable of cutting organic polymers. When set up for acrylic, the machine uses compressed air to blow away the vaporized material. Depending on the wattage of the laser tube installed (e.g., 150W or 300W), the YH1530 can slice through 20mm or even 25mm of clear acrylic in a single pass. The resulting edge is flame-polished and clear, which is a major advantage for sign makers and furniture manufacturers. The versatility of the YIHAICNC hybrid system means you can cut a stainless steel frame in the morning and thick acrylic letters in the afternoon on the same machine.

Q4: How does Oxygen (O2) assist in the metal cutting process compared to air assist?

The role of gas is fundamental to how this CO2 Laser Engraving Machine processes different materials. For non-metallic materials like wood, air assist is used to blow away smoke and prevent the material from catching fire. For metals like stainless steel, Oxygen is used as an auxiliary gas to facilitate a chemical reaction. The laser heats the steel to its ignition point, and the Oxygen stream causes an exothermic reaction (essentially controlled burning) that melts the metal and blows the slag away from the kerf. Without the purity and pressure of Oxygen, the laser energy would be reflected by the metal surface. This specialized gas path is what enables a CO2 laser to “cross over” into the metallic processing industry effectively.

Q5: What kind of maintenance is required for a 1530(Large-Format) machine?

Maintenance for a large machine like the YH1530 focuses on mechanical alignment and optical cleanliness. Every day, the operator should check and clean the three reflective mirrors and the focal lens using high-purity isopropyl alcohol to prevent smoke residue from burning into the coatings. Once a week, the HIWIN square rails should be wiped clean and lightly lubricated with specialized rail oil to ensure the heavy X-axis bridge moves smoothly across the 3-meter Y-travel. Additionally, because this machine often processes metal, the cooling water in the industrial chiller should be replaced with distilled water every 2 months to prevent mineral buildup inside the RECI laser tube. Proper maintenance ensures that your YIHAICNC system retains its 0.05mm positioning accuracy for years.

Q6: Is the Ruida RDC6442S controller compatible with professional design software?

Absolutely. The Ruida RDC6442S is the global industry standard for high-end CO2 Laser Engraving Machine control. It comes with the free RDWorks V8 software, which includes specialized plugins for AutoCAD, CorelDraw, and Adobe Illustrator, allowing you to send designs directly to the laser. It is also fully compatible with LightBurn, which is highly favored by many industrial users for its advanced path optimization, smart nesting, and user-friendly interface. Both software options allow you to manage the dual settings required for hybrid cutting: one parameter library for metal (O2 and Live Focus) and another for non-metals (Air and standard focus). This software compatibility ensures that your existing workflow is enhanced by the machine’s professional capabilities.
