Description

I. Features of the YH1530 CO2 Laser Engraving Machine

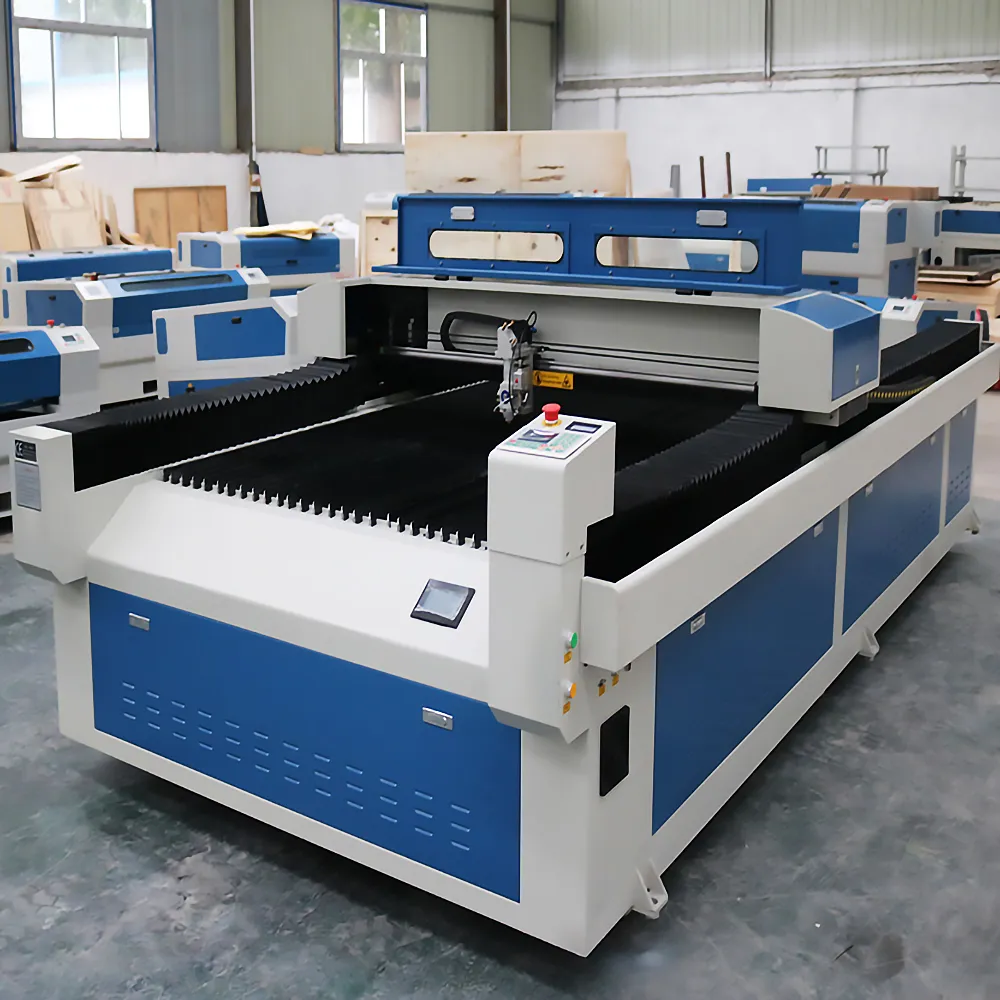

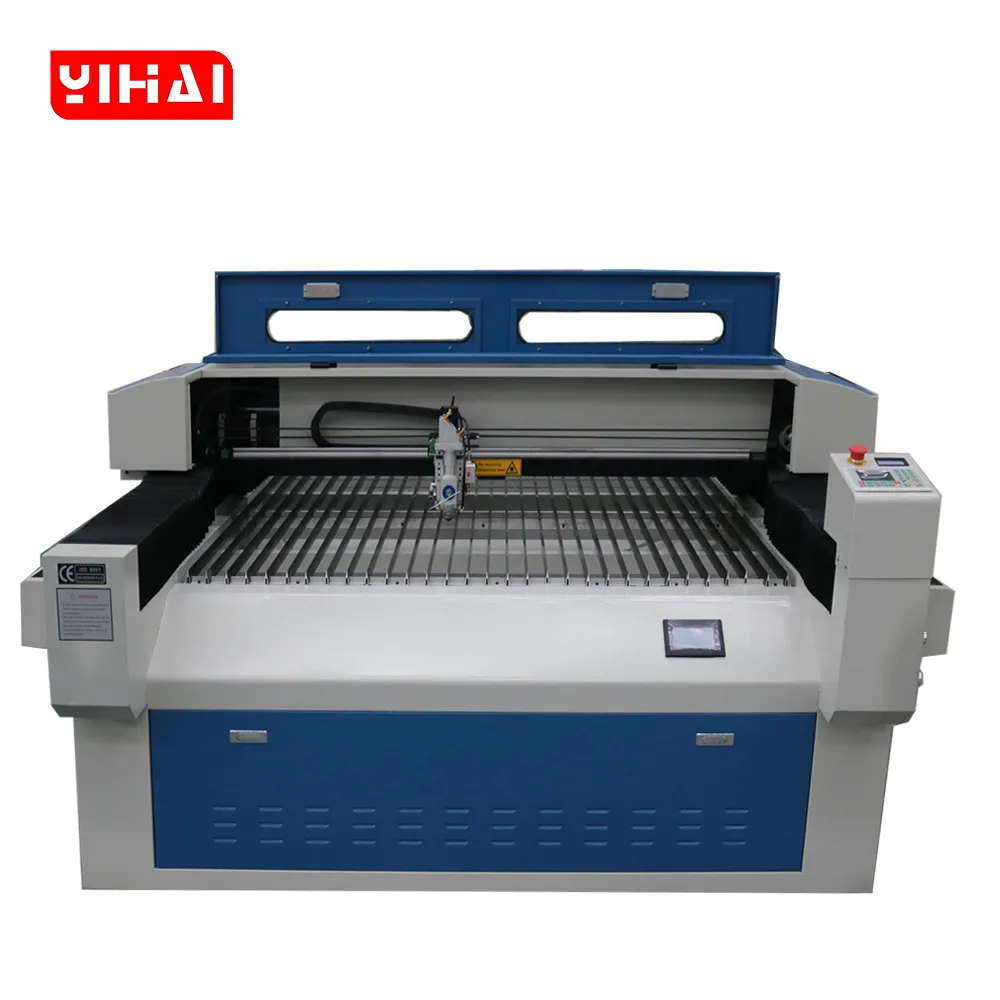

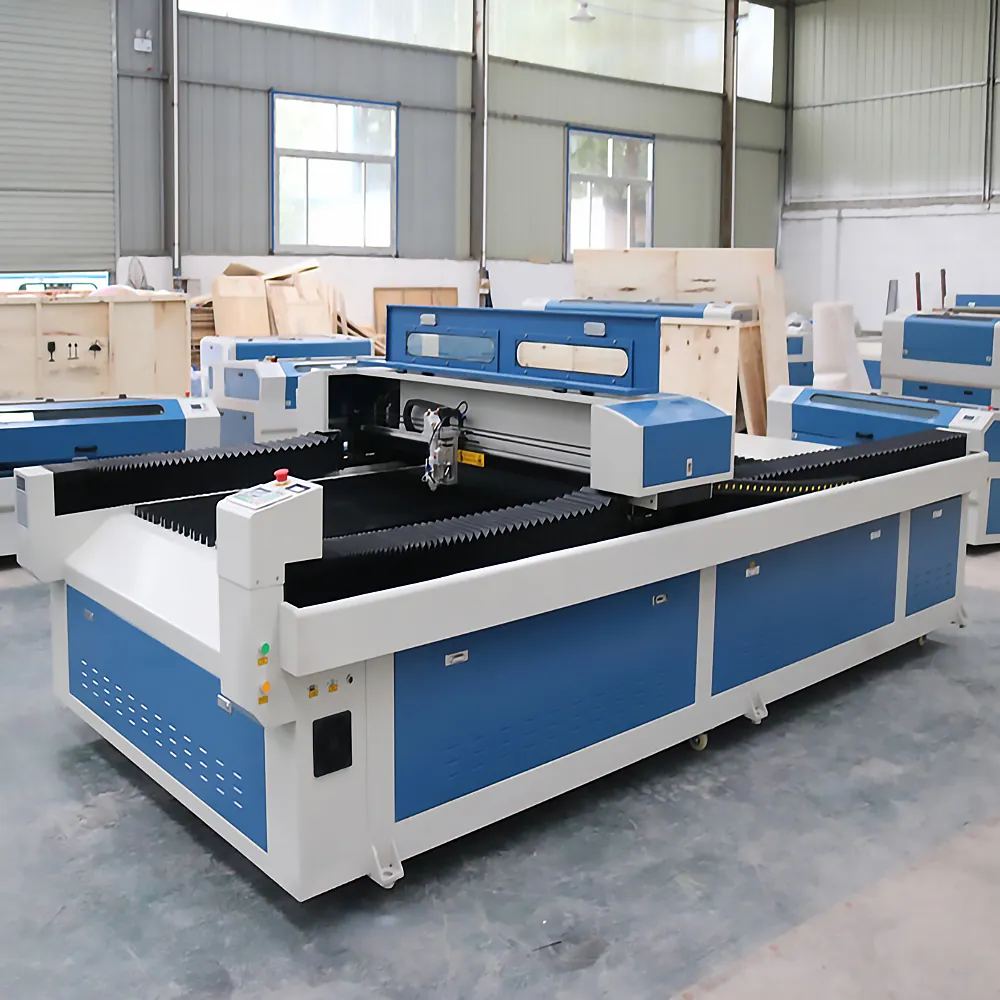

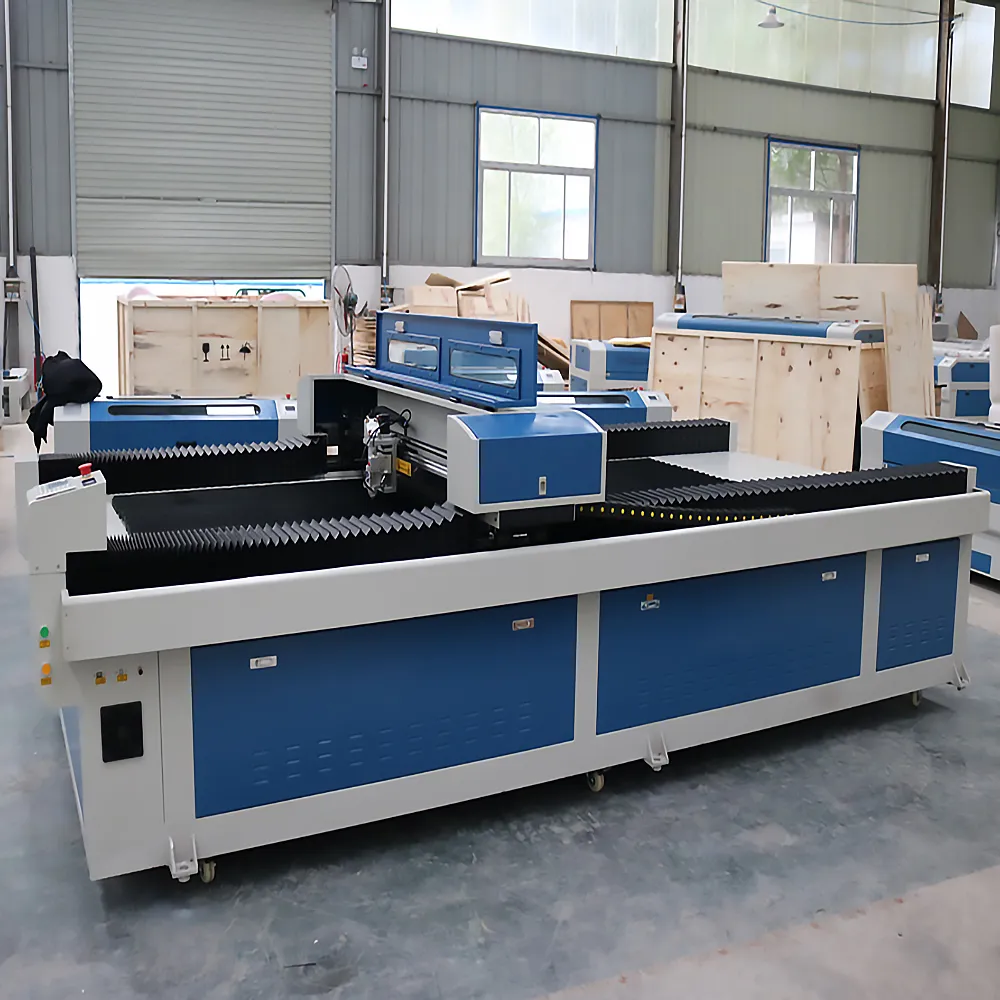

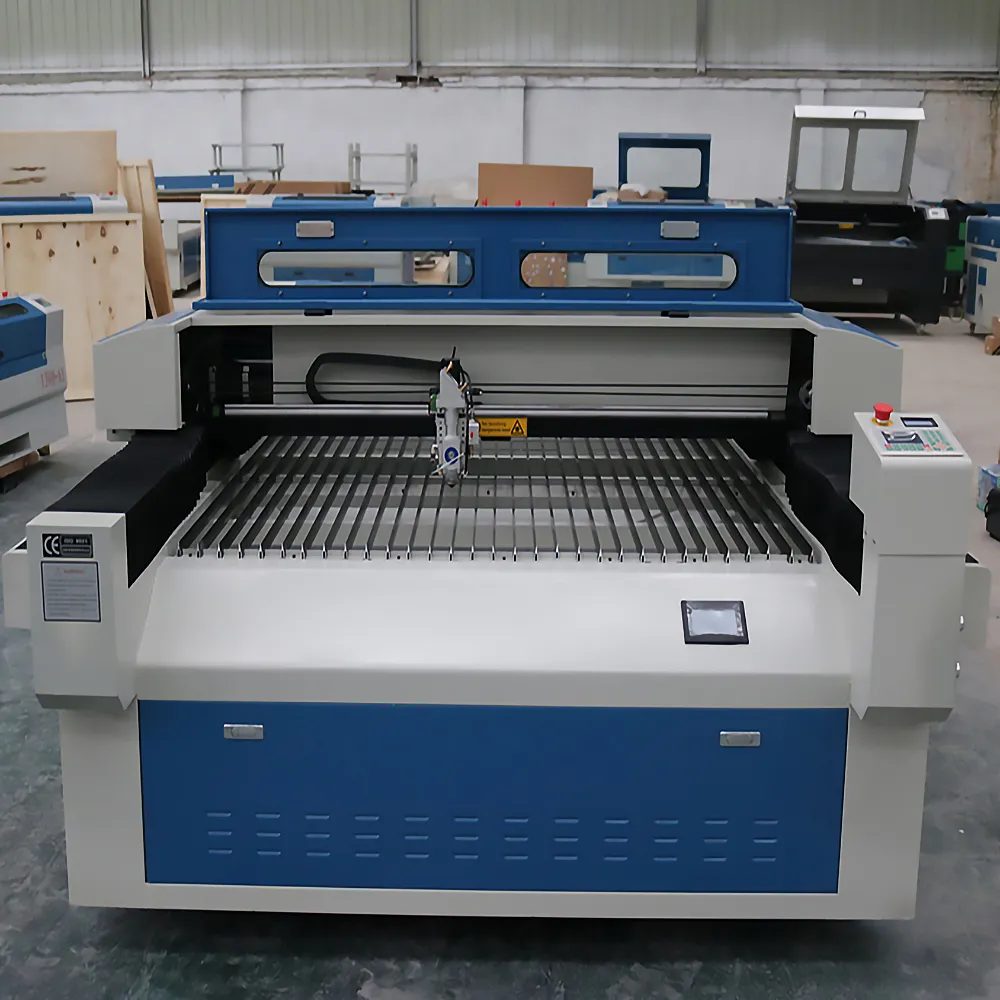

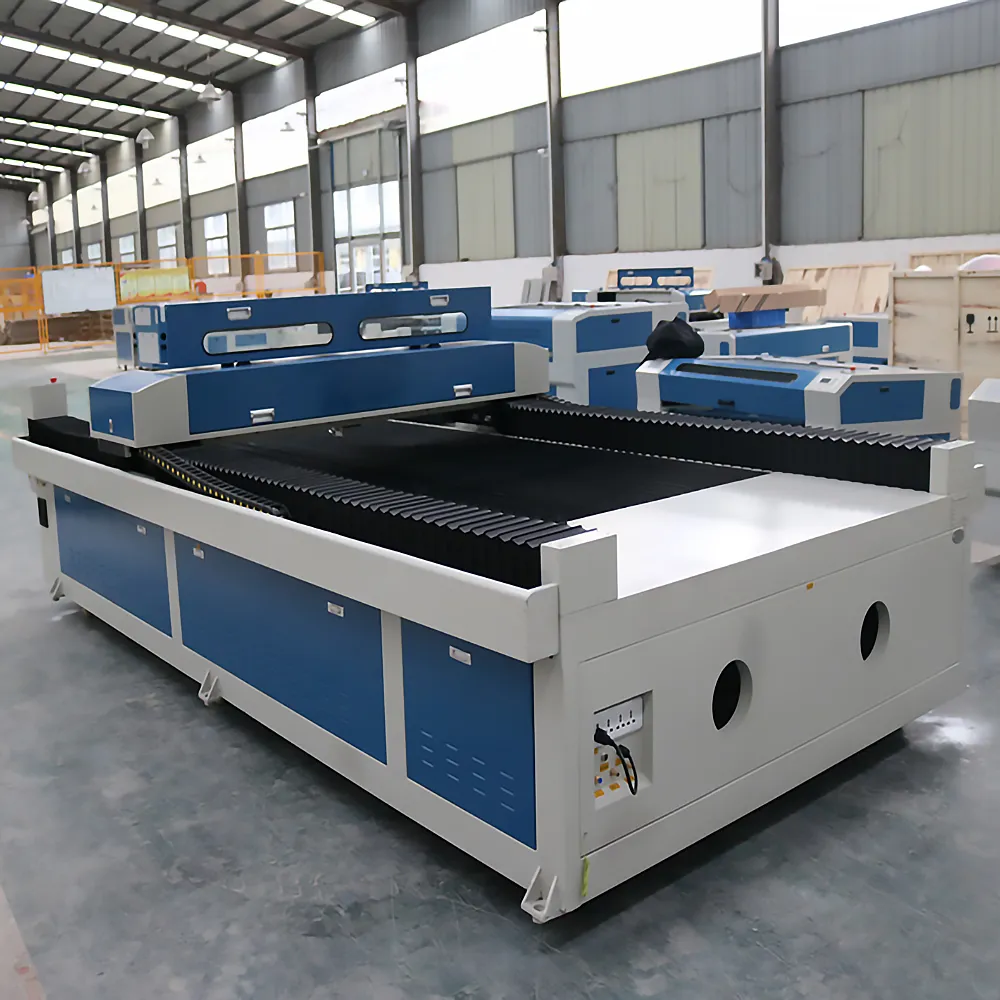

• The YH1530 CO2 Laser Engraving Machine features a massive 1500mm x 3000mm working area, specifically designed for large-format sheet processing in industrial environments.

• Equipped with a specialized hybrid laser cutting head that integrates a capacitive auto-height following system to maintain a constant focal distance on uneven metal surfaces.

• Utilizes a high-power RECI CO2 laser source (up to 300W), providing enough energy density to melt through thin metallic sheets and deeply penetrate thick organic materials.

• The motion system is built with genuine Taiwan HIWIN linear square rails to ensure mechanical rigidity and zero-vibration travel during high-speed vector cutting and engraving.

• Incorporates a professional Blade Worktable (slat bed) designed to minimize the contact area with the material, effectively reducing heat accumulation and laser back-reflection.

• Driven by a high-torque Leadshine/Stepper motor system combined with an industrial-grade belt transmission to achieve a positioning accuracy of 0.05mm across the large bed.

• Powered by the world-standard Ruida RDC6442S control system, supporting advanced logic for switching between metal cutting (O2) and non-metal engraving (Air) modes.

• The machine requires Oxygen (O2) as the auxiliary gas for metallic processing, facilitating the exothermic reaction needed to produce a clean and slag-free cut edge on steel.

• Features a dual-gas path logic, allowing the software to automatically toggle between high-pressure Oxygen for metal and low-pressure Air for wood or acrylic engraving.

• Every unit includes a professional accessory suite with a high-capacity centrifugal exhaust blower to remove toxic smoke and a CW5000/CW5200 series industrial chiller.

• The heavy-duty industrial chassis is reinforced with internal steel ribbing to maintain structural alignment, ensuring that the 3-meter travel remains perfectly flat and precise.

• Integrated with professional LED lighting and a standard emergency stop button, the YH1530 prioritizes operator safety and visibility during complex manufacturing tasks.

• Supports a comprehensive range of file formats, including PLT, DXF, BMP, JPG, and AI, enabling a seamless workflow from professional CAD software to the laser controller.

• The YH1530 serves as an affordable alternative to fiber lasers for businesses that need to process both carbon steel and thick non-metallic polymers on a daily basis.

---

II. Advantages of the YH1530 Laser System

• The primary advantage of the YH1530 CO2 Laser Engraving Machine is its versatility, allowing one machine to handle tasks that typically require two separate pieces of equipment.

• By using a CO2 Laser Cutting Machine configuration for mixed materials, users can achieve a much cleaner and polished edge on acrylic than what is possible with a fiber laser.

• The inclusion of the Live Focus System is a critical advantage, as it prevents the expensive laser nozzle from crashing into warped metal sheets during the cutting process.

• The 1530 large-format bed allows sign makers to process full-sized 4×8 or 5×10 foot sheets without the need for pre-cutting, maximizing material yield and reducing labor time.

• YIHAICNC’s hybrid technology offers a significantly lower entry cost for metal cutting compared to high-wattage fiber systems, providing a rapid return on investment (ROI).

• HIWIN square rails offer superior durability and lower friction compared to standard round rails, resulting in smoother engraving corners and more consistent cutting depths.

• The Ruida RDC6442S system is highly compatible with the global market, allowing operators to easily find tutorials, software updates, and advanced pathing plugins like LightBurn.

• Our specialized air assist design protects the focal lens from smoke residue, ensuring that the 300W laser beam maintains its intensity throughout long production cycles.

• The blade worktable is easily replaceable and easy to clean, making it the superior choice for industrial applications where resin or melted plastic buildup is common.

• The 300W peak power allows this CO2 Laser Engraving Machine to slice through 20mm or 25mm acrylic in a single pass, creating a flame-polished finish that requires no secondary sanding.

• YIHAICNC provides a comprehensive “Ready-to-Ship” package, ensuring that customers receive all necessary cooling and extraction components to start production immediately.

• The belt-driven logic on a large frame provides a much quieter operating environment than rack-and-pinion systems, making it suitable for smaller industrial units or workshops.

• The hybrid head is optimized for high-pressure gas flow, ensuring that even when cutting 1.5mm stainless steel, the kerf remains narrow and the thermal distortion is minimized.

• Designed for 2026 industrial standards, the YH1530 is engineered for low energy consumption relative to its processing power, reducing the overall operational cost for the user.

---

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1530(Mixed-Cutting (Single Laser Head))
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	300W(Customizable)
Total Power	＜3KW
Working Table	Blade Worktable
Working Area	1500*3000mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

IV. Key Components Description

	Professional Blade Work Table Function: Specifically designed for cutting hard non-metallic materials such as wood and acrylic. The blade structure minimizes surface contact and laser back-reflection, ensuring cleaner bottom edges for your CO2 laser cutting projects.
High-Performance, High-Precision CO2 Laser Tube Function: The core power source, delivering a stable 10.6μm laser beam. Designed for deep cutting and fine etching on organic substrates, it features an industrial-grade lifespan and consistent energy output.
	Dedicated Hybrid Cutting CO2 Laser Head + Auto-Focus Function: Engineered for the hybrid cutting of both thin metals and thick non-metallic materials. The integrated auto-focus probe ensures precise focal positioning, maximizing the accuracy of your CO2 laser engraving machine.
Linear Guide Rails + Stepper Motor Belt Drive System Function: Utilizes genuine HIWIN linear square rails, high-torque stepper motors, and reinforced belts to ensure vibration-free operation and a repeatability accuracy of 0.02mm, thereby enabling stable industrial-grade manufacturing.
	Integrated USB and LAN Data Interfaces Function: Supports high-speed data transmission and offline operation. Users can upload files via USB flash drive, USB cable, or network connection, offering maximum flexibility and efficient file management for professional workshops.
DSP Control Panel with Emergency Stop Button Function: Equipped with an intuitive LCD screen that allows for real-time monitoring of current speed and power parameters. Industrial-grade mechanical buttons provide distinct tactile feedback, while the emergency stop button enables instantaneous power cutoff and machine shutdown in urgent situations, thereby maximizing operator safety.
	Complete Standard Accessories Package Function: Includes a centrifugal exhaust blower, an electromagnetic air pump, and a water cooling assembly. This comprehensive kit ensures that your CO2 laser cutting machine is ready for immediate production use upon delivery.

V. Applicable Materials

The YH1530 CO2 Laser Engraving Machine is a true multi-material specialist. For metallic substrates, it excels at cutting thin stainless steel and carbon steel using Oxygen assistance. For non-metallic projects, it provides professional results on wood, acrylic, MDF, and plywood. It is also highly effective for processing leather, fabric, rubber, and plastics, as well as etching fine details onto glass and stone, making it the ultimate tool for diverse industrial workshops.

---

VI. Applicable Industries and Future Prospects

The Advertising and Signage Industry is the leading adopter of the YH1530. Sign makers require the ability to cut large acrylic letters and then switch to thin metal backing plates or frames. This CO2 Laser Engraving Machine allows them to fulfill entire contracts on a single machine. As the trend toward high-end, illuminated LED signage grows, the demand for machines that can handle mixed materials with high precision will continue to rise throughout 2026.

In the Sheet Metal Fabrication and Decoration sector, the YH1530 serves as a powerful supplementary tool. While fiber lasers are faster for pure metal, the YH1530 offers the unique ability to engrave patterns into wood inserts or cut plastic templates for the same project. Interior designers use these machines to create custom metal screens, decorative wooden panels, and bespoke acrylic furniture, all of which are seeing massive growth in the global luxury market.

The Automotive and Industrial Component industry utilizes the large bed of the YH1530 for cutting gaskets, insulation materials, and thin metal shims. The precision of the HIWIN rails ensures that industrial parts meet strict tolerance requirements. Future prospects in this sector involve the increasing use of composite materials, which require the versatile 10.6μm wavelength of a CO2 laser for efficient, non-contact processing.

Looking forward, the On-Demand Industrial Manufacturing model is becoming the global standard. Small-to-medium enterprises (SMEs) need flexible tools that don’t lock them into a single material type. The YIHAICNC hybrid series is positioned as the backbone of these “micro-factories.” The ability to pivot from a woodworking project in the morning to a metal cutting job in the afternoon ensures that the YH1530 remains a profitable and essential asset for years to come.

---

VII. Safety Precautions and Guidelines

• Laser Radiation Safety: Always wear certified 10.6μm wavelength protective goggles. The laser beam is invisible and can cause permanent blindness even from a reflection.

• Gas Handling (O2): Oxygen is a strong oxidizer. Ensure all gas lines are leak-free and kept away from oil or grease to prevent fire hazards during metal cutting.

• Live Focus Protection: Ensure the capacitive sensor is calibrated before processing metal. This prevents the laser head from crashing into the material, protecting the optics.

• Fume Extraction: Burning acrylic, MDF, or coated metals releases toxic fumes. Never operate the machine without the centrifugal exhaust fan and proper external venting.

• Fire Prevention: Never leave the machine unattended. Mixed cutting involves high temperatures and flammable materials; always keep a fire extinguisher within immediate reach.

---

VIII. Frequently Asked Questions (FAQ)

Q1: How does “Mixed Cutting” allow a CO2 laser to cut metal when standard machines cannot?

The secret to mixed cutting on the YH1530 CO2 Laser Engraving Machine lies in the combination of a high-wattage laser tube (usually 150W-300W) and the use of high-pressure Oxygen (O2) as an auxiliary gas. In non-metal cutting, the laser simply vaporizes the material. In metal cutting, the laser heats the steel to its ignition point, and the Oxygen stream causes a rapid exothermic reaction (burning), which slices through the metal while blowing away the molten slag. Without the O2 and the specialized hybrid head, the laser energy would simply reflect off the metal surface without penetrating. This allows the YH1530 to act as a versatile CO2 Laser Cutting Machine for up to 1.5mm or 2mm of steel.

Q2: Why is the Live Focus System essential for this hybrid machine?

The Live Focus System is the most important “insurance policy” for your hybrid machine. Metallic sheets, unlike acrylic or MDF, are rarely perfectly flat; they often have slight bows or warps. Because the focal point of a laser beam is only a few millimeters long, even a 1mm deviation in height can cause the cutting to fail or, worse, cause the laser nozzle to hit the metal. The capacitive sensor in the hybrid head detects the distance to the metal surface in real-time and adjusts the Z-axis height instantly. This ensures a consistent cut quality across the entire 3-meter bed and prevents expensive damage to your laser head and focal lens.

Q3: Can I use the YH1530 for engraving non-metals if it is set up for metal cutting?

Absolutely. The YH1530 is designed to be a “best-of-both-worlds” solution. When you want to engrave wood or cut acrylic, you simply switch the gas source to Air (using the included air pump or an external compressor) and adjust your settings in the Ruida controller. The hybrid head works perfectly with non-metallic materials, and the large bed format allows you to lay out massive engraving projects. YIHAICNC recommends using separate “parameter libraries” in your software so you can toggle between metal and non-metal modes with a single click, making it a highly efficient CO2 Laser Engraving Machine for any workshop.

Q4: What is the maintenance requirement for a 300W RECI laser tube system?

A high-power system like the YH1530 requires diligent temperature management and optical cleaning. You must use a CW5200 chiller (or higher) to keep the water temperature between 18°C and 25°C; operating above this range will rapidly degrade the 300W tube’s gas mixture. Additionally, because mixed cutting produces more sparks and debris than standard cutting, you should inspect and clean the three reflective mirrors and the focal lens daily with high-purity isopropyl alcohol. Keeping the HIWIN rails lubricated and the exhaust ducts clear of dust will ensure that your YIHAICNC machine maintains its industrial precision and power output for several years of heavy use.

Q5: Is the Ruida RDC6442S controller compatible with professional design software like Adobe Illustrator?

Yes, the Ruida RDC6442S is one of the most versatile controllers on the market. It comes with the free RDWorks V8 software, which acts as a plugin for CorelDraw and AutoCAD, allowing you to send designs directly to the machine. It is also fully compatible with LightBurn, which is preferred by many professionals for its advanced nesting and path optimization features. Whether you are creating complex vector logos in Illustrator or industrial DXF blueprints in AutoCAD, the YH1530 will handle the data transfer seamlessly, ensuring your designs are executed with a positioning accuracy of 0.05mm every time.

Q6: Why should I choose the YH1530 over a dedicated Fiber Laser for my business?

The choice depends on your “Material Mix.” A fiber laser is much faster and more precise for cutting metals, but it cannot cut non-metals like wood, acrylic, or leather—it will simply pass through them without effect. If your business is 100% metal fabrication, a fiber laser is better. However, if your business involves signage, furniture, or custom gifts where you need to process both metal and non-metal sheets, the YH1530 CO2 Laser Engraving Machine is the only logical choice. It gives you the capability to expand your product line without the massive $30,000+ investment required for a large-format fiber laser, making it the most cost-effective entry point for diverse manufacturing.
