Description

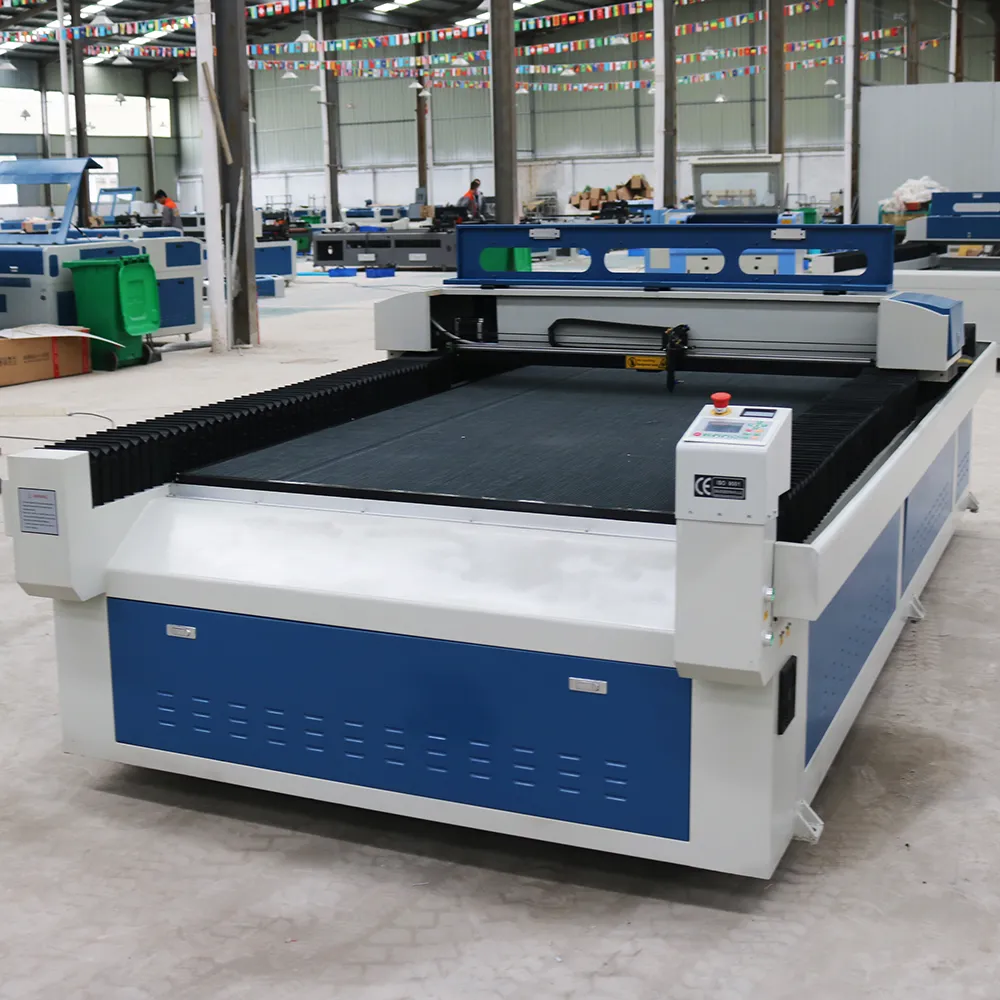

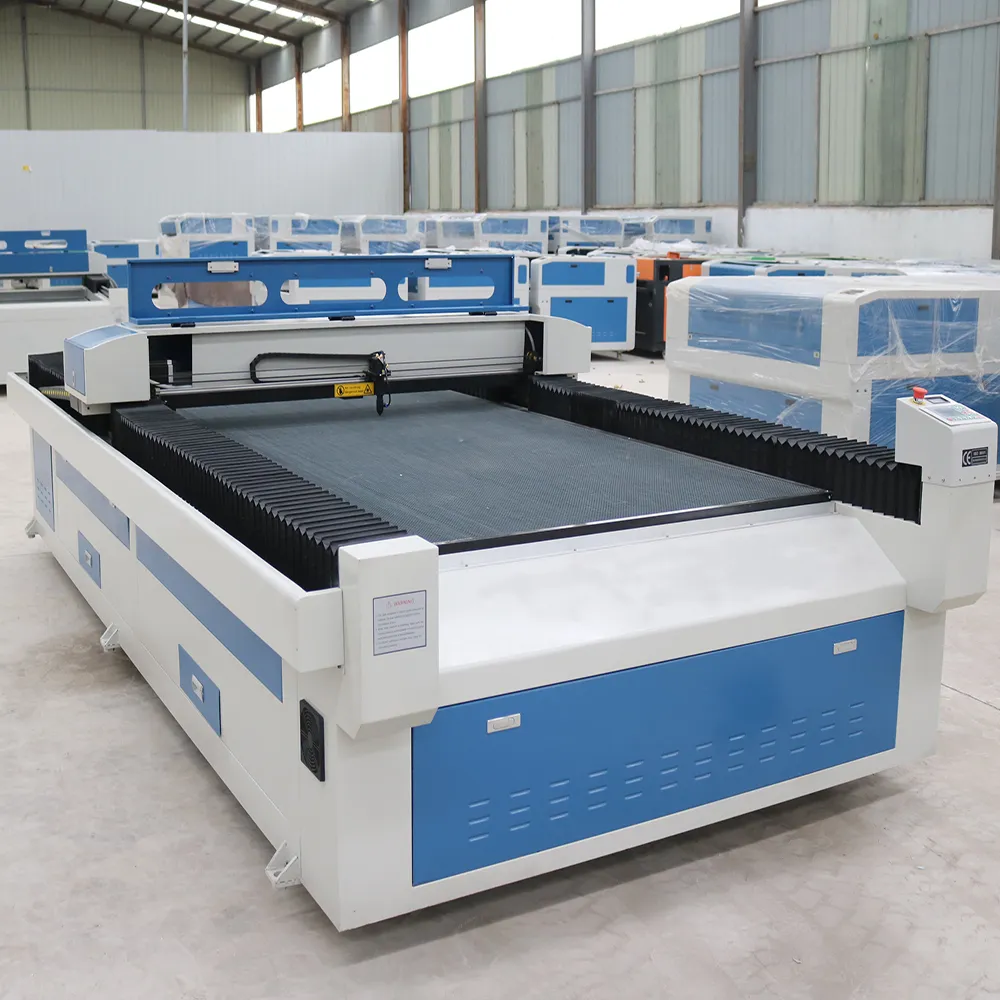

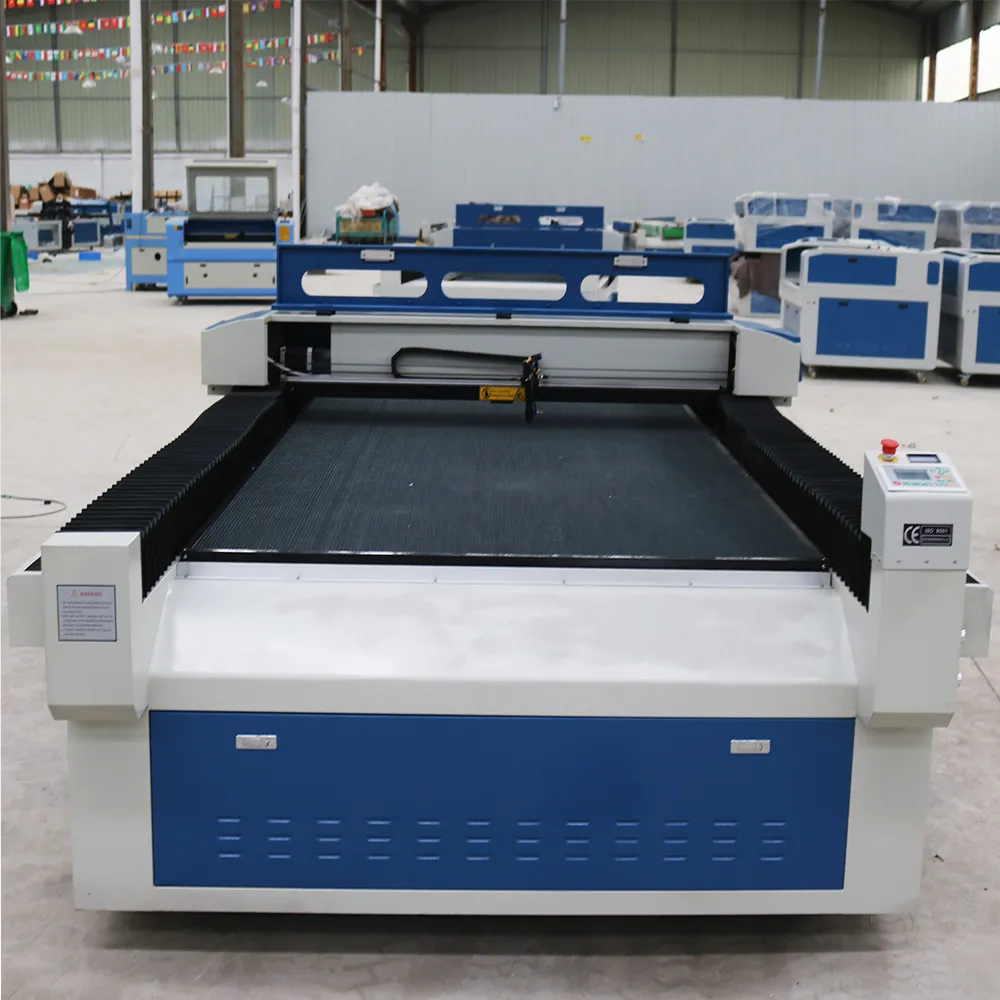

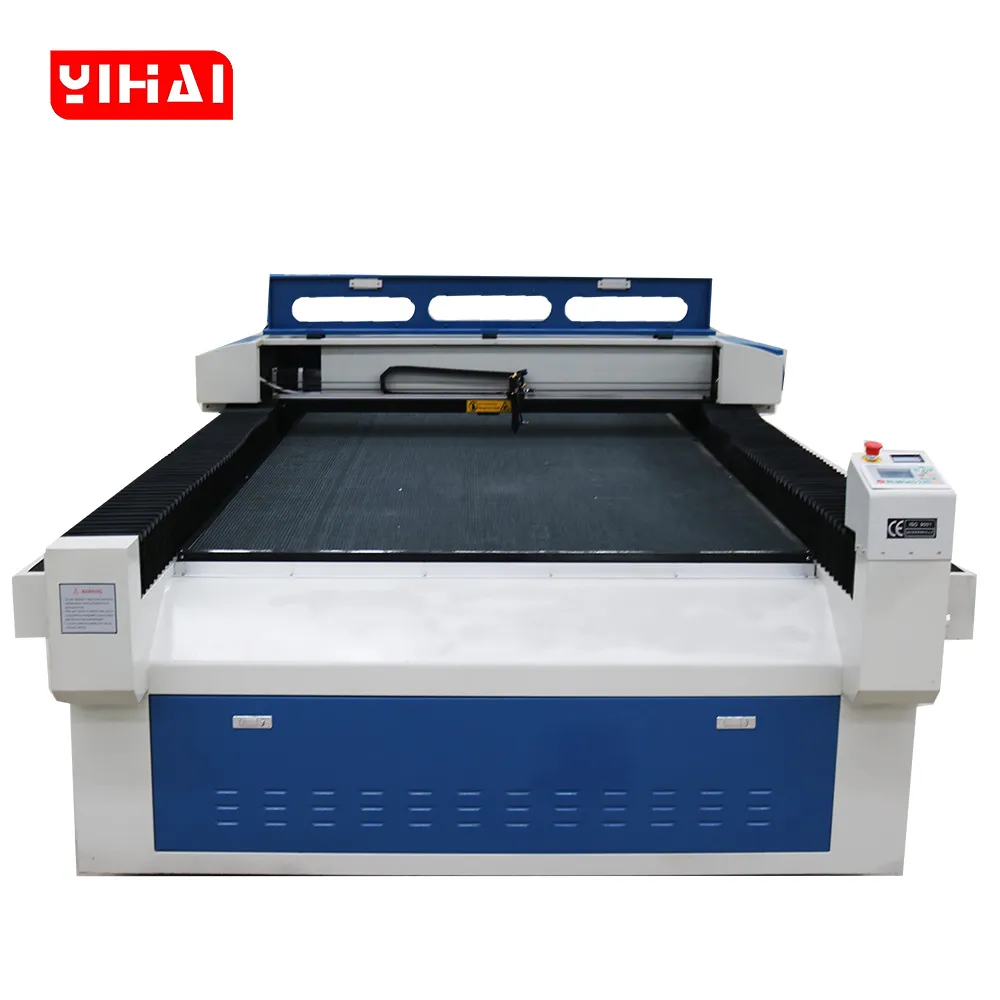

I. Features of the CO2 Laser Engraving Machine

• Features a massive 1500mm x 3000mm (YH1530) working area, specifically designed for ultra-large format sheet processing and continuous roll material manufacturing.

• Equipped with an advanced automatic feeding mesh belt platform, allowing for the seamless transition of flexible materials from loading to cutting without manual labor.

• Powered by a genuine RECI CO2 laser tube, providing a stable 10.6μm wavelength beam optimized for consistent engraving depth and clean edges on non-metallic substrates.

• The machine bed undergoes a professional industrial weighting and annealing process to eliminate internal stress, ensuring zero frame distortion over the 3-meter travel length.

• Utilizes genuine Taiwan HIWIN linear square rails combined with reinforced belt drives to maintain mechanical rigidity and 0.05mm positioning accuracy on the large frame.

• Managed by the authentic Ruida RDC6442S control system, offering professional DSP logic for synchronized motion control and reliable offline operation via USB or LAN.

• Includes a redesigned and upgraded smoke extraction flue system, specifically engineered to remove the massive volume of dust and fumes generated during large-format processing.

• Features an integrated Auto-Focus system, allowing for rapid Z-axis calibration to ensure the laser beam remains at the optimal focal point on varying material thicknesses.

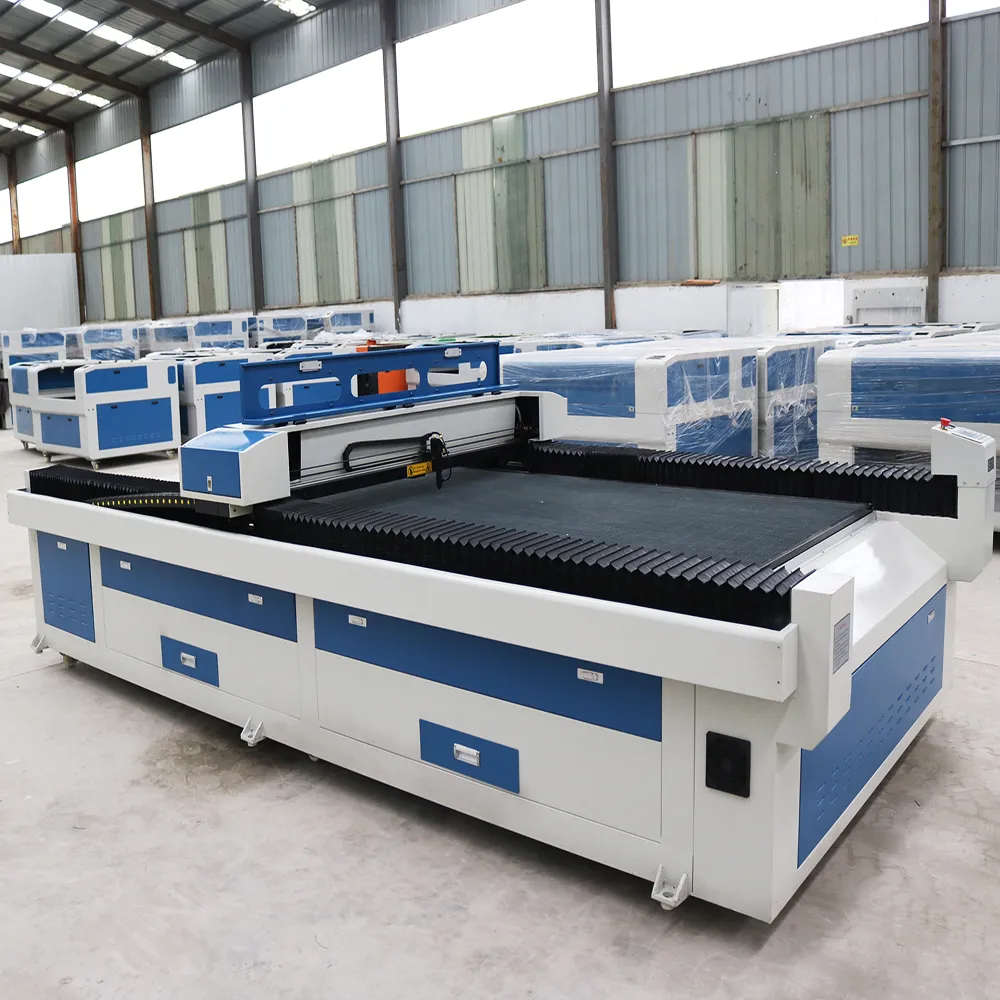

• Incorporates a humanized waste collection drawer system at the base, facilitating the rapid cleanup of scrap materials to maintain a tidy and professional industrial workspace.

• The transmission architecture is driven by upgraded high-torque stepper motors, providing the necessary force to move the 1.5-meter X-axis bridge with speed and precision.

• Standard shipping package is a comprehensive “Ready-to-Work” kit, featuring high-volume centrifugal exhaust blowers and industrial water cooling systems (CW3000/5000/5200).

• Supports a diverse range of industrial graphic formats, including PLT, DXF, BMP, JPG, and AI, compatible with mainstream CAD and graphic design software suites.

---

II. Advantages of the CO2 Laser Engraving Machine

• The primary advantage of the YH1530 CO2 Laser Engraving Machine is its exceptional automation capability, transforming a standard cutter into a high-capacity production line.

• By utilizing a 1.5-meter width, the machine fits standard wide fabric and leather rolls, maximizing material usage and drastically reducing the labor required for pre-trimming.

• The 3000mm (3-meter) processing length allows for the production of oversized banners, long garment patterns, and large architectural panels in a single, uninterrupted cycle.

• YIHAICNC’s annealed and weighted chassis provides a vital structural advantage, absorbing vibrations that typically occur on large-format frames during rapid axis movements.

• This system serves as an exceptionally powerful CO2 Laser Cutting Machine for non-metals, offering a cleaner edge than traditional die-cutting or mechanical blade systems.

• The upgraded smoke flue design ensures that even during intensive 24/7 production, the internal cabinet remains clear of debris, protecting the sensitive optics from residue buildup.

• The integration of the mesh belt system ensures that flexible materials remain flat and stable during the feeding process, preventing the misalignment of complex vector paths.

• Our humanized drawer design simplifies the collection of small finished parts and waste, significantly reducing the downtime between large-scale manufacturing batches.

• The Ruida RDC6442S controller is internationally recognized for its stability and ease of use, making it easy for operators to manage complex nesting and pathing strategies.

• The choice of professional HIWIN square rails ensures that the machine retains its mechanical precision for years, avoiding the “wobble” often found in budget round-rail models.

• YIHAICNC provides a comprehensive accessory package in every shipment, ensuring that the customer has the necessary cooling and ventilation to start production immediately.

• Designed for 2026 industrial standards, the YH1530 is engineered for maximum uptime and material efficiency, offering a sustainable solution for growing manufacturing shops.

---

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1530(Standard Configuration: Single Laser Head)
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	300W(Customizable)
Total Power	＜3KW
Working Table	Large-Format Automatic Feeding Conveyor Belt Platform
Working Area	1500*3000mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.02mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

---

IV. Key Components Description

	Automatic Conveyor Belt Platform Function: Equipped with an advanced automatic conveyor belt platform, enabling the seamless transition of flexible materials from the loading rack to the cutting zone without the need for manual intervention.
Integrated Control Cabinet (Equipped with Ruida RDC6442S System) Function: Managed by the world-renowned Ruida RDC6442S control system, supporting professional features such as asynchronous dual-head control and visual path optimization.
	DSP Control Panel and Emergency Stop Button Function: Equipped with an intuitive LCD screen, allowing for real-time monitoring of current speed and power parameters. Industrial-grade mechanical buttons provide clear tactile feedback, while the emergency stop button enables instantaneous power cutoff and machine shutdown in urgent situations, thereby maximizing operator safety.
Complete Standard Accessories Package Function: Includes a centrifugal exhaust fan, an electromagnetic air pump, and a water cooling assembly. This comprehensive kit ensures that your CO2 laser cutter is ready for immediate production use upon delivery.

---

V. Applicable Materials

The YH1530 CO2 Laser Engraving Machine is an expert at processing large-format non-metallic materials. It delivers outstanding results on acrylic, wood, MDF, and plywood. For the textile, fashion, and upholstery sectors, it is the ultimate tool for cutting and engraving textiles, leather, fabric, and industrial felt. Additionally, it can process paper rolls, thin plastics, and non-woven fabrics, providing a versatile solution for industries that handle massive sheets or continuous flexible substrates.

---

VI. Applicable Industries and Future Prospects

The Garment and Textile Industry is the leading market for the YH1530 series. In 2026, the trend toward mass-customized apparel and home textiles requires extreme speed and automation. This CO2 Laser Engraving Machine allows manufacturers to feed 1.5-meter wide fabric rolls continuously, cutting intricate lace, garment parts, and sportswear components with zero contact. As fashion cycles become faster, the automation provided by the YH1530 ensures that local factories can scale their production while maintaining the highest quality standards for global brands.

In the Advertising and Soft Signage sector, the machine is used for producing oversized fabric banners, trade show displays, and large-scale flags. The 3-meter length allows for the processing of large signage in one go, eliminating the need for stitching multiple pieces together. As digital printing on fabric continues to dominate the advertising market, the demand for reliable, large-format laser cutting solutions is projected to see significant global growth, making the YH1530 a vital asset for modern sign shops.

The Automotive Interior and Upholstery sector utilize the YH1530 for producing large car seat covers, window curtains, and sofa upholstery. The 1510 format and auto-feeding system are ideal for processing long rolls of synthetic leather and heavy upholstery fabrics. Future prospects in this sector include the increasing use of recycled and eco-friendly textiles, which benefit from the non-contact nature of laser processing to maintain material integrity while creating complex decorative perforations and precise edges.

Looking toward the future, the Smart Manufacturing and Digital Fabrication movement is driving the need for more automated workshop tools. Small-to-medium enterprises (SMEs) are moving toward “Micro-Factory” models to reduce inventory and logistics costs. The YIHAICNC series is positioned as the backbone of these modern manufacturing hubs. The prospects for this technology are tied to the global shift toward sustainable, locally produced goods that require the precision, efficiency, and material versatility of a professional CO2 laser system that can deliver massive throughput on a single platform.

---

VII. Safety Precautions and Guidelines

• Eye Protection: Always wear certified 10.6μm wavelength protective goggles to prevent permanent eye damage from invisible laser reflections during operation.

• Moving Part Safety: Keep hands, loose clothing, and jewelry away from the conveyor mesh belt and the auto-feeding rollers while the machine is active to prevent injury.

• Fire Safety: Never leave the machine unattended while cutting. Materials like wood and synthetic fabrics are flammable; always keep a fire extinguisher within immediate reach.

• Ventilation: Ensure the centrifugal exhaust blower is correctly vented to an outdoor area. Burning plastics and textiles produces smoke that must be removed for operator health.

• Water Cooling: Always check that the water chiller is turned on and water is flowing through the tube before firing the laser to prevent the glass laser tube from cracking.

---

VIII. Frequently Asked Questions (FAQ)

Q1: How does the 1500x3000mm area benefit mass production compared to smaller machines?

The massive 1500x3000mm bed on the YH1530 CO2 Laser Engraving Machine is a game-changer for industrial productivity. In smaller machines like the 1390 or 1325, operators often have to pre-cut large material sheets or fabric rolls to fit the bed, which wastes time and material. The 1530 format allows you to load standard-sized industrial sheets (4×8 or 5×10 feet) or full-width fabric rolls directly. This “One-Step” processing capability significantly reduces material handling time and allows for “Smart Nesting,” where you can organize more parts on a single sheet. For YIHAICNC customers, this means higher material yield and a much faster turnaround on large-volume orders, directly increasing the profitability of your manufacturing workshop.

Q2: Why is the auto-feeding mesh belt superior for processing flexible roll materials?

Traditional flat-bed machines struggle with roll materials because they require the operator to manually move the fabric and realign the laser after every cut. The auto-feeding mesh belt on the YH1530 CO2 Laser Engraving Machine automates this entire process. The machine pulls the material from the roll, processes the design, and then moves the belt forward to load the next section with millimeter precision. This ensures that the tension remains consistent across the fabric, preventing the “bunching” or stretching that ruins cut quality. For textile and leather manufacturers, this transforms the laser into a continuous production line, allowing for 24/7 industrial operation with minimal manual intervention.

Q3: What is the importance of the annealed and weighted frame on a 3-meter machine?

A machine with a 3-meter travel length faces unique mechanical challenges; any slight vibration or frame twist is magnified over that distance, leading to wavy cuts or blurry engraving. YIHAICNC addresses this by using a weighted chassis that undergoes a professional annealing process. Annealing relieves the internal stresses created during the welding of the frame, ensuring it remains perfectly flat and stable for its entire lifespan. The added weight increases the machine’s inertia, which is critical for absorbing the kinetic energy of the 1.5-meter X-axis bridge as it accelerates and decelerates. This structural integrity is what allows our CO2 Laser Engraving Machine to maintain its 0.05mm accuracy across the entire 4.5 square meter work area.

Q4: How does the redesigned smoke flue system handle the fumes from a 3000mm long bed?

Large-format processing generates a massive amount of smoke, especially when cutting materials like fabric, wood, or acrylic. If the smoke is not removed instantly, it can settle on the material, causing staining, or cloud the laser beam, which reduces cutting power. The YH1530 features an upgraded, high-volume smoke extraction flue that is specifically redesigned for the 1530 frame. By optimizing the internal air paths and utilizing a high-power centrifugal blower, the system creates a strong downward suction that pulls smoke and debris away from the laser head and the material surface immediately. This ensures a clean cut edge, protects your focal lens from residue, and maintains a safer, healthier environment for your workshop staff.

Q5: Can the YH1530 act as a reliable CO2 Laser Cutting Machine for thick materials?

Absolutely. While the auto-feeding system is perfect for flexible materials, the raw power of the RECI laser tube makes the YH1530 an exceptionally capable CO2 Laser Cutting Machine. Depending on the wattage of the tube installed (e.g., 100W, 130W, or higher), this machine can slice through 15mm to 20mm clear acrylic or 12mm plywood in a single pass. The stability provided by the HIWIN square rails and the weighted frame ensures that the cut edge remains vertical and clean, even when processing thick substrates. This versatility allows you to switch from high-speed fabric cutting in the morning to heavy-duty signage production in the afternoon, making the YH1530 a truly multi-purpose industrial asset for any growing business.

Q6: Is the Ruida RDC6442S controller compatible with professional software like LightBurn?

Yes, the Ruida RDC6442S is the global industry standard for professional CO2 Laser Engraving Machine control. It is fully compatible with LightBurn, which is highly recommended for large-format workshops due to its advanced nesting features and intuitive auto-feeding controls. It also comes with the free RDWorks V8 software, which includes plugins for AutoCAD, CorelDRAW, and Adobe Illustrator. This software ecosystem allows you to design your large-scale signage or textile patterns in your preferred CAD environment and send jobs directly to the machine via USB, Ethernet, or even a U-disk. This compatibility ensures that your existing design workflow is not only preserved but significantly enhanced by the professional, automated features of the YH1530.
