Description

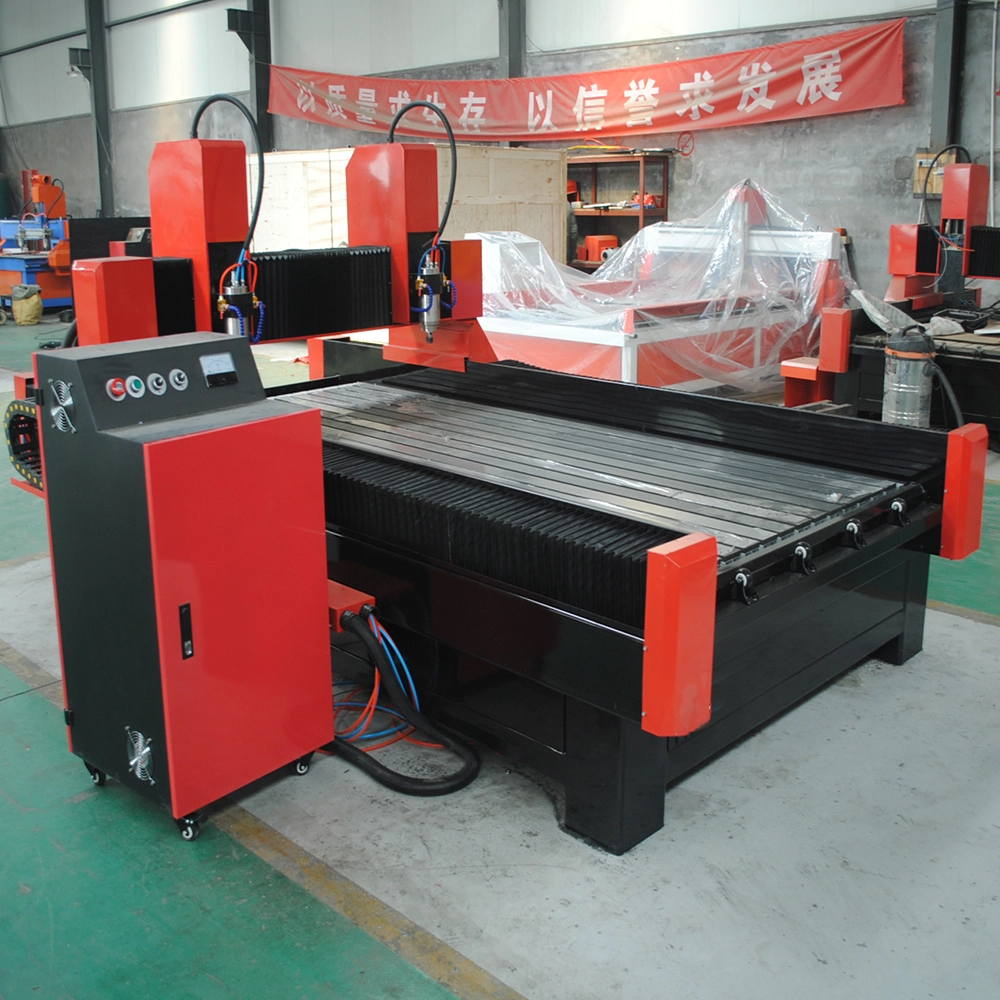

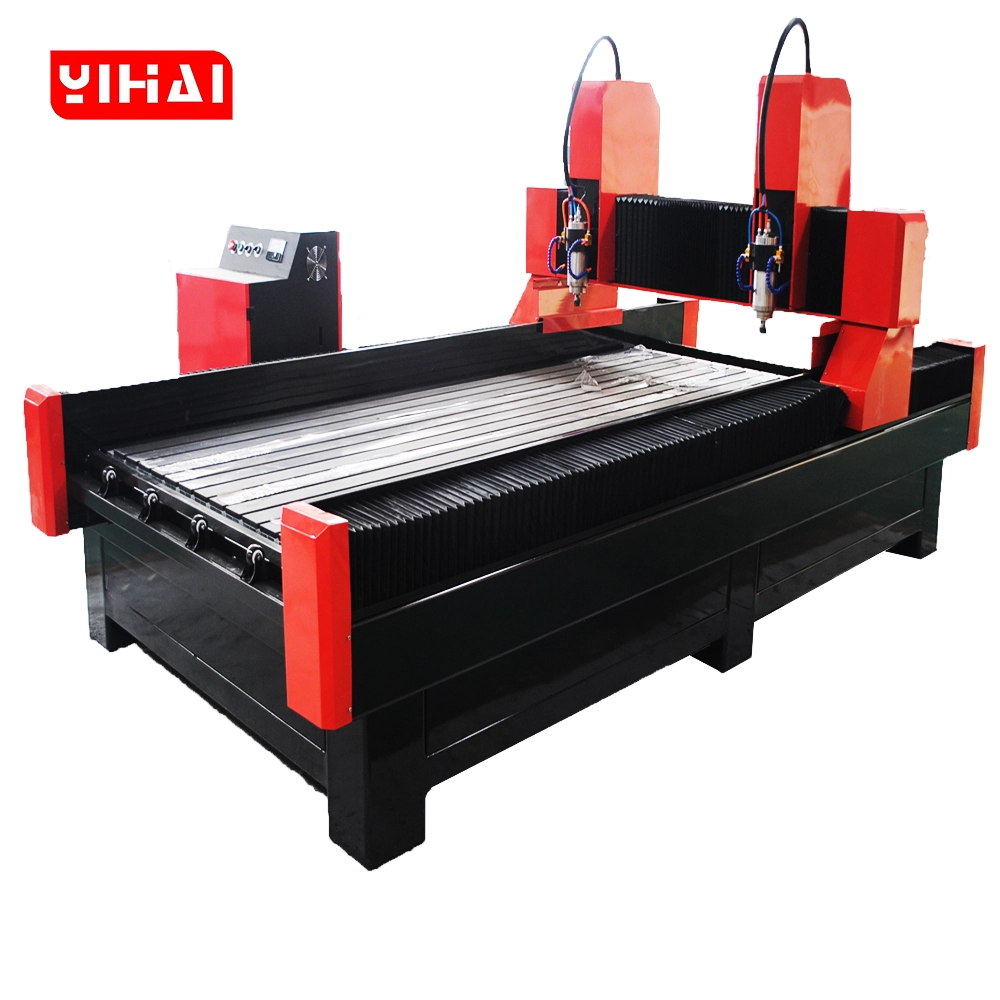

YH1330 Dual Head CNC Stone Router – Professional Marble & Granite Engraving Machine
The YH1330 dual-head CNC stone router from YIHAICNC represents a breakthrough in stone fabrication technology. Engineered specifically for marble and granite engraving, this CNC router combines precision, efficiency, and versatility in a robust 3-axis configuration.
With a generous 1300mm x 3000mm x 200mm working area, the YH1330 stone engraving machine handles large-format stone slabs with ease. The innovative dual independent spindle design allows simultaneous or sequential operations, effectively doubling your production capacity while maintaining exceptional accuracy.
Whether you′re creating intricate stone engravings, producing dimensional letters, or fabricating custom stonework, this CNC stone router delivers professional results with remarkable consistency.
Dual Independent Head Technology
The defining feature of the YH1330 CNC stone router is its revolutionary two-head system. Unlike conventional single-spindle machines, this stone engraving machine features:
Independent Operation Control
Each spindle operates autonomously through the DSP control system
Flexible Working Modes
Run one head, both heads simultaneously, or alternate between heads based on your production needs
Tool Versatility
Equip each head with different cutting or engraving tools for varied operations
Zero Interference
Heads work independently without affecting each other′s precision or performance
Enhanced Productivity
Essentially doubles your output compared to single-head CNC routers
This dual-head configuration makes the 1330 model particularly valuable for high-volume stone fabrication shops and custom stone engraving businesses.
Water-Cooled Spindle System
Each of the two spindles delivers 4.5 kW of water-cooled power, providing:
- Consistent performance during extended operation
- Optimal temperature control for longer tool life
- Clean, dust-suppressed cutting environment
- Suitable for the demanding nature of stone processing
Precision Engineering
The YH1330 stone CNC router achieves exceptional accuracy through:
- Traveling Positioning Accuracy: ±0.03mm across X, Y, and Z axes
- Repositioning Accuracy: ±0.05mm for consistent repeated operations
- Rack and Pinion Transmission: Ensures smooth, precise X and Y axis movement
- Ball Screw Z-Axis: Delivers reliable vertical positioning
- Shaft Linear Bearings: Reduce friction and maintain alignment throughout the working envelope
This precision makes the machine suitable for detailed stone engraving work, dimensional lettering, and complex relief carving.
Robust Construction
Built to withstand the rigors of stone fabrication:
- T-Slot Table with Sink: Integrated drainage system manages water and debris
- Heavy-Duty Frame: 1200 KG net weight ensures stability during operation
- Rack Gear Transmission on X/Y Axes: Handles the forces involved in stone cutting
- Stepper and Leadshine Servo Motor Drive: Reliable motion control system
Professional Control System
- DSP Control Handle: Intuitive NC Studio-based operation
- G-Code Compatible: Works with standard CAM software
- Variable Spindle Speed: 0-24,000 RPM accommodates different materials and tools
- 3-Axis Coordination: Synchronized movement for complex 3D carving
Technical Specifications
| Feature | Specification |
| Type | CNC Stone Router |
| Features | With Feed Wheels |
| Brand | YIHAICNC |
| Model | YH1330(2-Head Multi-Spindle) |
| Number of axes | 3(Adding Rotary Axes or Other Axes) |
| Number of Spindles | 2-Head Multi-Spindle(Customizable) |
| Total power | 4.5 kw water-cooled spindle*2(Customizable) |
| Working Area | 1300mmx3000mmx200mm(Customizable) |
| Dimension | 1900mmx3300mmx1600mm(Customizable) |
| Packing size | 2000mmx3500mmx1800mm(Customizable) |
| X, Y, Z Traveling Positioning Accuracy | ±0.03mm |
| X, Y, Z Repositioning Positioning Accuracy | ±0.05mm |
| Frame | T-slot table With Sink |
| Motor Drive | Stepper & Leadshine Servo |
| X, Y Structure | Rack gear Transmission, Shaft Linear Bearings |
| Z Structure | Ball Screw, Shaft Linear Bearings |
| Control system | NC Studio |
| Spindle Speed | 0-24000rpm |
| Working Voltage | AC 220V 50/60Hz |
| Command Language | G Code |
| X, Y Resolution | ＜0.03mm |
| Running Environment Temperature | 0-45 Centigrade |
| Net Weight | 1200KG |
What Makes the YH1330 Different?
The 1330 dual-head configuration transforms how stone fabrication shops operate. This CNC stone engraving machine doesn′t just add a second spindle—it provides true independent control that revolutionizes workflow efficiency.
Three Operating Modes:
- Single Head Operation
- Use one spindle for standard jobs
- Reserve the second head for tool changes or different operations
- Ideal for testing new programs or tools
- Simultaneous Dual Head Operation
- Both spindles work on the same or different projects concurrently
- Double your throughput on production runs
- Particularly effective for symmetrical designs or paired components
- Sequential Operation
- Automatic head switching based on programmed sequences
- One head performs roughing, the other handles finishing
- Optimize tool life and cut quality
Practical Applications of Dual Heads:
- Different Tool Diameters: Keep a large roughing bit in one head and a fine detail bit in the other
- Multi-Stage Processing: Complete rough and finish cuts without manual tool changes
- Varied Operations: Engrave with one head while the other performs edge profiling
Production Efficiency: Work on two identical pieces simultaneously
APPLICATIONS
The YH1330 CNC stone router excels in diverse stone fabrication applications:
Marble & Granite Engraving
- Decorative stone panels and wall cladding
- Custom headstones and memorial stones
- Architectural stone elements
- Artistic relief carvings and sculptures
Dimensional Stone Lettering
- Raised or recessed text for monuments
- Building signage and address markers
- Decorative inscriptions
- Logo reproduction in stone
Stone Fabrication
- Countertop edge profiling
- Inlay work and medallions
- Stone tile customization
- 3D relief carving
Commercial Applications
- Monument and memorial production
- Architectural stonework
- Custom stone furniture components
- Decorative stone products
WHY CHOOSE YIHAICNC?
Manufacturing Excellence
YIHAICNC specializes in professional CNC equipment design and manufacturing. Our YH1330 stone engraving machine reflects decades of engineering expertise focused specifically on stone processing requirements.
Customization Options
We understand every shop has unique needs. The YH1330 offers customization in:
- Working area dimensions
- Spindle power and quantity
- Collet configurations
- Frame and packing sizes
Quality Components
- Water-cooled spindles for reliability
- Precision linear bearings and guides
- Professional-grade servo systems
- Durable T-slot worktable with integrated sink
Support & Service
Beyond delivering quality CNC routers, YIHAICNC provides:
- Technical consultation for machine selection
- Installation guidance and training
- Ongoing technical support
- Spare parts availability
FAQ
Q: What′s the advantage of a dual-head CNC stone router over a single-spindle machine?
A: The YH1330′s dual independent heads can double your productivity by operating simultaneously, or provide versatility by keeping different tools ready. This eliminates downtime for tool changes and allows one head to work while you prepare the next job on the other head.
Q: Can the YH1330 handle both marble and granite?
A: Yes, this CNC stone router is designed for both materials. The 4.5 kW water-cooled spindles provide ample power for granite′s hardness, while the precision control system handles marble′s detail requirements.
Q: What′s included with the water-cooled system?
A: The water cooling system maintains optimal spindle temperature during extended operation. The machine also includes standard stone processing features like water spray nozzles and drainage channels integrated into the T-slot table.
Q: How difficult is it to operate the DSP control system?
A: The NC Studio DSP control handle is designed for straightforward operation. It accepts standard G-Code from most CAM software packages, making it accessible to operators familiar with CNC stone engraving machines.
Q: What′s the typical accuracy I can expect?
A: The YH1330 maintains ±0.03mm traveling positioning accuracy and ±0.05mm repositioning accuracy across all three axes. This precision supports detailed engraving work and dimensional accuracy requirements.
Q: Can I expand this CNC router with a rotary axis?
A: Yes, the machine accommodates rotary axis additions (D: 200mm, L: 1.5m specification), expanding capabilities for cylindrical stone pieces and columns.
Q: What′s the maximum material thickness?
A: The Z-axis provides 200mm of clearance, suitable for most stone slab thicknesses and allowing adequate tool length for deep engraving or 3D relief work.
Q: How much space do I need for installation?
A: The machine dimensions are 1900mm x 3300mm x 1600mm. Plan for additional clearance around the machine for material loading, maintenance access, and water drainage connections.
