Description
I. Key Features and Production Value
The YH1325 Single-Head Vacuum+T-Slot with Rotary Axis is configured for furniture and panel-processing work where repeatable positioning, stable workholding, and a clear production workflow matter. It is intended for customers who need to routing door panels, decorative reliefs, room dividers, acoustic elements, and architectural millwork. The configuration helps reduce repeated manual setup and gives operators a practical way to move from CAD/CAM files to cut, drill, groove, mill, or carve finished components. The machine should be selected according to panel size, material, required operations, daily workload, available power, dust collection, and operator skill. The points below describe the production role of this model without overstating output; final performance depends on tooling, material, nesting, and process settings.

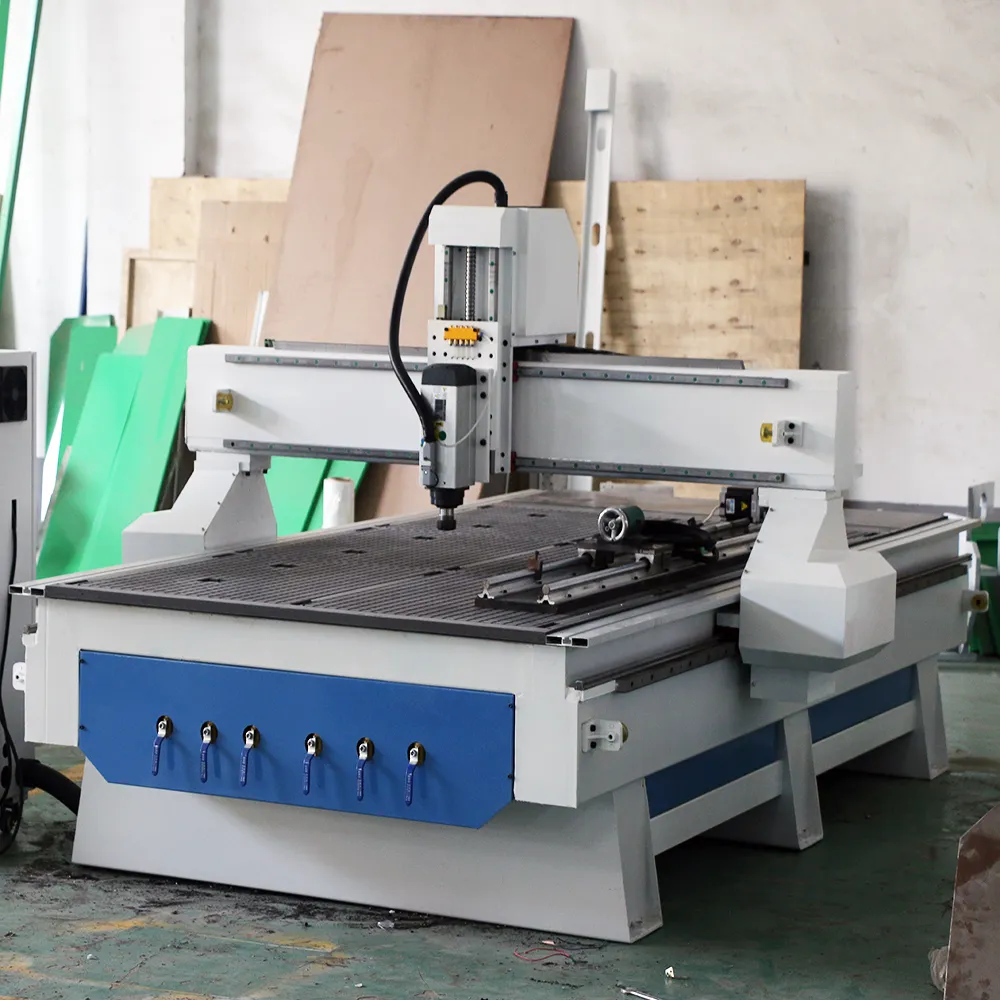

- A removable rotary axis extends the machine to columns, legs, posts, and other cylindrical furniture parts.
- The combined vacuum and T-slot table supports both panel clamping and specialized fixtures.
- The 6KW spindle supports 2D cutting, 3D relief work, and cylindrical carving with suitable tools.
- The machine can switch between flat-panel production and selected three-dimensional work.
II. Technical Parameters
| Feature | Specification |
| Type | Wood Furniture CNC Router |
| Brand | YIHAICNC |
| Model | YH1325 Single-Head Vacuum+T-Slot with Rotary Axis |
| Number of axes | 4(Adding Rotary Axis) |
| Number of Spindles | Single |
| Total power | 6KW(Customizable) |
| Working Area | 1300mmx2500mm(Customizable) |
| Maximum Operating Speed | 30m/min |
| Maximum Feed Height | 50mm |
| Rotary Axis Working Length | 2000mm |
| Transmission Method | XY Axis Reducer High-Precision Rack and Pinion Drive Z Axis Imported Screw Drive |
| Spindle Speed | 0-24000rpm |
| Working Voltage | 380V 50HZ/60HZ |
| Control System | RichAuto DSP Handheld Controller |
| Clamping Method | Vacuum adsorption + T-slot clamping integrated table |
| Lubrication System | Automatic Oiling Device |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
| Positioning Accuracy | ±0.03mm |
| Repeatability | ±0.03mm |
| X,Y Resolution | <0.03mm |
| Net Weight | ≈1500KG |
| Frame | Steel structure lathe bed |
| Suitable Industries | Whole-house customization, kitchen cabinets, wardrobes, office furniture |
| Suitable for boards | Solid wood, MDF, particle board, PVC, acrylic |
III. Machine Components Overview
A dual-purpose platform engineered to route flat sheet goods and carve complex 4-axis cylindrical timber turnings on a single chassis:

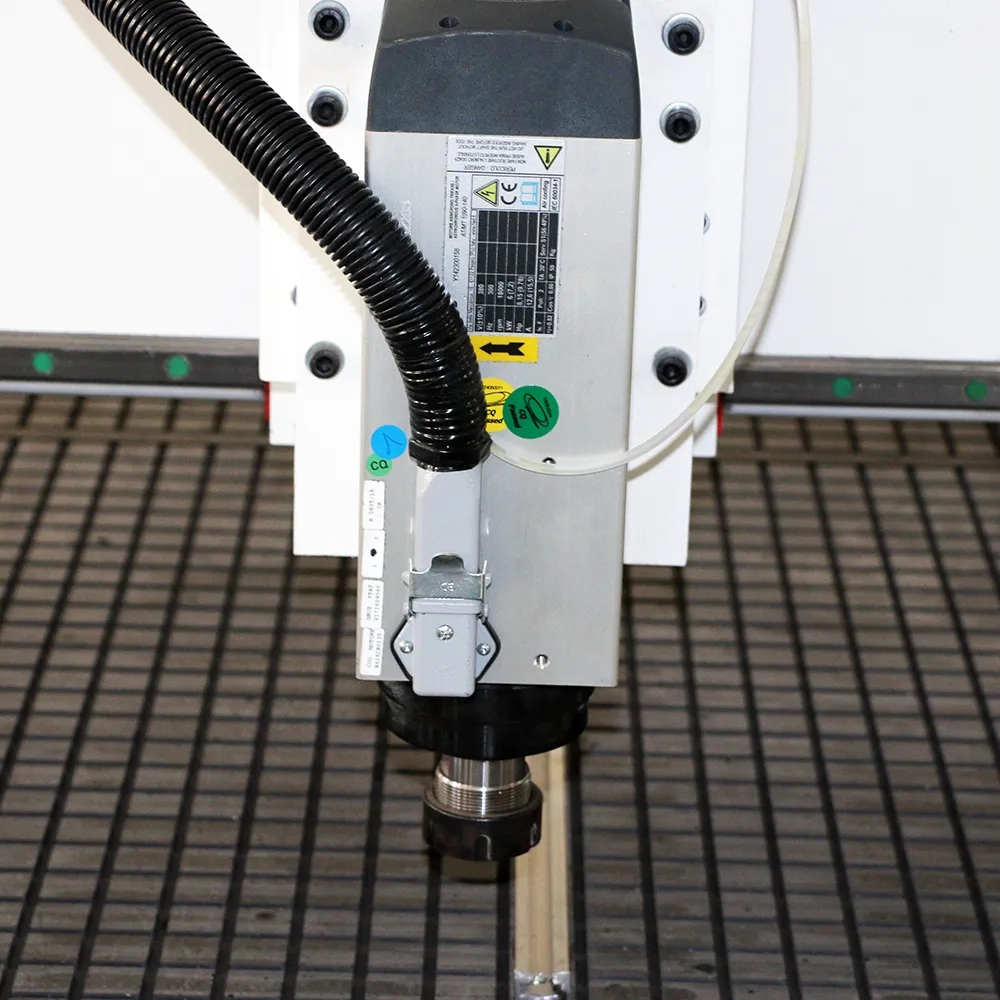

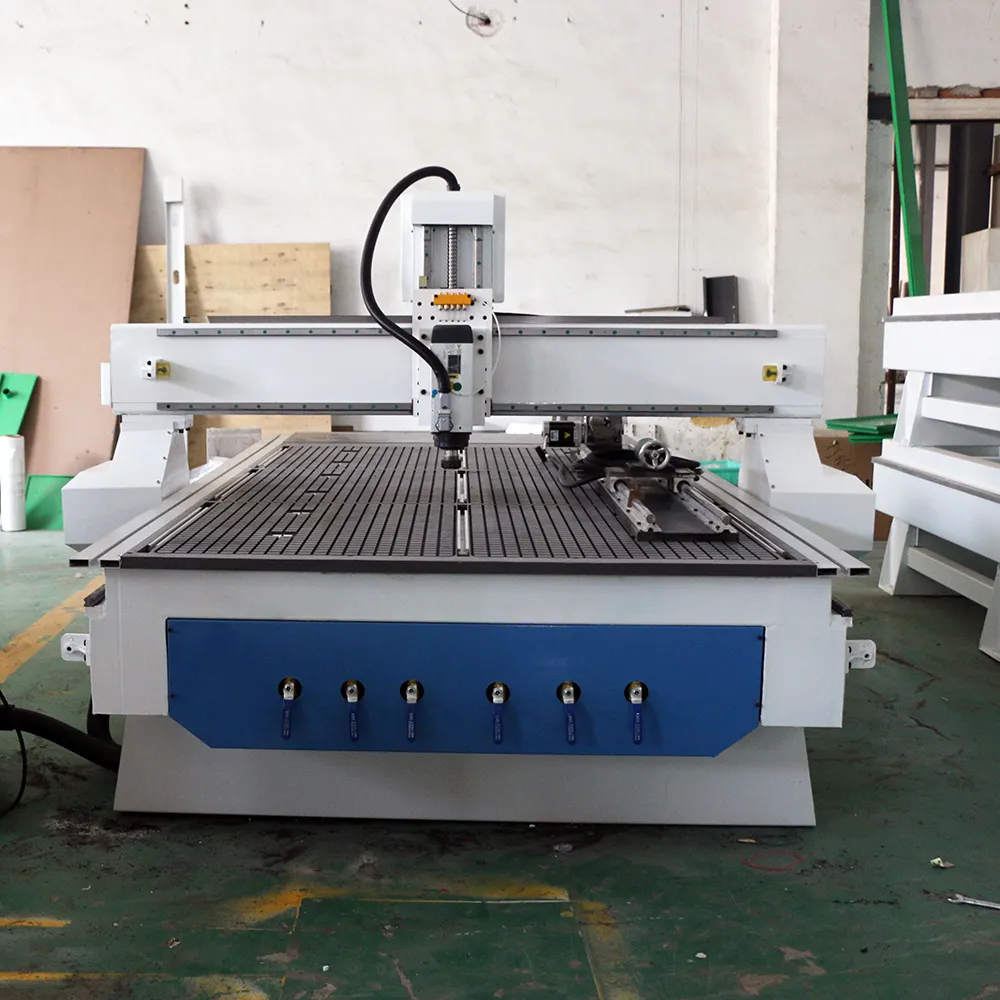

- Imported Italian HSD High-Precision Spindle: Genuine 6.0KW Italian HSD air-cooled industrial spindle operating up to 18,000 RPM, paired with a Taiwan Delta high-performance industrial inverter for constant torque output across all speeds.
- Detachable Heavy-Duty Rotary Axis Assembly: Features a precision 4-jaw chuck and an adjustable center tailstock mounted along the bed margin, accommodating stair balusters, table legs, and cylindrical carvings up to large turning diameters.

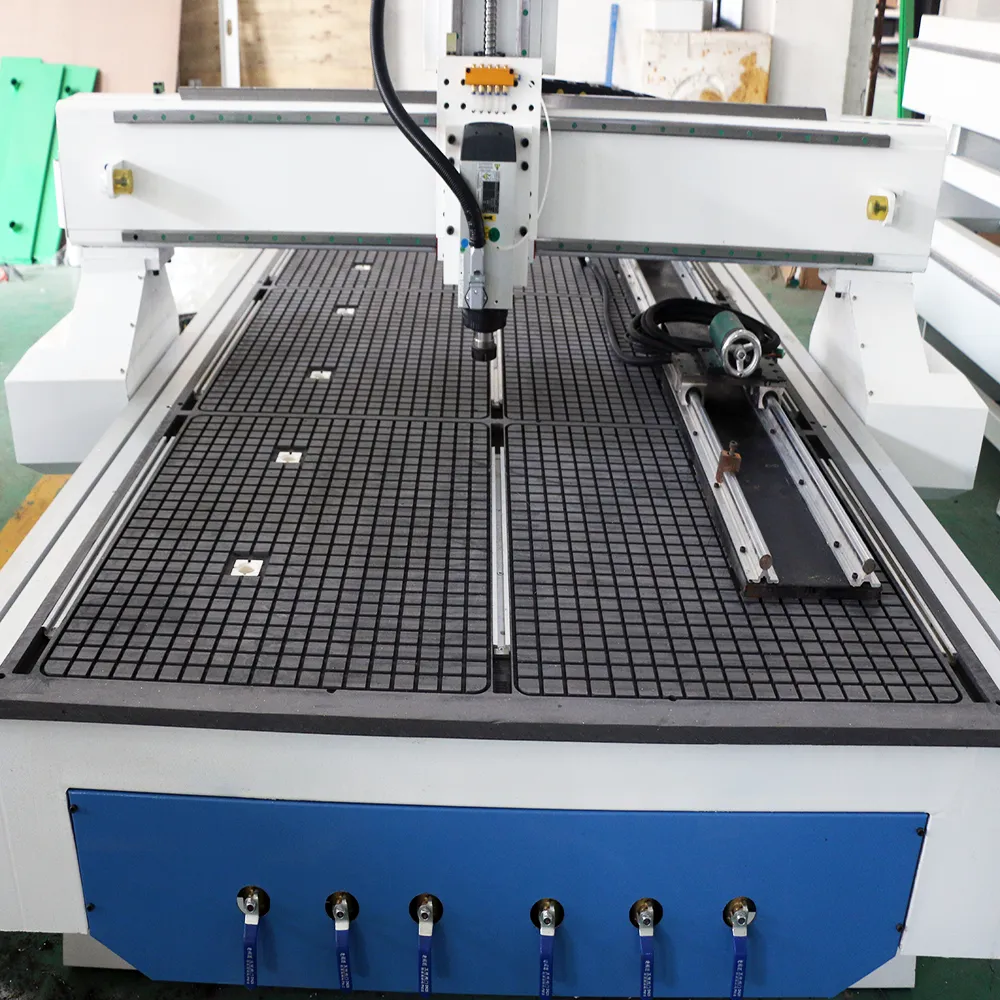

- Hybrid Vacuum & Aluminum T-Slot Bed: Combines multi-circuit vacuum channels with integrated extruded aluminum T-slots, allowing instant switching between vacuum sheet hold-down and manual toggle-clamp fixturing.
- RichAuto DSP Handheld Offline Controller: Rugged handheld pendant controller enables intuitive file retrieval via USB flash drive, real-time feed override, and rapid multi-axis zero positioning without a dedicated PC.
- Electronic Tool Setting Gauge: Precision touch probe automates Z-axis tool offset calculations for both flatbed surface work and center-line rotary workpiece calibration.
IV. Applications and Processed Materials
Combined CNC Router for Furniture Panels, Wood Crafts and Rotary Machining
The YH1325 Vacuum + T-slot + Rotary Axis CNC router combines multiple workholding methods into one machine platform, providing greater flexibility for furniture manufacturers and woodworking workshops.
The vacuum table is suitable for flat panel processing, while the T-slot table provides additional fixing options for special materials and customized fixtures. The rotary axis expands machining capability for cylindrical and curved workpieces, allowing the machine to process both standard furniture panels and three-dimensional wooden components.
This CNC router is widely used for custom furniture production, wooden columns, chair legs, decorative components, stair parts, wooden crafts, cabinet panels, and interior decoration products.
Typical Applications:
- Flat furniture panel cutting
- Cabinet and wardrobe components
- Wooden chair legs and cylindrical parts
- Stair handrails and columns
- Decorative wooden components
- Custom woodworking projects
Processed Materials:
- MDF
- Plywood
- Solid wood
- Hardwood
- Softwood
- Acrylic
- PVC materials
V. FAQ
1. What is the advantage of adding a rotary axis?
The rotary axis allows the CNC router to process round and cylindrical workpieces that cannot be machined on a standard flat table.
2. What products can be produced with the rotary axis?
It can process chair legs, wooden columns, stair components, decorative cylinders, and other three-dimensional wooden parts.
3. Can this machine still process normal furniture panels?
Yes. The machine maintains standard flat-panel CNC machining capability through the vacuum and T-slot table.
4. Who should choose this CNC router?
It is suitable for furniture manufacturers, woodworking studios, interior decoration companies, and businesses producing both flat and curved wooden products.
5. Does the rotary axis affect normal CNC cutting?
No. The rotary axis works as an additional machining option and does not limit standard panel processing.
