Description

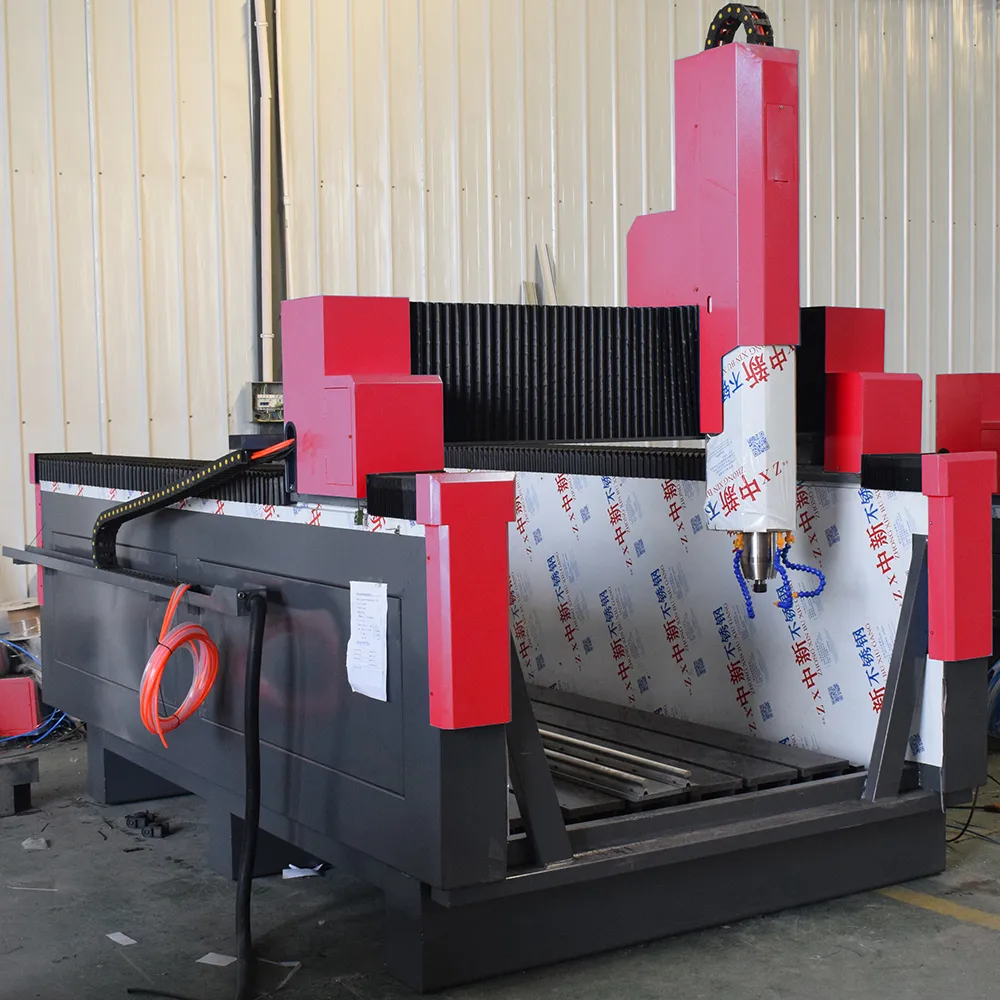

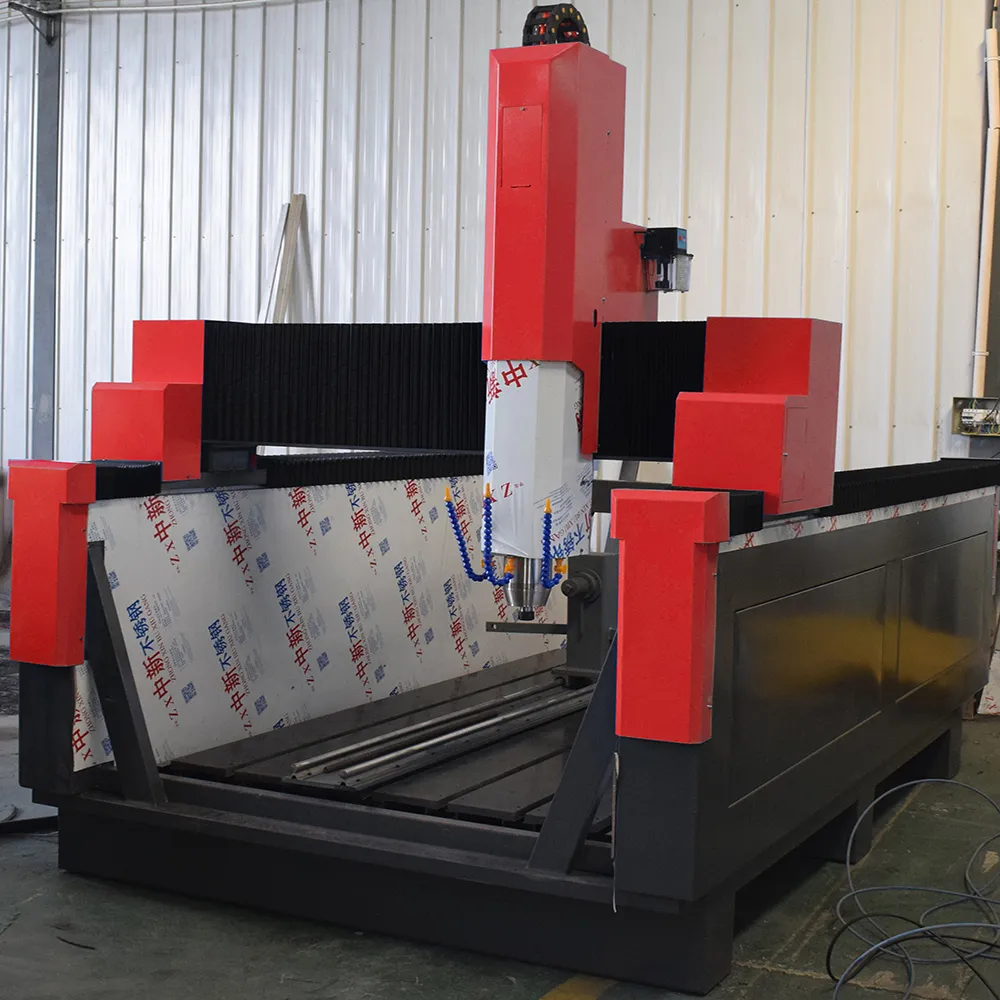

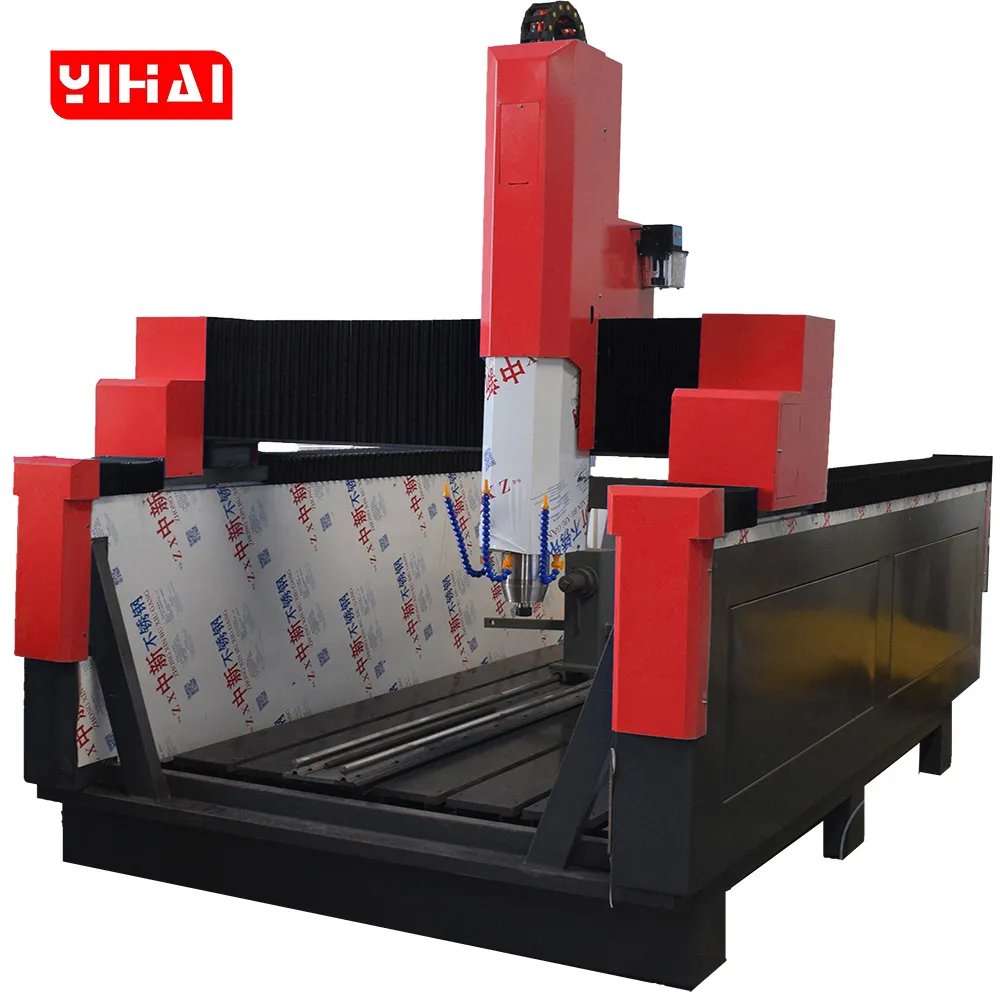

The YIHAICNC YH1325 CNC Stone Router represents advanced stone processing technology designed for fabricators, monument makers, and stone artisans who demand precision and versatility. This professional 4-axis CNC router combines increased Z-axis travel with rotary axis functionality, enabling both traditional flat engraving and complex 3D stone carving operations.

Engineered specifically for heavy stone materials, the YH1325 features a robust T-slot table frame capable of handling demanding workloads while maintaining exceptional positioning accuracy. With a generous 1300mm x 2500mm x 1000mm working envelope and customizable Z-axis height, this CNC stone router adapts to your specific production requirements, from intricate memorial engravings to large architectural stone elements.

The integrated rotary axis transforms this machine from a standard 3-axis CNC router into a versatile 4-axis stone processing center, enabling cylindrical carving, column engraving, and complex three-dimensional relief work that would be impossible with conventional stone engraving machines.

Key Machine Specifications at a Glance:

• Working Area: 1300mm x 2500mm x 1000mm (customizable Z-axis)
• Configuration: 4-Axis with Rotary Axis
• Spindle: HQD 5.5KW Water-Cooled (customizable power)
• Control System: DSP Handle Control
• Positioning Accuracy: ±0.03mm (Travel), ±0.05mm (Repositioning)

---

Competitive Advantages of YH1325 CNC Stone Router

Enhanced Z-Axis Travel for Increased Machining Height

Unlike standard CNC stone routers limited to shallow engravings, the YH1325 offers increased Z-axis travel with a maximum height of 1000mm, fully customizable to your specific requirements. This extended vertical capacity enables processing of thicker stone slabs, deeper relief carvings, and tall sculptural elements without material limitations. Whether you’re creating deep memorial engravings or processing oversized granite countertops, the adjustable Z-axis height ensures your CNC router grows with your business needs.

Integrated Rotary Axis for 3D Stone Processing

The built-in rotary axis elevates the YH1325 from a 3-axis CNC router to a true 4-axis stone machining center. This rotary functionality enables:

• Cylindrical Carving: Process columns, balusters, and round stone elements with precision
• 360-Degree Engraving: Create complete wraparound designs on cylindrical workpieces
• 3D Relief Work: Achieve complex three-dimensional sculptural effects impossible with flat processing
• Column Processing: Handle architectural stone columns and decorative pillars efficiently

This rotary axis capability significantly expands your production capabilities without requiring additional equipment investment.

Heavy-Duty Construction for Stone Processing Demands

Stone machining places extreme demands on CNC router components. The YH1325 addresses this with:

• Reinforced T-Slot Table Frame: Provides stable support for heavy stone materials while ensuring easy workpiece clamping
• Rack Gear Transmission with Shaft Linear Bearings (X, Y Axis): Delivers reliable motion control under high loads with minimal maintenance
• Ball Screw with Shaft Linear Bearings (Z-Axis): Ensures precise vertical positioning even with heavy cutting forces
• Step/Hybrid Servo Motor Drive: Provides strong torque and smooth motion control, customizable to your needs
• Net Weight: 1400KG: Substantial mass dampens vibration for cleaner cuts and extended tool life

Water-Cooled Spindle System for Continuous Stone Processing

The YH1325 features an HQD 5.5KW water-cooled spindle (customizable power options available) specifically designed for demanding stone applications. Water cooling enables:

• Continuous operation without thermal degradation
• Extended spindle and tool life through effective heat dissipation
• Clean processing environment through an integrated spray system
• Variable speed control from 0-24000 RPM for different stone materials and cutting operations

Precision Motion Control and Positioning

Achieving fine detail in hard materials demands exceptional accuracy. The YH1325 delivers:

• Travel Positioning Accuracy: ±0.03mm – Ensures crisp lines and detailed engravings
• Repositioning Accuracy: ±0.05mm – Maintains consistency across repeated operations
• X,Y Resolution: <0.03mm – Captures intricate design details faithfully

DSP Handle Control System for Intuitive Operation

The DSP (Digital Signal Processing) handle controller provides straightforward machine operation:

• User-friendly interface suitable for operators of all skill levels
• Direct G-Code file loading without a computer connection
• Real-time manual control for setup and positioning
• Compatible with industry-standard CAD/CAM software outputs

Single Customizable Spindle Configuration

The YH1325 features a single water-cooled spindle design that keeps complexity minimal while providing all the power needed for stone processing. This single-spindle configuration reduces maintenance requirements and allows full customization of spindle power to match your specific materials and applications, whether you’re processing softer marble or demanding granite.

---

Technical Specifications

Feature	Specification
Type	CNC Stone Router
Features	Increased Z-Axis Travel/Increased Machining Height Capable Of Processing Heavy Stone With Rotary Axis
Brand	YIHAICNC
Model	YH1325(Increased Z-Axis Travel/With Rotary Axis)
Number of axes	4(With Rotary Axis)
Number of Spindles	Single(Customizable)
Total power	HQD 5.5KW Water Cooling(Customizable)
Working Area	1300mmx2500mmx1000mm(Customizable)
X, Y, Z Traveling Positioning Accuracy	±0.03mm
X, Y, Z Repositioning Positioning Accuracy	±0.05mm
Frame	T-slot table
Motor Drive	Step/Hybrid Servo/Servo(Customizable)
X, Y Structure	Rack gear Transmission, Shaft Linear Bearings
Z Structure	Ball Screw, Shaft Linear Bearings
Spindle Speed	0-24000rpm
Working Voltage	AC 220V 50/60Hz
Command Language	G Code
X, Y Resolution	＜0.03mm
Running Environment Temperature	0-45 Centigrade
Net Weight	1400KG

---

Applications and Industries

The YIHAICNC YH1325 CNC Stone Router serves diverse stone fabrication industries with its versatile 4-axis capabilities:

Memorial and Monument Industry

• Tombstone engraving with intricate lettering and decorative patterns
• Headstone carving including portraits, religious symbols, and custom designs
• Memorial plaque production with deep relief carving
• Cemetery monument fabrication from granite, marble, and other natural stones
• Veterans memorial and military marker creation





Architectural Stone Elements

• Decorative column carving and architectural pillar processing
• Baluster production for staircases and balconies
• Stone corbels, brackets, and ornamental architectural details
• Building facade elements and exterior stone cladding components
• Interior stone wall panels with custom relief patterns





Decorative Stone Products

• Stone fireplace surrounds with intricate carved details
• Custom stone signage for businesses, parks, and public spaces
• Decorative stone wall art and sculptural panels
• Stone fountain components and water feature elements
• Garden ornaments, including planters, statues, and decorative spheres





Commercial Stone Fabrication

• Kitchen countertop edge profiling and custom shapes
• Bathroom vanity tops with integrated sink openings
• Commercial reception desk fabrication with stone surfaces
• Table tops for restaurants and hospitality venues
• Custom stone furniture components





Stone Materials Compatibility

The YH1325 CNC router processes a wide range of stone materials:

• Hard Stones: Granite, quartz, quartzite
• Medium Stones: Marble, travertine, limestone
• Soft Stones: Sandstone, soapstone, alabaster
• Engineered Materials: Engineered quartz, terrazzo, and solid surface materials
• Alternative Materials: Ceramic tiles, thick glass, composite stone materials

---

FAQ

General Machine Questions

Q: What makes the YH1325 different from standard 3-axis CNC stone routers? A: The YH1325 includes an integrated rotary axis that enables true 4-axis machining, allowing you to process cylindrical workpieces and create complex 3D carvings impossible with flat-only processing. Additionally, the increased and customizable Z-axis height accommodates thicker materials and deeper engravings than standard stone routers.

Q: Can the Z-axis height be customized for my specific needs? A: Yes, the Z-axis travel is fully customizable. While the standard configuration offers 1000mm of height capacity, we can adjust this specification during manufacturing to match your specific material thicknesses and application requirements. Contact our sales team to discuss your custom requirements.

Q: Is this machine suitable for beginners or only experienced operators? A: The YH1325 features a user-friendly DSP handle controller that simplifies operation for users at all skill levels. While stone CNC routing requires some technical knowledge, our machine includes intuitive controls, and we provide comprehensive training materials. Most operators become proficient within a few days of hands-on practice.

Technical Specifications

Q: What is the actual working area, and what size materials can I process? A: The working area is 1300mm x 2500mm with 1000mm Z-axis travel. You can process stone slabs up to these dimensions. For example, you can comfortably handle standard kitchen countertop sections, large tombstone monuments, or multiple smaller pieces simultaneously.

Q: What spindle power options are available? A: While the standard configuration includes an HQD 5.5KW water-cooled spindle, we offer customizable spindle power options to match your specific materials and cutting requirements. Higher power spindles are available for processing harder stones or increasing production speed.

Q: How accurate is the positioning, and what level of detail can I achieve? A: The YH1325 delivers ±0.03mm travel positioning accuracy and ±0.05mm repositioning accuracy with X, Y resolution under 0.03mm. This precision enables fine lettering, intricate relief carving, and detailed decorative patterns even in hard granite.

Q: What motor drive system should I choose? A: The machine offers customizable motor options, including stepper, hybrid servo, or full servo systems. Stepper motors provide cost-effective performance for standard applications. The hybrid servo offers improved torque and efficiency. Full servo systems deliver maximum speed, acceleration, and precision for high-production environments. Our team can recommend the best option based on your specific needs.

Materials and Applications

Q: Can this CNC router cut through granite? A: Yes, the YH1325 is specifically designed for processing hard stone materials, including granite. With the appropriate diamond-coated tooling and proper cutting parameters, the machine efficiently cuts, engraves, and carves granite and other dense stone materials.

Q: What types of stone materials work best with this machine? A: The YH1325 processes all common stone material,s including granite, marble, quartz, limestone, travertine, sandstone, slate, and engineered stone products. It also handles ceramic tiles, thick glass, and composite materials. Harder materials require slower feed rates and appropriate diamond tooling.

Q: What is the rotary axis used for? A: The rotary axis enables processing of cylindrical or round workpieces such as stone columns, balusters, decorative pillars, and sculptural elements. It allows the machine to rotate the workpiece while the spindle carves, creating wraparound designs or uniform cylindrical shapes that cannot be achieved with standard flat processing.

Q: Can I use this machine for marble tombstone engraving? A: Absolutely. Tombstone and memorial engraving is one of the primary applications for the YH1325. The machine excels at detailed lettering, portrait engraving, and decorative relief work commonly required in memorial production. The increased Z-axis capacity accommodates various monument thicknesses.

Operation and Software

Q: What software is compatible with the YH1325 CNC stone router? A: The machine accepts standard G-Code, making it compatible with popular CAD/CAM softwar,e including ArtCAM, Aspire, Vectric VCarve, Type3, AutoCAD, and other industry-standard design programs. You create your design in these programs, generate G-Code, and transfer it to the DSP controller via USB.

Q: Do I need to keep a computer connected during operation? A: No. The DSP handle controller operates independently once you load the G-Code file. Simply transfer your program via USB drive to the controller, and the machine runs autonomously without requiring a connected computer. This simplifies your workspace and reduces potential technical issues.

Q: How do I set up the water cooling system? A: The water cooling system is integrated into the machine design. You simply connect the water supply, ensure proper circulation through the spindle cooling jacket and spray nozzles, and maintain the water tank level. The system keeps both the spindle and cutting area cool during operation.

Q: What maintenance does this CNC stone router require? A: Regular maintenance includes cleaning the water circulation system, checking and lubricating linear bearings and ball screws, inspecting tool holders and collets, and keeping the machine bed clean from stone debris. We recommend weekly cleaning for production environments and provide a detailed maintenance schedule for your machine.

Purchasing and Support

Q: What is included with the machine purchase? A: Your YH1325 includes the complete CNC router with rotary axis, DSP handle controller, water-cooled spindle system with cooling tank and spray nozzles, necessary cables and connection hardware, and user manual with operational instructions. Tool holders and cutting tools are available separately to match your specific applications.

Q: Do you provide training and technical support? A: Yes, YIHAICNC provides comprehensive support, including machine operation training materials, video tutorials, and ongoing technical assistance. Our support team assists with setup, programming questions, and troubleshooting throughout your machine’s lifetime.

Q: What is the delivery time for the YH1325? A: Standard configuration machines typically ship within 15-30 days after order confirmation. Custom configurations may require additional manufacturing time. We provide tracking information and coordinate delivery to ensure the safe arrival of your CNC stone router.

Q: Do you ship internationally? A: Yes, YIHAICNC ships worldwide. We have experience with international logistics and can arrange delivery to most countries. Shipping costs and transit times vary by destination. Contact our sales team for a specific quote for your location.

Q: What warranty coverage is provided? A: The YH1325 includes manufacturer warranty coverage on key components. Warranty terms vary by component type and usage conditions. Detailed warranty information is provided with your purchase. We also offer extended warranty options and spare parts support for long-term peace of mind.

Q: Can I visit your factory to see the machine before purchasing? A: Yes, we welcome factory visits. YIHAICNC’s facility is located in China, and we can arrange demonstrations of the YH1325 in operation. Please contact us in advance to schedule your visit, and we’ll prepare a comprehensive demonstration of the machine’s capabilities.
