Description

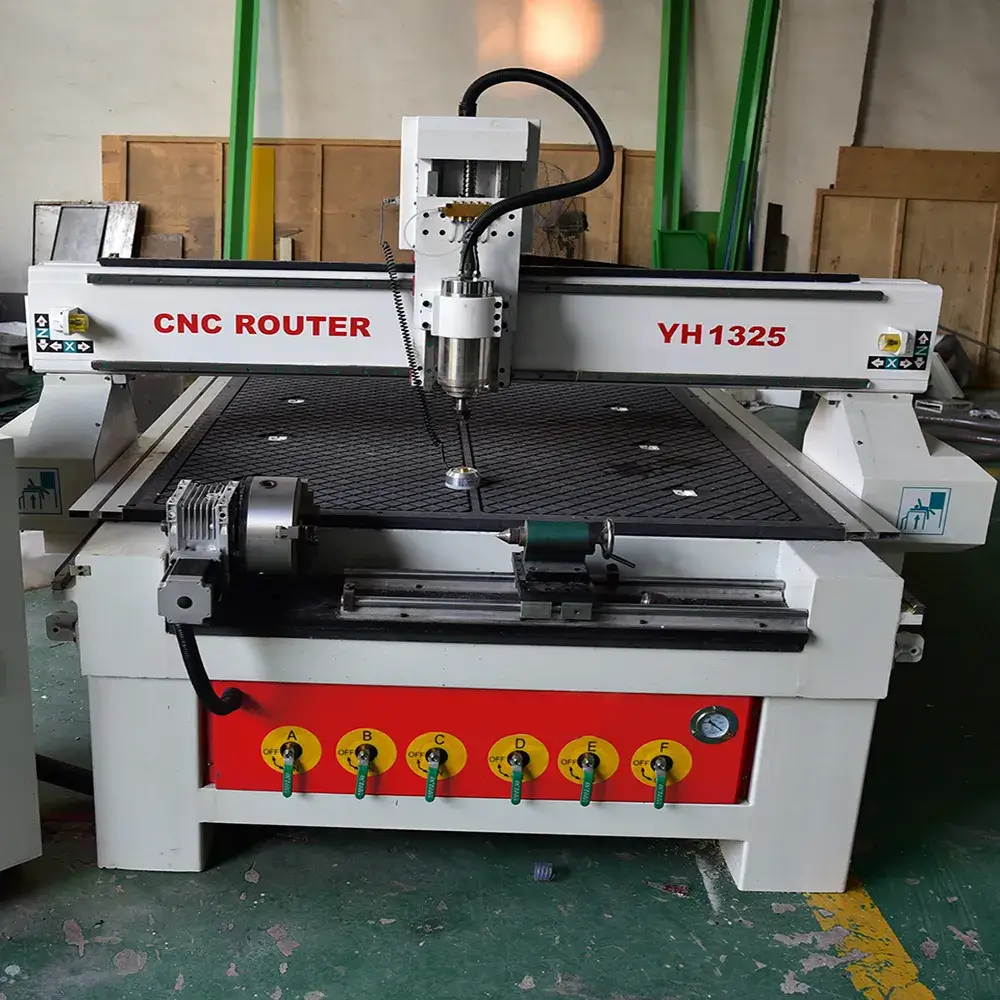

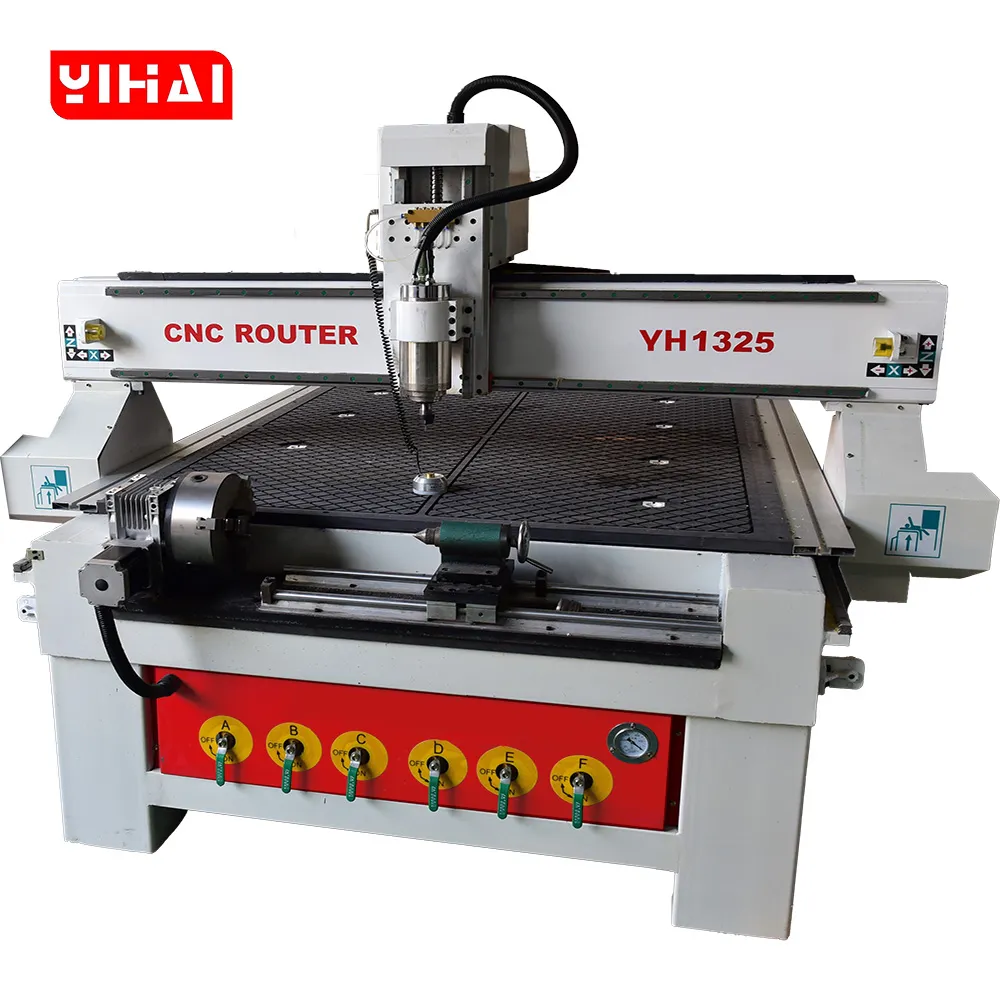

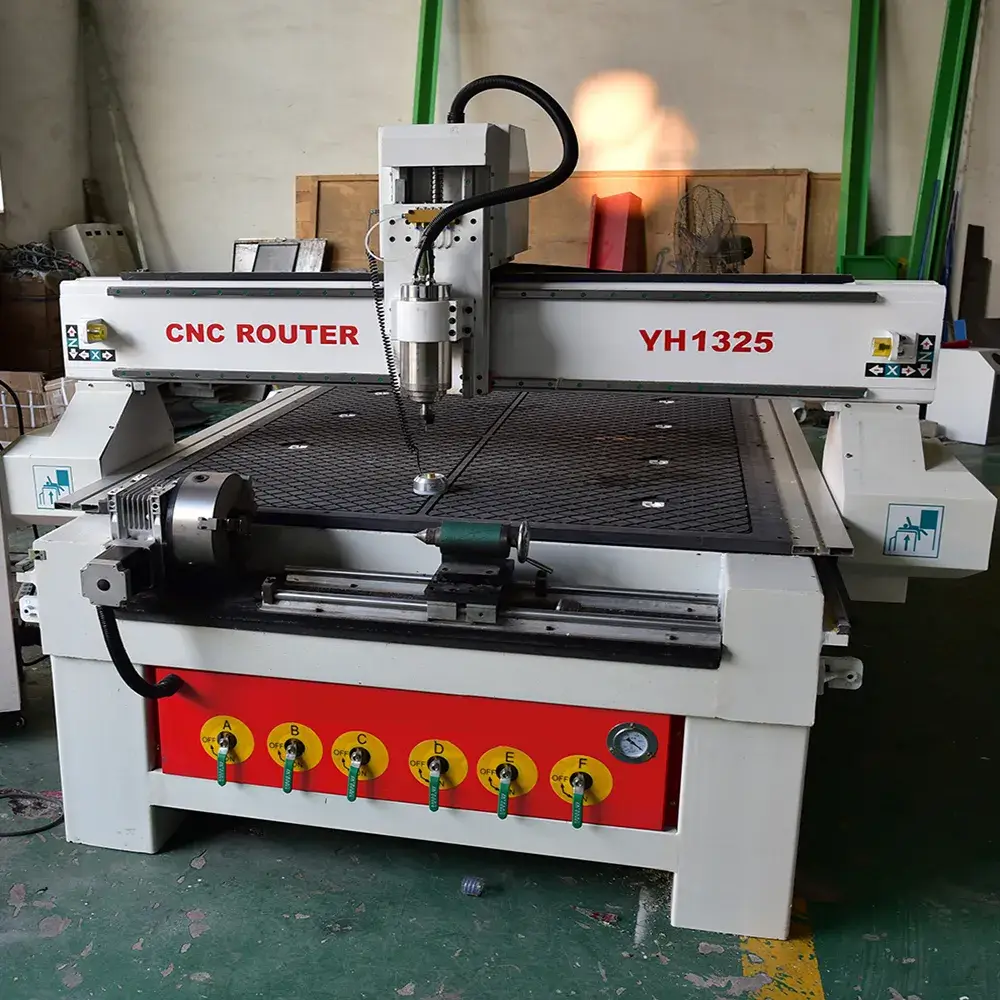

What is the YIHAICNC 1325 CNC Advertising Engraving Machine?

The YIHAICNC YH1325 is a professional-grade advertise CNC router specifically engineered for the advertising, signage, and decorative engraving industries. This versatile CNC wood router features an expansive working area of 1300mm × 2500mm × 200mm, perfectly accommodating standard 4ft × 8ft sheet materials commonly used in commercial sign production and advertising fabrication.

As a specialized advertise CNC router, this machine excels at processing diverse materials including acrylic sheets, PVC boards, wood panels, MDF, aluminum composite panels (ACP), foam boards, density boards, and soft metals. The integration of DSP handle control technology makes this CNC router machine accessible to operators of all skill levels while maintaining industrial-grade precision and reliability.

Machine Classification: 4-Axis CNC Wood Router (3-axis + external rotary) | Professional Advertise CNC Router | Model: YH1325 (With Rotary Axis)

This CNC engraving machine represents the ideal intersection of affordability and capability, delivering professional results for sign shops, advertising companies, woodworking businesses, and manufacturing facilities seeking reliable automated engraving and cutting solutions.

---

Core Advantages & Features of the 1325 CNC Wood Router

Advantage 1: True 4-Axis Capability with External Rotary Axis

The external X-axis rotary shaft (800mm working length) elevates this advertise CNC router beyond standard 3-axis limitations. This rotary axis attachment enables precise cylindrical engraving on round and curved surfaces including wooden columns, plastic pipes, aluminum tubes, decorative pillars, and rolled materials. The rotary axis expands your CNC router applications to include dimensional signage, architectural millwork, custom column engraving, and unique display elements that flat-bed CNC router machines cannot produce.

Whether you’re engraving intricate patterns on cylindrical sign posts or creating decorative fluting on wooden columns, the rotary axis provides consistent precision across the entire 800mm working length. This feature transforms the CNC wood router into a multi-dimensional production tool, significantly increasing your shop’s capabilities and revenue potential.

Advantage 2: Professional Vacuum Adsorption Processing Platform

The vacuum table system integrated into this CNC router machine provides superior workpiece holding compared to traditional clamp-based systems. The vacuum adsorption platform features a hybrid design combining vacuum zones with T-slot channels, offering maximum versatility for different material sizes and shapes.

Vacuum Table Benefits:

• Faster Setup: Load and secure materials in seconds without fumbling with multiple clamps
• Edge-to-Edge Machining: Process the entire sheet surface without obstruction from clamps
• Delicate Material Protection: Safely hold thin acrylic, foam board, and delicate materials without surface damage
• Enhanced Precision: Uniform holding pressure prevents material lifting during high-speed cutting
• Increased Productivity: Reduced setup time means more billable cutting hours per day

The T-slot combination allows secure mounting of fixtures, jigs, and specialized holding devices when processing non-flat materials or when the vacuum system isn’t optimal for specific applications. This flexibility makes the advertise CNC router adaptable to virtually any production requirement.

Advantage 3: Automatic Tool Setter for Consistent Precision

The integrated automatic tool setter (Z-axis tool length measurement system) eliminates manual tool measurement errors and dramatically reduces setup time between tool changes. This feature is essential for multi-tool operations common in advertising production where you might use different bit sizes for cutting, engraving, and detail work within a single project.

Tool Setter Advantages:

• Repeatable Accuracy: Achieve consistent cutting depth across all production runs
• Time Savings: Automatic tool length detection in seconds versus minutes of manual probing
• Reduced Scrap: Eliminate costly material waste from incorrect tool height settings
• Operator Safety: Minimize operator contact with sharp cutting tools during setup
• Professional Results: Maintain consistent engraving depth for uniform appearance

For sign shops running multiple jobs daily, the automatic tool setter provides measurable ROI through reduced setup time and improved first-piece accuracy. This CNC router feature transitions seamlessly between jobs with different tool requirements, maintaining production flow without quality compromises.

Advantage 4: Robust Vacuum & T-Slot Combination Frame

The machine frame construction utilizes a hybrid vacuum and T-slot combination design that provides exceptional rigidity while maintaining versatility. Heavy-duty welded steel construction ensures vibration-free operation even during high-speed cutting operations, critical for achieving clean edges on acrylic and maintaining dimensional accuracy on precision parts.

The frame design on this CNC wood router incorporates:

• Stress-relieved welded steel construction for long-term stability
• Precision-ground linear guide rails for smooth motion and extended life
• Integrated dust collection ports for cleaner operation
• Reinforced gantry design to minimize deflection during aggressive cutting
• Leveling feet for easy installation on any shop floor

This industrial-grade frame construction ensures your advertise CNC router will deliver consistent performance through years of demanding production use.

Advantage 5: User-Friendly DSP Handle Control System

The DSP (Digital Signal Processor) handle control system brings professional CNC router capability to an intuitive, easy-to-learn interface. Unlike computer-based controls that require dedicated workstations, the DSP controller operates as a standalone unit, allowing wireless operation from the machine or remote locations in your shop.

DSP Control Benefits:

• USB File Transfer: Load cutting files directly from USB drives without computer connection
• Offline Operation: Machine runs independently; free your computer for design work
• Intuitive Interface: Simple menu navigation with clear visual feedback
• Job Management: Store multiple programs in memory for quick job switching
• Real-time Control: Adjust feed rates and spindle speed during operation
• Pause & Resume: Stop mid-job for tool changes or inspections, then continue seamlessly

The DSP controller includes essential functions like feed rate override, spindle speed control, Z-axis probing, and emergency stop capabilities. For shops without dedicated CNC programmers, the DSP system dramatically reduces the learning curve while maintaining professional CNC router machine performance.

Advantage 6: Powerful 3KW Water-Cooled Spindle

The 3KW water-cooled spindle provides optimal power for advertising and sign making applications while maintaining whisper-quiet operation and extended tool life. Water cooling ensures consistent spindle temperature during extended production runs, eliminating thermal expansion issues that can affect cutting precision.

Spindle Performance Features:

• Speed Range: 0-24,000 RPM variable speed for optimal cutting parameters across different materials
• Quiet Operation: Water cooling reduces noise compared to air-cooled spindles
• Extended Life: Consistent cooling prevents premature bearing failure
• Clean Cuts: High RPM capability produces smooth edge finish on acrylic and plastics
• Tool Compatibility: Standard ER20 collet system accepts 3.175mm to 12.7mm shank tools

The spindle power rating at 3KW provides ample torque for thick material cutting while maintaining precise control for delicate engraving work. Whether you’re cutting 20mm acrylic letters or engraving fine detail on wooden plaques, this CNC wood router spindle delivers consistent performance.

Advantage 7: High-Precision Motion System

Precision is paramount in advertising production where dimensional accuracy directly impacts assembly fit and professional appearance. This CNC router machine achieves exceptional accuracy through carefully selected motion components:

Precision Specifications:

• Positioning Accuracy: ±0.05mm ensures parts fit together precisely
• Repeatability: 0.05mm guarantees consistent results across production runs
• Resolution: <0.03mm enables ultra-fine detail engraving

The motion system utilizes high-quality linear guide rails and precision ball screws driven by stepper or hybrid servo motors (customizable). This combination delivers smooth motion at speeds up to 20m/min travel rate and 15m/min processing speed, significantly reducing cycle times compared to slower machines.

Advantage 8: Flexible Power Configuration

The machine accommodates global power standards with 220V/380V customizable working voltage options. This flexibility ensures seamless integration into any shop’s existing electrical infrastructure without costly power conversion equipment.

Advantage 9: Comprehensive Control Software Compatibility

The CNC engraving machine supports industry-standard G-code programming, ensuring compatibility with popular CAD/CAM software packages used in sign making and advertising production. Generate toolpaths using your preferred design software, then transfer via USB to the DSP controller for execution.

Advantage 10: Manual/Automatic Lubrication System

Proper lubrication extends machine life and maintains precision. The integrated lubrication system (manual or automatic oiling device) ensures consistent lubrication of critical motion components, reducing maintenance requirements and preventing premature wear.

---

Technical Specifications

Feature	Specification
Type	Advertise CNC Router
Brand	YIHAICNC
Model	YH1325(With Rotary Axis)
Number of axes	4(Optional rotary axis Customizable)
Number of Spindles	Single(Customizable)
Total power	3KW(Customizable)
X, Y, Z, Working Area	1300*2500*200mm(Customizable)
Rotary Axis Working Length	800mm
Table size	2100*3500*1600mm(Customizable)
Precision (mm)	0.05
Positioning accuracy(mm)	0.05
Driver And Motor	Stepper/ Hybrid-servo/Servo(Customizable)
Frame	Vacuum/T-slot combination
Repeatability	0.05mm
Travel speed	20m/min
Processing speed	15m/min
Spindle Power	3.0KW water cooling spindle(Customizable)
Spindle Speed	0-24000rpm
Working Voltage	220V/380V (customizable)
Command Language	G Code
X, Y Resolution	＜0.03mm
Net Weight	1200KG
Lubrication System	Manual/Automatic Oiling Device

Standard Configuration Includes:

✓ 3KW Water-Cooled Spindle with ER20 Collet System

✓ External Rotary Axis (800mm working length)

✓ Automatic Tool Setter (Z-axis measurement system)

✓ Vacuum Adsorption Table with T-slot Combination

✓ DSP Handle Controller with USB Interface

✓ Stepper Motor Drive System (upgradeable to servo)

✓ Water Cooling System with Chiller

✓ Complete Tool Kit and Installation Hardware

✓ English Operation Manual

✓ Training Videos and Technical Support

Optional Upgrades Available:

• Servo motor system for enhanced speed and accuracy
• Multi-spindle configuration (2-head, 4-head, 6-head options)
• Automatic tool changer (ATC) system
• Dust collection system
• Larger working area customization
• Higher power spindle options (4.5KW, 5.5KW)

---

Applications of 1325 CNC Advertising Router

This versatile CNC wood router serves diverse industries and applications. Below are primary use cases with suggested image generation prompts for Google Gemini.

Application 1: Sign Making & Channel Letter Production

The 1325 CNC router excels at cutting dimensional letters, logos, and signage components from acrylic, PVC, and foam materials. The vacuum table holds thin sheet materials securely, while the precision spindle creates clean edges requiring minimal finishing. The large 1300×2500mm working area accommodates multiple letter sets in a single cutting operation, maximizing production efficiency for sign shops.

Application 2: Acrylic Display & Point-of-Purchase (POP) Manufacturing

Retail display manufacturers rely on this CNC engraving machine to produce acrylic display stands, product holders, menu boards, and POP materials. The machine cuts intricate shapes, engraves branding elements, and creates assembly slots with exceptional precision. The vacuum table prevents acrylic flexing during cutting, ensuring dimensional accuracy for parts that must fit together perfectly.

Application 3: Wooden Sign & Decorative Panel Engraving

This CNC wood router transforms raw wood panels into custom signs, decorative plaques, and architectural millwork. The 200mm Z-axis allows deep relief carving and 3D engraving effects. Whether producing rustic wooden business signs, memorial plaques, or decorative wall art, the machine delivers consistent quality across production runs.

Application 4: Cylindrical Engraving with Rotary Axis

The external rotary axis attachment enables cylindrical engraving on columns, posts, and tube materials. Applications include decorative column fluting, spiral engraving on wooden posts, logo application to cylindrical displays, and custom pipe marking. The 800mm rotary capacity handles substantial workpieces for architectural and decorative applications.

Application 5: Foam Board & Modeling Material Processing

The advertised CNC router processes foam board, PVC foam, and modeling materials for architectural models, exhibition displays, and theatrical sets. The high-speed spindle and precise motion control produce clean cuts in soft materials without compression or tearing. Vacuum holding is particularly effective for thin foam sheets.

Application 6: Cabinet Door & Furniture Component Production

Furniture manufacturers utilize this CNC wood router for cabinet door panel engraving, decorative inlays, hardware mounting holes, and edge profiling. The machine’s precision ensures consistent hinge placement and dimensional accuracy across large production runs. The rotary axis adds capability for turned furniture components like table legs and decorative spindles.

Application 7: Aluminum Composite Panel (ACP) Cutting

The 3KW spindle provides sufficient power for cutting aluminum composite panels used in outdoor signage, building facades, and architectural applications. Specialized tooling combined with the machine’s rigidity produces clean cuts without material delamination. The large bed accommodates full ACP sheets for efficient panel processing.

Application 8: MDF & Density Board Engraving

MDF and high-density fiberboard processing for decorative panels, interior design elements, and furniture components. The machine creates raised relief patterns, recessed designs, and complex 3D textures. Excellent for producing decorative wall panels, room dividers, and architectural ornaments.

---

FAQ

Q: What materials can this 1325 CNC router machine process?

A: This advertisement CNC router processes a wide range of materials, including:

• Plastics: Acrylic (PMMA), PVC, polycarbonate, ABS, HDPE
• Wood Products: Solid wood, plywood, MDF, particle board, density board, bamboo
• Composite Materials: Aluminum composite panels (ACP), fiberglass, carbon fiber laminate
• Foam Materials: PVC foam board, polyurethane foam, EPS foam, modeling foam
• Soft Metals: Aluminum, brass, copper (with appropriate tooling and parameters)
• Other: Rubber, leather, thick cardboard, Corian, solid surface materials

The 3KW water-cooled spindle provides sufficient power for most advertising and woodworking applications. For harder materials like metals, reduced feed rates and appropriate cutting tools are essential.

Q: Is this CNC wood router suitable for beginners, or does it require advanced programming skills?

A: The YIHAICNC 1325 is deliberately designed for accessibility across skill levels. The DSP handle control system uses an intuitive menu-driven interface that eliminates complex computer programming. Beginners can operate the machine after basic training, loading cut files from USB drives created in user-friendly CAM software.

For advanced users, the machine accepts standard G-code, allowing full customization of cutting parameters and toolpath strategies. We provide comprehensive training materials, including video tutorials, operation manuals, and technical support to ensure successful operation regardless of experience level.

Many customers transition from manual routing to CNC successfully with this advertised CNC router as their first automated machine.

Q: How does the vacuum table system work, and do I need an external vacuum pump?

A: The vacuum adsorption processing platform creates negative pressure zones that secure flat materials to the table surface. The system requires an external vacuum pump (typically 5.5KW or large,r depending on table coverage requirements).

The table surface features multiple vacuum zones that can be selectively activated based on material size, conserving pump capacity and maximizing holding force. The T-slot combination allows traditional clamping when vacuum isn’t suitable (for example, with porous materials or thick dimensional lumber).

We can recommend appropriate vacuum pump specifications based on your typical material types and sizes. Most customers find the vacuum system dramatically improves productivity versus clamp-based workholding.

Q: What is the external rotary axis used for, and is it difficult to set up?

A: The external X-axis rotary shaft enables cylindrical engraving on round and curved surfaces. Common applications include:

• Decorative column engraving and fluting
• Logo application to cylindrical display stands
• Spiral carving on wooden posts and railings
• Engraving on pipes, tubes, and cylindrical signs
• Creating decorative elements

Setup is straightforward: mount the cylindrical workpiece in the rotary chuck, align it parallel to the X-axis, and select rotary axis mode in the DSP controller. The controller automatically converts linear toolpaths to rotary motion. Most operators become proficient with rotary axis operation within a few hours of practice.

The 800mm rotary capacity accommodates substantial workpieces while maintaining precision across the entire length.

Q: How does the automatic tool setter improve productivity?

A: The automatic tool setter (Z-axis tool length measurement system) eliminates manual tool height measurement, saving several minutes per tool change while improving accuracy. When you install a new cutting tool, simply jog the spindle over the tool setter block and initiate the automatic probing cycle. The controller measures tool length and automatically adjusts the Z-axis zero position.

This feature is particularly valuable when running jobs requiring multiple tools (for example, a roughing bit, finishing bit, and engraving bit for a single sign). The tool setter ensures consistent cutting depth across all tools, eliminating test cuts and reducing material waste.

For production shops changing tools multiple times daily, the tool setter provides measurable time savings and improved first-piece accuracy.

Q: What type of spindle cooling system is included, and what maintenance is required?

A: The machine includes a 3KW water-cooled spindle with a dedicated water chiller unit. The closed-loop cooling system circulates coolant through the spindle housing, maintaining consistent operating temperature during extended production runs.

Maintenance requirements are minimal:

• Check coolant level weekly, top off as needed with distilled water or commercial coolant
• Inspect coolant hoses quarterly for cracks or leaks
• Clean chiller air filter monthly for optimal heat exchange
• Replace coolant annually or if contaminated

Water cooling provides superior temperature control compared to air-cooled spindles, extending bearing life and maintaining precision during long cutting operations. The system operates automatically once powered on, requiring no operator intervention during normal operation.

Q: Can I upgrade the machine later with additional features like a tool changer or additional spindles?

A: Yes, the 1325 CNC router platform supports several upgrade paths:

Available Upgrades:

• Automatic Tool Changer (ATC): Add a 6-position or 8-position tool magazine for unmanned tool changes
• Multi-Spindle Configuration: Upgrade to a 2-head, 4-head, or 6-head configuration for simultaneous duplication
• Servo Motor System: Upgrade from stepper motors to servo motors for increased speed and acceleration
• Larger Working Area: Table size can be customized to accommodate oversized materials
• Higher Power Spindle: Upgrade to 4.5KW or 5.5KW for cutting thicker or harder materials

Contact our technical team to discuss upgrade options compatible with your specific machine configuration. Many upgrades can be retrofitted to existing machines, protecting your investment as your production requirements evolve.

Q: What software is compatible with this CNC engraving machine?

A: The machine accepts standard G-code format, ensuring compatibility with virtually all professional CAD/CAM software packages. Popular software choices for sign-making and advertising production include:

• Type3 – Industry standard for sign making and engraving
• Aspire / VCarve – Popular among woodworkers and sign makers
• ArtCAM – Comprehensive 3D design and toolpath generation
• Fusion 360 – Professional CAD/CAM with powerful toolpath control
• Mach3/Mach4 – Alternative control software options
• CorelDRAW / Adobe Illustrator – For 2D design, exported to CAM software

The DSP controller reads G-code files from USB drives, eliminating the need for a direct computer connection during operation. This allows you to design at your desk computer while the machine runs independently in the production area.

We provide recommended CAM software guidance and parameter templates to accelerate your learning curve.

Q: How long does installation take, and what technical support is provided?

A: Installation typically requires 4-8 hours, depending on your facility preparation and technical experience. The machine ships partially assembled to minimize installation complexity.

The installation process includes:

1. Uncrating and positioning machine (requires forklift or pallet jack)
2. Connecting electrical power (220V or 380V depending on specification)
3. Installing the water cooling system and making connections
4. Mounting the DSP controller and making signal connections
5. Initial machine calibration and testing
6. Training on basic operation

YIHAICNC provides comprehensive support:

• Detailed English installation manual with photographs
• Video installation and operation tutorials
• Remote technical support via phone, email, and video chat
• Optional on-site installation and training (additional cost, availability varies by region)
• Lifetime technical support for troubleshooting and optimization

Most customers with basic mechanical skills successfully install and operate the machine with remote support. Our technical team remains available throughout your machine’s service life.

Q: What is the expected lifespan of this advertised CNC router, and what regular maintenance is required?

A: With proper maintenance, this industrial-grade CNC wood router will provide 10-15 years of reliable service. Regular maintenance ensures consistent performance:

Daily Maintenance (5 minutes):

• Clear chips and dust from the table surface and the machine enclosure
• Verify coolant level inthe  spindle chiller
• Visual inspection for loose fasteners or unusual wear

Weekly Maintenance (15-20 minutes):

• Clean linear guide rails and apply light machine oil
• Check belt tension and inspect for wear
• Clean dust from the electronic enclosure ventilation
• Verify vacuum system operation and clean filters

Monthly Maintenance (1 hour):

• Lubricate ball screws with appropriate grease
• Inspect electrical connections for looseness
• Check motor couplings and mounting bolts
• Clean or replace the vacuum pump filter
• Inspect cutting tools and replace worn bits

Annual Maintenance (2-3 hours):

• Replace coolant in the spindle system
• Deep clean the machine and re-lubricate all motion components
• Verify machine accuracy and recalibrate if needed
• Inspect wiring harnesses for damage
• Professional spindle bearing inspection (or replacement based on hours)

Adherence to this maintenance schedule ensures maximum machine lifespan and minimizes unexpected downtime. Replacement parts are readily available, and our technical support team can guide maintenance procedures.
