I. Features of the YH1290 CO2 Laser Engraving Machine

• The YH1290 CO2 Laser Engraving Machine features a generous 1200mm x 900mm working area, providing significantly more space for large-format sheet processing compared to the compact 6040 series.

• Equipped with an authentic Ruida RDC6442S control system, this machine offers professional-grade DSP logic for stable motion control and convenient offline operation via USB or network cable.

• The transmission system is built with genuine Taiwan HIWIN linear square rails combined with high-quality belt drives, ensuring superior mechanical rigidity and smooth travel even at high speeds.

• A high-performance 100W glass cavity sealed CO2 laser source is utilized, delivering a concentrated 10.6μm wavelength beam for efficient engraving and reliable cutting on various non-metallic substrates.

• The standard Honeycomb Worktable provides excellent support for flexible and small materials, while also allowing for efficient vacuum suction to hold the workpiece securely and reduce back-reflection.

• Motion is driven by a reliable Leadshine/Stepper Motor system, which has been fine-tuned to balance speed and torque for high-resolution engraving and consistent depth during cutting cycles.

• The machine adopts a simplified fixed-height structure (No Lifting Platform), which minimizes mechanical complexity and increases the overall structural stability for long-term industrial use.

• Integrated Air Assist functionality is ready to work with the included electromagnetic air pump, protecting the focus lens from smoke and preventing the material from catching fire during processing.

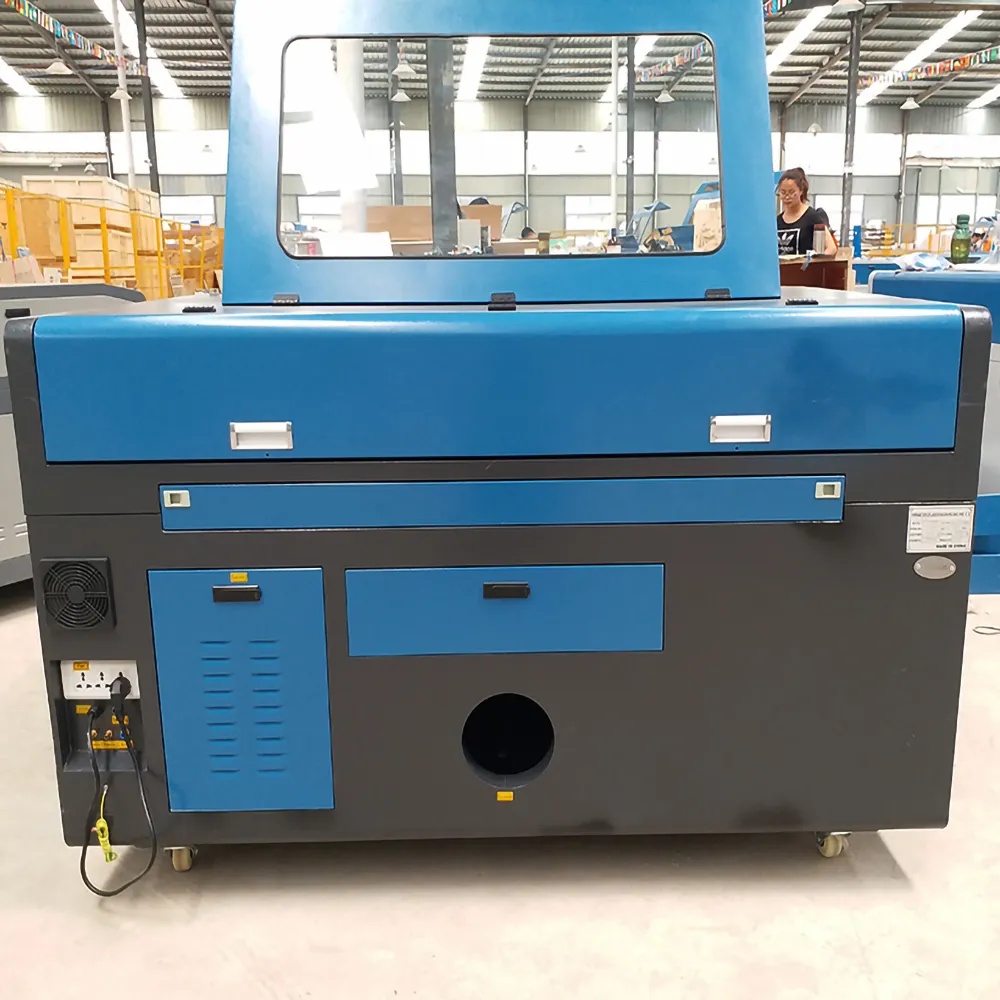

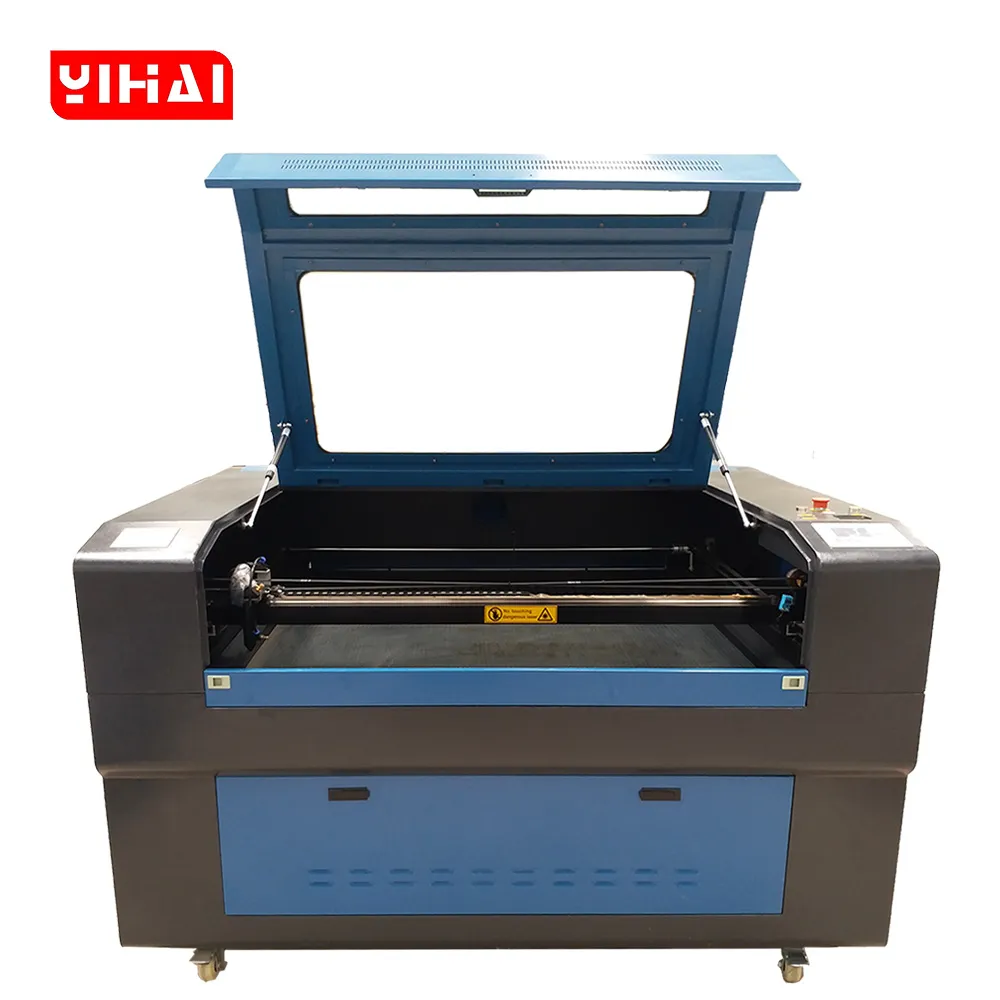

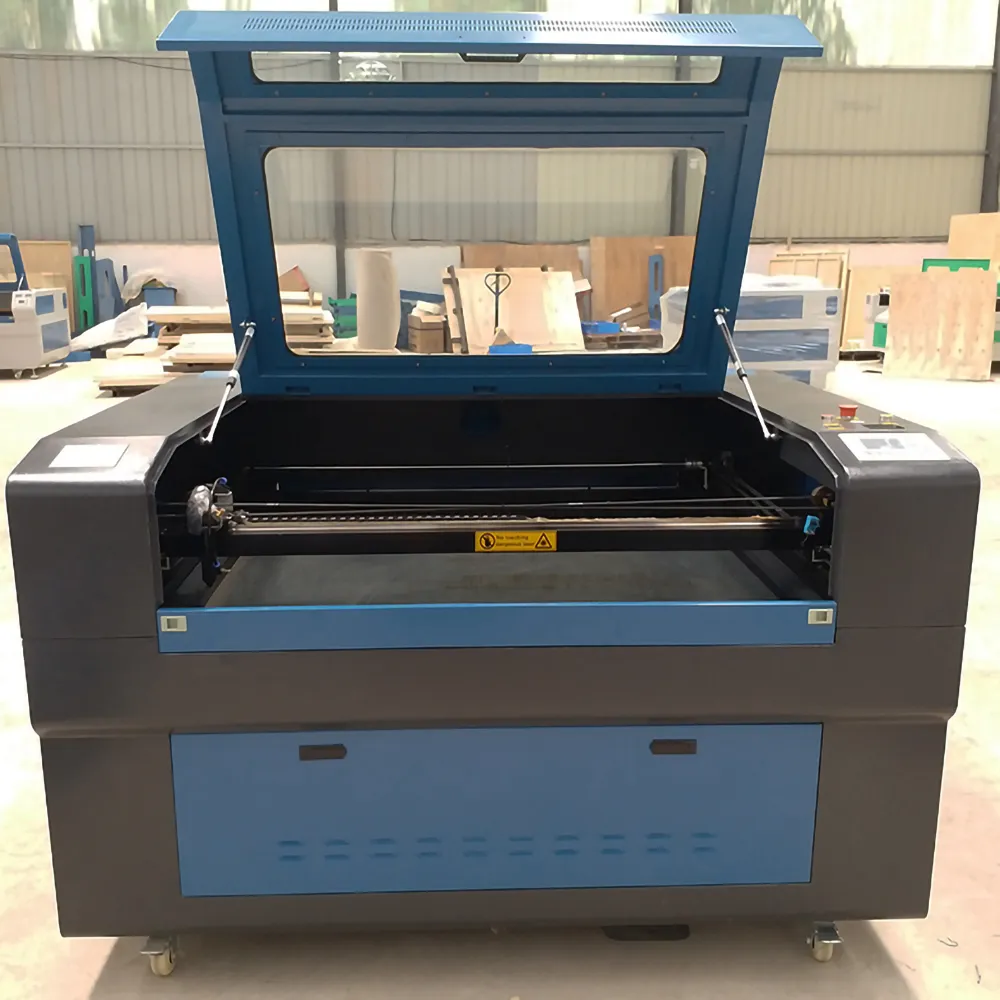

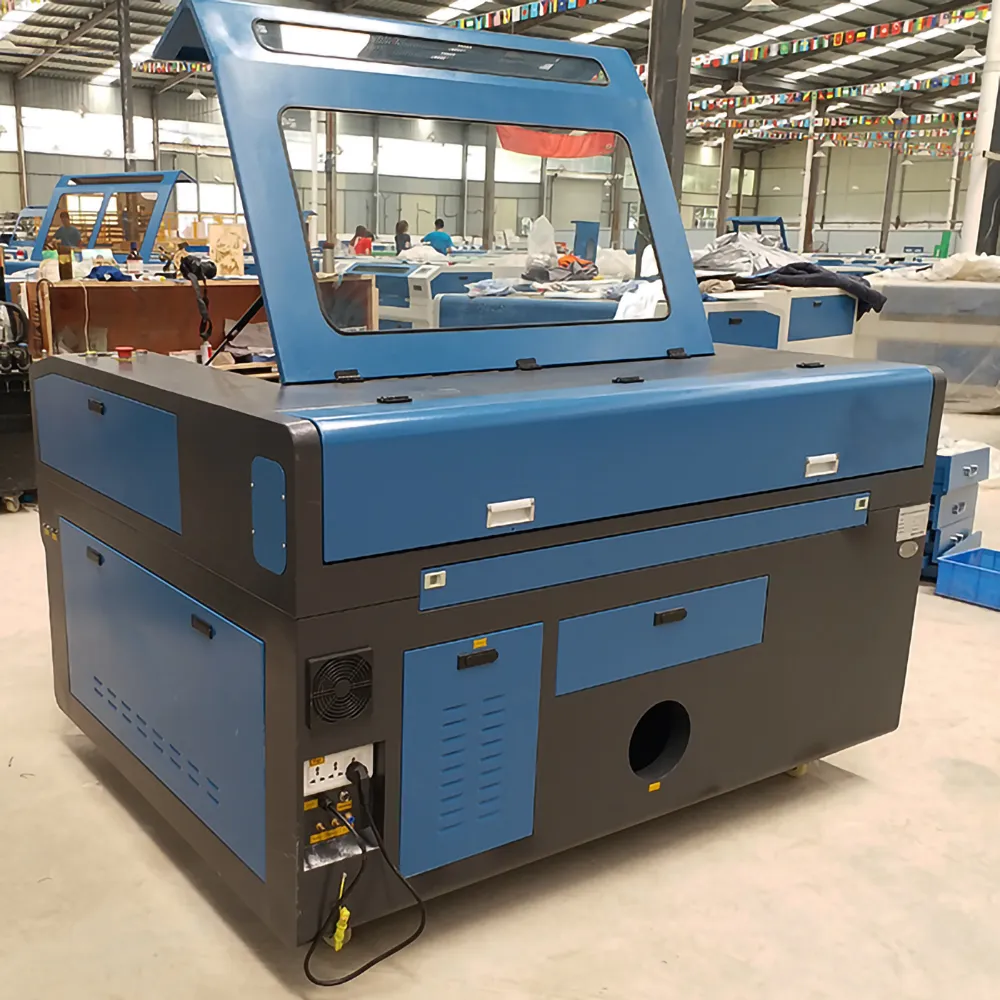

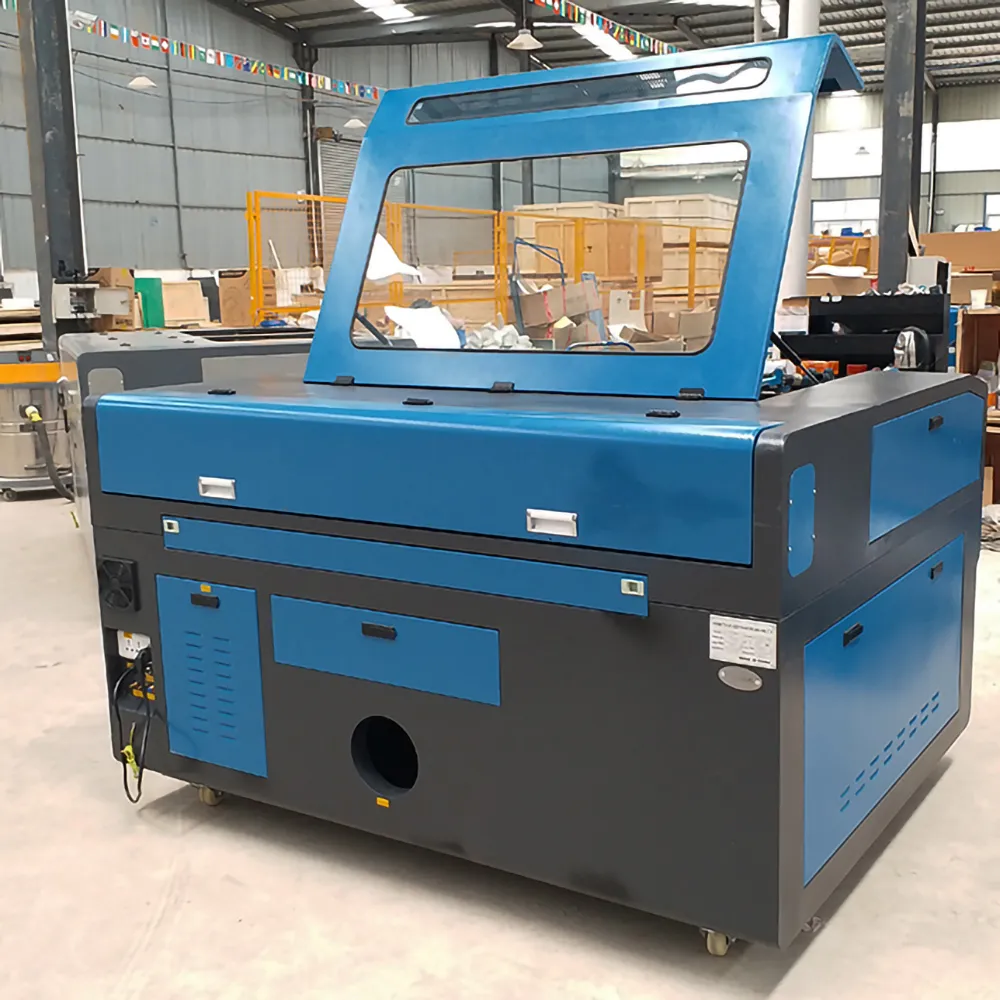

• The high-quality industrial design features a professional blue and black color scheme with a reinforced chassis to minimize vibrations during rapid axis movements and complex vector paths.

• Designed for affordability without sacrificing quality, the YH1290 includes a comprehensive accessory package featuring a CW3000 industrial chiller, a 550W exhaust fan, and an air compressor.

• The system offers exceptional positioning accuracy of 0.05mm and a repetition accuracy of 0.02mm, making it suitable for batch production in small-to-medium signage and craft workshops.

• This version supports manual focal adjustment, allowing the operator to quickly set the optimal distance for standard thickness materials without the need for an expensive motorized Z-axis.

II. Advantages of the YH1290 Laser System

• The primary advantage of the YH1290 CO2 Laser Engraving Machine is its exceptional cost-to-performance ratio, making professional large-format laser technology accessible to businesses with tight budgets.

• By upgrading to the 1200mm x 900mm format, users can process full-sized decorative panels and large acrylic sheets in one go, drastically improving productivity compared to smaller machines.

• Although this is a simplified version, it retains the same core industrial components—like HIWIN rails and Ruida controllers—found in YIHAICNC’s flagship models, ensuring industrial longevity.

• The absence of an internal lifting platform creates a much more robust and stable frame, which is an advantage for users who primarily cut standard-thickness woods and acrylics at high speeds.

• This machine doubles as a high-capacity CO2 Laser Cutting Machine, capable of slicing through 10mm or even 12mm thick acrylic and wood with the 100W laser power, provided the focal point is set.

• The Ruida RDC6442S interface is internationally recognized for its ease of use and compatibility with advanced software like LightBurn and RDWorks, making it easy to find tutorials and support.

• YIHAICNC offers full customization options; if your business grows, this model can be retrofitted or customized to include a motorized up-down table or even a CCD camera system in the future.

• The included CW3000 Chiller and Exhaust Blower ensure that the machine is ready for production immediately upon delivery, saving the customer the time and expense of sourcing auxiliary parts.

• The belt-driven system on HIWIN rails provides a quieter and more fluid motion compared to rack-and-pinion systems on smaller frames, resulting in sharper engraving corners and smoother curves.

• The simplified mechanical layout makes the YH1290 incredibly easy to maintain for first-time owners, with fewer moving parts that could potentially require calibration or technical troubleshooting.

• For advertising companies, the large bed allows for the creation of intricate, large-scale signage and channel letters that would be impossible on desktop-sized laser engravers.

• The 100W power output is the ideal “workhorse” wattage, offering a balance between fine marking detail on leather and the raw power required to cut through dense MDF and thick plastics.

III. Technical Parameters

Feature	Specification
Type	CO2 Laser Engraving Machine
Brand	YIHAICNC(YIHAI CNC)
Model	YH1290(Without Lifting Platform)
Laser source	Glass cavity sealed CO2 laser with a wavelength of 10.6μm
Laser Brand	SLW/YL/EFR/RECI/OtherBrand
Laser Power	100W(Customizable)
Total Power	＜2KW
Working Table	Honeycomb Worktable
Working Area	1200*900mm(Customizable)
Min Line Width	≤0.15mm
Positon Accuracy	0.05mm
Repetition Accuracy	0.02mm
Driving System	Stepper Motor
Guide Rail	Hiwin Square Rails
Transmission Method	Belt Transmission
Control System	Ruida RDC6442S(Customizable)
Operating Voltage	220v 50HZ-60HZ
Working Environment	Temperature 0-45°C Humidity 5%-95% (no condensation)
Graphic format support	PLT, DXF, BMP, JPG, AI
Option	Rotary Device Up-down Worktable Auto Focus CCD Camera Honeycomb Table Servo Motor

IV. Key Components Description

The YH1290 CO2 Laser Engraving Machine is optimized for a vast array of non-metallic materials. It delivers outstanding results on wood, acrylic, bamboo, and MDF. For the garment and fashion sectors, it handles leather, fabric, and felt with precision. It is also suitable for engraving on glass, stone, and ceramics. Additionally, it can process rubber, paper, cardstock, and various industrial plastics, providing a versatile solution for all non-metal processing needs.

VI. Applicable Industries and Future Prospects

The Advertising and Signage Industry remains the largest market for the YH1290. Sign makers require the 1200x900mm area to produce large acrylic logos, LED channel letter faces, and office directory boards. The precision of the CO2 Laser Engraving Machine allows for intricate fonts and logos to be etched with professional clarity. As businesses continue to invest in physical branding and sophisticated indoor displays, the demand for reliable, large-format laser tools is projected to grow steadily through 2026.

The Arts, Crafts, and Gift Industry also benefits from the YH1290’s large bed. Artisans can nest dozens of small items—like Christmas ornaments or personalized keychains—onto a single sheet of plywood, maximizing material usage and reducing labor time. The capability to handle bulk orders is essential for small shops looking to scale their operations. Future prospects in this sector include on-demand, hyper-personalized home decor, which requires the flexibility that a 100W laser provides.

In the Packaging and Prototyping Sector, designers use the YH1290 to quickly cut cardboard and foam prototypes. This allows for rapid iteration of product designs without the high cost of traditional tooling. As e-commerce continues to drive the need for custom, sustainable packaging solutions, small-to-medium businesses are increasingly bringing laser cutting in-house to create branded, eco-friendly boxes and inserts.

Finally, the Educational and DIY Maker Movement is a significant growth area. Schools and community workshops need robust machines that are easy to understand but capable of professional output. The simplified design of the YH1290 makes it a durable choice for environments where multiple users will operate the machine. Its future prospects are tied to the increasing integration of digital manufacturing in the creative arts and technical education global markets.

VII. Safety Precautions and Guidelines

• Laser Safety: Always wear 10.6μm wavelength protective goggles. The laser beam is invisible and can cause immediate, permanent eye injury.

• Ventilation: Never operate the machine without the exhaust fan running. Burning materials like acrylic or MDF releases harmful fumes that must be vented outside.

• Water Cooling: Always check that the CW3000 chiller is operational and water is flowing before firing the laser. Running without cooling will crack the laser tube.

• Fire Hazard: Never leave the machine unattended while cutting. Keep a fire extinguisher nearby, as wood and acrylic can ignite if the air assist fails.

• Material Restriction: Do not process PVC or Vinyl. These materials release lethal chlorine gas and corrosive acid when cut by a laser, damaging both the operator and the machine.

VIII. Frequently Asked Questions (FAQ)

Q1: Why should I choose the YH1290 over the smaller 6040 series if my budget is tight?

The main reason to choose the YH1290 is the “Production Scale.” While a 6040 is great for small crafts, the 1200x900mm bed of the CO2 Laser Engraving Machine allows you to process full-sized material sheets. This reduces the time you spend cutting down large sheets to fit into a small machine, which is a major labor bottleneck. Additionally, the 100W power of the YH1290 is much more effective as a CO2 Laser Cutting Machine, allowing you to cut through thicker materials faster than a 40W or 60W unit. Investing in the larger format now prevents you from needing to buy a second machine just six months later as your business grows.

Q2: Since this model has no lifting platform, how do I process materials of different thicknesses?

The YH1290 is designed for high-efficiency processing of flat sheets. To accommodate different thicknesses, the laser head itself has a manual adjustment range. You simply loosen the thumb screws on the laser head and move the lens tube up or down to find the correct focal point on your material’s surface. For standard thicknesses like 3mm, 5mm, or 10mm, this manual adjustment is very quick. If you occasionally need to process very thick items, you can also create custom “jigs” or spacers to raise the material. This simplified approach makes the machine much more stable and affordable for users who focus on sheet cutting.

Q3: Is the Ruida RDC6442S controller compatible with professional design software?

Yes, the Ruida RDC6442S is one of the most widely supported controllers in the world. It is perfectly compatible with LightBurn, which is currently the most popular software for laser operators globally. It also comes with RDWorks V8 for free. You can design your files in AutoCAD, CorelDRAW, or Adobe Illustrator and export them directly to the machine via the RDWorks plugin. This compatibility ensures that you have access to professional-level features like path optimization, engraving arrays, and layer-based power management, which are essential for running a profitable small business.

Q4: What is the benefit of the HIWIN square rails compared to round rails or wheels?

YIHAICNC uses genuine Taiwan HIWIN square linear rails because they provide much higher precision and load-bearing capacity. Round rails or V-slot wheels are cheaper but tend to develop “play” or vibration over time, which causes wavy lines in your engraving. The square rail design uses a recirculating ball system that provides a very low coefficient of friction and zero gap. This ensures that the laser head moves with absolute stability, allowing for a position accuracy of 0.05mm. For a 1290-sized bed, this mechanical stability is crucial to ensure the cutting quality is identical in all four corners of the work area.

Q5: How difficult is it to maintain the YH1290 for a first-time owner?

The YH1290 is one of our easiest machines to maintain because of its simplified “No-Lift” design. Regular maintenance involves three simple tasks: daily cleaning of the three reflective mirrors and the focal lens with alcohol, weekly replacement of the distilled water in your chiller (or as needed based on the CW3000 temperature reading), and monthly lubrication of the HIWIN rails. Because there is no complex motorized lifting mechanism or secondary Z-axis to worry about, the potential for mechanical failure is greatly reduced. Our technical support team at YIHAICNC also provides video guides to walk you through these basic steps.

Q6: What is included in the standard shipping package for the YH1290?

We offer a “Ready-to-Work” package to ensure you have everything needed for success. When you purchase the YH1290 CO2 Laser Engraving Machine, you receive the machine itself, a genuine CW3000 Industrial Chiller to protect your laser tube, a high-output Electromagnetic Air Pump for the air assist system, and a 550W Exhaust Fan with flexible ducting to remove smoke. We also include a basic toolkit for alignment and maintenance. This complete package ensures that you won’t have any hidden costs after the machine arrives, allowing you to set up and start generating revenue for your small business on the very first day.
